Pico Technology Probes - Overview

Depending on the model, recommended for PicoScope oscilloscopes and other brands.

Overview Pico Technology Passive Probes

Model Overview

Model	Attenuation	Bandwidth	Input impedance	Voltage	Cable length	Remarks
▸TA061	10:1	1.5 GHz	500 Ω/2 pF	12 V DC incl. AC peak	1.3 m	SMA connector
▸TA062	10:1	1.5 GHz	500 Ω/2 pF	12 V DC incl. AC peak	1.3 m	BNC connector
▸TA375	1:1; 10:1	10 MHz; 100 MHz	1 MΩ/57 pF; 10 MΩ/15 pF	42.4 V_pk; 600 V_pk	1.2 m	Rise time 35 ns/3.5 ns; BNC connector
▸TA386	1:1; 10:1	10 MHz; 200 MHz	1 MΩ/57 pF; 10 MΩ/15 pF	42.4 V_pk; 600 V_pk	1.2 m	Rise time 35 ns/3.5 ns; BNC connector
▸TA436	10:1	300 MHz	10 MΩ/9.5 pF	300 V_RMS CAT II	1.3 m	Rise time 1 ns; BNC connector; TS436 single pack, TA479 dual pack
▸TA479	10:1	300 MHz	10 MΩ/9.5 pF	300 V_RMS CAT II	1.3 m
▸TA437	10:1	500 MHz	10 MΩ/9.5 pF	300 V_RMS CAT II	1.3 m	Rise time 1 ns; BNC connector; TS437 single pack, TA480 dual pack
▸TA480	10:1	500 MHz	10 MΩ/9.5 pF	300 V_RMS CAT II	1.3 m
▸TA536	1:1; 10:1	10 MHz; 350 MHz	1 MΩ/57 pF; 10 MΩ/15 pF	42.4 V_pk; 600 V_pk	1.2 m	Rise time 35 ns/1 ns; BNC connector
▸TA562	10:1	500 MHz	10 MΩ/9 pF	300 V CAT II	1.2 m	Rise time 700 ps; BNC connector; dual pack
▸PicoConnect 911/TA274	20:1	>4 GHz	960 Ω/0.3 pF typ., 0.4 pF max.	AC coupled	60 cm	Transition time <87.5 ps; SMA(f) connector
▸PicoConnect 912/TA275	20:1	>4 GHz	960 Ω/0.3 pF typ., 0.4 pF max.	DC coupled	60 cm	Transition time <87.5 ps; SMA(f) connector
▸PicoConnect 913/TA278	10:1	>4 GHz	440 Ω/0.3 pF typ., 0.4 pF max.	AC coupled	60 cm	Transition time <87.5 ps; SMA(f) connector
▸PicoConnect 914/TA279	10:1	>4 GHz	440 Ω/0.3 pF typ., 0.4 pF max.	DC coupled	60 cm	Transition time <87.5 ps; SMA(f) connector
▸PicoConnect 915/TA282	5:1	>5 GHz	230 Ω/0.3 pF typ., 0.4 pF max.	AC coupled	60 cm	Transition time <70 ps; SMA(f) connector
▸PicoConnect 916/TA283	5:1	>5 GHz	230 Ω/0.3 pF typ., 0.4 pF max.	DC coupled	60 cm	Transition time <70 ps; SMA(f) connector
▸PicoConnect 910Kit/PQ067	Kit, all six 4 to 5 GHz RF, microwave and pulse probe head models with cable
▸PicoConnect 921/TA272	20:1	>6 GHz	515 Ω/0.3 pF typ., 0.4 pF max.	AC coupled	60 cm	Transition time <58.3 ps; SMA(f) connector
▸PicoConnect 922/TA273	20:1	>6 GHz	515 Ω/0.3 pF typ., 0.4 pF max.	DC coupled	60 cm	Transition time <58.3 ps; SMA(f) connector
▸PicoConnect 923/TA276	10:1	>7 GHz	250 Ω/0.3 pF typ., 0.4 pF max.	AC coupled	60 cm	Transition time <50 ps; SMA(f) connector
▸PicoConnect 924/TA277	10:1	>7 GHz	250 Ω/0.3 pF typ., 0.4 pF max.	DC coupled	60 cm	Transition time <50 ps; SMA(f) connector
▸PicoConnect 925/TA280	5:1	>9 GHz	220 Ω/0.3 pF typ., 0.4 pF max.	AC coupled	60 cm	Transition time <38.8 ps; SMA(f) connector
▸PicoConnect 926/TA281	5:1	>9 GHz	220 Ω/0.3 pF typ., 0.4 pF max.	DC coupled	60 cm	Transition time <38.8 ps; SMA(f) connector
▸PicoConnect 920Kit/PQ066	Kit, all six 6 to 9 GHz gigabit probe head models

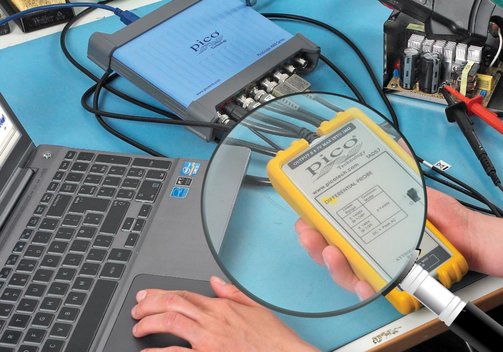

Overview Pico Technology Active Probes - Single-Ended and Differential

Model Overview

Model	Type	Bandwidth	Attenuation	More specifications
▸A3076/PQ265	Single-ended	750 MHz	10:1	Input characteristics 1 MΩ\|\|0.9 pF; measurable voltage window ±15 V (DC + AC peak); max. nondestructive input voltage ±30 V (DC + AC peak); power supply through Pico Intelligent Probe Interface
▸A3136/PQ254	Single-ended	1.3 GHz	10:1	Input characteristics 1 MΩ\|\|0.9 pF; measurable voltage window ±15 V (DC + AC peak); max. nondestructive input voltage ±30 V (DC + AC peak); power supply through Pico Intelligent Probe Interface
▸Tetris 1000/TA112	Single-ended	1 GHz	10:1	Input impedance 1 MΩ\|\|0.9 pF; max. input voltage 20 V; external power supply included
▸Tetris 1500/TA222	Single-ended	1.5 GHz	10:1	Input impedance 1 MΩ\|\|0.9 pF; max. input voltage 20 V; external power supply included
▸Tetris 2500/TA223	Single-ended	2.5 GHz	10:1	Input impedance 1 MΩ\|\|0.9 pF; max. input voltage 20 V; external power supply included
▸TA041	Differential, HV	25 MHz	10:1/100:1	Rise time 14 ns; input impedance 4 MΩ\|\|5.5 pF each side to ground; CMRR typ. 86 dB at 50 Hz/66 dB at 20 kHz; abs. max. voltage (diff. or common-mode) ±1400 V (DC + peak AC)/1000 V_RMS CAT III; power supply: USB-type external supply, or battery
▸TA042	Differential, HV	100 MHz	100:1/1000:1	Rise time 3.5 ns; input impedance 4 MΩ\|\|7 pF each side to ground; CMRR typ. 80 dB at 60 Hz/50 dB at 1 MHz; abs. max. voltage (diff. or common-mode) ±1400 V (DC + peak AC)/1000 V_RMS CAT III; power supply: USB-type external supply, or battery
▸TA043	Differential, HV	100 MHz	10:1/100:1	Input impedance 4 MΩ\|\|7 pF each side to ground; CMRR typ. 85 dB at 50 Hz/55 dB at 1 MHz; abs. max. voltage (diff. or common-mode) 1000 V_RMS CAT III (10:1 and 100:1); power supply: External main adaptor, or battery
▸TA044	Differential, HV	70 MHz	100:1/1000:1	Input impedance 10 MΩ\|\|10 pF each side to ground; CMRR typ. 80 dB at 60 Hz/50 dB at 1 MHz; abs. max. voltage (common-mode) ±7000 V (DC + peak AC)/2500 V_RMS; power supply: USB-type external supply, or battery
▸TA057	Differential, HV	25 MHz	20:1/200:2	Rise time 14 ns; input impedance 4 MΩ\|\|5.5 pF each side to ground; CMRR typ. 80 dB at 50 Hz/60 dB at 20 kHz; max. voltage (on either terminal to ground, or between terminals) ±1400 V (DC + peak AC)/1000 V_RMS CAT III; power supply: USB-type external supply, battery, or optional power leads
▸TA058	Differential	50 MHz	10:1	Rise time <7 ns; input impedance 1.6 MΩ\|\|7 pF each side to ground; CMRR typ. 95 dB at 60 Hz/60 dB at 1 MHz; abs. max. voltage (either input to ground) ±700 V (DC + Peak AC)/600 V_RMS; power supply: Mains adaptor, battery pack, or power leads
▸AD2201/TA488	Differential	200 MHz	10:1	Rise time 1.75 ns; input impedance 500 kΩ\|\|7 pF each side to ground; CMRR typ. 80 dB at 60 Hz/50 dB at 10 MHz; abs. max. voltage (either input to ground) ±60 V; power supply: USB-type external supply, or battery
▸AD2801/TA489	Differential	800 MHz	10:1	Input impedance 100 kΩ\|\|2 pF; CMRR typ. 60 dB at 60 Hz/15 dB at 500 MHz; abs. max. voltage ±40 V; power supply: USB-type external supply, or battery
▸PicoConnect 441/PQ098	Differential	15 MHz	1:1	Exclusive accessories only for the PicoScope 4444
▸PicoConnect 442/PQ087	Differential	10 MHz	25:2	Exclusive accessories only for the PicoScope 4444

Overview Pico Technology Current Probes

Model Overview

Model	Type	Current	Frequency range	Conductor diameter	More specifications
▸TA018	Clamp, AC/DC	Input ranges (DC) low (1 mV/10 mA): 10 mA...20 A; high (1 mV/100 mA): 100 mA...60 A; input ranges (AC RMS) low (1 mV/10 mA): 10 mA...20 A; high (1 mV/100 mA): 100 mA...60 A	AC frequency range up to 20 kHz	9 mm	Power supply: Battery
▸TA019	Clamp, AC/DC	Measures up to 600 A AC or DC	50...400 Hz	30 mm	Power supply: Battery; PicoAutomotive product
▸TA167	Clamp, AC/DC	Nominal current 2000 A (AC peak or DC); measuring range(s) 200 A/2000 A	DC...20 kHz (–1 dB)	32 mm	Power supply: Battery
▸TA189	Clamp, AC/DC	Nominal current 30 A (AC peak or DC; measuring range 30 A	DC...100 kHz (0.5 dB)	25 mm	Power supply: Battery
▸TA325	Flexy loop, Rogowski, AC, 3-phase	Measuring ranges 30 A/300 A/3000 A (AC)	10 Hz...20 kHz (–1 dB)	Probe length 610 mm, double-insulated; probe diameter 9.9 mm	Power supply: Battery or external power
▸TA326	Flexy loop, Rogowski, AC	Measuring ranges 30 A/300 A/3000 A (AC)	10 Hz...20 kHz (–1 dB)	Probe length 610 mm, double-insulated; probe diameter 9.9 mm	Power supply: Battery or external power
▸PicoBNC+ TA388	Clamp, AC/DC	Working current range ±2000 A (DC or AC peak); overload current 2200 ADC (for one minute); max. voltage and CAT ratings 300 V	DC...20 kHz (–1 dB)	32 mm	Power supply from scope through PicoBNC+ interface; PicoAutomotive product
▸PicoBNC+ TA496	Clamp, AC/DC	Current measurement ranges ±10 A peak, ±60 A peak	DC...40 kHz (-3 dB)	9 mm	Power supply from scope through PicoBNC+ interface; PicoAutomotive product
▸PicoBNC+ TA473	Clamp, AC/DC	Working current range ±60 A (DC or AC peak); overload current 100 ADC (for one minute); max. voltage 150 V	DC...20 kHz (–1 dB)	12 mm	Power supply from scope through PicoBNC+ interface; PicoAutomotive product
▸PicoBNC+ TA408	Clamp, AC/DC	Current measurement ranges 100 A (DC or AC peak); overload capability 500 ADC (for one minute)	DC...10 kHz (-0.5 dB)	32 mm	Power supply from scope through PicoBNC+ interface; PicoAutomotive product
▸TA300	Clamp, AC/DC	Nominal current 40 A (AC peak or DC); measuring range 40 A	DC...100 kHz (0.5 dB)	25 mm	Exclusive accessories only for the PicoScope 4444; power supply through PicoScope 4444
▸TA301	Clamp, AC/DC	Nominal current 2000 A (AC peak or DC); measuring ranges 200 A/2000 A	DC...20 kHz (–1 dB)	32 mm	Exclusive accessories only for the PicoScope 4444; power supply through PicoScope 4444
▸TA368	Flexy loop, Rogowski, AC	Measuring range 2000 AAC	10 Hz...20 kHz (–1 dB)	Probe length 610 mm, double-insulated; probe diameter 9.9 mm	Exclusive accessories only for the PicoScope 4444; power supply through PicoScope 4444
