PicoScope 4823 - 8-Channel Automotive Scope, 20 MHz, 12 bit

new
PicoScope 4823 automotive, 8 channels, 20 MHz, 12 bit
additional images:
Price
starting 1.955,00*
starting € 2.326,45 brutto
* excluding VAT free shipping (Germany)
Quantity:
Total
Unit price
base price
Stock:
Delivery time
Description

Benefits

  • High-speed, high-resolution, 8-channel automotive scope.
  • CAN, CAN FD, FlexRay serial trigger and decode.
  • Fully supported by the versatile Pico Automotive software.

PicoScope 4823 - 8-Channel Automotive Scope, 20 MHz, 12 bit.

The PicoScope 4823 is a high-speed, high-resolution, 8-channel automotive oscilloscope. It is fast enough for CAN, CAN FD, and FlexRay including serial data decoding. It is ready-configured for automotive probes and includes more than 150 guided tests, plus access to thousands of comparisons in the Pico waveform library. The PicoScope 4823 sample rate is max. 80 MS/s, the resolution is 12 bit, the bandwidth 20 MHz and the buffer memory depth 256 MS. The PicoScope 4823 has a SuperSpeed USB 3.0 interface and an integrated arbitrary waveform generator. The device is available as a scope-only option, or in a Professional Kit with accessories.

  • 8 channels in a common-ground configuration.
  • Maximum input range 50 V; protected to 100 V.
  • Sample rate max. 80 MS/s (10 MS/s if using all 8 channels).

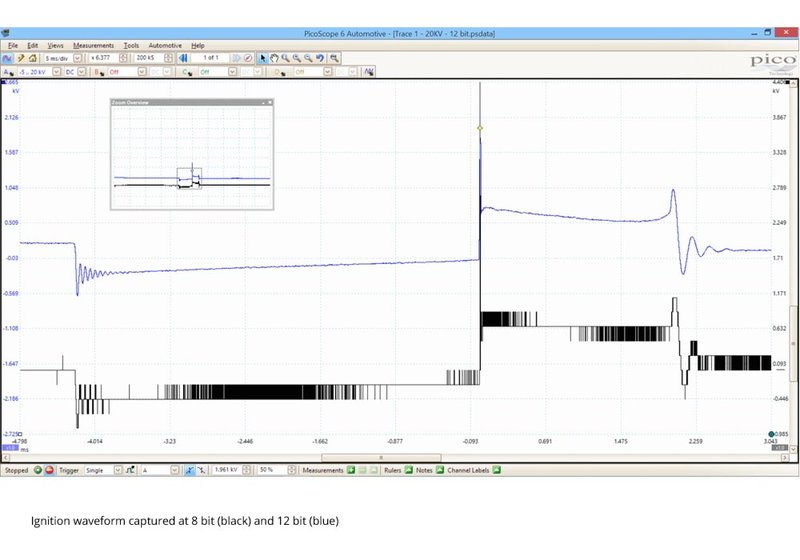

  • 12-bit resolution, 20 MHz bandwidth.

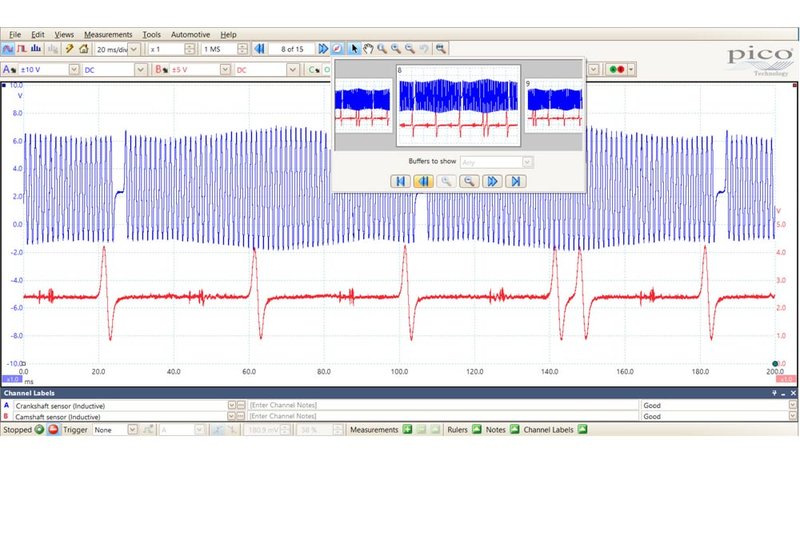

  • 256 MS buffer memory.

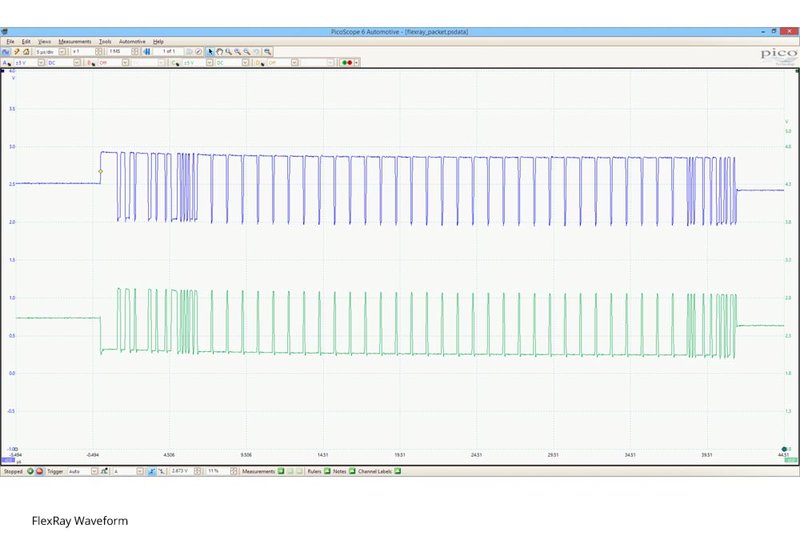

  • Serial decoding for CAN, CAN FD, FlexRay.
  • Supported by the PicoScope Automotive software.
  • Integrated arbitrary waveform generator.
  • USB 3.0 SuperSpeed.

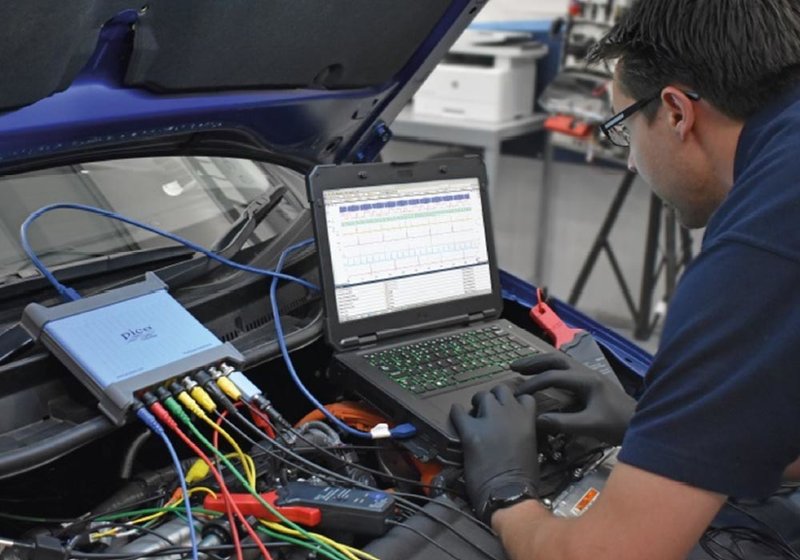

Why an Automotive Scope With More Than 4 Channels?

There are certain applications that require 6 and more channels like for example:

  • V6/V8 cam timing (4/6 cams plus crank, and sometimes a WPS), and VVT timing systems.
  • Trucks, construction and agriculture equipment where technicians require a mix of electrical and hydraulic measurements on multiple valves simultaneously to diagnose problems with system interaction.
  • Full system diagnosis on components (including power, ground, signals, current).
  • General engine diagnostics.

Model Overview

ModelOdering codeDescription
PicoScope 4823PQ1858-channel automotive scope; scope only

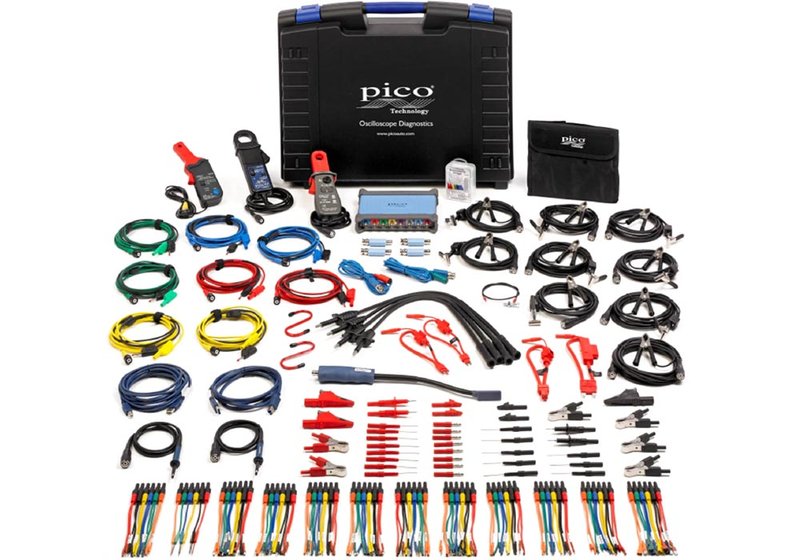

PicoScope 4823 Professional KitPQ184Professional kit; including:
MI074Secondary ignition pickup (automotive test lead)8
MI121Cable: USB2, 4.5 m1
MI168"S" hook2
PA038Telescopic pack: 45 x 45 length 80...120 mm2
PA1476 pocket roll up pouch in black, Pico branded1
PA186Carry case: Heavy duty PS48231
PR361PS4823 8 channel, 20 MHz, 80 MS/s, USB 3.0 automotive scope1
TA001Multimeter style test probe (black)2
TA002Multimeter style test probe (red)2
TA003Small crocodile clip (black)2
TA004Small crocodile clip (red)2
TA005Dolphin clip 1000 V CATIII (black)2
TA006Dolphin clip 1000 V CAT III (red)2
TA008Electronics acupuncture probes1
TA0174 mm shrouded to unshrouded adaptor red8
TA01860 ADC current clamp with BNC connector1
TA033Lead: BNC to BNC with earth clamp1
TA034Breakout lead for ATC style fuses1
TA035Extension lead for mini style fuses1
TA037HT extension test lead4
TA106Earth wire for coil pack 45 cm long1
TA125Premium test lead: 3M BNC to 4 mm blue permanent ground2
TA126Premium test lead: 3M BNC to 4 mm red permanent ground2
TA127Premium test lead: 3M BNC to 4 mm green permanent ground2
TA128Premium test lead: 3M BNC to 4 mm yellow permanent ground2
TA155Cable: USB 3.0 blue, 1.8 m1
TA157Battery clip 4 mm socket (red)2
TA158Battery clip 4 mm socket (black)4
TA161Flexible back pinning probe black8
TA162Flexible back pinning probe red8
TA167Precision 2000 A/200 A current clamp, BNC1
TA168Extension lead for JCASE fuse1
TA197Divide by 10 attenuator4
TA204Insulated COP and signal probe1
TA206Extension lead for maxi style fuses1
TA234Current clamp: 30 A1
TA324Premium 6-way breakout lead set1
TA329Ultrasonic parking sensor detector1
TA330Keyless entry detector1
TA375Oscilloscope probe: 1:1/10:1 switchable 100 MHz, BNC2

Key Specifications at a Glance

Oscilloscope
Channels8
Vertical resolution12 bit (up to 16 bit in enhanced resolution mode)
DC accuracy±1% of full scale ±300µV
Input sensitivity2 mV/Div...10 V/Div (10 vertical divisions)
Input ranges (full scale)±10 mV...±50 V in 12 ranges
Input characteristics1 MΩ in parallel with 19 pF
Input typeBNC
Input couplingSoftware selectable AC/DC
Input overvoltage protection±100 V (DC + AC peak)
Buffer memory256 MS shared between active channels
Timebase ranges20 ns/Div...5000 s/Div
Bandwidth (-3 dB)20 MHz;
10 MHz (10 mV and 20 mV ranges)
Maximum sampling rate (real time)1...4 channels in use: 80 MS/s; 5...8 channels in use: 40 MS/s
Maximum samling rate (continuous streaming mode)20 MS/s using PicoScope 6 software; 80 MS/s per channel using supplied API, 160 MS/s total across all channels (PC-dependent)
Analog offset range (vertical position adjustment)±250 mV (10 mV to 500 mV ranges); ±2.5 V (1 V to 5 V ranges); ±25 V (10 V to 50 V ranges)
Signal generator
Standard output signalsSine, square, triangle, DC voltage, ramp, sinc, Gaussian, half-sine, white noise, PRBS
Standard signal frequencyDC...1 MHz
Sweep modesUp, down, dual
TriggeringCan trigger a counted number of waveform cycles or sweeps (up to 1 billion) from the scope trigger or manually from software.
Frequency accuracy±20 ppm
Frequency resolution<20 mHz
Voltage range±2 V
Amplitude and offset adjustmentSignal amplitude and offset within ±2 V range.
DC accuracy±1% of full scale

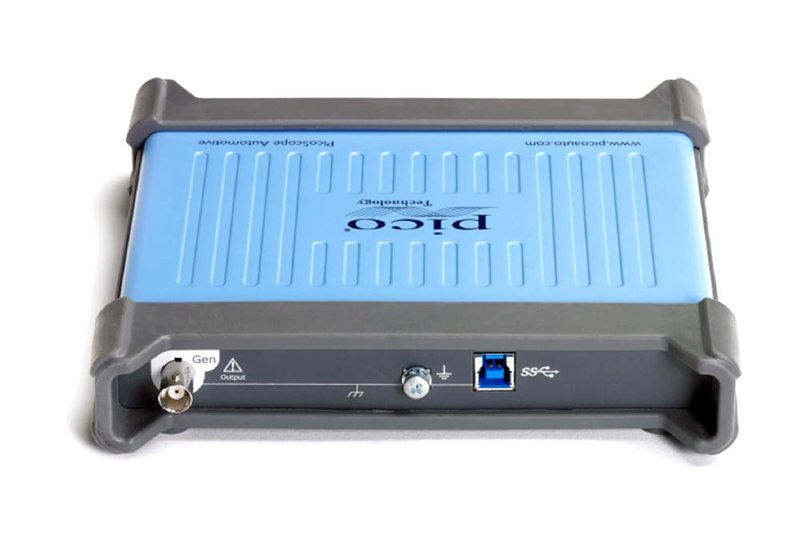

Output characteristicsRear-panel BNC, 600 Ω output impedance
Overvoltage protection±10 V
Arbitrary waveform generator
Update rate80 MS/s
Buffer size16 kS
Resolution14 bits
General
EnvironmentalTemperature range, operating 0...45°C (20...30°C for quoted accuracy); humidity range 5...80% rel. humidity, non-condensing; temperature range, storage -20...+60°C; humidity range 5...95% rel. humidity, non-condensing
Dimensions (mm)190 x 160 x 40; 0.55 kg
InterfaceSuperSpeed USB 3.0 (USB 1.1 and USB 2.0 compatible); powered from USB
