PicoSource PG914 USB Differential Pulse Generator

Online Price Advantage!
new

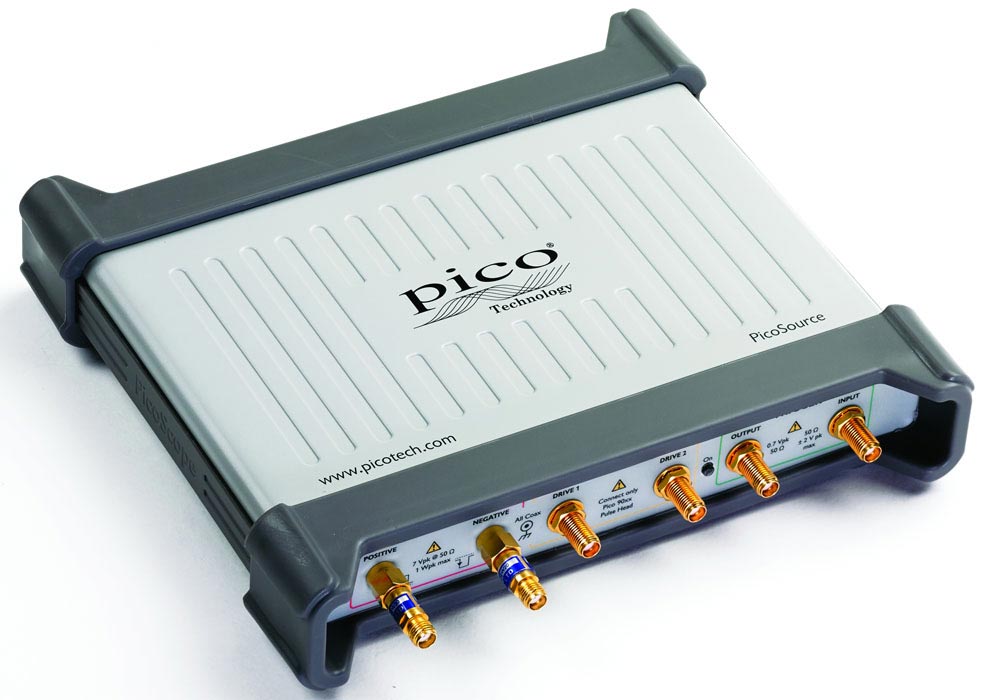

PicoSource PG914 USB Differential Pulse Generator
additional images:
progressive price
taking 1 pcs
€ 10.320,00
taking 3 pcs
€ 9.804,00
Price
10.320,00*
€ 12.280,80 brutto
* excluding VAT free shipping (Germany)
Quantity:
Total
Unit price
base price
Stock:
Delivery time
Delivery Time ~3-5 workdays
Description

Benefits

  • Differential pulse generator for USB 2.0.
  • Dual generator with 50 Ohm pulse outputs and positive/negative tunnel diode pulse heads.
  • For semiconductor test, TDR and other applications.

PicoSource PG914 Series - USB differential pulse generators.

The fast-transition pulse can stimulate a transmission path, device or network with a broad spectrum signal in a single instant. Such a pulse is very useful for many of the high-speed broadband measurements that we need to make; for instance in time-domain reflectometry/TDR, semiconductor test, gigabit interconnect and port test and in radar. Differential high-speed data in particular dominates the measurement challenge in our digital, computing, interconnect and telecommunications systems. Surprisingly, cost-effective fast-transition differential pulse generators have been very hard to find... until now!

  • Three PicoSource models:
    • Integrated 60 ps pulse outputs: PG911.
    • Tunnel diode 40 ps pulse heads: PG912.
    • Both output types: PG914.

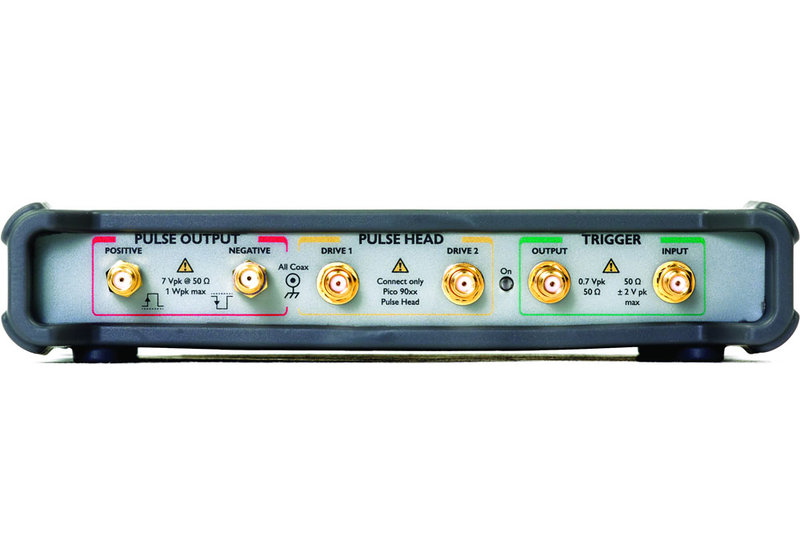

  • Integrated pulse outputs:
    • Differential with deskew (±1 ns timing deskew in 1 ps steps).
    • <60 ps single-ended pulse transition time.
    • Two 2.5 V to 6 V variable amplitude outputs.
    • Integrated 50 Ohm SMA(f) step recovery diode outputs.
    • 20 dB 10 GHz SMA(m-f) attenuators supplied fitted to SRD pulse outputs.
  • Tunnel diode pulse heads:
    • Differential with deskew (±500 ps timing deskew in 1 ps steps).
    • <40 ps transition time.
    • Fixed 200 mV output amplitude.
    • External 50 Ohm N(m) positive and negative tunnel diode pulseheads.
    • Inter-series N(f)–SMA(m) adaptors included with pulse heads.
  • All PicoSource PG900 models:
    • Differential outputs.
    • 200 ns to 4 µs pulse width.
    • Adjustable 1 µs to 1 s internal clock period.
    • Typical 3.0 ps RMS jitter relative to external trigger.
  • Advanced features:
    • Output deskew with 1 ps resolution.
    • Low-jitter trigger input and output.
    • User-variable pulse width.
    • Internal trigger clock.
    • Trigger hold-off.
  • Configuration

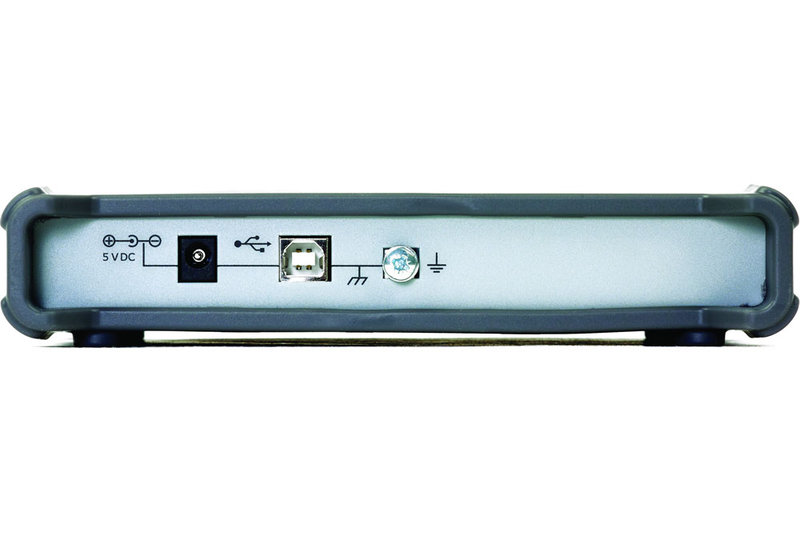

    • USB 2.0 connected.
    • Microsoft Windows compatible.
  • Applications
    • TDR/TDT network and match analysis.
    • Spectral and flatness measurements.
    • Timing, jitter, and crosstalk determination.
    • Semiconductor testing.
    • Impulse ultra-wideband radars.
    • Laser diode drivers.

Model Overview

Model Description - pulse generator
PicoSource PG911 PP977 50 Ohm SMA(f) <60 ps differential pulse outputs, 2.5 V to 6 V variable amplitude.
PicoSource PG912 PP978 50 Ohm N(m) <40 ps positive and negative tunnel diode pulse heads, > 200 mV fixed amplitude.
PicoSource PG914 PP979 Dual-mode generator with both of the above outputs.

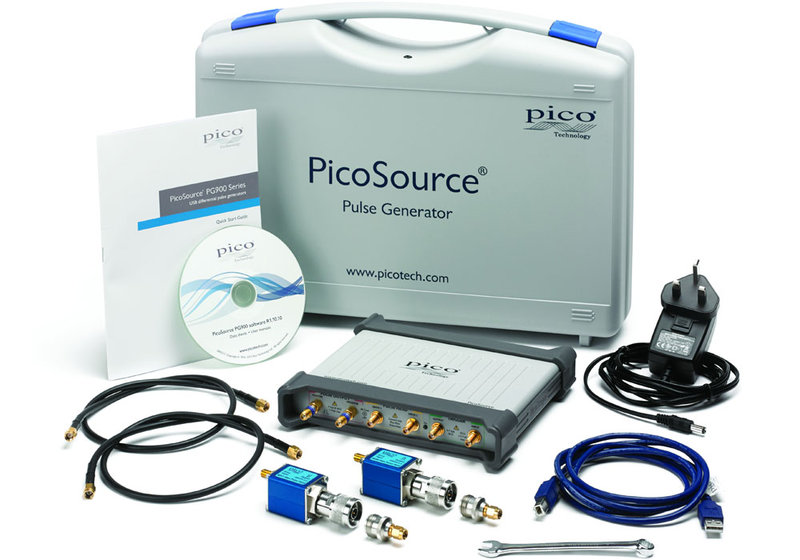

Included

Description Order code PG911 PG912 PG914
PicoSource PG900 software disk, quick start guide, AC to DC adaptor 5 VDC at 2 A, universal input, USB 2.0 cable 1.8 m, SMA/PC3.5/2.92 wrench, storage and carry case. - yes yes yes
Positive 40 ps tunnel diode pulse head (attached to the device) not available
separately
- yes yes
Negative 40 ps tunnel diode pulse head (attached to the device) not available
separately
- yes yes
12 GHz N(f) to SMA(m) adaptor (2 pack) TA172 - yes yes
10 GHz 20 dB SMA(m-f) attenuator (2 pack) TA173 yes - yes
50 Ohm coaxial SMA(m-m) pulse drive cable 60 cm (2 pack) not available
separately
- yes yes
