PicoSource PG911 USB Differential Pulse Generator <60 ps

Scaled Prices
taking 1 pc.
€ 8.669,15
taking 3 pc.
€ 8.235,69
including VAT free shipping (Germany)
min Quantity
1 piece
Unit price
base price
Item available at short notice. Delivery Time ~3-10 workdays
Item available at short notice. Delivery Time ~3-10 workdays
technical Question?
recommend by email
Please fill in all fields.
Question Type
Your E-mail Adress
My Question:
Please validate that you are not a robot.

Benefits of the PicoSource PG911, Integrated 60 ps Pulse Heads

  • Differential pulse generator for USB 2.0.
  • 50 Ω differential pulse outputs.
  • For semiconductor test, TDR and other applications.

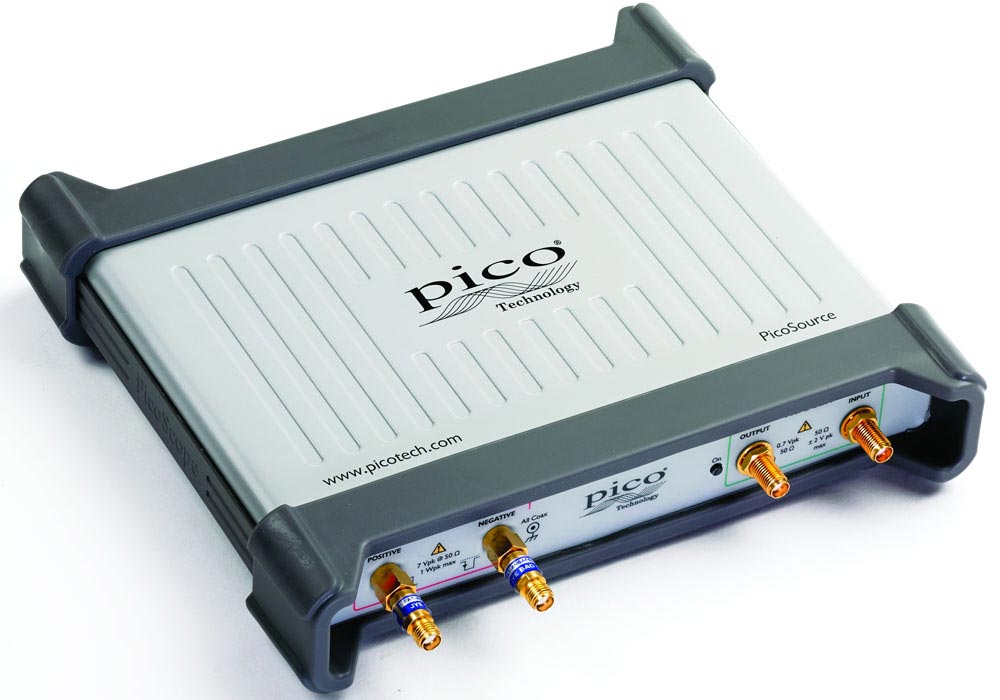

PicoSource PG911 - USB Differential Pulse Generators

The fast-transition pulse can stimulate a transmission path, device or network with a broad spectrum signal in a single instant. Such a pulse is very useful for many of the high-speed broadband measurements that we need to make; for instance in time-domain reflectometry/TDR, semiconductor test, gigabit interconnect and port test and in radar. Differential high-speed data in particular dominates the measurement challenge in our digital, computing, interconnect and telecommunications systems. Surprisingly, cost-effective fast-transition differential pulse generators have been very hard to find... until now!

  • Three PicoSource models:
    • Integrated 60 ps pulse outputs: PG911.
    • Tunnel diode 40 ps pulse heads: PG912.
    • Both output types: PG914.
  • Integrated pulse outputs:
    • Differential with deskew (±1 ns timing deskew in 1 ps steps).
    • <60 ps single-ended pulse transition time.
    • Two 2.5 V to 6 V variable amplitude outputs.

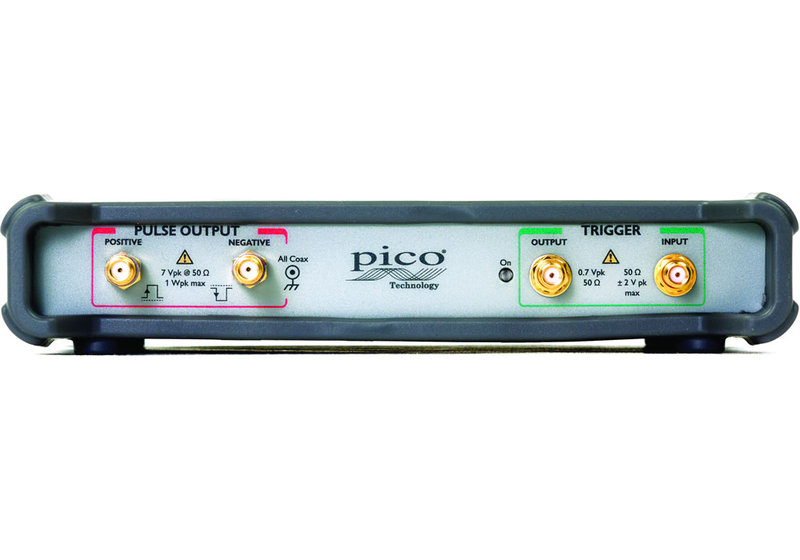

    • Integrated 50 Ω SMA(f) step recovery diode outputs.
    • 20 dB 10 GHz SMA(m-f) attenuators supplied fitted to SRD pulse outputs.
  • All PicoSource PG900 models:
    • Differential outputs.
    • 200 ns to 4 µs pulse width.
    • Adjustable 1 µs to 1 s internal clock period.
    • Typical 3.0 ps RMS jitter relative to external trigger.
  • Advanced features:
    • Output deskew with 1 ps resolution.
    • Low-jitter trigger input and output.
    • User-variable pulse width.
    • Internal trigger clock.
    • Trigger hold-off.
  • Configuration

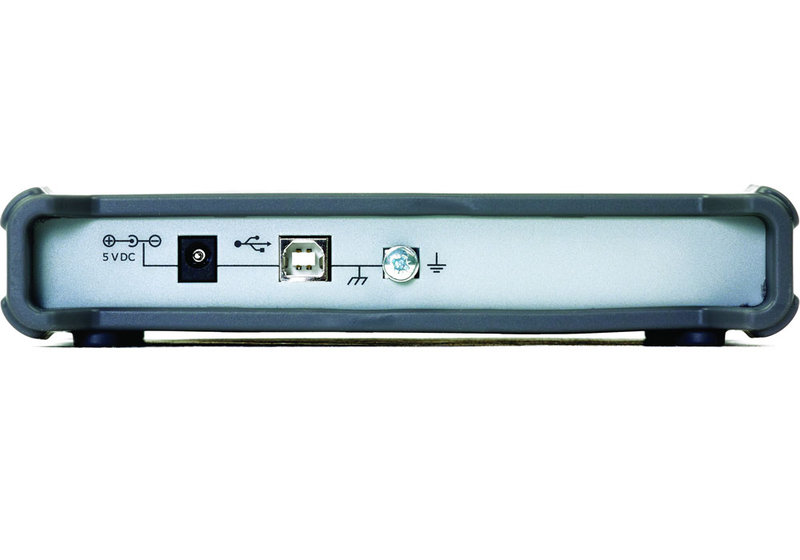

    • USB 2.0 connected.
    • Microsoft Windows compatible.
  • Applications
    • TDR/TDT network and match analysis.
    • Spectral and flatness measurements.
    • Timing, jitter, and crosstalk determination.
    • Semiconductor testing.
    • Impulse ultra-wideband radars.
    • Laser diode drivers.

Model Overview

ModelDescription - pulse generator
▸PicoSource PG911▸PP97750 Ω SMA(f) <60 ps differential pulse outputs, 2.5 V to 6 V variable amplitude.
▸PicoSource PG912▸PP97850 Ω N(m) <40 ps positive and negative tunnel diode pulse heads, >200 mV fixed amplitude.
▸PicoSource PG914▸PP979Dual-mode generator with both of the above outputs.


DescriptionOrder codePG911PG912PG914

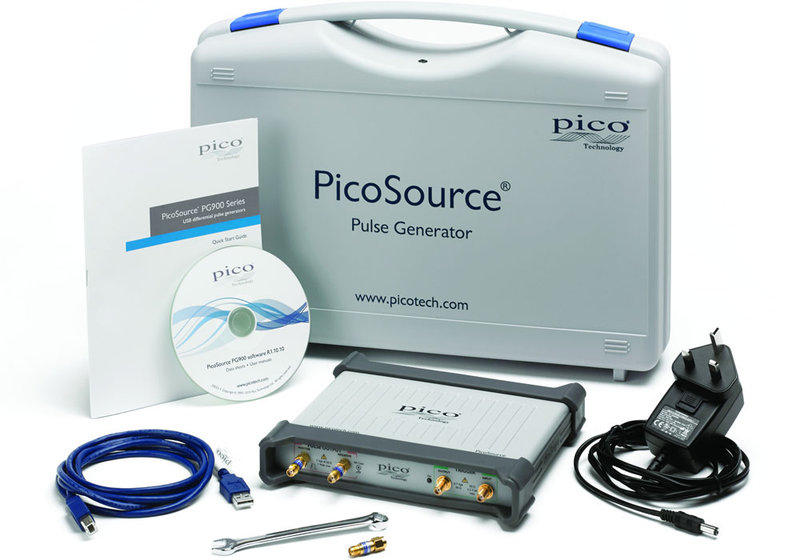

PicoSource PG900 software disk, quick start guide, AC to DC adaptor 5 VDCat 2 A, universal input, USB 2.0 cable 1.8 m, SMA/PC3.5/2.92 wrench, storage and carry case.-yesyesyes
Positive 40 ps tunnel diode pulse head (attached to the device)not available
Negative 40 ps tunnel diode pulse head (attached to the device)not available
12 GHz N(f) to SMA(m) adaptor (2 pack)TA172-yesyes
10 GHz 20 dB SMA(m-f) attenuator (2 pack)TA173yes-yes
50 Ω coaxial SMA(m-m) pulse drive cable 60 cm (2 pack)not available
