Benefits of the DG5000 Series Multifunctional Function and Arb. Waveform Generators

  • 2/4/8 channels, up to 250/350/500 MHz bandwidth and 2.5 GS/s sample rate.
  • 16 bit vertical resolution and 64 (optional 128) Mpts memory.
  • 0.8 ns min. rise time.

Rigol DG5000 Series 2-/4-/8-Channel Function/Arbitrary Waveform Generators up to 500 MHz

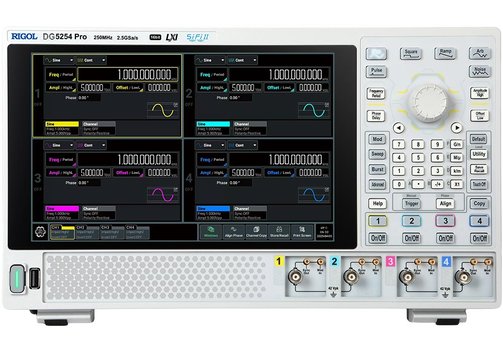

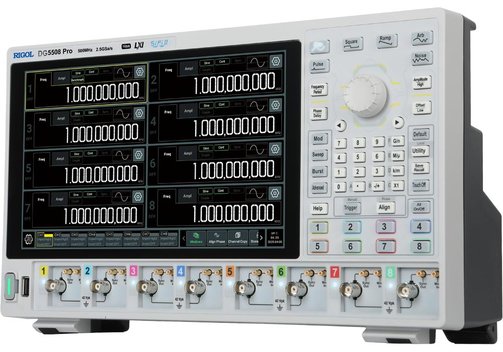

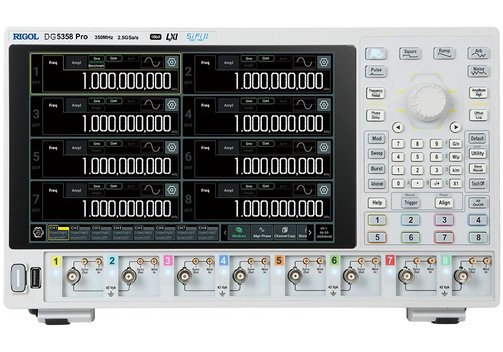

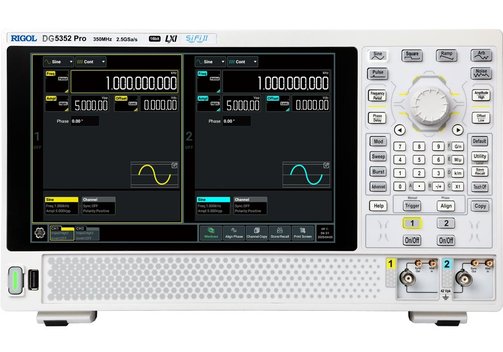

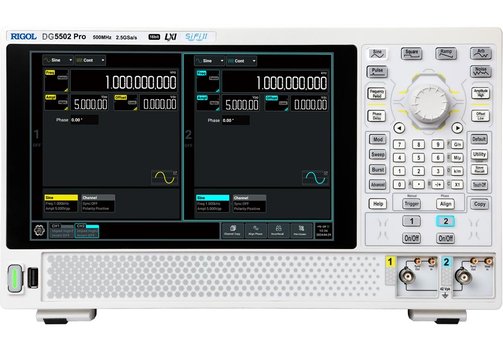

Rigol DG5252, DG5254, DG5258, DG5352, DG5354, DG5358, DG5502, DG5504, DG5508 Pro Signal Generators

The Rigol DG5000 Pro series function/arbitrary waveform generators have two, four, or eight output channels up to 250, 350, or 500 MHz (sine). With up to 2.5 GS/s sample rate and 64 Mpts per channel memory depth (optional 128 Mpts per channel), these all-in-one generators combine function generator, arbitrary waveform generator, noise generator, pulse generator, harmonics generator, and analog/digital modulator.

  • 2-/4-/8-channel function and arbitrary waveform generator.
  • Bandwidth up to 250, 350, or 500 MHz (sine).
    Square: 170 MHz max. frequency, 0.8 ns min. rise time.
    Pulse: 120 MHz max. frequency, 4.2 ns min. pulse width.
  • 2.5 GS/s maximum sampling rate.
  • 16 bit vertical resolution for precise signal output.
  • Built-in high-order harmonic generator (max. 20-th order)
  • Maximum arbitrary waveform length of 64 Mpts/channel (optional 128 Mpts/channel).
  • Moduations: AM, FM, PM, SUM, ASK, FSK, PSK, PWN; burst and sweep.
  • Options such as multi-pulse generation, advanced sequence function, multi-tone, pattern.
  • Advanced modulation functions (AM, FM, PM, ASK, FSK, PSK), and I-Q digital modulation (option).
  • 10.1"/25.7 cm high-definition touch screen.
  • Battery holder available to power the instrument.
  • Standard web control function for easier remote cooperation.

Model Overview

ModelDG5252 ProDG5254 ProDG5258 ProDG5352 ProDG5354 ProDG5358 ProDG5502 ProDG5504 ProDG5508 Pro
Bandwidth250 MHz350 MHz500 MHz
Channels (isolated from GND)248248248
Sample rate2.5 GS/s
Vertical resolution16 bit
Waveform memory depth64 Mpts per channel (standard), 128 Mpts per channel (option)
Continuous output waveformsSine (1 µHz...250/250/500 MHz), square (1 µHz...170 MHz), ramp (1 µHz...5 MHz), pulse (1 µHz...120 MHz), noise (typ. 0 dBm/500 MHz), arbitrary (1 µHz...100 MHz, 1 µS/s...1.24 GS/s, waveform length 32 pts/channel to 64 Mpts/channel, optional 128 Mpts/channel), harmonic (order =20)
ModulationsAM, FM, PM, SUM, ASK, FSK, PSK, PWM; sweep (linear, log, step), burst (n-cycle, gated)
Advanced ouputStandard: arbitrary, PRBS; optional: sequence, multi-pulse, multi-tone, pattern, IQ
Display10.1"/25.7 cm high-definition touch screen, 1280x800, 16:9; HDMI type A video output port
InterfacesUSB 3.0 host, USB 3.0 device, LAN/Ethernet (10/100/1000Base-T), web control
Dimensions (mm)358 x 215 x 122, 5U; 4.2 kg

Included: Rigol DG 5252, 5254, 5258, 5352, 5354, 5358, 5502, 5504, 5508 Pro, power cord, USB cable CB-USBA-USBB-FF-150, two BNC cables CB-BNC-BNC-MM-100.

Options, Upgrades, and Accessories

ModelDescription
DG5000 Pro-IQIQ modulation option
DG5000 Pro-MPULMulti-pulse output option
DG5000 Pro-SEQAdvanced sequence function
DG5000 Pro-MTONEMulti-tone option
DG5000 Pro-PJPattern option
DG5000 Pro-2RL128 Mpts/channel (max.) ARB. length upgrade option
DG5000 Pro-BNDFunction bundle option, includes DG5000 Pro-IQ/MPUL/SEQ/MTONE/PJ/2RL
BatHolder138Battery holder
RA5040K40 dB attenuator (50 Ω, 1 W)
CB-SMB-SMB-FF-100SMB(F) to SMB(F) cable (1 m)
CB-SMB-BNC-FF-100SMB(F) to BNC(F) cable (1 m)
CB-SMB-BNC-FM-100SMB(F) to BNC(M) cable (1 m)
CB-BNC-AC-100-LBNC to alligator clip cable
