  • Precision signal generator up to 60 MHz for standard waveforms, arbitrary signals, pulse, noise.
  • Versatile modulations, burst and sweep.
  • Frequency counter.

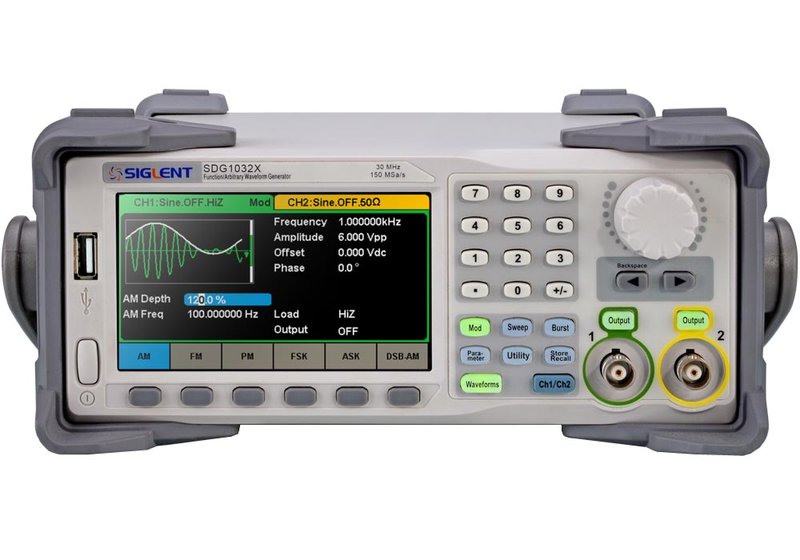

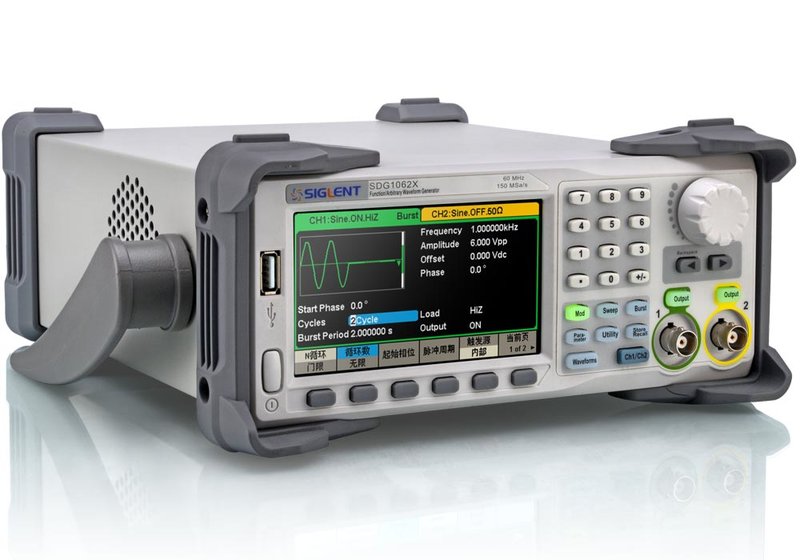

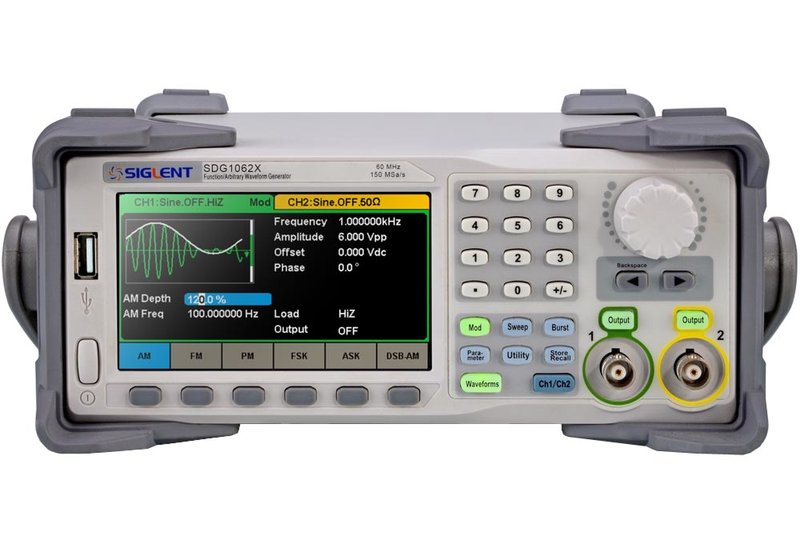

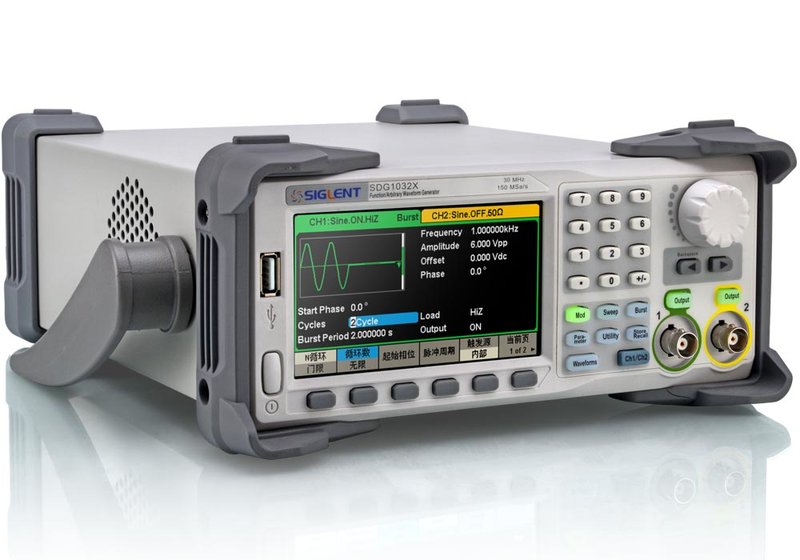

Siglent SDG1000X Series Function/Arbitrary Waveform Generators up to 60 MHz.

The Siglent SDG1000X devices are dual-channel function/arbitrary waveform generators with specifications that include up to 60 MHz maximum bandwidth, 150 MS/s sampling rate and 14 bit vertical resolution. The proprietary EasyPulse technique helps to solve the weaknesses inherent in traditional DDS generators when generating pulse waveforms, and the special square generator is capable of generating square waveforms up to 60 MHz in frequency with low jitter. With these advantages, the SDG1000X can provide users with a variety of high fidelity/low jitter signals while meeting the growing requirements of a wide range of complex and varied applications.

  • Dual-channel function/arbitrary waveform generators.
  • Bandwidth up to 30 or 60 MHz.
  • Amplitude up to 20 Vpp.
  • 150 MS/s sampling rate.
  • 14 bit vertical resolution.
  • 16 kpts arbitrary waveform length.
  • Innovative EasyPulse technology, capable of generating lowerjitter pulse waveforms, brings a wide range and extremely high precision in pulse width and rise/fall times adjustment.
  • Special circuit for square wave function, can generate square waves up to 60 MHz with jitter less than 300 ps+0.05 ppm of period.
  • Plenty of analog and digital modulation types: AM, DSB-AM, FM, PM, FSK, ASK, PSK and PWM.
  • Sweep and Burst functions.
  • Harmonics generator function.
  • Waveform combining function.
  • High precision frequency counter.
  • Standard interfaces USB Host and Device, Ethernet/LAN.
  • 4.3"/10.9 cm TFT-LCD.

Model Overview

Model SDG1032X SDG1062X
Channels 2
Max. bandwidth 30 MHz 60 MHz
Standard waveforms Sine 30 MHz 60 MHz
Pulse 1 µHz...12.5 MHz; pulse width 32.6 ns; rise/fall times 16.8 ns...22.4 s (10... 90%); duty cycle 0.001...99.999% limited by frequency setting
Square 1 µHz...30 MHz 1 µHz...60 MHz
Rise/fall times 4.2 ns (10...90%, 1 Vpp, 50 Ω load); 3.8 ns (10...90%, 2.5 Vpp, 50 Ω load); duty cycle 0.001...99.999% limited by frequency setting
Ramp 1 µHz...500 kHz
Noise 60 MHz (-3 dB bandwidth)
DC Output range -10...10 V (HiZ load); -5...5 V (50 Ω load)
Arbitrary waveform generator Frequency setting range 1 µHz...6 MHz; waveform length 16 kpts, sampling rate 150 MS/s; vertical resolution 14 bit
Modulations AM (carrier sine, square, ramp, arb; source internal/external; modulating wave sine, square, ramp, noise, arb); FM (carrier sine, square, ramp, arb; source internal/external; modulating wave sine, square, ramp, noise, arb); PM (carrier sine, square, ramp, arb; source internal/external; modulating wave sine, square, ramp, noise, arb); ASK (carrier sine, square, ramp, arb; source internal/external; modulating wave square with 50% duty cycle); FSK (carrier sine, square, ramp, arb; source internal/external; modulating wave square with 50% duty cycle); PWM (carrier pulse; source internal/external; modulating wave sine, square, ramp, noise, arb)
Burst Carrier sine, square, ramp, pulse, noise, arb; type: Count (1...1000000 cycles), infinite, gated; trigger source internal/external
Sweep Carrier sine, square, ramp, arb; type: Linear, logarithmic; direction: Up, down; trigger source internal/external/manual
Frequency counter Frequency, period, positive/negative pulse width, duty cycle; 100 mHz...200 MHz (DC coupling) or 10 Hz...200 MHz (AC coupling)
Interfaces USB Host, USB Device (USBTMC), LAN (VXI-11)
Display 4.3"/10.9 cm TFT-LCD; 24 bit colour depth
Dimensions (mm) 260 x 107 x 296; max. 4.35 kg

Included: Signal generator SDG 1032X or 1062X, quick start, power cord, USB cable, calibration certificate.
