Siglent SDG2000X Series Function/Arbitrary Waveform Generators up to 120 MHz

Siglent SDG2000X arbitrary waveform generators up to 120 MHz
additional images:
progressive price
taking 1 pcs
from
€ 475,00
taking 3 pcs
from
€ 451,25
Price
starting 475,00*
starting € 565,25 brutto
* excluding VAT free shipping (Germany)
Quantity:
Total
Unit price
base price
Stock:
on stock
Description

Benefits

  • Precision signal generator up to 120 MHz for standard waveforms, arbitrary signals, pulse, noise.
  • Versatile modulations, burst and sweep.
  • Frequency counter.

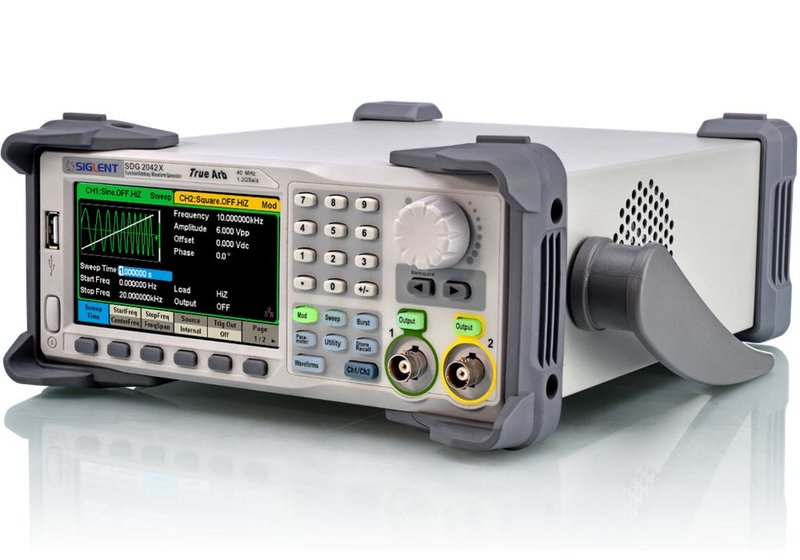

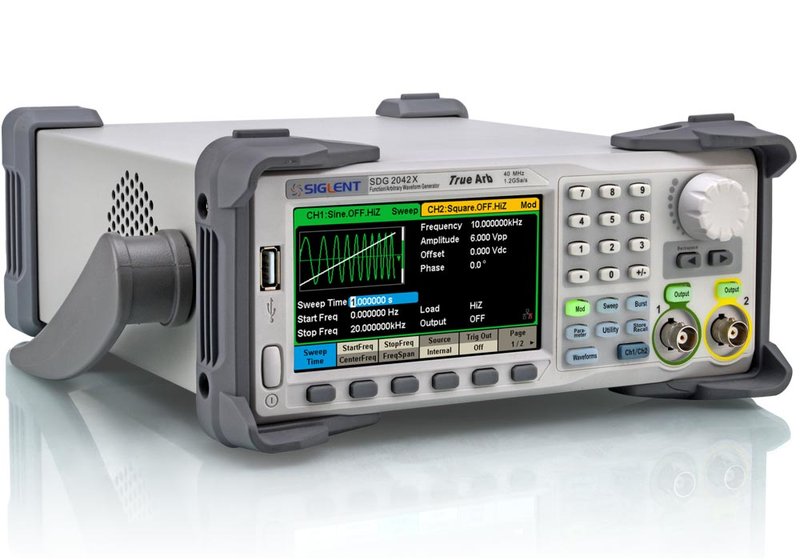

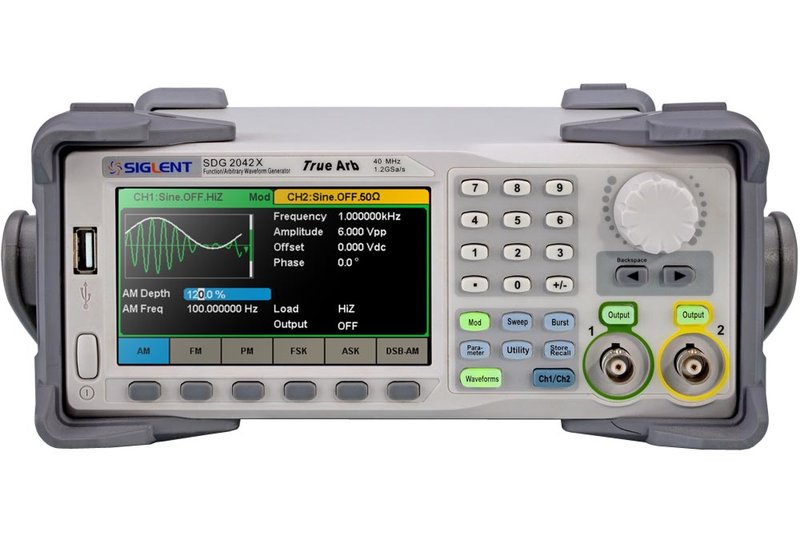

Siglent SDG2000X Series Function/Arbitrary Waveform Generators up to 120 MHz.

The Siglent SDG2000X devices are dual-channel function/arbitrary waveform generators with specifications that include up to 120 MHz maximum bandwidth, 1.2 GS/s sampling rate and 16 bit vertical resolution. The proprietary TrueArb and EasyPulse technique helps to solve the weaknesses inherent in traditional DDS generators when generating arbitrary, pulse and square waveforms. With these advantages, the SDG200X can provide users with a variety of high fidelity/low jitter signals while meeting the growing requirements of a wide range of complex and varied applications.

  • Dual-channel function/arbitrary waveform generators.
  • Bandwidth up to 30 or 60 MHz.
  • Amplitude up to 20 Vpp.
  • High fidelity output with 80 dB dynamic range.
  • 1.2 GS/s sampling rate (4x interpolation).
  • 16 bit vertical resolution.
  • Innovative TrueArb technology, based on a point-by-point architecture, supports any 8 pts...8 Mpts arbitrary waveform with a sampling rate in the range of 1 µS/s...75 MS/s.
  • Innovative EasyPulse technology, capable of generating low jitter square or pulse waveforms, brings a wide range and extremely high precision in pulse width and rise/fall times adjustment.
  • Plenty of analog and digital modulation types: AM, DSB-AM, FM, PM, FSK, ASK, PSK and PWM.
  • Sweep and Burst functions.
  • Harmonics generator function.
  • 196 built-in arbitrary waveforms.
  • High precision frequency counter.

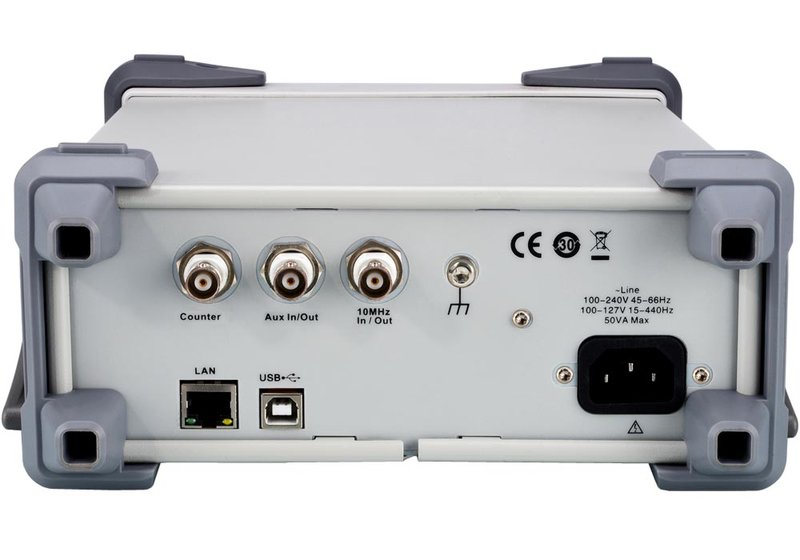

  • Standard interfaces USB Host and Device, Ethernet/LAN, optional GPIB.
  • 4.3"/10.9 cm resisitive touch screen display.

Model Overview

Model SDG2042X SDG2082X SDG2122X
Channels 2
Max. bandwidth 40 MHz 80 MHz 120 MHz
Standard waveforms Sine 40 MHz 80 MHz 120 MHz
Pulse 1 µHz...25 MHz; pulse width 16.3 ns; rise/fall times 8.4 ns...22.4 s (10... 90%); duty cycle 0.001...99.999% limited by frequency setting
Square 1 µHz...25 MHz rise/fall times 9 ns (10...90%); duty cycle 0.001...99.999% limited by frequency setting
Ramp 1 µHz...1 MHz
Noise 120 MHz (-3 dB bandwidth); 20...120 MHz adjustable bandwidth range
DC Output range -10...10 V (HiZ load); -5...5 V (50 Ω load)
Arbitrary waveform generator Frequency setting range 1 µHz...20 MHz; waveform length 8 pts...8 Mpts, sampling rate 1 µS/s...75 MS/s; vertical resolution 16 bit
Modulations AM (carrier sine, square, ramp, arb; source internal/external; modulating wave sine, square, ramp, noise, arb); FM (carrier sine, square, ramp, arb; source internal/external; modulating wave sine, square, ramp, noise, arb); PM (carrier sine, square, ramp, arb; source internal/external; modulating wave sine, square, ramp, noise, arb); ASK (carrier sine, square, ramp, arb; source internal/external; modulating wave square with 50% duty cycle); FSK (carrier sine, square, ramp, arb; source internal/external; modulating wave square with 50% duty cycle); PWM (carrier pulse; source internal/external; modulating wave sine, square, ramp, noise, arb)
Burst Carrier sine, square, ramp, pulse, noise, arb; type: Count (1...1000000 cycles), infinite, gated; trigger source internal/external
Sweep Carrier sine, square, ramp, arb; type: Linear, logarithmic; direction: Up, down; trigger source internal/external/manual
Frequency counter Frequency, period, positive/negative pulse width, duty cycle; 100 mHz...200 MHz (DC coupling) or 10 Hz...200 MHz (AC coupling)
Interfaces USB Host, USB Device (USBTMC), LAN (VXI-11), optional GPIB
Display 4.3"/10.9 cm resistive touch screen; 24 bit colour depth
Dimensions (mm) 260 x 107 x 296; max. 4.42 kg

Included: Signal generator SDG 2042X, 2082X or 2122X, quick start, power cord, USB cable, BNC coaxial cable, calibration certificate.
