Rigol DS80000 Series Highend Multifunctional Oscilloscopes up to 13GHz
Description
Accessories
Files/Downloads
Benefits of the Rigol DS80000 Series High-Bandwidth Oscilloscope Workstations
- Large, tilting 15.6"/39.6 cm touchscreen.
- Highend features up to 6/8/10/13 GHz, 40 GS/s, up to 16-bit resolution.
- Optional real-time eye diagram and jitter analysis software.

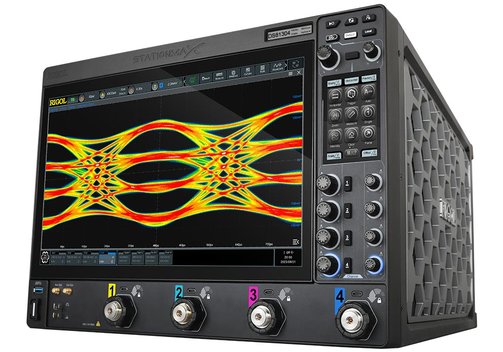

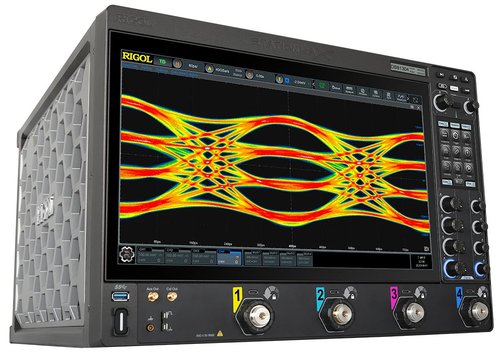

Rigol DS80000 Series Highend Multifunctional Oscilloscopes up to 13 GHz
DS80604, DS80804, DS81004, DS81304 from the Rigol STATIONMAX Series
The Rigol DS80000 series expands the STATIONMAX oscilloscope workstation family up to 13 GHz. High sampling rate, deep memory, fast waveform capture rate, and better vertical resolution are features of the series. They are an ideal solution for demanding applications in F&E, design, and industrial RF projects.
- High performance oscilloscopes for demanding applications.
- Up to 6, 8, 10, or 13 GHz bandwdth.
- Up to 40 GS/s real-time sampling rate on ech channel.
- 500 Mpts, optional up to 4 Gpts memory depth
- Two touch displays:
Tilting, capacitive 15.6"/39.6 cm color touchscreen display (main display, for multiple measurement windows).
3.5"/8.9 cm touchscreen display for device settings and control. - The vertical resolution can be selected between 8 bit and 16 bit - ideal for the measurement of very small signal components.
- Waveform capture rate up to 250,000 wfms/s.
- Various versatile display, math and trigger features (eg. zone trigger).
- Optional eye diagram and jitter analysis software as integrated measurement method. Self-defined pass/fail mask.
- Optional serial bus protocol analysis and trigger functions.
- Interfaces: USB 3.0 host/device, LAN/Ethernet (remote control or via web control/browser).
- Additional HDMI output.
Model Overview
| Model | STATIONMAX DS80604 | STATIONMAX DS80804 | STATIONMAX DS81004 | STATIONMAX DS81304 |
| Analog channels | 4 | 4 | 4 | 4 |
| Analog bandwidth | 6 GHz | 8 GHz | 10 GHz | 13 GHz |
| Sampe rate | Sample mode: Realtime sampling; channel rate 40 GS/s, total rate 160 GS/s | |||
| Rise time | ≤73 ps (6 GHz); ≤55 ps (8 GHz); ≤44 ps (10 GHz); ≤33 ps (13 GHz) (50 Ω impedance, 10...90%, typ.) | |||
| Max. memory depth | Standard: 500 Mpts, option: 2 Gpts or 4 Gpts | |||
| Waveform capture rate | 250,000 wfms/s | |||
| Vertical resolution | Selectable 8...16 bits | |||
| Max. frames of recording | Max. 2,000,000 frames | |||
| Peak detection | Capture 100 ps glitches | |||
| Trigger types | Standard: Edge, Pulse, Slope, Video, Pattern, Duration, Timeout, Runt, Window, Delay, Setup/Hold, n-th Edge; optional: RS232/UART, I2C, SPI, CAN, FlexRay, LIN, I2S, MIL-STD-1553 | |||
| Serial decoding | Number: 4 protocol types can be decoded and enabled at the same time; types: Standard parallel; option: RS232/UART, I2C, SPI, LIN, CAN, CAN-FD, FlexRay, I2S, MILSTD-1553 | |||
| Additional functions | Digital voltmeter, source any analog channel, function DC, AC+DCRMS, ACRMS, resolution ACV/DCV: 3 bit; precision frequency counter, source any analog channel, measurement of frequency, period, totalizer, counter resolution 3...8 digit (user-defined), max. frequency is max. analog bandwidth, 48-bit totalizer counts number of rising edges | |||
| Display | 15.6"/39.6 cm tilting, capacitive color display with gesture control (main display, can be divided/windows for multiple measurements), resolution 1920x1080; 3.5"/8.9 cm secondary touchscreen display for device settings/user-defined keyboard control, resolution 480x320; HDMI video port | |||
| Interfaces | USB 3.0 host (1 on front panel, 1 on rear panel) and device (1 on rear); 1000 Base-T LAN/Ethernet, LXI-C, web remote control | |||
| Dimensions (mm) | 448 x 310 x 523; 28 kg | |||
Included: Oscilloscope Rigol STATIONMAX DS 80604, 80804, 81004, or 81304, power cord, USB cable, 2x precision BNC adaptor, 3.5 mm to BNC (input 50 Ω).
Options and Upgrades

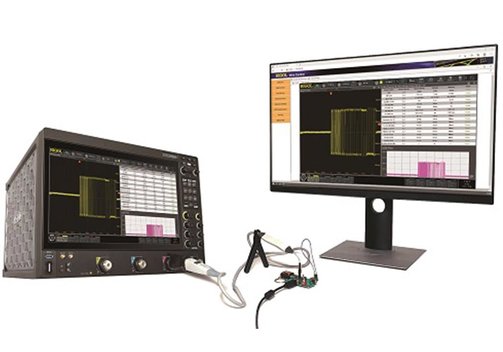

| Model | Description |
| DS80000-RLU-20 | 2 Gpts memory depth upgrade option |
| DS80000-RLU-40 | 4 Gpts memory depth upgrade option |
| DS80000-JITTA | Advanced eye diagram and jitter analysis option |
| DS80000-ENETC | 100M/1000M Ethernet pre-compliance test option |
| DS80000-USBC | USB2.0 pre-compliance test option |
| DS80000-EMBDA | Embedded serial bus trigger and decoding (RS232/UART, I2C, and SPI) |
| DS80000-AUTOA | Auto serial bus trigger and decoding (CAN, CAN-FD, LIN, FlexRay) |
| DS80000-AUDIOA | Audio serial bus trigger and decoding (I2S) |
| DS80000-AEROA | MIL-STD-1553 serial bus triggers and decoding |
