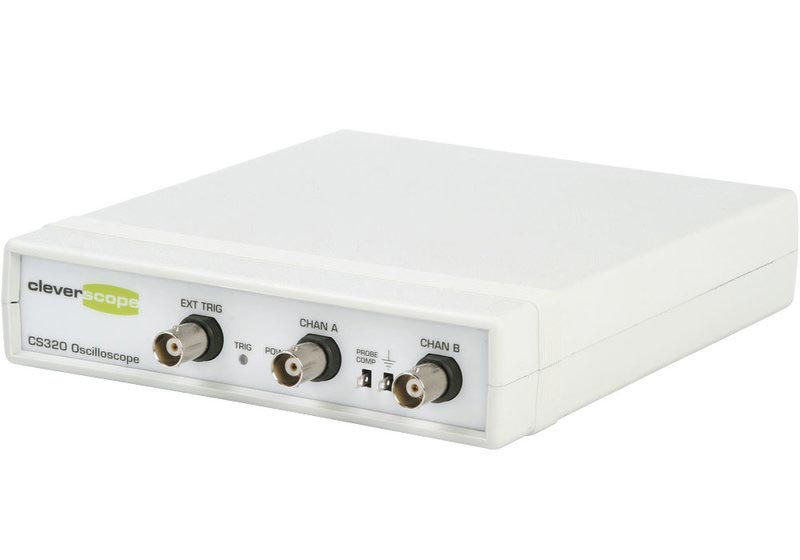

Cleverscope CS320A, USB, 10 bit, 100 MS/s

Cleverscope CS320A, USB
additional images:
Price
starting 1.330,00*
starting € 1.582,70 brutto
* excluding VAT free shipping (Germany)
Quantity:
Total
Unit price
base price
Stock:
Delivery time
Description

Benefits

  • 2-channel PC oscilloscope for USB 2.0 or Ethernet. Resolution 10 bit.
  • Model with signal generator.
  • Upgradeable to 12 or 14 bit sampler.

Cleverscope - 10 bit Basic Model.

The PC oscilloscope Cleverscope has 2 channels - you can also cascade 2 scopes and get a 4-channel device. Or add a signal generator or digital channels for mixed-signal applications. The Cleverscope connects to the PC via USB or Ethernet/LAN. Several options can be upgraded for new models or later.

  • Two channels, available with a 10, 12 or 14 bit sampler.
  • Simultaneous sampling with 100 MS/s. AC or DC coupling.
  • Automatic gain between 20 mV to 800 V (FS).
  • Automatic offset between 0 to ±4 or 40 V in steps of 10/100.
  • Deep 4 or 8 MSamples memory per channel.
  • Very flexible mixed-signal triggering.
  • View small AC signals superimposed on large DC or AC offset.
  • Self-calibrating.
  • Probes included.
  • Models with signal (0...10 MHz, sine, square, triangle) or sine generator module incl. or upgradeable.
  • Upgradeable firmware.

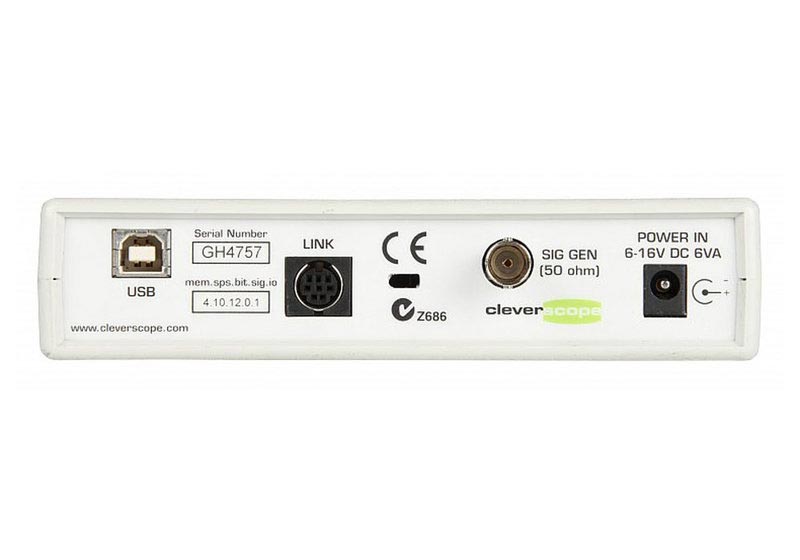

  • Connects to the PC via USB 2.0 or 10/100 Mbit ethernet/LAN (isolated from PC).

Model Overview

Model Analog channels Resolution Sample rate Memory Digital channels Signal generator Interface Probes incl.
CS320A-FRA 2 10 bit 100 MS/s 4 MS - CS701 USB 2.0 (CS740) 2x CS1001
CS320A 2 10 bit 100 MS/s 4 MS - - USB 2.0 (CS740) 2x CS1001
CS320AE 2 10 bit 100 MS/s 4 MS - - isol. ethernet (CS741) 2x CS1001

Included: Modular oscilloscope with features and probes see table above, power adaptor, USB models: USB cable, user manual. CS300 application software on CD.
Software: For Windows - software CS300 - oscilloscope and spectrum-analyzer displays. Web-server for remote viewing of ethernet/LAN connected units. DLL. LabVIEW driver

Upgrades - at Time of Order Only!

Model Description
CS800 Upgrade to 8 MSample memory
CS810 Ext. sample clock interface 1...105 MHz sinus/square 0.5...3 V
CS712U Upgrade to 100 MHz, 12 bit 2-channel sampler
CS714U Upgrade to 100 MHz, 14 bit 2-channel sampler
CS741U Upgrade to ethernet interface, 10/100 Mbit/s, isolated from PC

Modules

Model Description
CS700A Signal generator (0...10 MHz, sine, square, triangle)
CS701 Sine wave generator isolated 300 VRMS (0...65 MHz sine)
CS710 100 MHz, 10 bit 2-channel Sampler
CS712 100 MHz, 12 bit 2-channel Sampler
CS714 100 MHz, 14 bit 2-channel Sampler
CS740 USB 2.0 interface module
CS741 Upgrade to ethernet interface, includes new back panel. Please supply existing serial number!
