Benefits of the ME-USB Iso Hub for Safe USB Isolation

  • Combination of USB isolator and quad hub.
  • Protects your USB transmission.
  • Easy to use - no driver, no programming required.

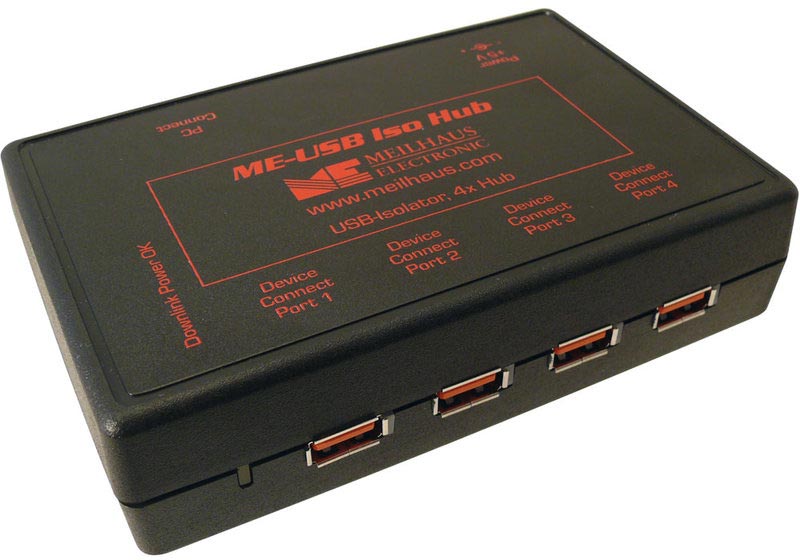

ME-USB Iso Hub USB Isolator and Quad Hub

The ME-USB Iso Hub combines the functions of the isolator ▸ME-USB Iso with a quad hub. It protects the equipment from voltage peaks and avoids ground loops. It can help to eliminate noise from ground loops or potential differences for example in audio and video applications. The isolator is fully transparent (like a cable) between the PC and a USB device, so no additional drivers or other software is required.

  • Combines the functions of the isolator ME-USB Iso with a quad hub. Galvanic isolation of the USB connection (Note: USB 2.0 full-speed only) between a PC and USB devices.
  • Supply power from external power supply.
  • Fully transparent, no changes in software or additional software drivers required.
  • Five diagnostic LEDs for status.
  • Isolation up to 1000 VAC/2100 VDC (1 s). Built-in overvoltage/transient protection up to 8 kV. Output short-circuit protection.
  • Size (mm) 130 x 100 x 30.
  • CE. DIN EN 55022; VDE 0878-22:2011-12 (CISPR 22:2008, modified); EN 55022:2010, DIN EN 55024; VDE 0878-24:2011-09 (CISPR 24:2010); EN 55024:2010.

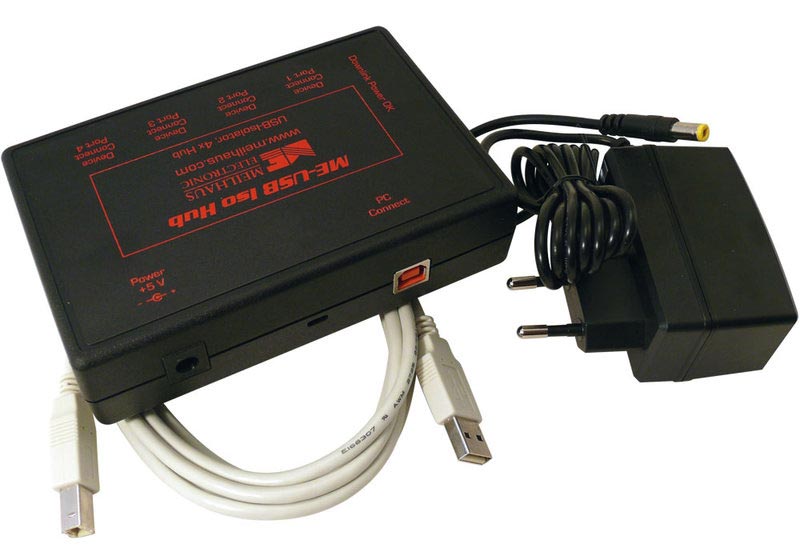

Included: USB isolator, USB cable (type A to B), instructions for use, external power supply.
