MEphisto Scope UM202/UM203 Universal DAQ-Box/Instrument

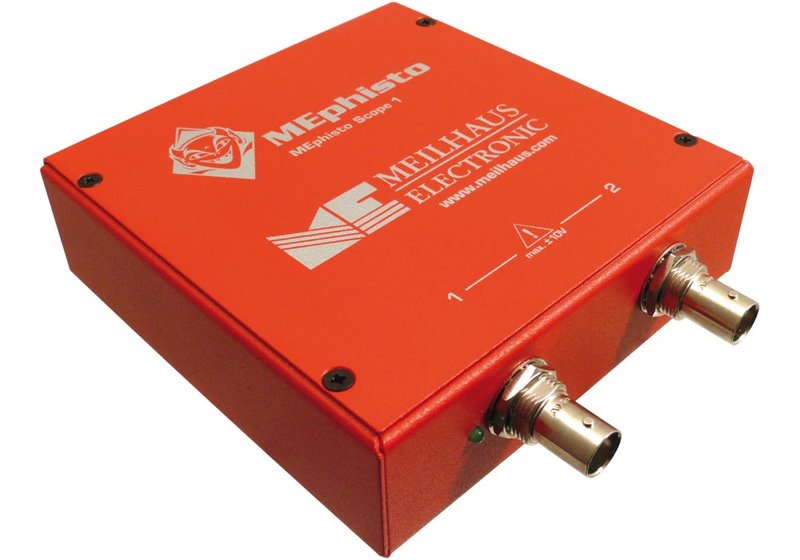

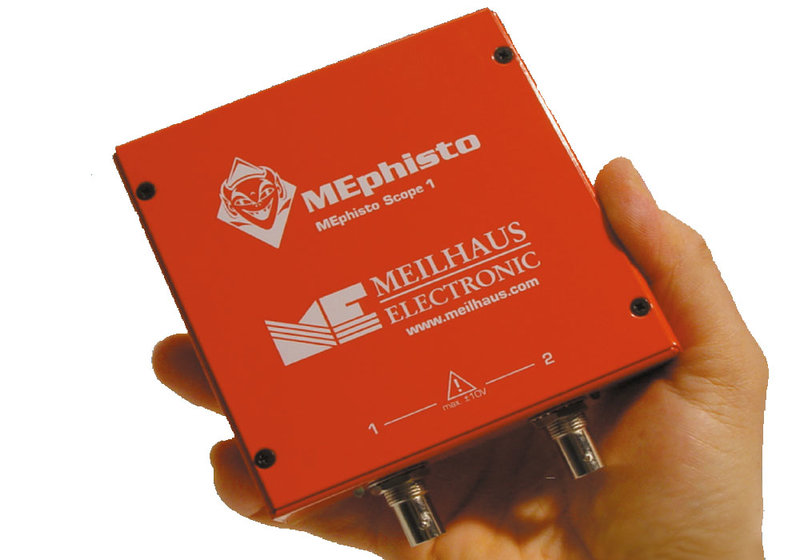

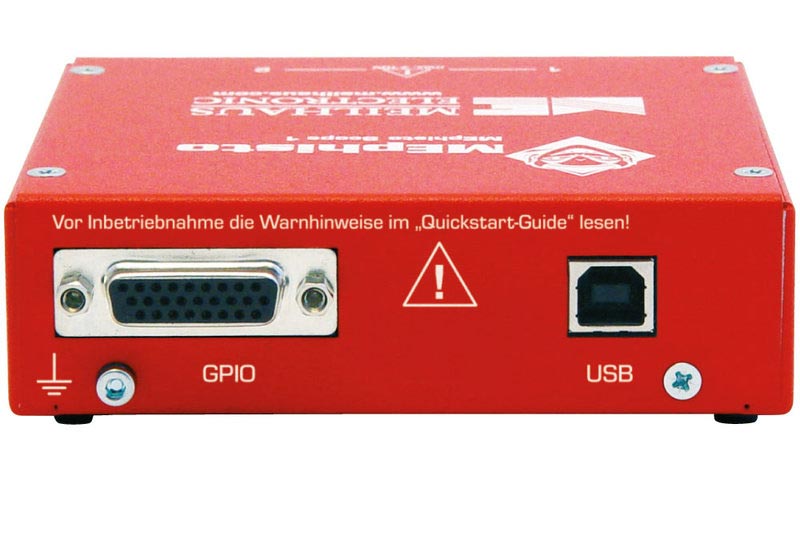

MEphisto Scope UM202 universal USB DAQ-box/instrument
additional images:
Price

starting 348,00*
* excluding VAT free shipping (Germany)
Quantity:
Total
Unit price
base price
Stock
on stock
Description

Benefits

  • Compact 7-in-1 universal DAQ system.
  • High 16-bit resolution.
  • Also version with PC-independent datalogger with SD card.

You can carry along 7 measurement instruments...
...or 1 compact MEphisto Scope.

The MEphisto Scope is a multi-functional, universal instrument including a 2-channel 16 bit digital storage oscilloscope, a spectrum analyzer with FFT, a volt meter, a logic analyzer, a data logger and 24-channels of digital-I/O. The universal instrument has a rugged metal housing. The UM203 version acts as stand-alone logger and writes the captured data to an SD-card. The new MEphistoLab2 software package increases the productivity of the MEphisto Scope UM20x even more!

Originally, the MEphisto Scope was designed to be a multifunctional USB oscilloscope. Various enhancements in hardware and firmware have turned the device into a flexible USB alround DAQ box and datalogger, combined with several measurement instruments. The device is now taking a new step ahead with the new software MEphistoLab2 and the integration into the Meilhaus Electronic driver system ME-iDS.

  • Rugged USB module with 7 instruments in one.
  • UM203 with additional offline/stand-alone logging functionality: Writes the captured data to an SD-card.
  • Excessively low-power: UM202 power supply via USB, ultra low power 0.85 W. UM203 in offline mode: External power supply (included).
  • 16 bit resolution. 1 MS/s total sampling rate, up to 2x 1 MS/s simultaneous sampling. Analog bandwidth 1 MHz. Memory for measurement data 256 kS.
  • BNC connectors for reliable connectivity of standard probes.
  • ±300 VDC overload protection.
  • Multiple trigger modes: Threshold, window, edge, slew rate (dV/dt), external, manual.
  • USB 2.0 fullspeed (compatible with USB 1.1). USB cable included.

The MEphisto Scope instruments - included in one device:

Instrument Specs
Oscilloscope, spectrum analyzer 2 channels, 1 MS/s per channel, 16 bit, up to 500 kHz, range 200 mV...20 V. Time, spectrum and XY mode.
Volt meter 2 channels, ranges ±100 mV, ±1 V, ±10 V. 16 bit. Indicator and numeric display (software). DC, AC, true RMS.
Datalogger Analog and digital up to 100 kHz.
Logic analyzer 16 channels, up to 100 kHz, CMOS level.
Digital-I/O 24 TTL lines, individually programmable as inputs/outputs.

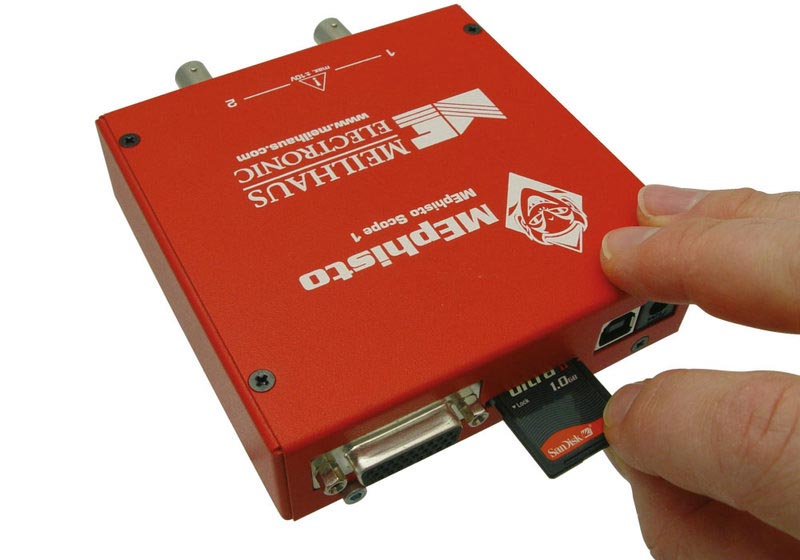

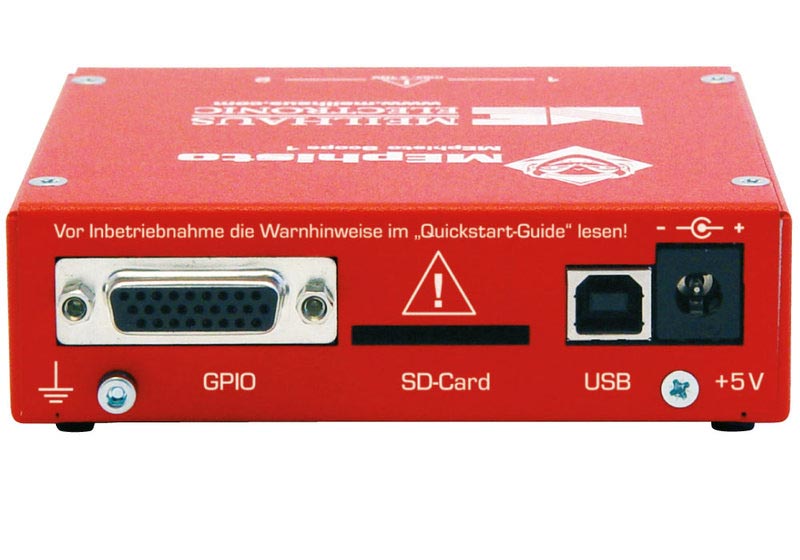

Model UM203 stand-alone data logger Captures analog and digital data, writes data to an SD-card. Up to 100 kS/s (depending on type of SD-card). Inserting the SD-card starts measurement.

Model Overview

Model Description Analog inputs Digital-I/O Data logger Interface
MEphisto Scope UM202 USB module 2 (scope/XY/spectrum, volt meter, datenlogger) Up to 24 (digital-I/O, datalogger, logic analyzer) Using PC/laptop USB 2.0 fullspeed
MEphisto Scope UM203 USB module 2 (scope/XY/spectrum, volt meter, datenlogger) Up to 24 (digital-I/O, datalogger, logic analyzer) Using PC/laptop or independent from PC with SD memory card USB 2.0 fullspeed
MEphisto Scope UM202-T Complete kit with bag and accessories 2 (scope/XY/spectrum, volt meter, datenlogger) Up to 24 (digital-I/O, datalogger, logic analyzer) Using PC/laptop USB 2.0 fullspeed
MEphisto Scope UM203-T Complete kit with bag an accessories 2 (scope/XY/spectrum, volt meter, datenlogger) Up to 24 (digital-I/O, datalogger, logic analyzer) Using PC/laptop or independent from PC with SD memory card USB 2.0 fullspeed

Included: USB box (metal housing), CD with software and PDF instructions for use, 26-pin D-sub mating plug, USB cable; additional for UM203: Power adaptor. Note: SD memory card not included!
Additional as a kit "-T": Bag, pair of probes, German book "Experimente mit Datenlogger und USB-Scope".
Software: MEphistoLab2 software for MEphisto Scope, supports all devices: Scope (time, XY, spectrum), volt-meter, analog data logger, logic analyzer, digital data logger, digital I/O, for Windows. Based on the MCD ToolMonitor. Incl. scripting editor.
Note: MEphisto Scope also supported by the driver system ME-iDS.

Software MEphistoLab2


MEphistoLab2 "main screen"...
...based on the MCD Elektronik ToolMonitor.

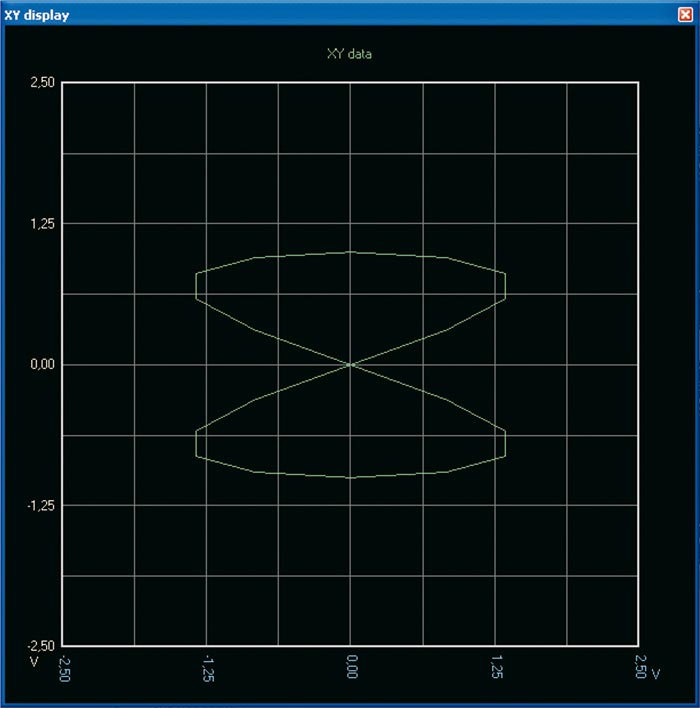

2 channel oscilloscope - XY display

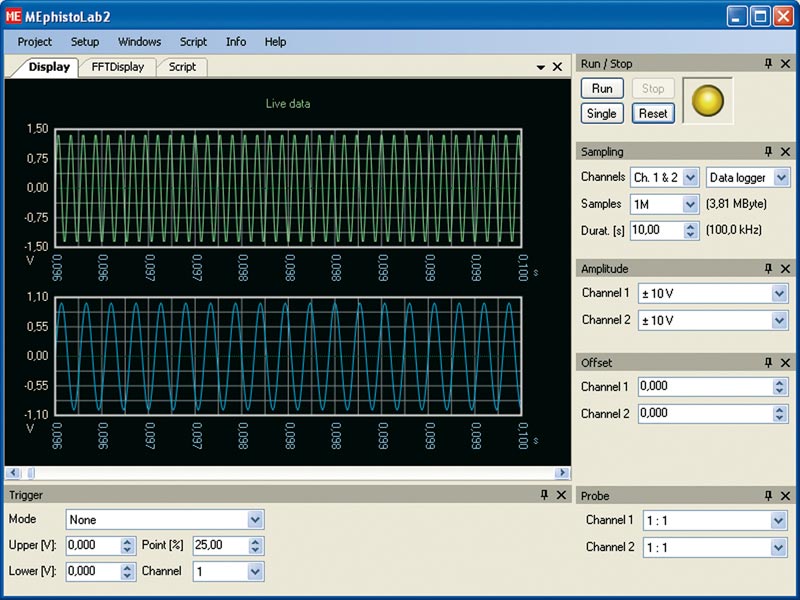

2 channel analog data logger

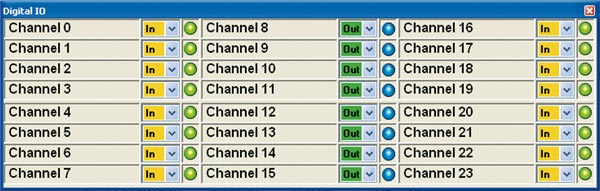

Digital-I/O

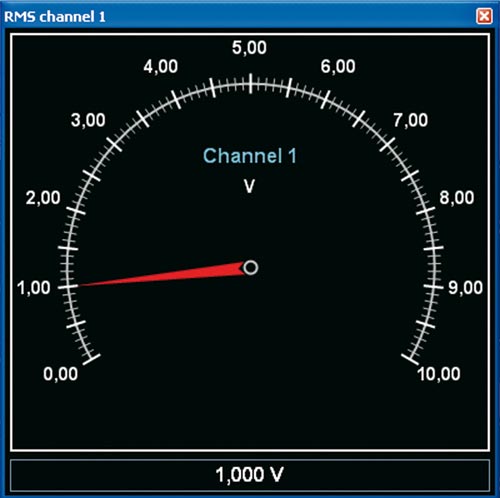

Volt-meter display

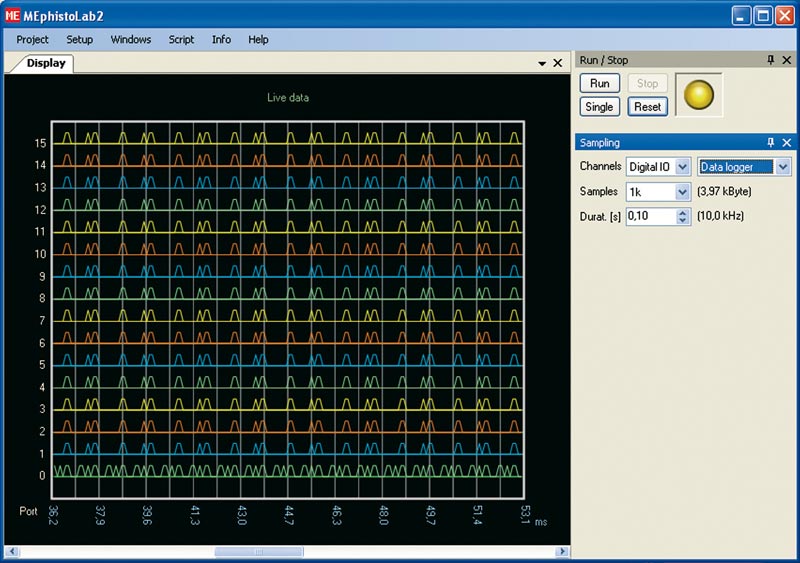

Digital data logger

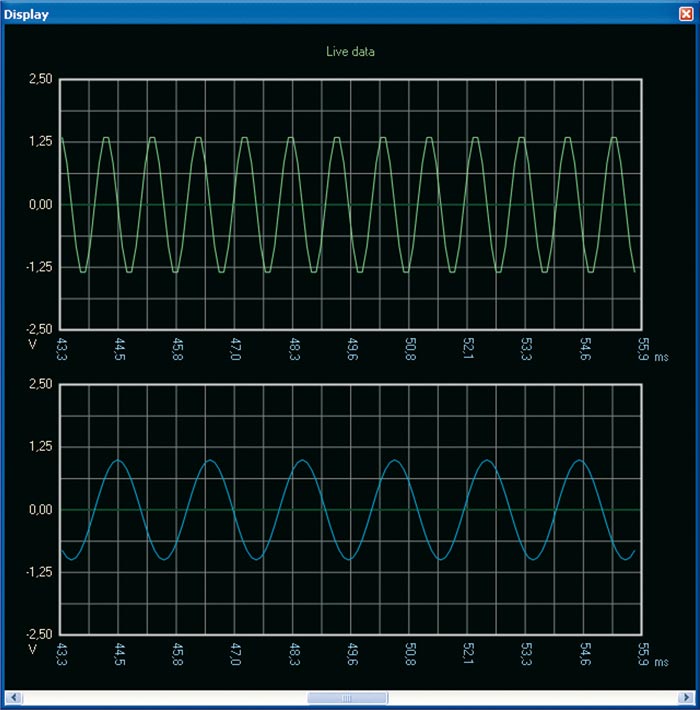

2 channel oscilloscope

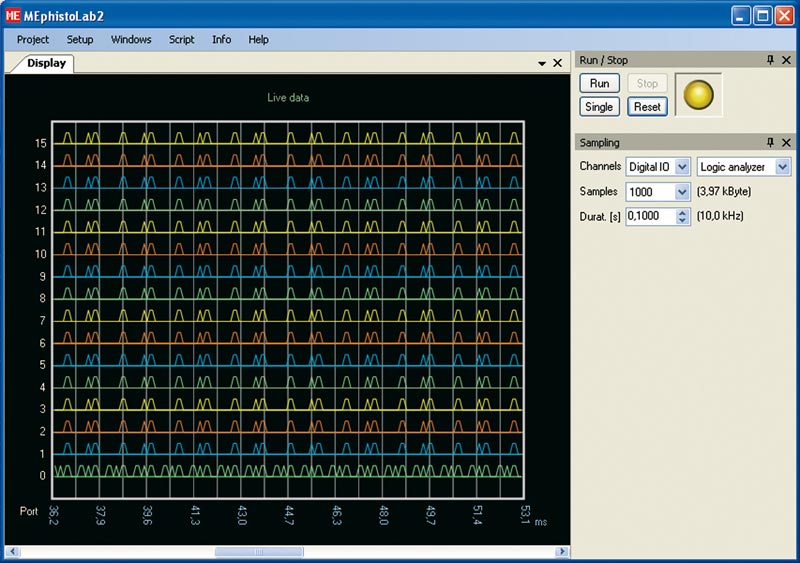

Logic analyzer

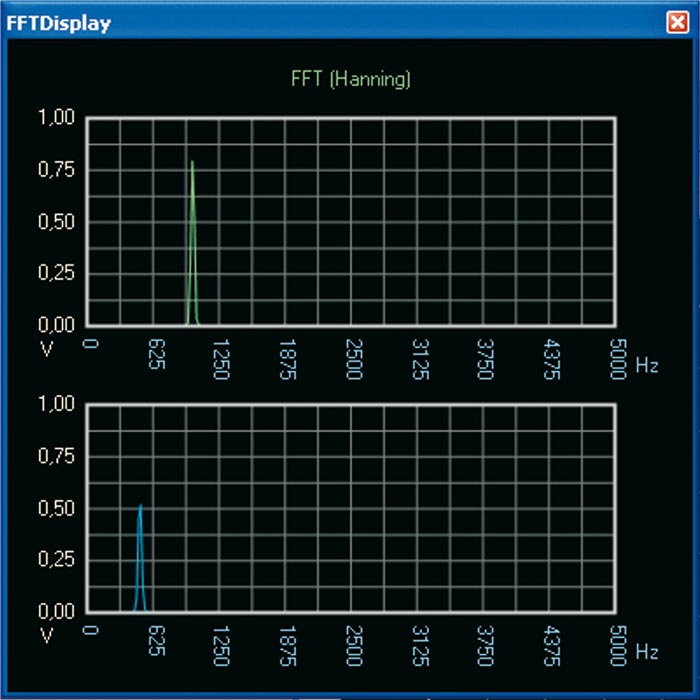

2 channel oscilloscope - spektrum/FFT

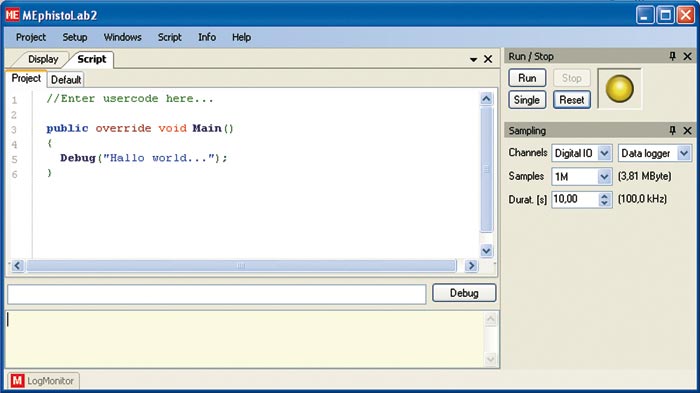

Scripting editor...
...all functions programmable.
