Benefits of the µB04, µB08, µB16 Backpanels for Signal Conditioning with microBlox Series
- Flexible signal conditioning: 1 module per channel/signal.
- 4, 8, or 16 modules on a backpanel.
- DIN-rail mountable backpanels.
Acromag microBlox µB04, µB08, µB16 Backpanels

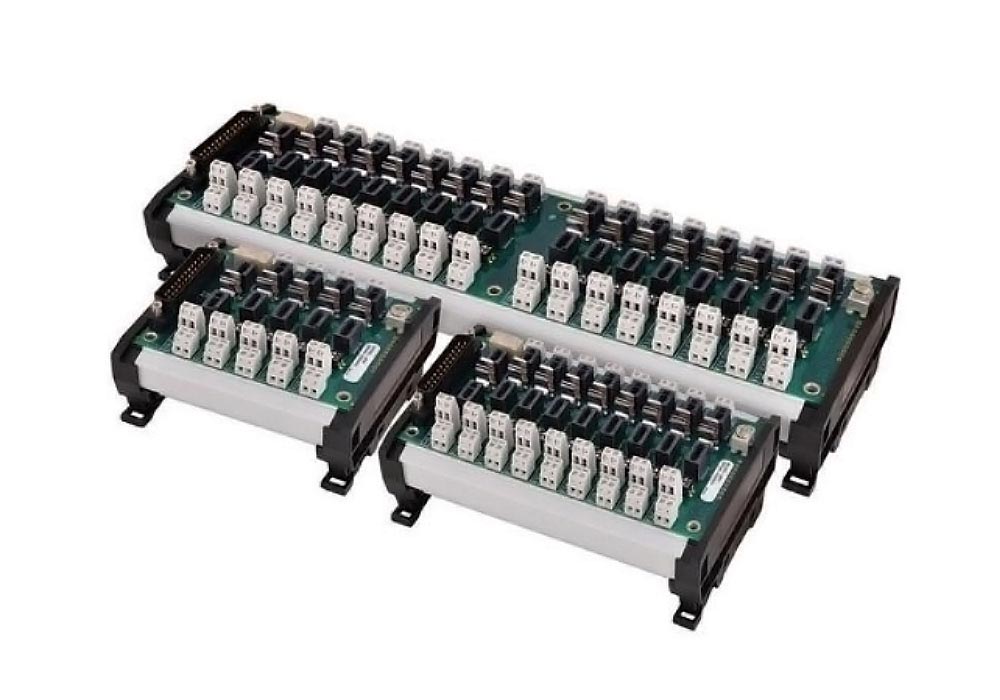

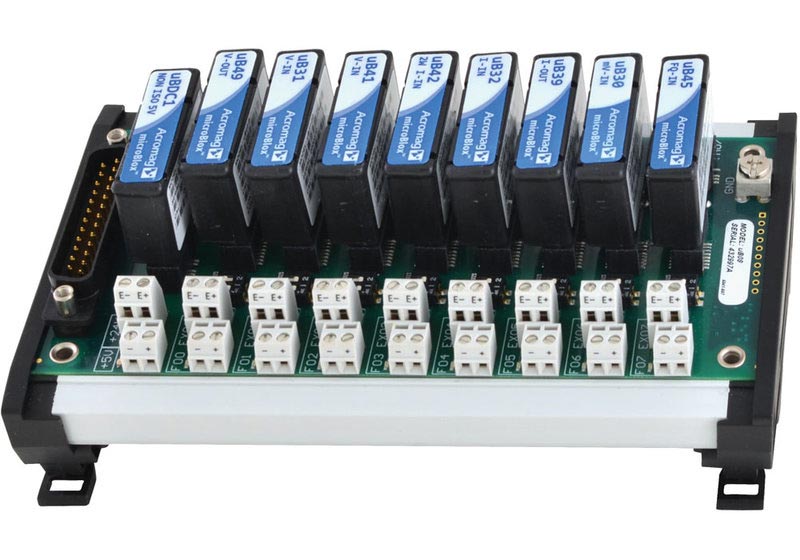

The Acromag microBlox offer a compact and high-performance solution for interfacing sensor and field signals with measurement and data acquisition systems. They isolate, filter and amplify the signals and convert them to standard ranges. The modules are securely plugged on 4, 8 or 16-channel backpanels and can be combined according to your requirements and application.
- Backpanels for 4, 8, or 16 modules/channels.
- Mix and combine modules according to your application.
- Secure wiring with screw terminals.

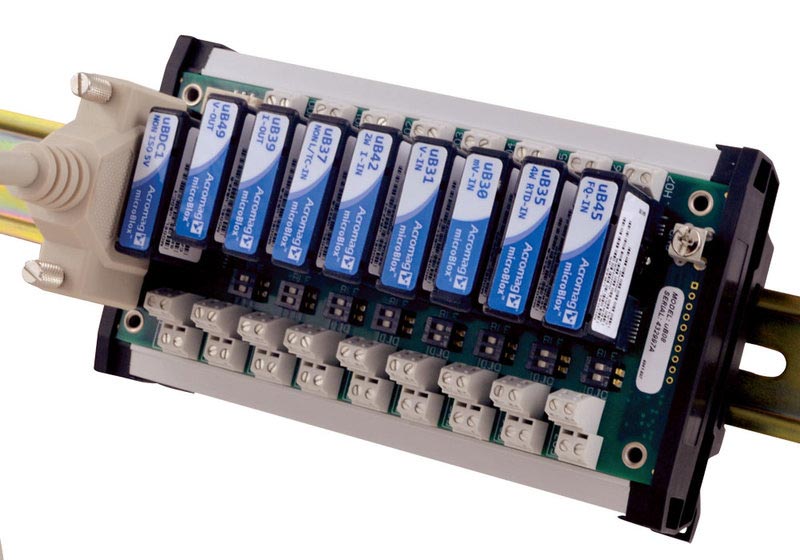

- DIN-rail-mountable versions.
- Each module slot (I/O channel) has switches to enable Bluetooth communication (with LED) and cold junction compensation for thermocouple inputs.
- Available as industrial version (standard) or CG (commercial grade for cost-sensitive projects) with limited temperature range and lack hazloc approvals.
Model Overview
| Model | Channels/module slots | DIN-Rail mountable |
| µB-04 | 4 | - |
| µB-04-CG | 4 | - |
| µB-04D | 4 | yes |
| µB-04D-CG | 4 | yes |
| µB-08 | 8 | - |
| µB-08-CG | 8 | - |
| µB-08D | 8 | yes |
| µB-08D-CG | 8 | yes |
| µB-16 | 16 | - |
| µB-16-CG | 16 | - |
| µB-16D | 16 | yes |
| µB-16D-CG | 16 | yes |
| Accessories | ||
| SCMXCA006-01 | Interface cable for microBlox µB backpanels, 1 m. | |
| SCMXCA006-02 | Interface cable for microBlox µB backpanels, 2 m. | |
| SCMXCA006-07 | Interface cable for microBlox µB backpanels, 7 m. | |
| µBDC1 | Non-isolated power supply 10...32 V: 5 V/1 A | |
| µBXIF | Universal interface board, rack mount | |
| 5020-350 | AC current sensor | |
Model Overview - Complete Series
| Series | Inputs |
| ▸µB30 | mV input, range ±10...±100 mV, filtering noisier environments. |
| ▸µB31 | V input, range ±1...±60 V, filtering noisier environments. |
| ▸µB32 | mA input, range 0...20 mA, 4...20 mA DC. |
| ▸µB34 | RTD input, 2/3-wire, range -100...+100°C, 0...600°C. |
| ▸µB35 | RTD input, 4-wire, range -100...+100°C, 0...600°C. |
| ▸µB37 | Thermocouple input, type J, K, T, R, S, output linear with thermocouple voltage. |
| ▸µB39 | mA ouput, range 0...20 mA, 4...20 mA DC. |
| ▸µB40 | mV input, range ±10...±100 mV, faster response, but with less filtering for noise. |
| ▸µB41 | V input, range ±1...±60 mV, faster response, but with less filtering for noise. |
| ▸µB42 | mA input, 2-wire transmitter, loop excitation, 0...20 mA, 4...20 mA DC. |
| ▸µB45 | Frequency input, range 0...50 kHz. |
| ▸µB47 | Thermocouple input, type J, K, T, R, S, output linear with thermocouple temperature. |
| ▸µB49 | V ouput, range ±5 V, ±10 V, 0...5 V, 0...10 V. |
