EOL/this product is obsolete and not available anymore from the manufacturer.

>Benefits of the µB39 Modules with DC Current Output and Bluetooth Version

  • Flexible signal conditioning: 1 module per channel/signal, 4, 8, or 16 modules on a backpanel.
  • DC current output, 100 Hz.
  • Models B with Bluetooth for configuration via Android or iOS mobile device.

Acromag microBlox µB39 DC Current Output, 100 Hz, Signal Conditioning

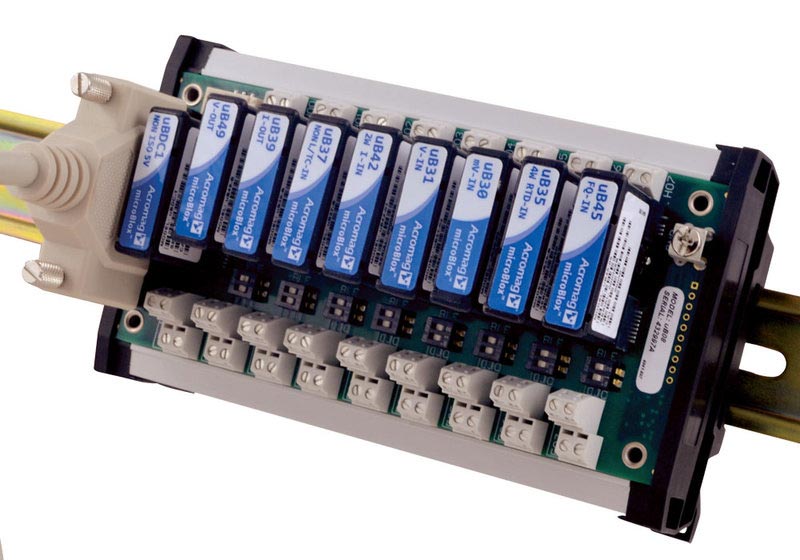

The Acromag microBlox offer a compact and high-performance solution for interfacing sensor and field signals with measurement and data acquisition systems. They isolate, filter and amplify the signals and convert them to standard ranges. The modules are securely plugged on 4, 8 or 16-channel backpanels and can be combined according to your requirements and application.

  • DC current input, range 0...20 mA or 4...20 mA.
  • Input±5 V and/or 0...5 V.
  • Bandwidth 100 Hz.
  • Channel-to-channel isolation for high noise immunity.
  • Model B with Bluetooth for configuration via Android or iOS mobile device (smartphone, tablet), including alarm, limit, diagnosis and more.
  • Available as industrial version (standard) or CG (commercial grade for cost-sensitive projects) with limited temperature range and lack hazloc approvals.

Model Overview

Model Bandwidth Input Output Configuration
µB39-01 100 Hz 0...5 V 4...20 mA -
µB39-01-CG 100 Hz 0...5 V 4...20 mA -
µB39-02 100 Hz ±5 V 4...20 mA -
µB39-02-CG 100 Hz ±5 V 4...20 mA -
µB39-03 100 Hz 0...5 V 0...20 mA -
µB39-03-CG 100 Hz 0...5 V 0...20 mA -
µB39-04 100 Hz ±5 V 0...20 mA -
µB39-04-CG 100 Hz ±5 V 0...20 mA -
µB39-B 100 Hz ±5 V 0...20 mA Input/output via Bluetooth

Included: Module, instructions for use.
