  • Flexible signal conditioning: 1 module per channel/signal, 4, 8, or 16 modules on a backpanel.
  • Thermocouple input, non-linearized.
  • Models B with Bluetooth for configuration via Android or iOS mobile device.

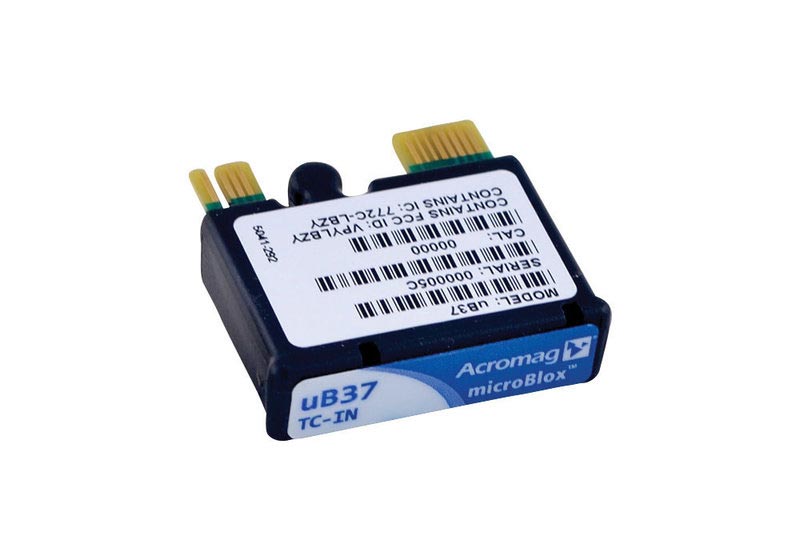

microBlox Signal Conditioning µB37 - Thermocouple Input, Non-linearized, 5 Hz.

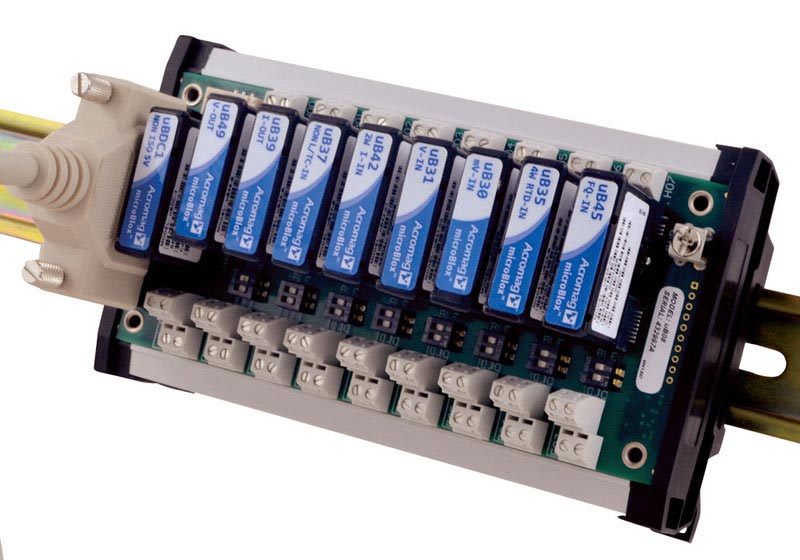

The Acromag microBlox offer a compact and high-performance solution for interfacing sensor and field signals with measurement and data acquisition systems. They isolate, filter and amplify the signals and convert them to standard ranges. The modules are securely plugged on 4, 8 or 16-channel backpanels and can be combined according to your requirements and application.

  • Thermocouple input, J, K, T, R, S, non-linearized.
  • Output to ±5 V and/or 0...5 V.
  • Bandwidth 5 Hz.
  • Channel-to-channel isolation for high noise immunity.
  • Model B with Bluetooth for configuration via Android or iOS mobile device (smartphone, tablet), including alarm, limit, diagnosis and more.
  • Available as industrial version (standard) or CG (commercial grade for cost-sensitive projects) with limited temperature range and lack hazloc approvals.

Model Overview

Model Bandwidth Input Output Configuration
µB37-J 5 Hz J, -100...760°C 0...5 V -
µB37-J-CG 5 Hz J, -100...760°C 0...5 V -
µB37-K 5 Hz K, -100...1350°C 0...5 V -
µB37-K-CG 5 Hz K, -100...1350°C 0...5 V -
µB37-R 5 Hz R, 0...1750°C 0...5 V -
µB37-R-CG 5 Hz R, 0...1750°C 0...5 V -
µB37-S 5 Hz S, 0...1750°C 0...5 V -
µB37-S-CG 5 Hz S, 0...1750°C 0...5 V -
µB37-T 5 Hz T, -100...400°C 0...5 V -
µB37-T-CG 5 Hz T, -100...400°C 0...5 V -
µB37-B 5 Hz J, K, T, R , S ±5 V Input/output via Bluetooth

Included: Module, instructions for use.

Model Overview - Complete Series

Series Inputs
µB30 mV input, range ±10...±100 mV, filtering noisier environments.
µB31 V input, range ±1...±60 V, filtering noisier environments.
µB32 mA input, range 0...20 mA, 4...20 mA DC.
µB34 RTD input, 2/3-wire, range -100...+100°C, 0...600°C.
µB35 RTD input, 4-wire, range -100...+100°C, 0...600°C.

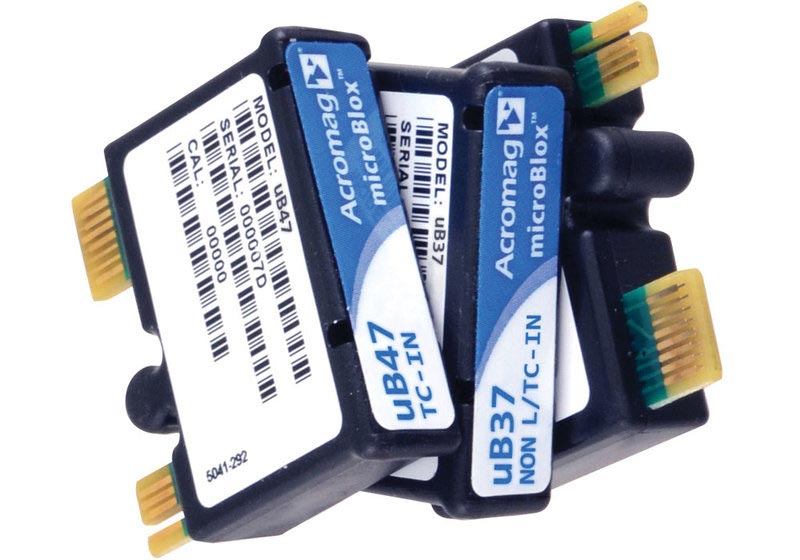

µB37 Thermocouple input, type J, K, T, R, S, output linear with thermocouple voltage.
µB39 mA ouput, range 0...20 mA, 4...20 mA DC.
µB40 mV input, range ±10...±100 mV, faster response, but with less filtering for noise.
µB41 V input, range ±1...±60 mV, faster response, but with less filtering for noise.
µB42 mA input, 2-wire transmitter, loop excitation, 0...20 mA, 4...20 mA DC.
µB45 Frequency input, range 0...50 kHz.
µB47 Thermocouple input, type J, K, T, R, S, output linear with thermocouple temperature.
µB49 V ouput, range ±5 V, ±10 V, 0...5 V, 0...10 V.
