EOL/this product is obsolete and not available anymore from the manufacturer.

Benefits of the µB31 Modules with V Input and Bluetooth Version

  • Flexible signal conditioning: 1 module per channel/signal, 4, 8, or 16 modules on a backpanel.
  • Voltage input/V, 4 Hz.
  • Models B with Bluetooth for configuration via Android or iOS mobile device.

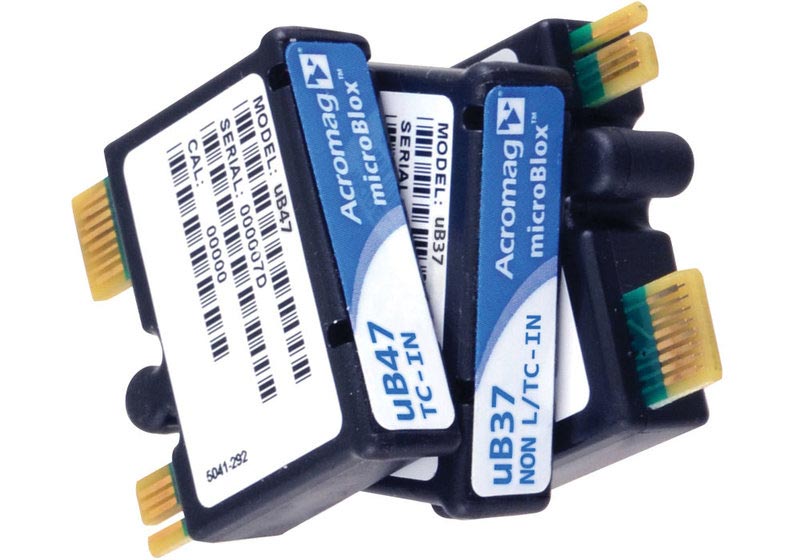

Acromag microBlox µB31 V Input, 4 Hz, Signal Conditioning

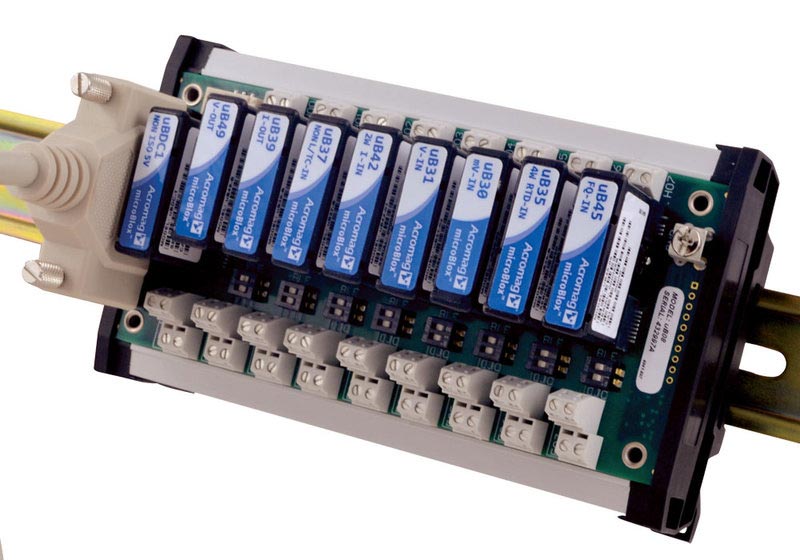

The Acromag microBlox offer a compact and high-performance solution for interfacing sensor and field signals with measurement and data acquisition systems. They isolate, filter and amplify the signals and convert them to standard ranges. The modules are securely plugged on 4, 8 or 16-channel backpanels and can be combined according to your requirements and application.

  • V input, range ±1 V to ±60 V.
  • More filtering for low-band applications, recommended for noisier environments where conversion speed is less of a concern.
  • Output to ±5 V and/or 0...5 V.
  • Bandwidth 4 Hz.
  • Channel-to-channel isolation for high noise immunity.
  • Model B with Bluetooth for configuration via Android or iOS mobile device (smartphone, tablet), including alarm, limit, diagnosis and more.
  • Available as industrial version (standard) or CG (commercial grade for cost-sensitive projects) with limited temperature range and lack hazloc approvals.

Model Overview

Model Bandwidth Input Output Configuration
µB31-01 4 Hz ±1 V ±5 V -
µB31-01-CG 4 Hz ±1 V ±5 V -
µB31-02 4 Hz ±5 V ±5 V -
µB31-02-CG 4 Hz ±5 V ±5 V -
µB31-03 4 Hz ±10 V ±5 V -
µB31-03-CG 4 Hz ±10 V ±5 V -
µB31-04 4 Hz ±1 V 0...5 V -
µB31-04-CG 4 Hz ±1 V 0...5 V -
µB31-05 4 Hz ±5 V 0...5 V -
µB31-05-CG 4 Hz ±5 V 0...5 V -
µB31-06 4 Hz ±10 V 0...5 V -
µB31-06-CG 4 Hz ±10 V 0...5 V -
µB31-07 4 Hz ±20 V ±5 V -
µB31-07-CG 4 Hz ±20 V ±5 V -
µB31-08 4 Hz ±20 V 0...5 V -
µB31-08-CG 4 Hz ±20 V 0...5 V -
µB31-09 4 Hz ±40 V ±5 V -
µB31-09-CG 4 Hz ±40 V ±5 V -
µB31-10 4 Hz ±40 V 0...5 V -
µB31-10-CG 4 Hz ±40 V 0...5 V -
µB31-12 4 Hz ±60 V ±5 V -
µB31-12-CG 4 Hz ±60 V ±5 V -
µB31-13 4 Hz ±60 V 0...5 V -
µB31-13-CG 4 Hz ±60 V 0...5 V -
µB31-B 4 Hz ±1...±60 V ±5 V Input/output via Bluetooth

Included: Module, instructions for use.
