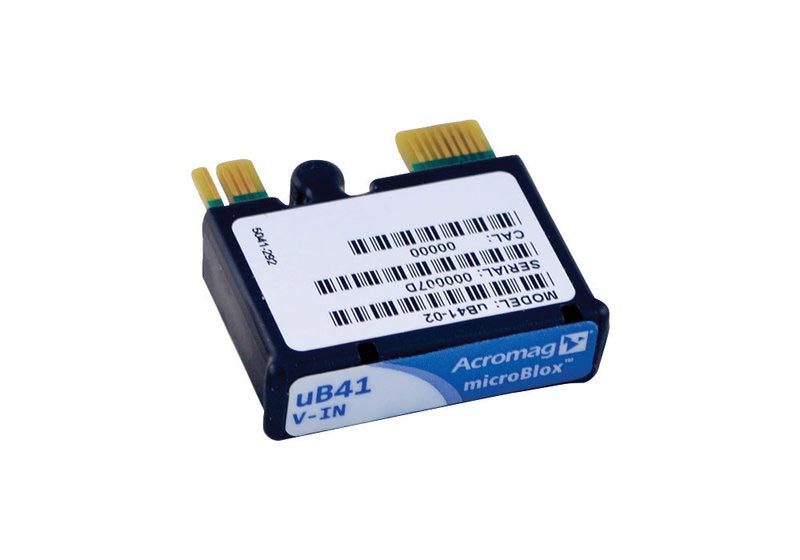

Acromag microBlox µB41 V Input, 1kHz, Signal Conditioning

EOL/this product is obsolete and not available anymore from the manufacturer.

Benefits of the µB41 Modules with V Input and Bluetooth Version

• Flexible signal conditioning: 1 module per channel/signal, 4, 8, or 16 modules on a backpanel.
• Voltage input/V, 1 kHz.
• Models B with Bluetooth for configuration via Android or iOS mobile device.

Acromag microBlox µB41 V Input, 1 kHz, Signal Conditioning

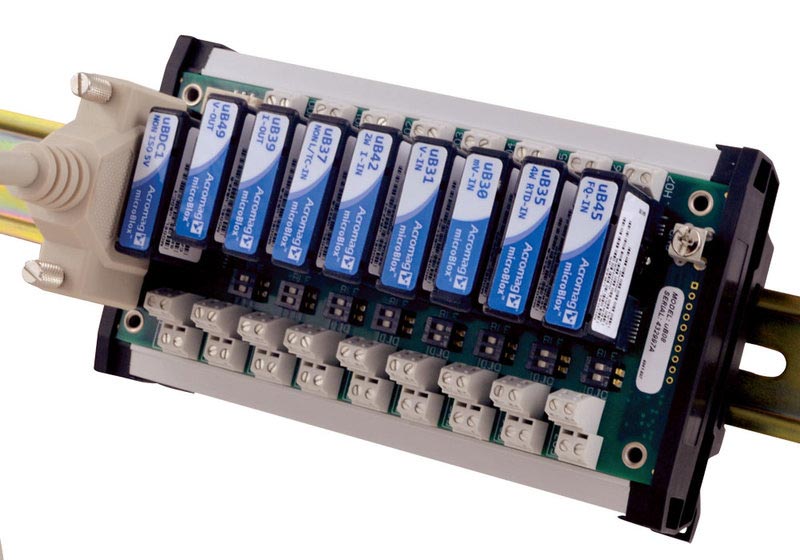

The Acromag microBlox offer a compact and high-performance solution for interfacing sensor and field signals with measurement and data acquisition systems. They isolate, filter and amplify the signals and convert them to standard ranges. The modules are securely plugged on 4, 8 or 16-channel backpanels and can be combined according to your requirements and application.

• V input, range ±1 V to ±60 V.
• Relaxes filtering for higher speed applications: Drive a faster response, but with less filtering for noise.
• Output to ±5 V and/or 0...5 V.
• Bandwidth 1 kHz.
• Channel-to-channel isolation for high noise immunity.
• Model B with Bluetooth for configuration via Android or iOS mobile device (smartphone, tablet), including alarm, limit, diagnosis and more.
• Available as industrial version (standard) or CG (commercial grade for cost-sensitive projects) with limited temperature range and lack hazloc approvals.

Model Overview
