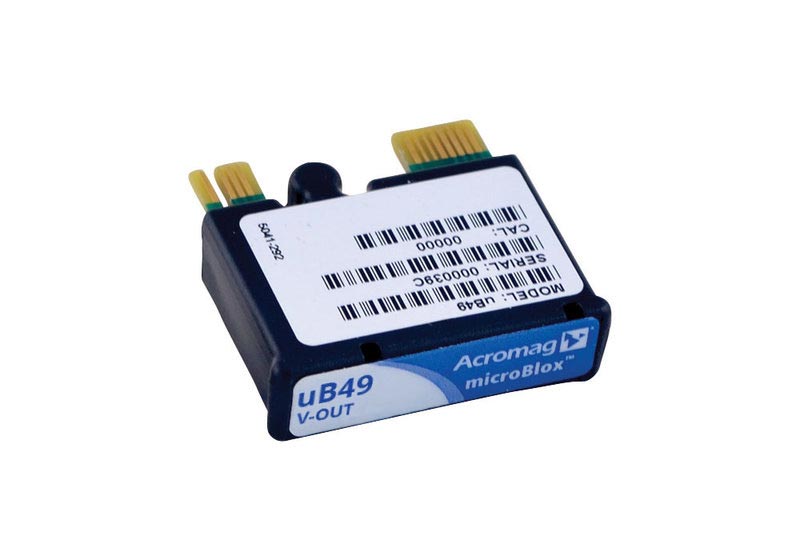

Acromag microBlox µB49 DC Voltage Output, 100Hz, Signal Conditioning

EOL/this product is obsolete and not available anymore from the manufacturer.

Benefits of the µB49 Modules with DC Voltage Output and Bluetooth Versions

• Flexible signal conditioning: 1 module per channel/signal, 4, 8, or 16 modules on a backpanel.
• DC voltage output, 100 Hz.
• Models B with Bluetooth for configuration via Android or iOS mobile device.

Acromag microBlox µB49 DC Voltage Output, 100 Hz, Signal Conditioning

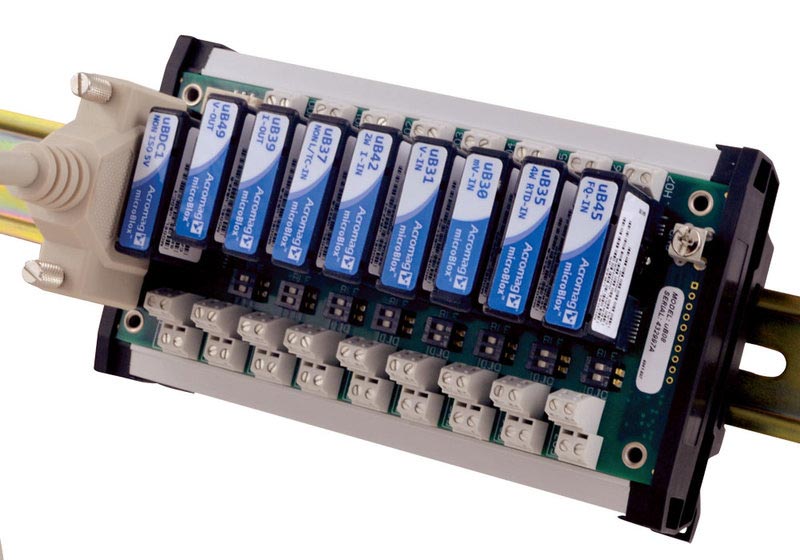

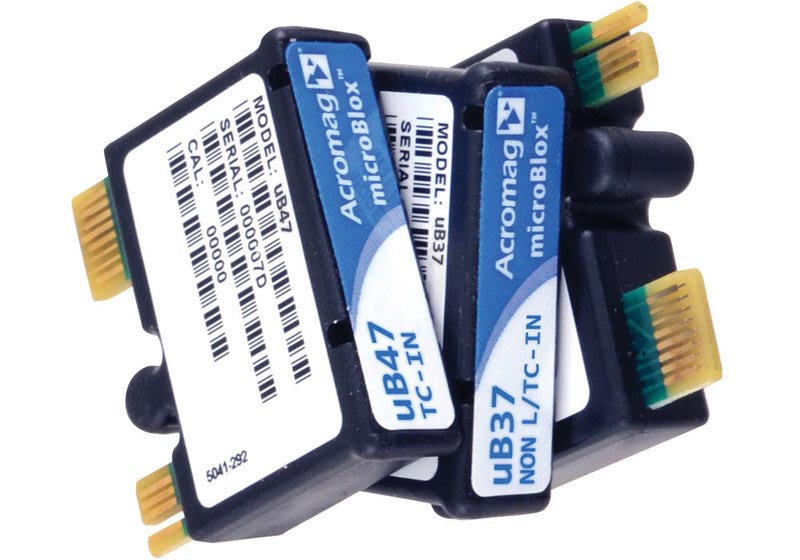

The Acromag microBlox offer a compact and high-performance solution for interfacing sensor and field signals with measurement and data acquisition systems. They isolate, filter and amplify the signals and convert them to standard ranges. The modules are securely plugged on 4, 8 or 16-channel backpanels and can be combined according to your requirements and application.

• DC voltage output, range ±10 V.
• Input ±5 V, 0...5 V, ±10 V.
• Bandwidth 100 Hz.
• Channel-to-channel isolation for high noise immunity.
• Model B with Bluetooth for configuration via Android or iOS mobile device (smartphone, tablet), including alarm, limit, diagnosis and more.
• Available as industrial version (standard) or CG (commercial grade for cost-sensitive projects) with limited temperature range and lack hazloc approvals.

Model Overview
