Description
Files/Downloads

Price advantage for online purchases in the web shop - 2.5% compared to the Siglent list price!

Benefits of the Siglent SPD1000X Series Programmable DC Power Supplies

  • Single path high-precision programmable voltage output.
  • Low ripple, low noise.
  • True-Color-TFT-LCD 240 x 320-Display.

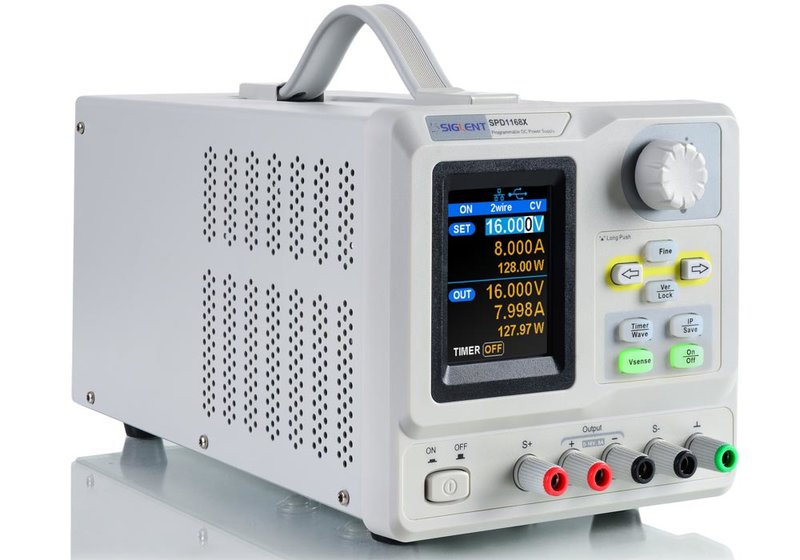

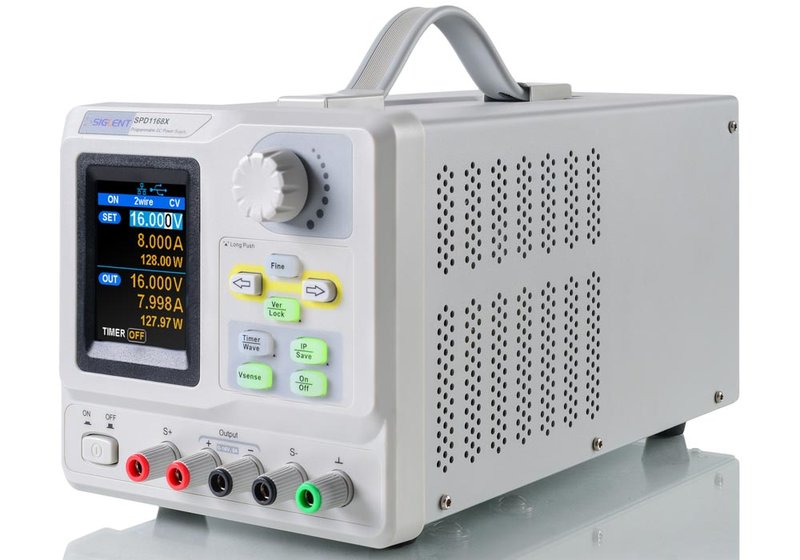

Siglent SPD1168X, SPD1305X DC Power Supplies, 16V/8A, 30V/5A

The SPD1000X programmable linear DC power supplies have a 2.8 inch/7.1 cm TFT-LCD display, feature remote computer control capability and real time wave display to deliver high performance and ease-of-use. The SPD1168X features a high-precision programmable output capable of delivering up to 16 V, the SPD1305X features a high precision programmable output capable of delivering up to 30 V and also includes a 4-wire sense function for more accurate voltage sourcing, especially for long leads or high resistance connections. There are additional output short and overload protect functions to assist in production and development applications.

  • Single path high-precision programmable voltage output:
  • SPD1168X: 16 V/8 A, total power up to 128 W.
    SPD1305X: 30 V/5 A, total power up to 150 W
  • Stable and reliable: low ripple and noise ≤350 µVRMS/3 mVpp; <2 mRMS.
  • Fast transient response time: <50 µs.
  • 5-digit voltage, 4-digit current display, minimum resolution: 1 mV/1 mA.
  • Supports front panel timing output functions.

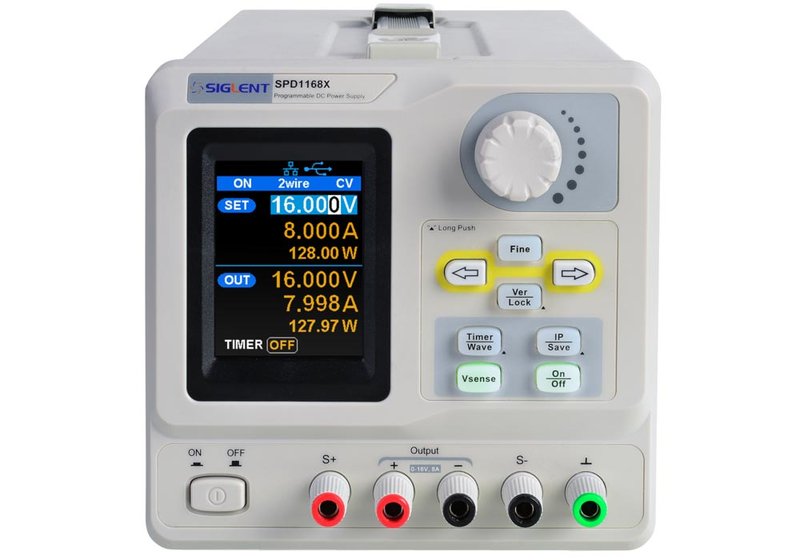

  • 2.8 inch/7.1 cm true color TFT- LCD 240 x 320 display.
  • 2 types of output modes: Two-wire output mode, 4-wire compensation output mode, maximum compensation voltage 1 V.

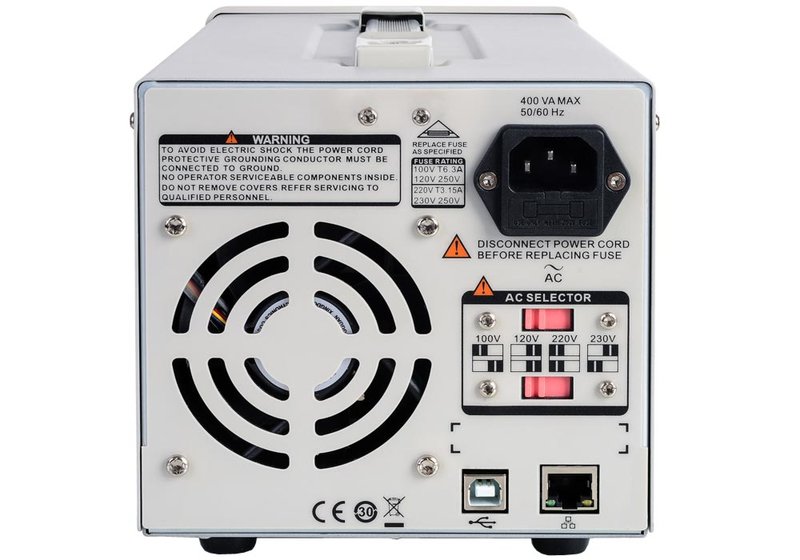

  • 100/120/220/230 V compatible design to meet the needs of different power grids.
  • Intelligent temperature-controlled fan reduces noise.
  • Clear graphical interface, with the waveform display function.
  • Internal 5 groups of system parameter save/recall.
  • Interfaces: USB, Ethernet/LAN; supports SCPI
  • Included PC software (downlaod): Easypower, LabView driver.

Model Overview

Model SPD1168X SPD1305X
Output voltage 0...16 V 0...30 V
Output current 0...8 A 0...5 A
Resolution 1 mV/1mA
Setting accuracy Voltage: ±(0.03% of reading +10 mV)/current: ±(0.3% of reading +10 mA)
Readback accuracy Voltage: ±(0.03% of reading +10 mV)/current: ±(0.3% of reading +10 mA)
Total power up to 128 W up to 150 W
Display 2.8"/7.1 cm true color TFT-LCD, 5-digit votlage/4-digit current
Dimensions (mm) 155 x 145 x 280; 5.5 kg
Standard interface USB, Ethernet/LAN

Accessories: SPD 1168X or 1305X, quick start, power cord, USB cable, output test cord sets.
