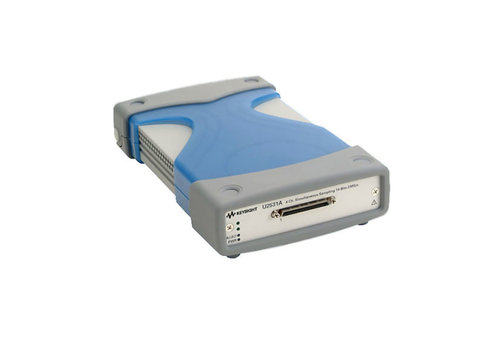

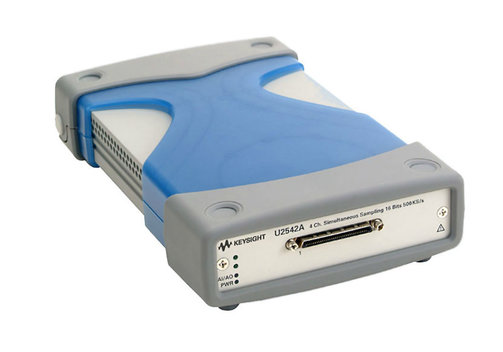

Keysight U2500A Series USB Multifunctional Data Acquisition Module, Simultaneous Channels
EOL/this product is obsolete and not available anymore from the manufacturer.
- Analog input/ouput DAQ boxes for USB, simultaneous channels.
- Reliable differential channels, up to 16 bit resolution.
- For use directly at a PC via USB or in a mainframe U2781A.
Keysight U2500A Series USB Multifunctional Data Acquisition Module, Simultaneous Channels
The U2500A series multifunctional DAQ modules from Keysight can be used as stand-alone devices directly at a PC USB port or as modular components in a ▸mainframe/chassis U2781A. Combined within a mainframe, systeme of up to 384 channels are possible! The U2500A modules offer simultaneous sampling on 4 analog inputs with a resolution of 14 or 16 bit, plus 2 analog outputs and 24 digital-I/O channels.
- High-speed USB 2.0 (480 MBit/s) TMC 488.2 compatible.
- 3 different models with 4 analog inputs. Resolution depending on model 14 or 16 bit.
- Simultaneous sampling up to 2 MS/s per channel.
- 2 analog outputs.
- 24 programmable digital-I/O channels.
- Used as USB device or modular component in a ▸mainframe/chassis U2781A for systems up to 384 channels.
- Inkl. Keysight Modular Instruments Measurement Manager software.
- IVI-COM driver, compatible with VEE Pro, LabVIEW, VisualStudio, MATLAB and others.
- Supported by VEE Pro.
- A BenchVue software licence (BV0025B) is now included with your instrument purchase. BenchVue makes it simple to connect, control instruments, and automate test sequences.
Model Overview
| Model | U2531A | U2541A | U2542A |
| Analog output | 4 simultaneous, differential | 4 simultaneous, differential | 4 simultaneous, differential |
| Resolution | 14 bit | 16 bit | 16 bit |
| Sample rate | 2 MS/s | 250 kS/s | 500 kS/s |
| Range | ±10/±5/±2.5/±1.25 V 0...10/5/2.5/1.25 V | ||
| Analog ouputs | 2 | 2 | 2 |
| Resolution | 12 bit | ||
| Update rate | 1 MS/s | ||
| Range | 0...10 V, ±10 V | ||
| Digital-I/O | 24 bit, TTL level | 24 bit, TTL level | 24 bit, TTL level |
| Counters | 2, TTL level | 2, TTL level | 2, TTL level |
| Interface | USB 2.0 HighSpeed | USB 2.0 HighSpeed | USB 2.0 HighSpeed |
Included: USB module from the U2500A series, power supply adaptor, USB cabel, CD with software and user manual, quick reference, mounting kit for mainframe ▸U2781A.
Software: Keysight Connectivity-Software. Keysight IO Libraries Suite. Software drivers for programming environments: IVI-COM driver. Compatible with Keysight VEE Pro (formerly Agilent VEE, HP-VEE), T&M Toolkit, Microsoft Visual Studio .NET C/C++, Visual Basic 6, National Instruments LabVIEW, The MathWorks MATLAB. Keysight Measurement Manager. A BenchVue software licence (BV0025B) is now included with your instrument purchase. BenchVue makes it simple to connect, control instruments, and automate test sequences.
Note: The recommended calibration interval for these devices is 12 months. Call or send an E-Mail for more information on calibration!
Agilent's Electronic Measurement Group is now Keysight Technologies.
