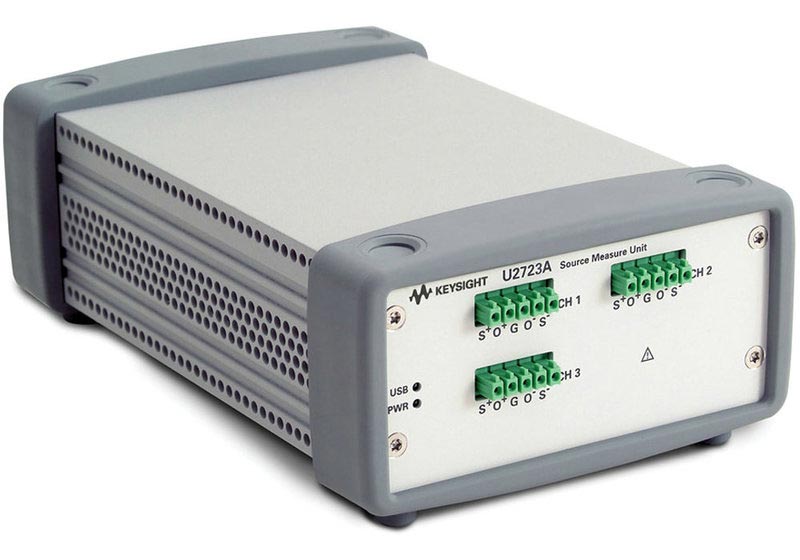

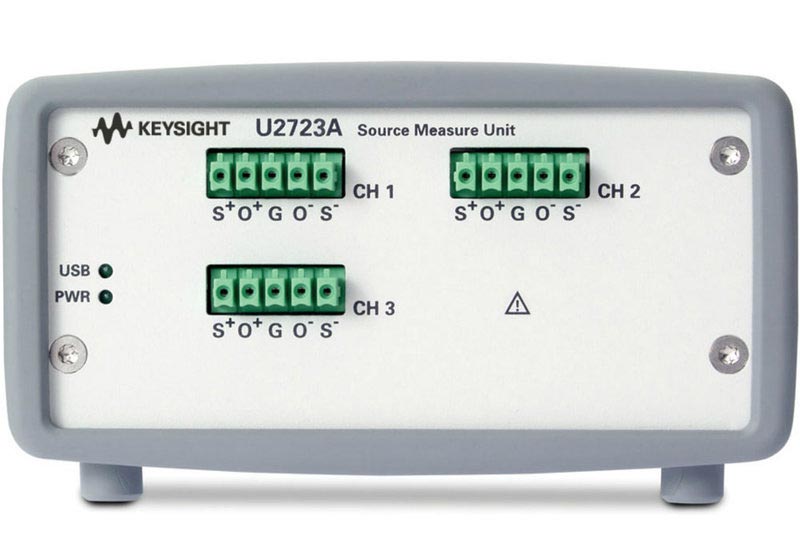

Keysight U2723A USB SMU/Source Measure Unit

Benefits of the USB SMU U2723A - Source and Measurement Instrument in One

• Source Measure Unit/SMU: Source and measurement instrument in one.
• Model with embedded test scripts.
• Can be used directly at PC USB port or in chassis U2781A.

Keysight U2723A USB SMU/Source Measure Unit

The Keysight U2722A/U2723A offers many special features, for example voltage and current programming/readback with very accurate measurements or four quadrant operation. Ideal for test and measurements of solar cells and more! Can be used as stand-alone devices directly at a PC USB port or as modular components in a ▸mainframe/chassis U2781A.

• High-speed USB 2.0 (480 MBit/s) TMC 488.2 compatible.
• 3-channel SMU, -20...+20 V/-120...+120 mA.
• Model ▸U2722A: Standard model.
  Model ▸U2723A with embedded test scripts: Up to 2 test scripts per channel, simplifies automatic tests.
• Four quadrant operation (±20 V).
• Max. current output 120 mA per channel.
• High measurement sensitivity 100 pA with 16 bit resolution.
• 0.1% basic accuracy.
• Measurement of low currents down to the nA range.
• Voltage and current programming/readback.
• Plug&Play installation and configuration.
• Used as USB device or modular component in a ▸mainframe/chassis U2781A.

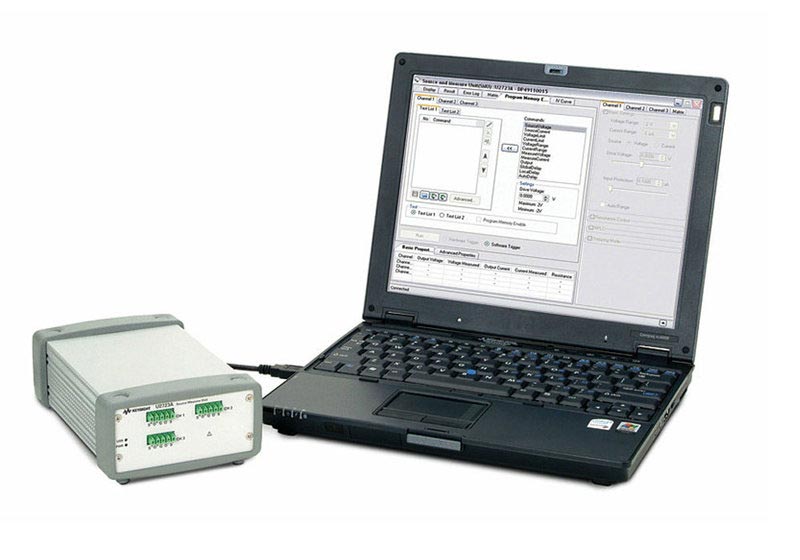

• Incl. software Keysight Measurement Manager. Compatible with VEE, LabVIEW, Visual Studio and others.
• A BenchVue software licence (BV0023B) is now included with your instrument purchase. BenchVue makes it simple to connect, control instruments, and automate test sequences.

Agilent’s Electronic Measurement Group is now Keysight Technologies.
