Keysight 33502A Amplifier

EOL/this product is discontinued and not available anymore from the manufacturer.

Benefits of the Keysight 33502A Analog Amplifier for Waveform Generators

• The ideal extension, if more output power is required for your waveform generator.
• Two isolated channels, gain x5.
• PC-controllable with USB and LAN/LXI.

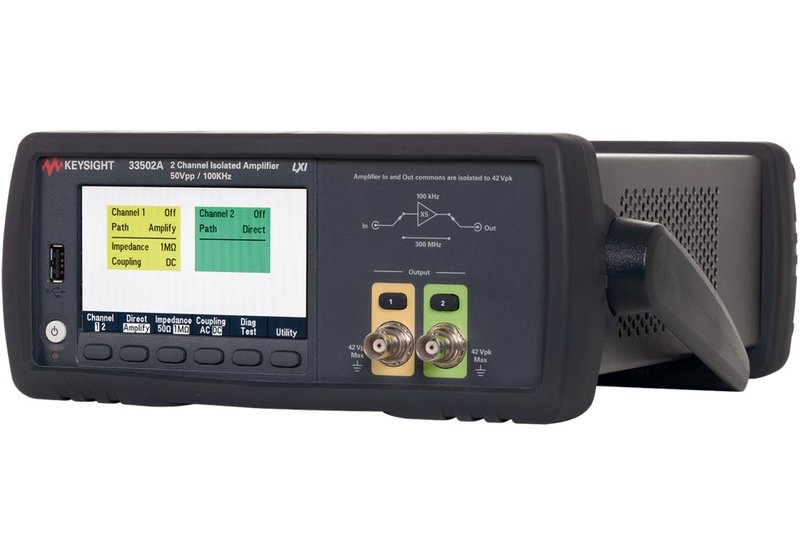

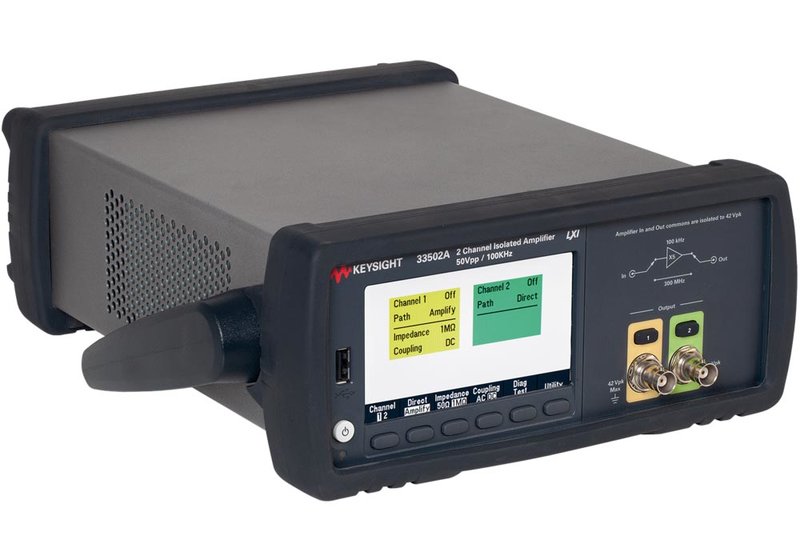

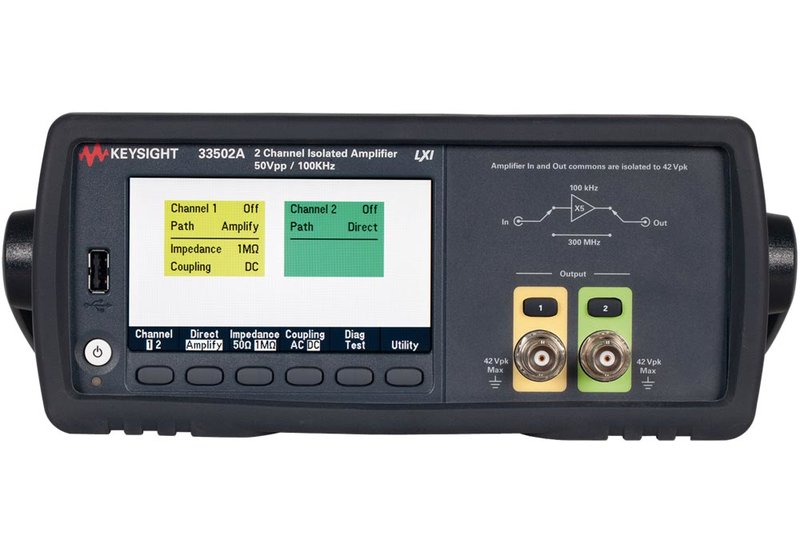

Keysight 33502A Analog Amplifier

The Keysight 33502A is a dual-channel, high voltage output amplifier. It has an isolated analog front end with up to 50 V_pp (±25 V) output voltage range. It is also a very low-distortion amplifier with <0.01% @ 10 kHz and 40 V_pp. The 33502A is designed to work as a companion for function generators to offer low-distortion, higher voltage outputs. For use with the Keysight waveform generators series 33500, series 33600, 33210A, 33220A, 33250A, and others.

• Analog amplifier, 2 channels, isolated. Amplifies analog signale, for example of Keysight signal generators.
• Input signal max. ±5 V.
• Gain x5.
• Bandwidth 100 kHz at full-power 50 V_pp (±25 V).
• Small signal bandwidth >300 kHz.
• Slew rate 20 V/µs min.
• THD+N: <0.01% at 10 kHz, 40 V_pp.
• Output drive max. 200 mA.
• Isolation floats ±42 V_p to earth.
• Input coupling AC/DC and input impedance 50 Ω/1 MΩ (independent configuration).
• Input path can be switched from amplified to direct (unamplified) without removing or connecting cables.
• Ethernet/LXI (Class-C compatible) and USB interfaces.

Agilent’s Electronic Measurement Group is now Keysight Technologies.
