Options for ClampMan Holding Fixture for Printed Circuit Boards/Component Modules.

All ClampMan versions are compatible with each other. Components of one version can be used in other versions.

Ordering Code Description

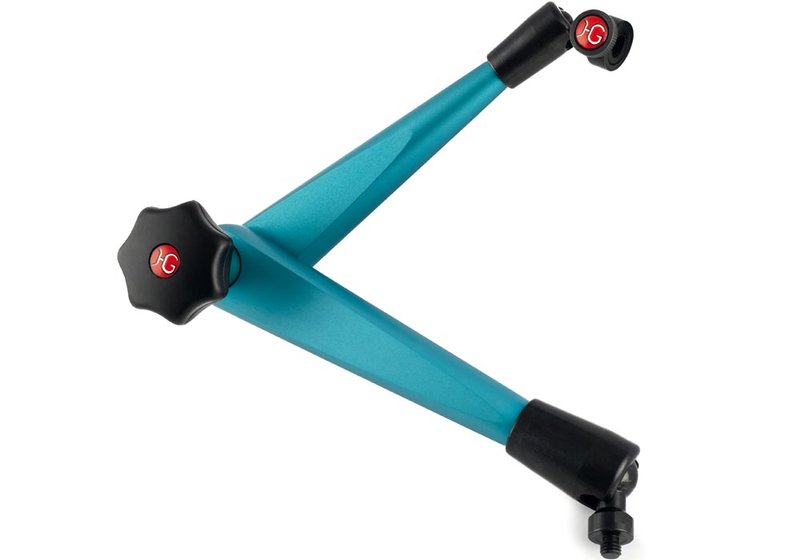

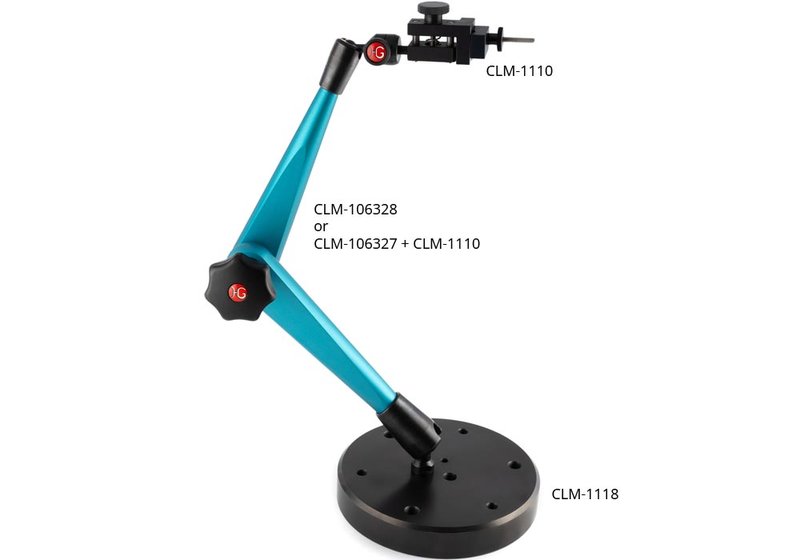

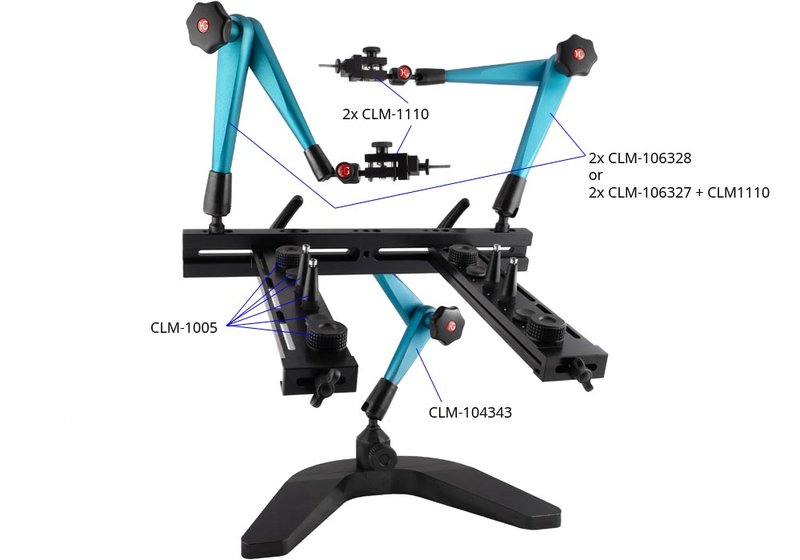

(CLM-)106327 Stand arm size 400 for ClampMan - without probe holder

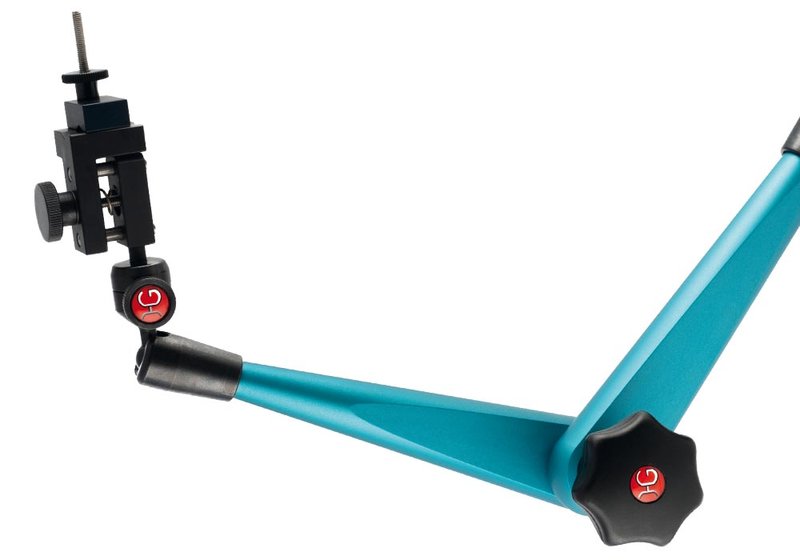

(CLM-)106328 Stand arm size 400 for ClampMan - with probe holder

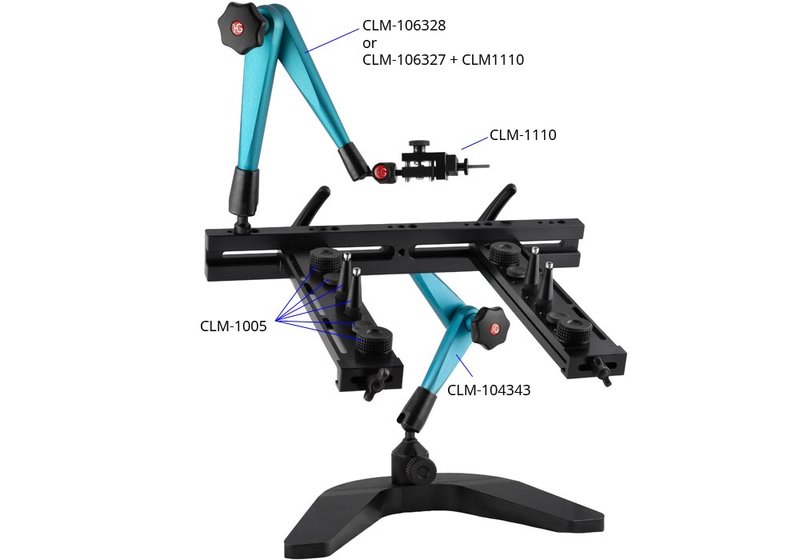

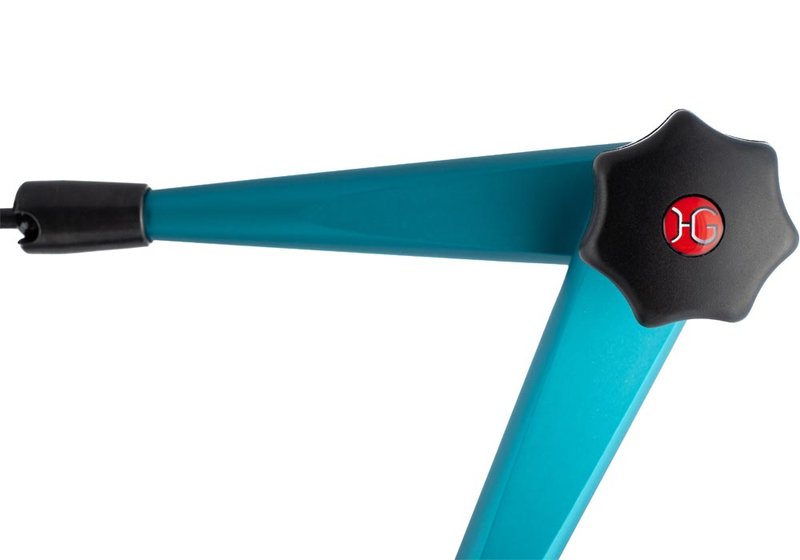

(CLM-)104343 Stand arm size 300, ClampMan Standard/Full base arm, reinforced

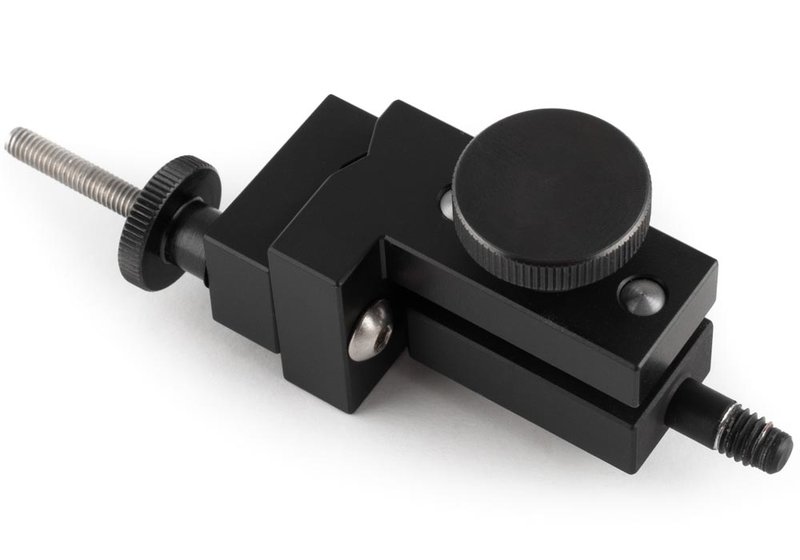

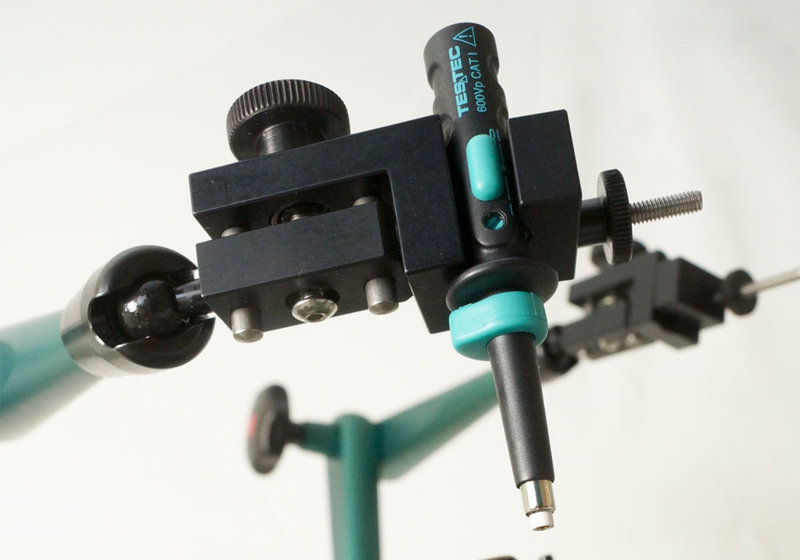

CLM-1110 ClampMan complete probe holder

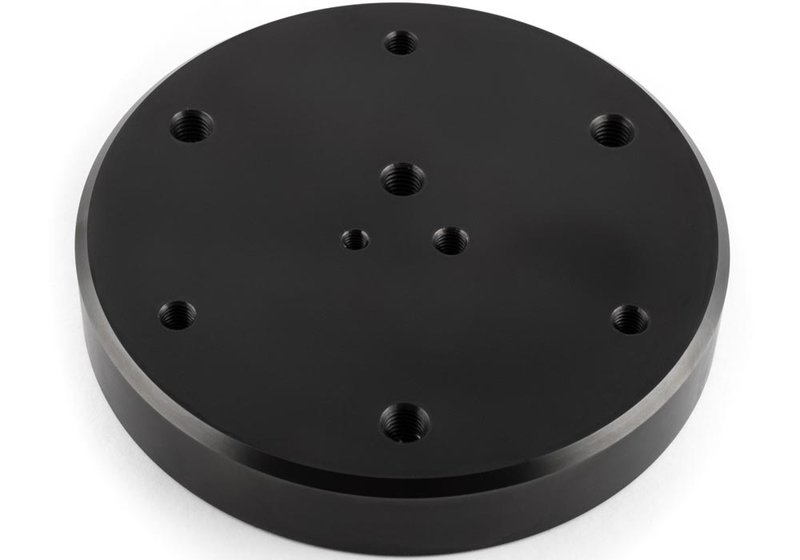

CLM-1118 Round foot (as in CLM-1050/CLM-1060)

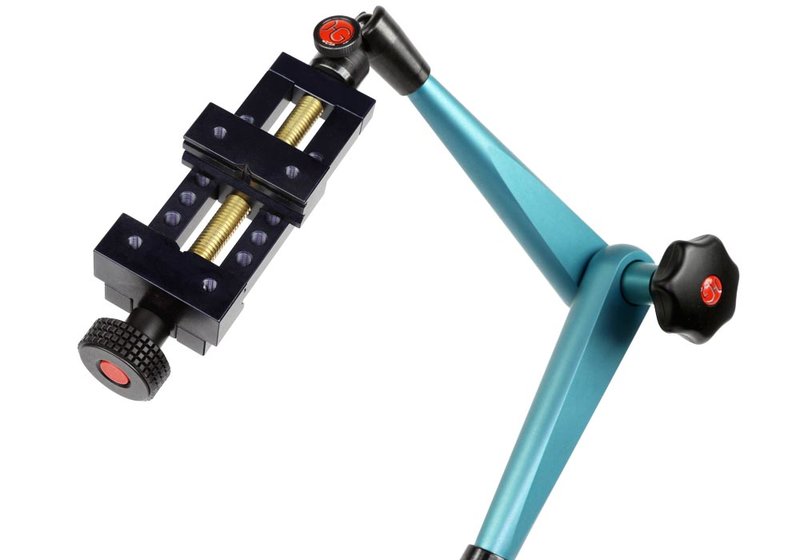

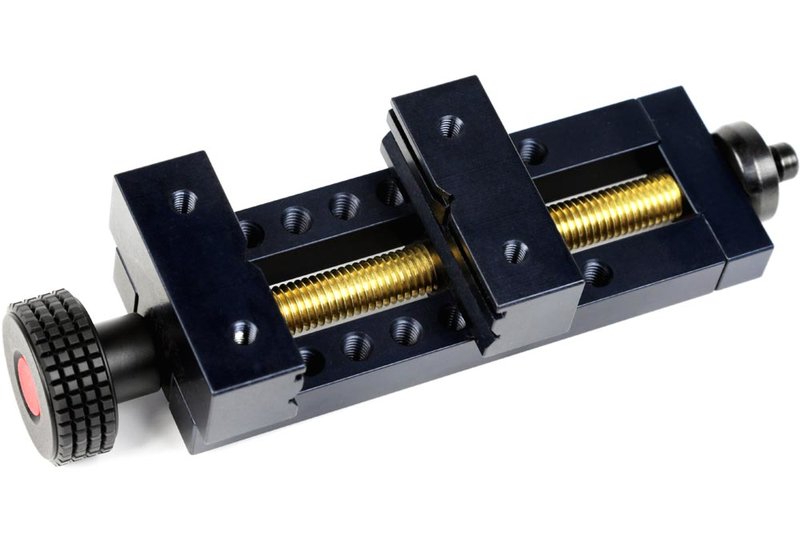

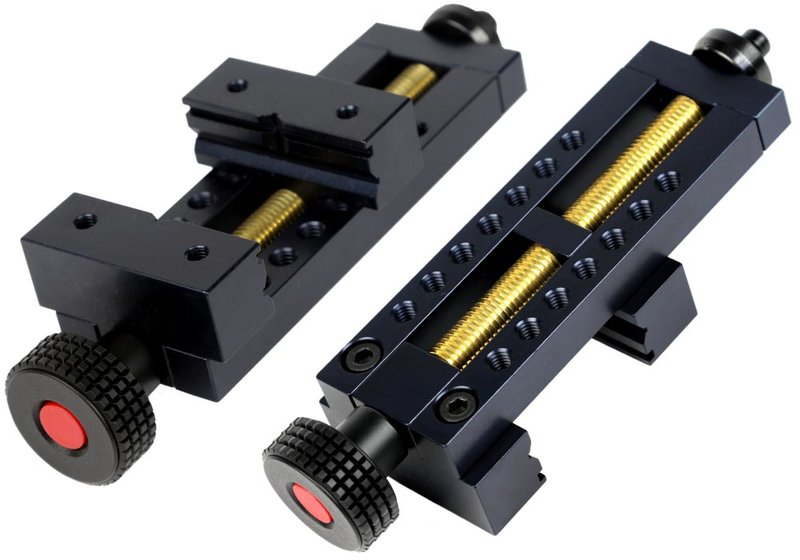

CLM-1200 Vice incl. quick change adaptor (as in CLM-1060)

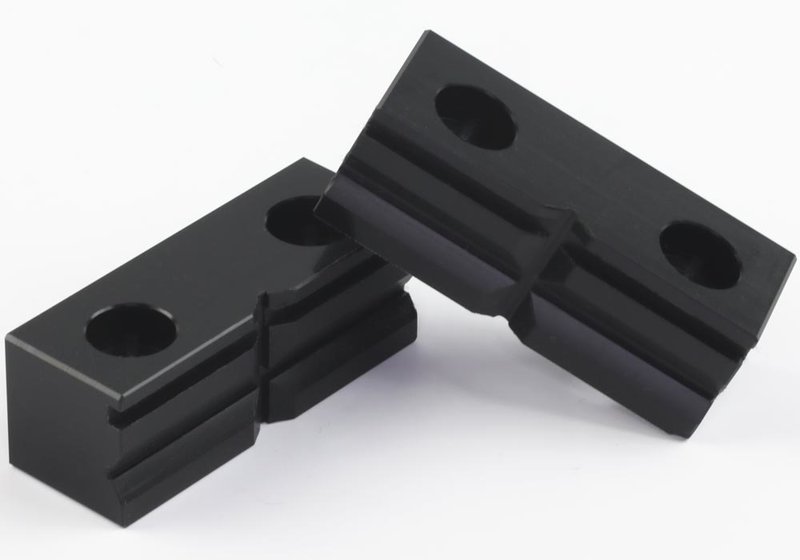

CLM-1207 Isolated vice jaw top for vice CLM-1200 (1 piece)
CLM-1005 Separate fixture set: 4 distance cones, 4 knurled knobs, 4 twisted handle screws, distance discs and screws

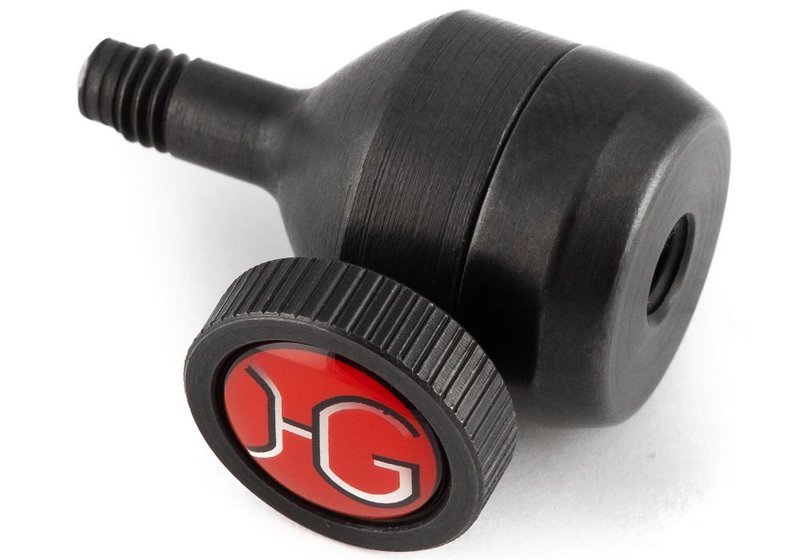

(CLM-)104599 Quick change complete with adaptor to inner/female M6 (kit)

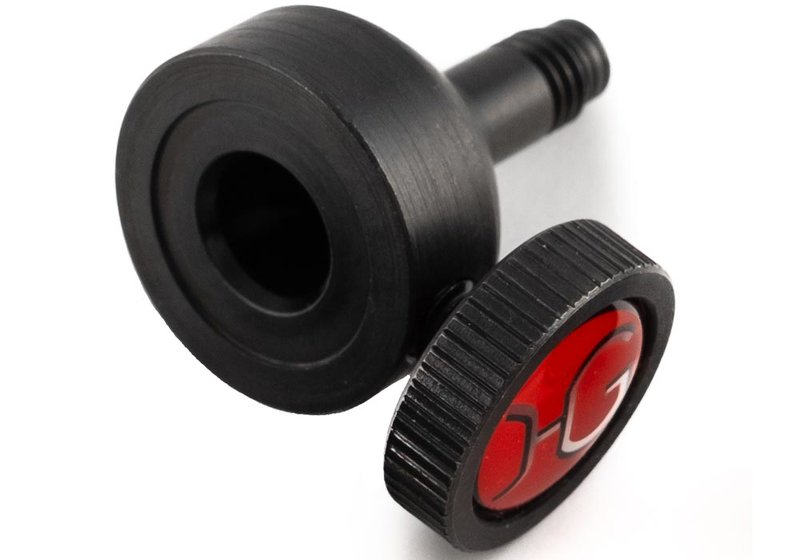

(CLM-)104500 Quick change M6 complete, without adaptor (basic coupling)

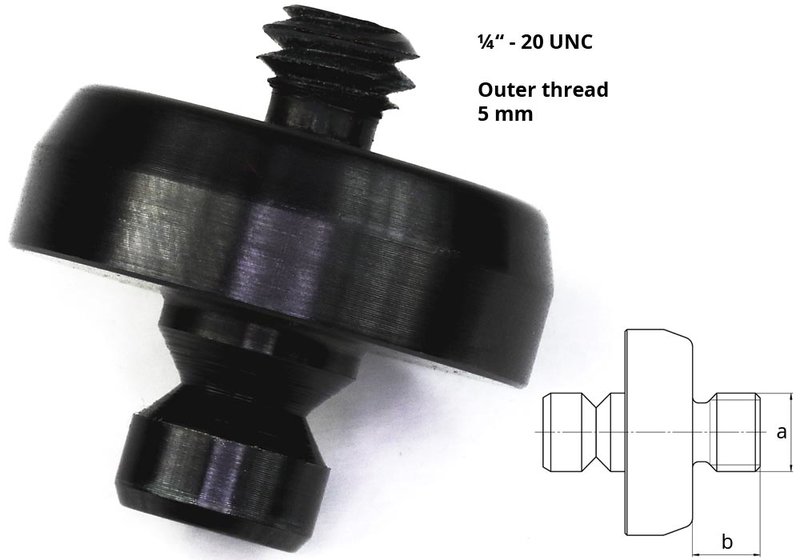

(CLM-)104506 Quick change adaptor to 1/4"-20 external/male
(CLM-)104507 Quick change adaptor to external/male M4

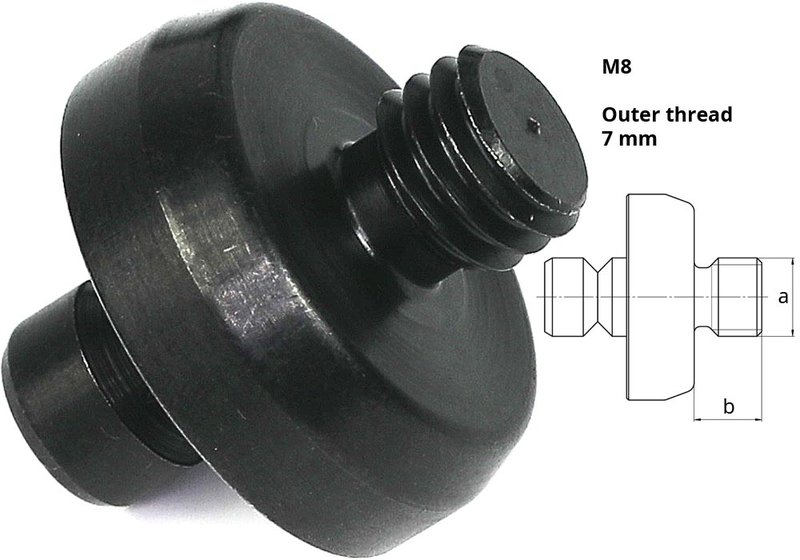

(CLM-)104508 Quick change adaptor to external/male M8
(CLM-)104509 Quick change adaptor to external/male M10

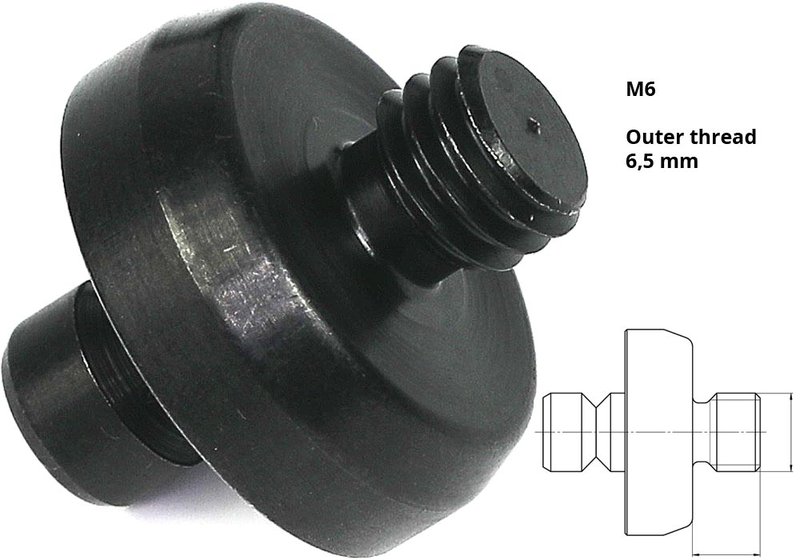

(CLM-)104510 Quick change adaptor to external/male M6

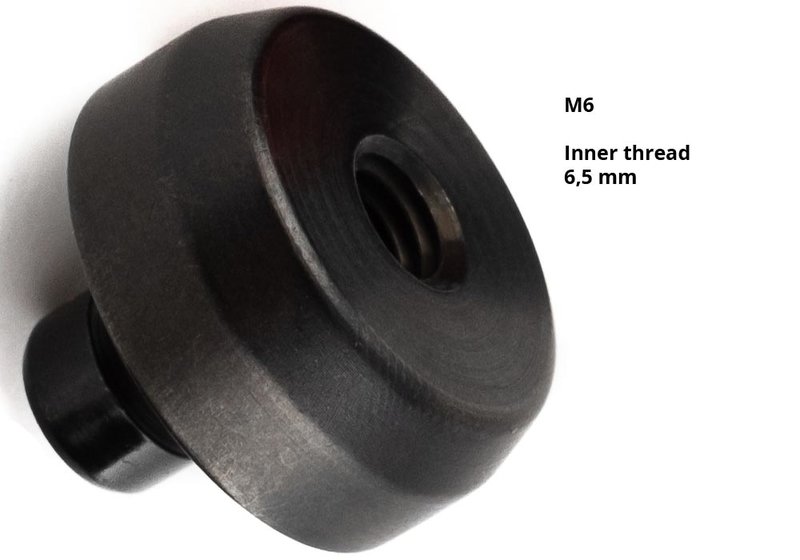

(CLM-)104511 Quick change adaptor to inner/female M6

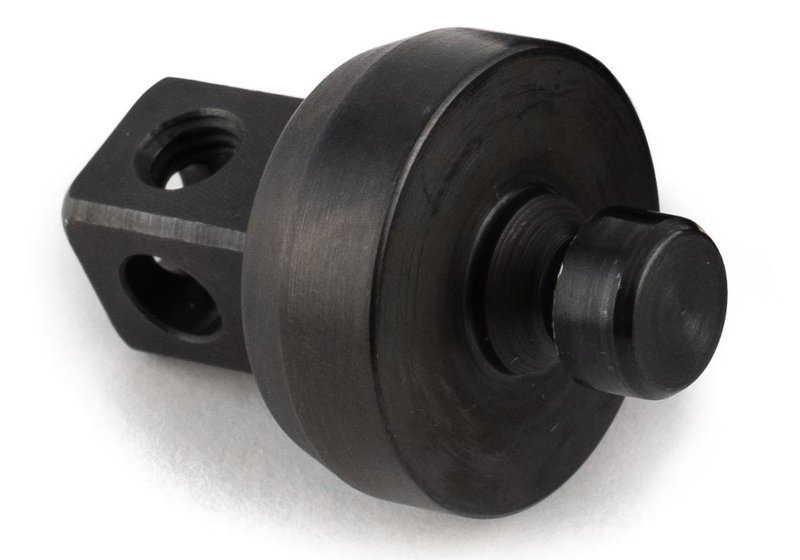

(CLM-)104512 Quick change adaptor to square 3/8" with M5 + holeø5 and ø6
CLM-1070

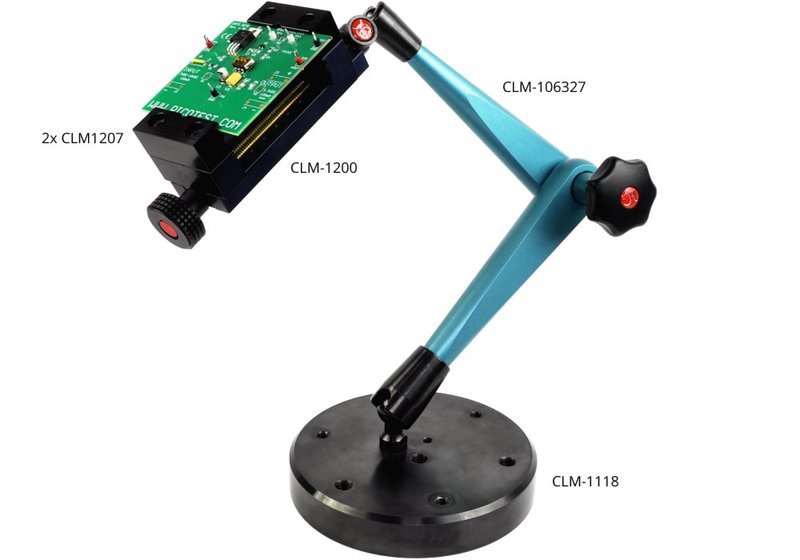

The complete "ClampMan construction kit" for your creative holding fixture system. Including:

  • Round foot 1x CLM-1118,
  • stand arms 2x (CLM-)106327,
  • vice 1x CLM-1200,
  • isolating vice chucks/jaw tops 2x CLM-1207,
  • quick change 1x (CLM-)104500,
  • and 2x of each quick change adaptors (CLM-)104506 to (CLM-)104512.

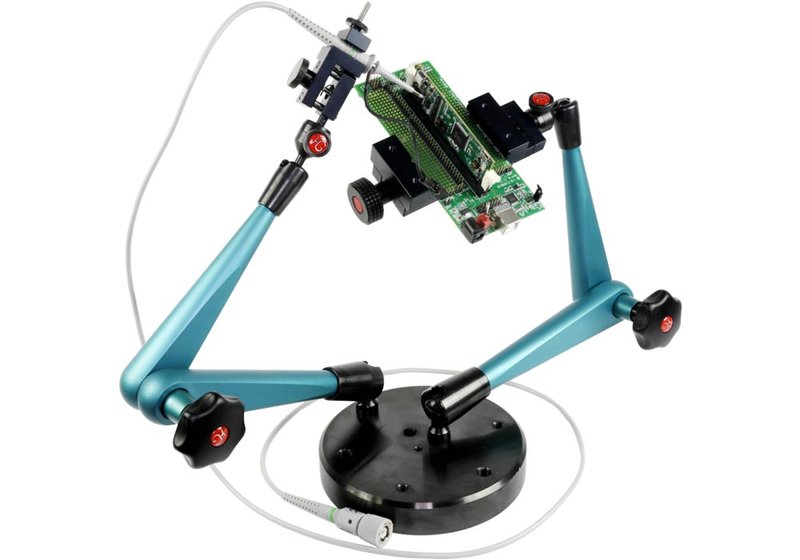

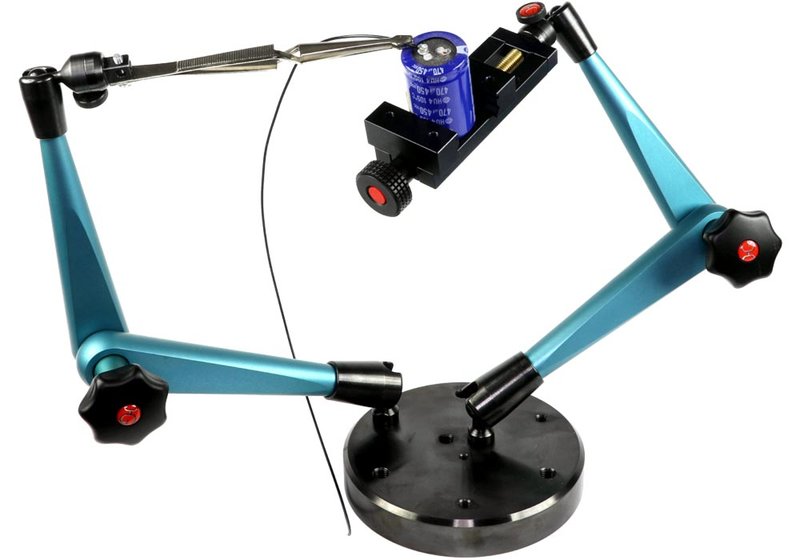

Build your own complete ClampMan Light ISO with an additional stand arm, or add more components to your ClampMan Standard or Full. There are hardly any limits to your imagination!
