Benefits of the CS548 PC Oscilloscope with Individually Isolated Channels

  • 30 kV operating isolation voltage to ground and other channels (remote IsoPod).
  • 100 dB common mode rejection ratio (CMRR) at 50 MHz.
  • 14 bit resolution, 100 dB dynamic range.

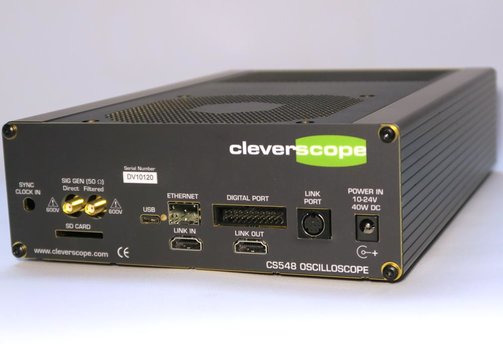

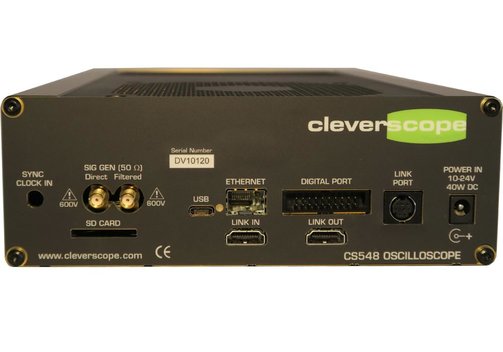

Cleverscope CS548 USB/LAN 4-Channel High-CMRR PC Oscilloscope

The Cleverscope CS548 is a PC oscilloscope with 4 high CMRR individually isolated channels. It can be used to measure the signals in an operating full or three phase power electronic switching bridge on both the low and high sides, such as gate drives to measure voltage and charge, the power switch to measure loss and parasitic stress, the output to measure power and spectrum for EMC compliance, and the control system for Gain/Phase and stability. The Cleverscope CS548 also offers an isolated signal generator for stimulus, and two expansion pod connectors for isolated input and output functions. Two CS548s can be linked/slaved to create an 8 channel oscilloscope.

  • 4 isolated analog oscilloscope channels and 8 digital MSO inputs.
  • 14 bit resolution, 100 dB dynamic range.
  • 200 MHz analog bandwidth.
  • Pod 1, 2 expansion: 5x bidirectional 400 Mbps LVDS channels per pod.
  • Pulse generator/calibration.
  • Isolated 65 MHz signal generator (sine, square, arbitrary, incl. patterns); 100 dB CMRR at 50 MHz.
  • Digital port: 16 bi-directional pins.
  • Interface: USB 2.0 and 3.0, Ethernet copper 10/100/1000 Mbps, fiber 1 Gbps.
  • Link in/out used to daisy chain multiple units.
  • Link port links to CS1070 0...50 MHz 1 A power amplifier, CS1133 VSat probe.
  • SD card slot to store stand-alone captures.

Model Overview

ModelCleverscope CS548
Analog channels4
Isolation2 kVDC operating isolation voltage to ground and other channels (local);

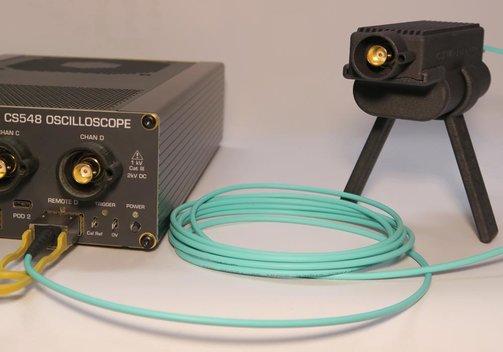

30 kV operating isolation voltage to ground and other channels (CAT II), via fiber cable provided minimum ground and probe separation is met (remote IsoPod);
1 kVAC CAT III rating (local);
100 dB CMRR at 50 MHz
Bandwidth200 MHz
Sample rateUp to 500 MS/s
Memory depthMax. 500 MS
Resolution14 bit
TriggeringTwo FPGA mixed signal triggers. Triggers interpolate in time for higher trigger accuracy. Triggers may be combined using AND/OR/XOR. The analog trigger may be conditional on a digital state
Digital MSO channels8 inputs
Signal generatorDC...65 MHz; isolated 600 V working; 100 dB CMRR at 50 MHz; waveforms: Sine, square, arbitrary (incl. patterns)
Additional I/OProbe compensator output (1 kHz square wave);
digital port (16 I/O lines);
link port to control accessory devices
InterfacesUSB 2.0 and 3.0
Ethernet copper 10/100/1000 or Ethernet fiber 10000Base-LX
link in/out port used to daisy-chain 2x, 3x, or 4x CS548
SD card slot
Power supplyExternal power supply 10...24 VDC
Dimensions (mm)69 x 187 x 280; approx. 2.8 kg

Note for some functions "coming soon": Hardware is implemented, but software function will be delivered by firmware update when done. See "specification status" in the data sheet or call.
