Promotion extended until December 31., 2022: For new orders of DSG800 or DSG800A get free of charge option DSG800-PUG (pulse modulation and pulse generator).

Benefits of the RF Signal Generator Series Rigol DSG800 up to 3.6 GHz

  • RF signal source 9 kHz to 1.5, 2.1, 3, or 3.6 GHz.
  • 1 RF channel and 1 LF channel (sine, square, triangle, ramp). Models A: IQ baseband generator.
  • AM, FM, ØM, optional pulse modulation. Models "A" IQ modulation.

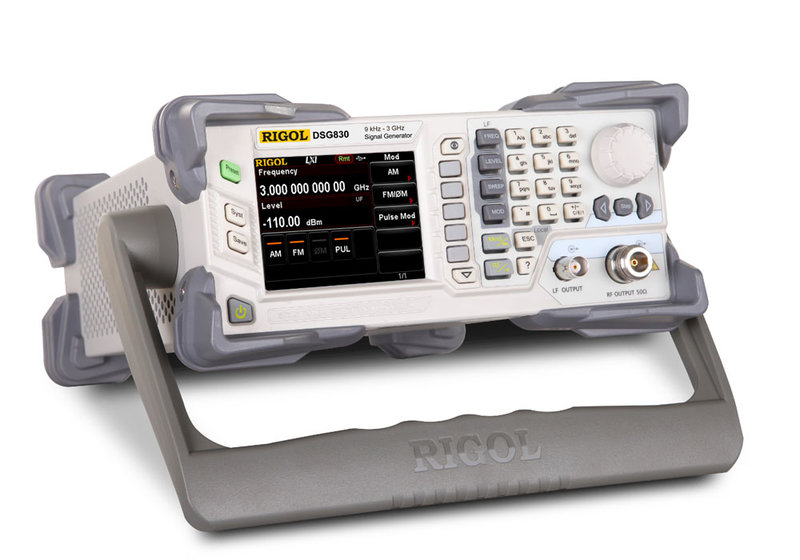

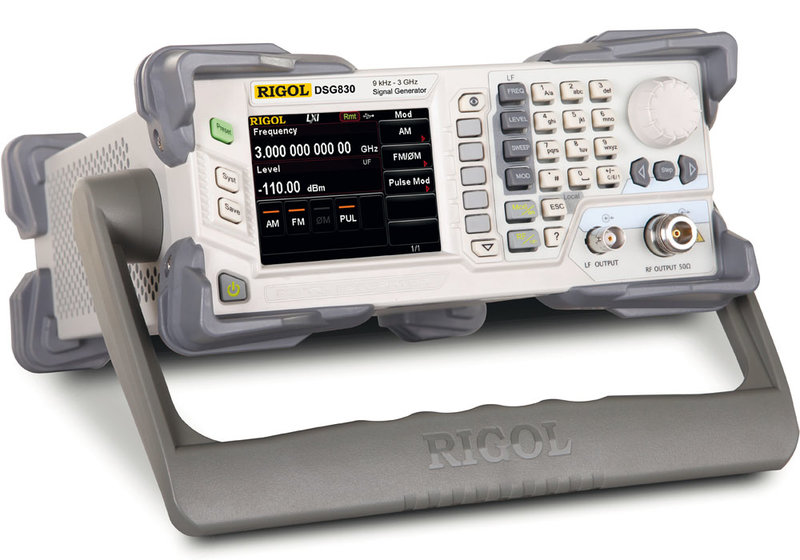

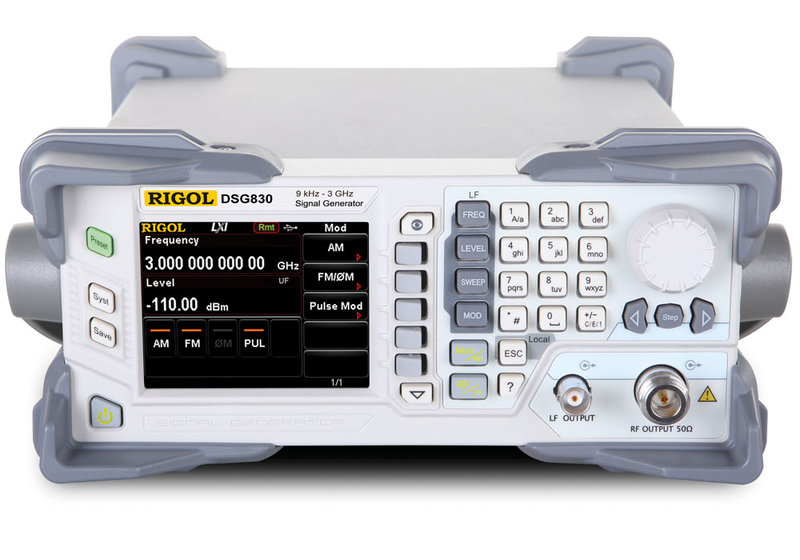

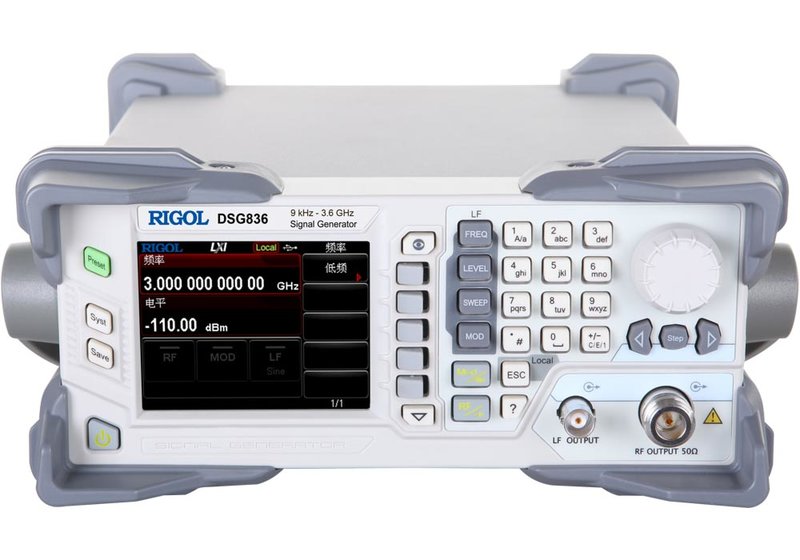

Rigol DSG815, DSG821, DSG830, DSG836 RF Signal Sources up to 3.6 GHz

The Rigol DSG800 series are RF signal generators for the frequency range of 9 kHz to 1.5, 2.1, 3, or 3 GHz. Due to their attractive price, their compact design and their flexible functions and modulations, they are interesting devices for R&D, manufacturing, education as well as maintenance and service.

  • Highly cost-effective economical RF signal generators:
    Frequency range 9 kHz to 1.5, 2.1, 3, or 3.6 GHz.
    Up to -112 dBc/Hz (typical) phase noise.
    Up to +20 dBm (typical) maximum output power.
    Higher level of amplitude accuracy, up to 0.5 dB (typical).
    Superb signal stability.

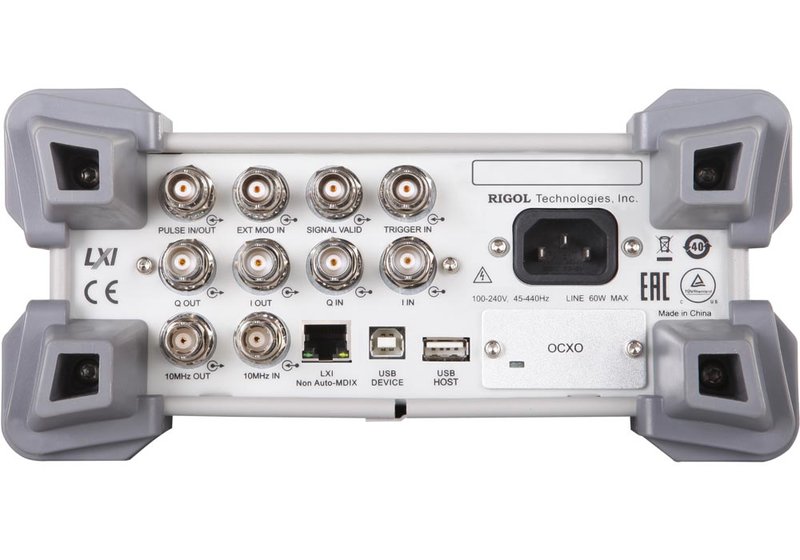

    USB, Ethernet/LXI.

  • Functions almost matching those of high-level RF signal generators:
    Flexible frequency and amplitude sweep functions.
    Complete AM/FM/ΦM analog modulation functions.
    Standard LF output function.
    Powerful pulse modulation function (optional).
    Open vector modulation function (A models only).
    System flatness calibration function.
    Simple and easy to operate.

  • Special design ensuring its reliability and durability:
    Use electronic attenuator to avoid wearing.
    Specially designed protection functions.
    Digital ALC circuit.
    Simple structure.

  • Smallest in size among the like products:
    Occupy the least workbench space.
    Occupy less rack space.
    Light weight; the handle offers comfortable grip.

Model Overview

ModelChannelsRF frequency rangeModulationsLF/modulation generator
DSG8151 RF, 1 LF9 kHz...1.5 GHzAM, FM, ØM, optional pulse modulationSine DC...200 kHz, square DC...20 kHz
DSG8211 RF, 1 LF9 kHz...2.1 GHzAM, FM, ØM, optional pulse modulationSine DC...200 kHz, square DC...20 kHz
DSG821A1 RF, 1 LF9 kHz...2.1 GHzAM, FM, ØM, optional pulse modulation; IQ modulationSine DC...200 kHz, square DC...20 kHz; I/Q baseband generator
DSG8301 RF, 1 LF9 kHz...3 GHzAM, FM, ØM, optional pulse modulationSine DC...200 kHz, square DC...20 kHz
DSG8361 RF, 1 LF9 kHz...3.6 GHzAM, FM, ØM, optional pulse modulationSine DC...200 kHz, square DC...20 kHz
DSG836A1 RF, 1 LF9 kHz...3.6 GHzAM, FM, ØM, optional pulse modulation; IQ modulationSine DC...200 kHz, square DC...20 kHz; I/Q baseband generator

Included: RF signal generator DSG 815, 821, 821A, 830, 836, or 836A, power cord, quick guide, software/user manual vie free download.
