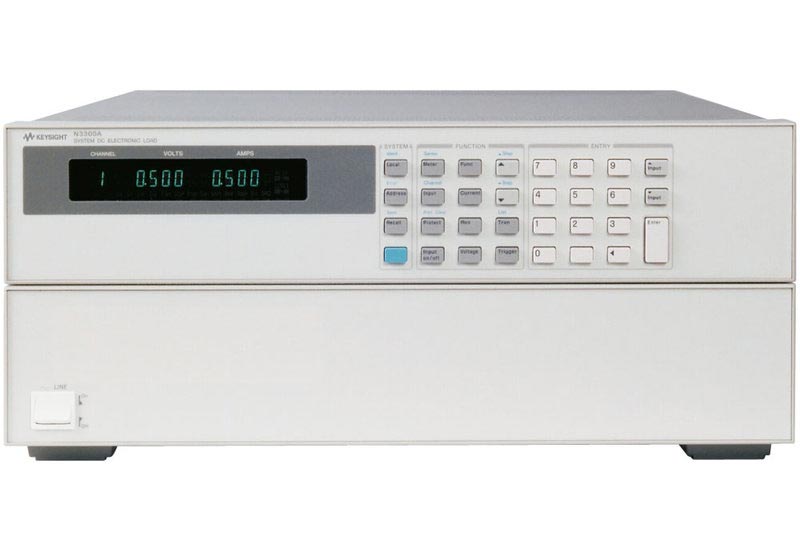

Keysight N3301A DC Load, 2 Slots

Benefits of the N3301A DC Load/Sink - 2 Slot Mainframe

• Modular electronic load, mainframe for 2 modules.
• Choice of 6 modules with load between 150 and 600 W.
• GPIB and RS232 standard.

Keysight N3301A DC Load, 2 Slots

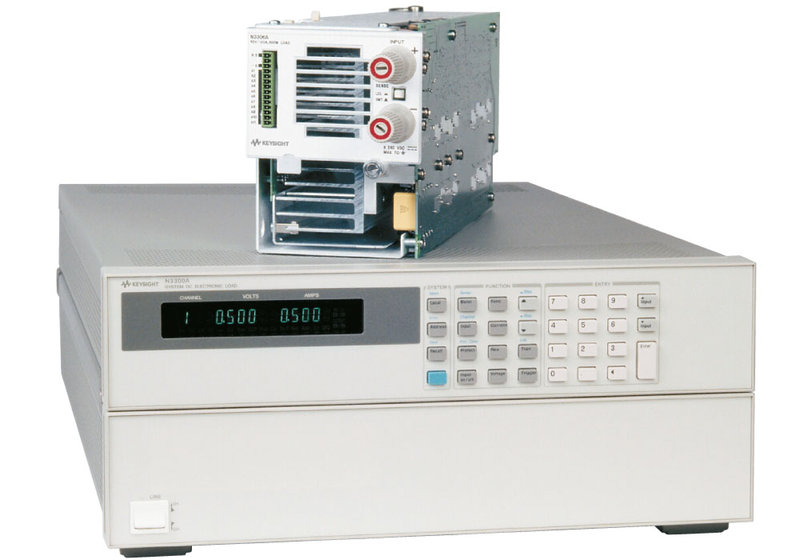

The Keysight N3301A is a mainframe with 2 slots that accepts combinations of N330x user-installable load modules (150 W to 600 W) for easy system configuration and future reconfiguration. The N3301A holds up to two N3302A, N3303A, N3304A, and N3307A load modules, or one N3305A and N3306A load modules. Testing multiple output DC power supplies and DC/DC converters can be very time consuming if each output must be tested sequentially. If measurements are being made through a MUX using one DMM, this is what will happen. Using the built-in measurement capabilities of the N3301A electronic loads, all outputs can be measured simultaneously. Alternatively, multiple single output power sources can be tested simultaneously.

A single GPIB address is all you need for complete control and read-back of all load modules within a single N3300A mainframe. The N330xA series of DC electronic loads provides fast operation and the accurate programming and read-back needed for high-volume DC power supply test systems.

• Mainframe N3301A: Half rack width, 2 slots.
• Modules with 150 W, 250 W, 300 W, 500 W or 600 W.
• Increase test system throughput.
• Lower cost of ownership.
• Decrease system development time.
• Increase system reliability.
• Increase system flexibility.
• Stable operation down to zero volts.
• DC connection terminal for ATE applications.
• GPIB and RS232 interface. SCPI compatible.
• Supported by BenchVue. BenchVue makes it simple to connect, control instruments, and automate test sequences.

Model Overview

Agilent’s Electronic Measurement Group is now Keysight Technologies.
