Benefits of the N9320B Spectrum Analyzer from 9 kHz up to 3 GHz

  • Affordable spectrum analyzer, frequency range 9 kHz to 3 GHz.
  • Large, clear display, intuitive operation.
  • USB and Ethernet/LAN standard.

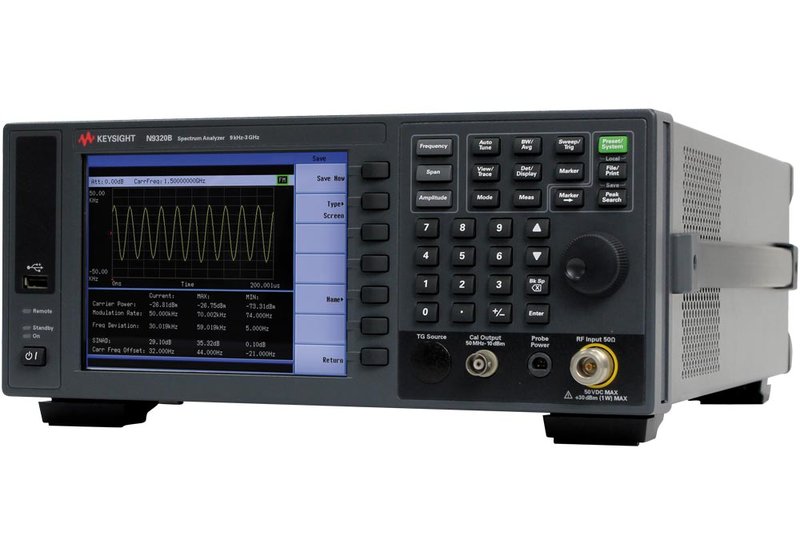

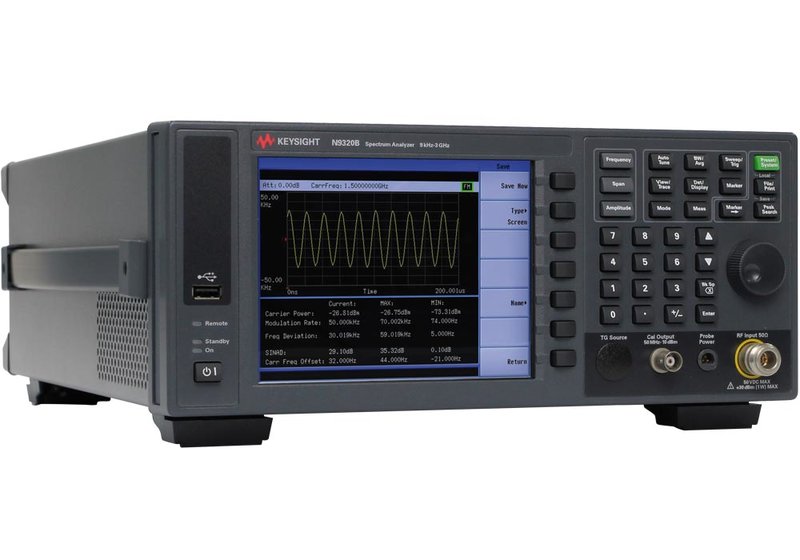

Keysight N9320B RF Spectrum Analyzer

Regardless of whether your application is electronics' manufacture, bench repair, RF education or R&D projects, you need a spectrum analyzer that is equipped with the essential functionality, required performance at an affordable price. The N9320B is designed to be the right answer for you.

  • Professional performance for spectrum analysis from 9 kHz to 3 GHz.
  • Minimum non-zero span sweep time: <10 ms.
  • Resolving power RBW: 10 Hz to 1 MHz.
  • Sensitivity DANL: -130 dBm, -148 dBm with preamp on.
  • Overall amplitude accuracy: ±0.5 dB.
  • Robust measurement features for characterizing your product easily.
    Built-in power measurements: Channel power, OBW, ACP, SEM and TOI.
    Optional tracking generator and preamplifier.
    Optional AM/FM, ASK/FSK demodulation capability.

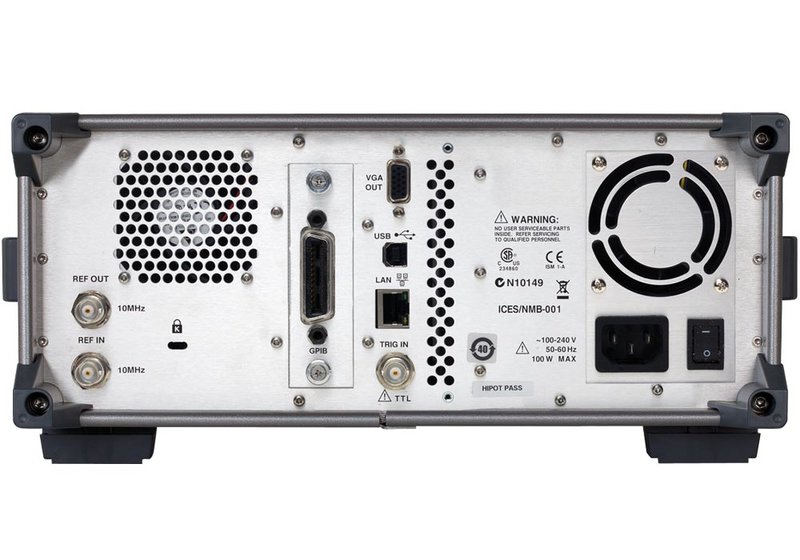

  • Standard USB and LAN interface. .
  • Graphic user interface.
  • ▸Supported by Keysight BenchVue.

Included: Spectrum analyzer N 9320B, quick start guide, CD-ROM, USB cable (type A-B), N-BNC adaptor, BNC cable, power cord.

Note: The recommended calibration interval for these devices is 12 months. Call or send an E-Mail for more information on calibration!

3Y Warranty & Keysight CARE

Agilent's Electronic Measurement Group is now Keysight Technologies.
