Benefits of the Keysight N932xC Series Universal Spectrum-Analyzers

  • Universal spectrum analyzers, frequency range 9 kHz to 4, 7 GHz, or 1 MHz to 13.6, or 20 GHz.
  • Individually expandabel with pre-amplifier, tracking generator, and other options.
  • USB and Ethernet/LAN standard.

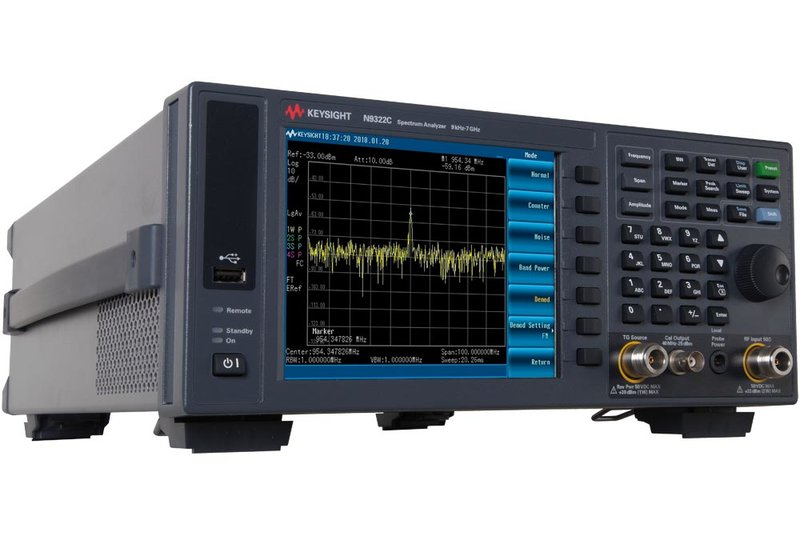

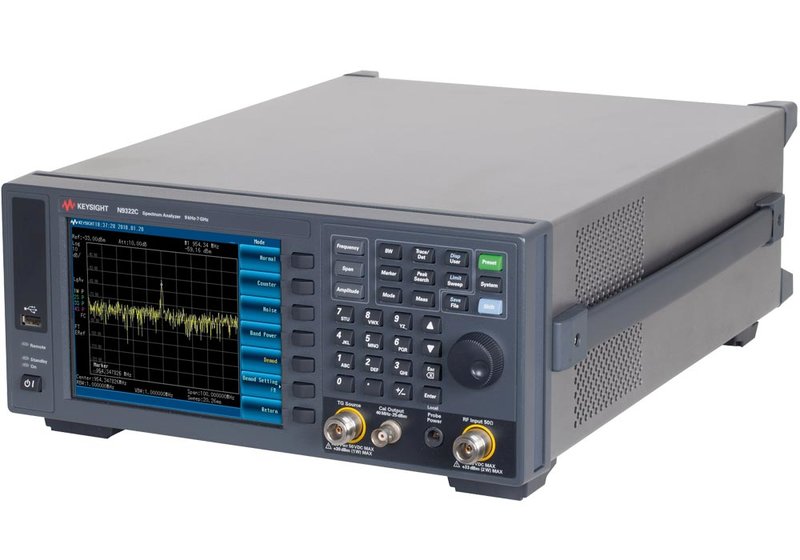

Keysight N932xC BSA-C Basic Spectrum-Analyzers up to 20 GHz

Keysight Models N9321C, N9322C, N9323C, N9324C Versatile Spectrumanalyzers

The Keysight N932xC BSA-C series are basic, value-priced, general-purpose spectrum analyzer for the range from RF to microwave: 9 kHz to 4, 7, 13.6, or 20 GHz. They help the user to quickly uncover key insights during RF design and troubleshooting through superior, best-in-class RF performance. The devices can be extended with various measurements/options such as a tracking generator, a pre-amplifier, or EMI filters and quasi-peak detector.

  • Basic general-purpose spectrum-analyzers.
  • Frequency range from 9 kHz to 4 GHz or 7 GHz, or 1 MHz to 13.6 GHz or 20 GHz.
  • Individually expandable with various options:
    • Preamplifier 4 GHz (N9321C), 7 GHz (N9322C), 13.6 GHz (N9323C), or 20 GHz (N9324C).
    • Tracking generator 4 GHz (N9321C) or 7 GHz (other models); with built-in VSWR bridge.
    • Reflection measurement 4 GHz (N9321C) or 7 GHz (N9322C).
    • EMI filters and quasi-peak detector (option for all models).
    • Precision frequency reference (option for all models).
    • Time-gated spectrum analysis (option for all models).
    • USB average power sensor and USB peak and average power sensor support.
    • AM, FM, ASK/FSK measurement option, ASK/FSK modulation analysis.
    • Channel scanner and spectrum monitor options.
    • Security features and task planner options.
  • USB Host & Decice, Ethernet/LAN connectivity (standard), GPIB interface (optional).
  • Supported by Keysight BenchVue.

Model Overview

ModelN9321CN9322CN9323CN9324C
Frequency range9 kHz...4 GHz9 kHz...7 GHz1 MHz...13.6 GHz1 MHz...20 GHz
Resolution1 Hz
Frequency span (FFT and swept mode)0 Hz (zero span), 50 Hz...device's frequency range, resolution 1 Hz
RBW resolution bandwidtRange (-3 dB bandwidth) 10 Hz...3 MHz in 1-3-10 sequence; EMI bandwidth (CISPR compliant) 200 Hz, 9 kHz, 120 kHz, 1 MHz (option EMC required)
DANL displayed average noise levelNormalized, minimum and typical values for frequency ranges and preamp on/off see datasheets
PreampOption -P04: 4 GHzOption -P07: 7 GHzOption -P13: 13.6 GHzOption -P20: 20 GHz
Tracking generatorOption -TG4: 4 GHzOption -TG7: 7 GHzOption -TG7: 7 GOption -TG7: 7 G
Reflection measurementOption -RM4: 4 GHzOption -RM7: 7 GHz--
Other option-EMC: EMI filters and quasi-peak detector; -PFR: Precision frequency reference; -TMG; Time-gated spectrum-analysis

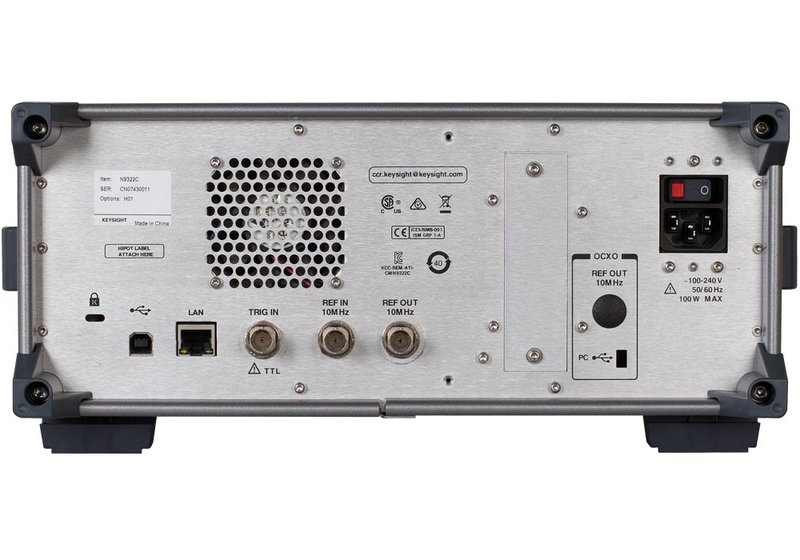

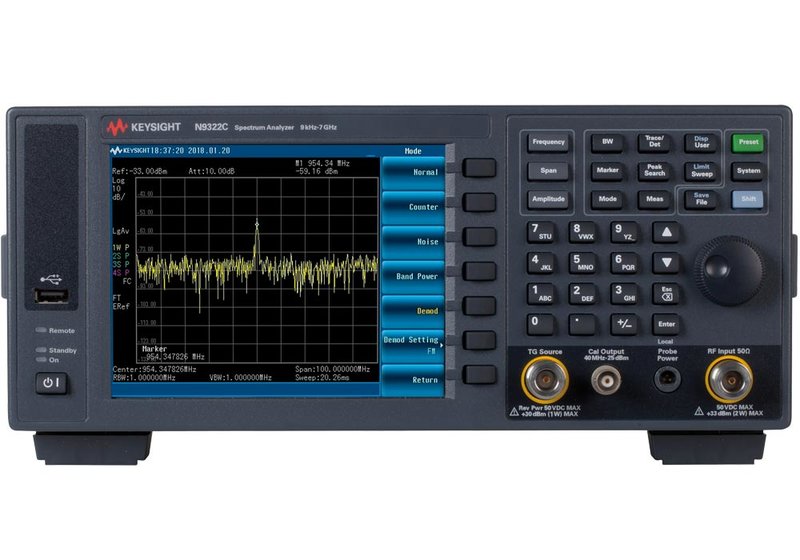

ConnectorsFront panel RF input (N type, 50 Ω), VSWR, calibration output, probe power; rear panel 10 MHz reference input and output, ext. trigger input
Display6.5"/16.5 cm, 640x470 resolution
InterfacesUSB 1.1 Host (front) & Device (rear), Ethernet/LAN (rear), optional GPIB/IEEE488
Dimensions(mm)133 x 320 x 400

Including: N 9321C, 9322C, 9323C, or 9324C, quick start guide, adaptor N to BNC, USB cable, BNC cable, power cord, CD with user manuals.

Note: The recommended calibration interval for these devices is 12 months. Call or send an E-Mail for more information on calibration!

3Y Warranty & Keysight CARE
