TekBox TBRFH1 to 7 RF Housings

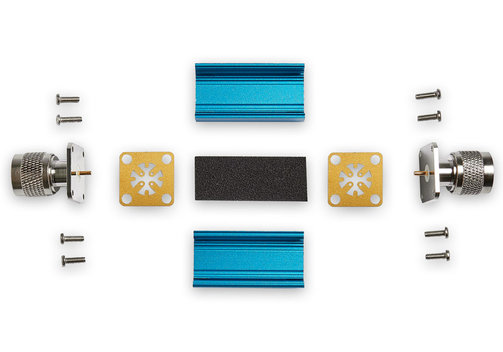

The TekBox TBRFH series are RF housings for RF prototype circuitries operating up to 6 GHz. Depending on the version, the housings consists for example of aluminium profile with mechanically matching RF connectors on each end. A wide range of RF connector combinations, various housing lengths and optional feed through capacitors are available. The housings come with RF absorbing pads to suppress coupling and cavity resonance. Solderable sheet metal ground pads, sandwiched between the connectors and the aluminium profile simplify establishing the ground connection.

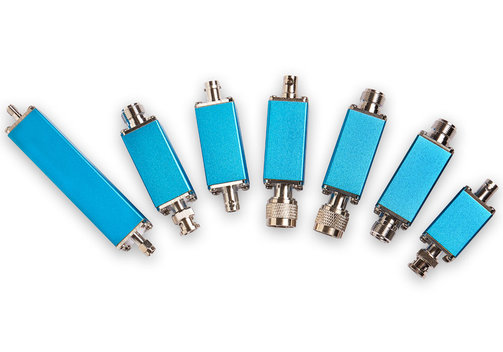

- TBRFH1
- Ideal for RF building blocks operating up to 6 GHz.
- Comes with RF absorbing pads to suppress coupling and cavity resonance.
- Customer specific RF connector.

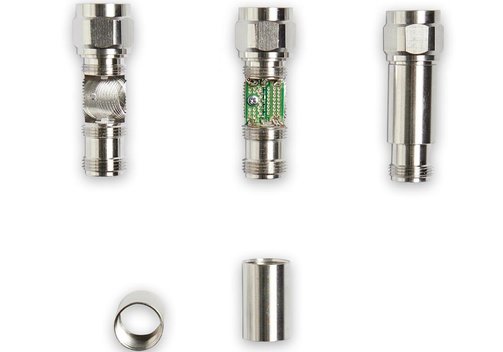

- TBRFH2
- Ideal for accommodating passive RF building blocks operating up to 6 GHz e.g. for filters and attenuators.
- Come with an RF absorbing pad to suppress coupling and cavity resonance.
- N type connector.
- TBRFH3
- For power splitters, directional couplers, mixers, etc.
- Material: Alu A6061.
- N type connector.

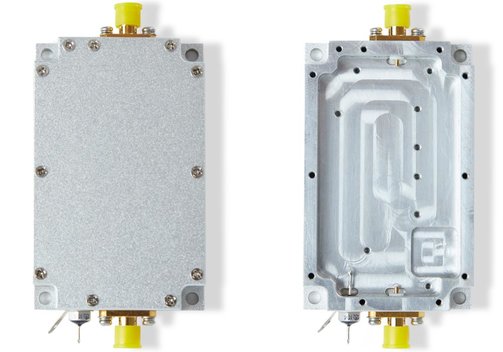

- TBRFH4
- For RF building blocks such as amplifiers or similar.
- Feed through capacitor, 10 nF, 50 V.
- Material: Alu A6061.

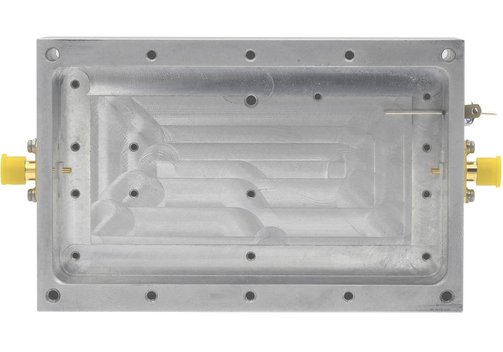

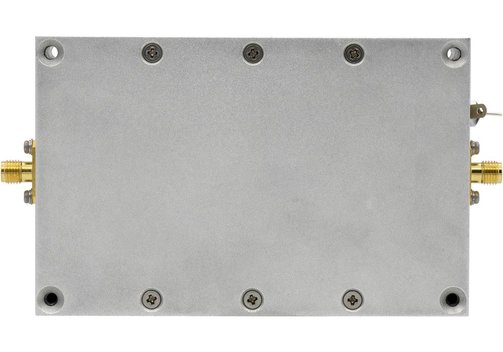

- TBRFH5
- For RF building blocks such as amplifiers or similar.
- Material: Alu A6061, surface sandblasted; 380 g.
- Feed through capacitor, 10 nF, 50 V.

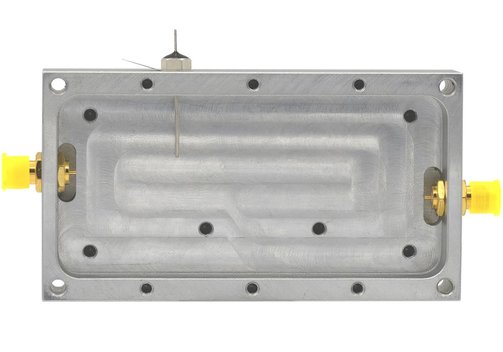

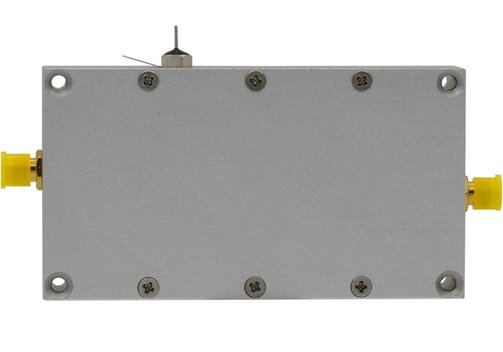

- TBRFH6
- For RF building blocks such as amplifiers or similar.
- Material: Alu A6061, surface sandblasted; 180 g.
- Feed through capacitor, 10 nF, 50 V.

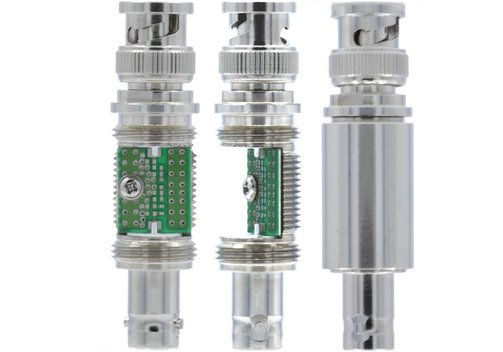

- TBRFH7
- For passive RF building blocks operating up to 6 GHz. Cconsists of a chassis carrying a female and a male BNC connector and a threaded cylinder. Ideal for passive RF building blocks such as filters or attenuators.
- Housings come with an RF absorbing pad to suppress coupling and cavity resonance.
- Housing material: Brass, Nickel plated; RF absorbing foam: Carbon loaded, 1...18 GHz, 15 mm x 12 mm, 3.2 mm thickness.
Model Overview
| Model | Description | Connectors | |

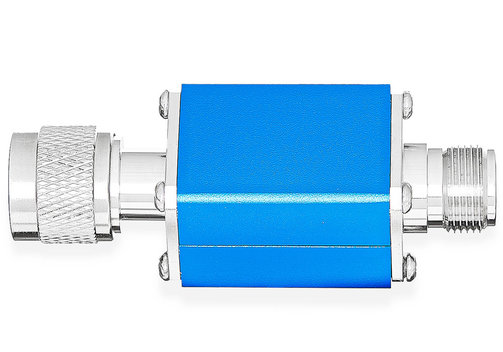

| TBRFH1-35-NM-NF-3-0 | RF housing; 35 mm | N-male to N-female | |
| TBRFH1-35-NF-NF-3-0 | RF housing; 35 mm | N-female to N-female | |

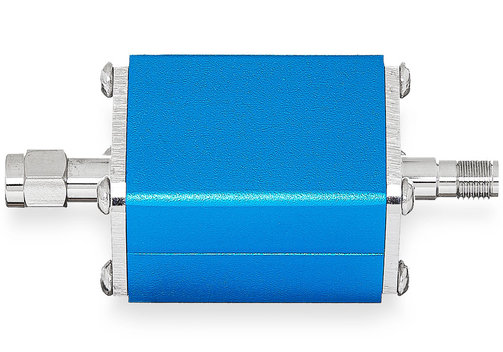

| TBRFH1-35-SMAM-SMAF-3-0 | RF housing; 35 mm | SMA-male to SMA-female | |

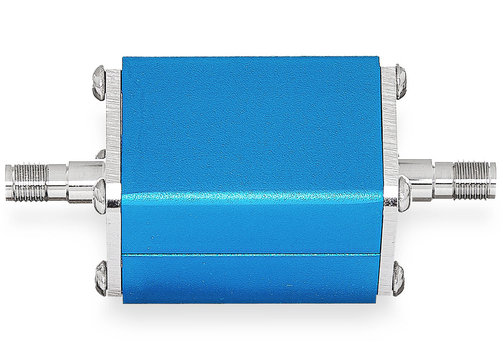

| TBRFH1-35-SMAF-SMAF-3-0 | RF housing; 35 mm | SMA-female to SMA-female | |

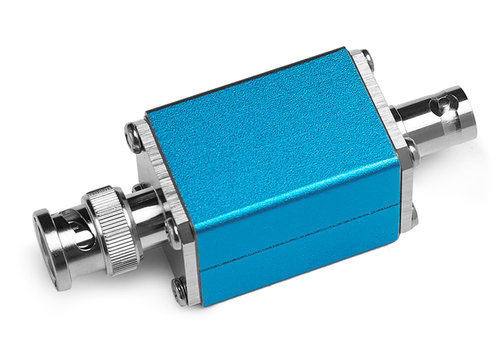

| TBRFH1-35-BNCM-BNCF-3-0 | RF housing; 35 mm | BNC-male to BNC-female | |

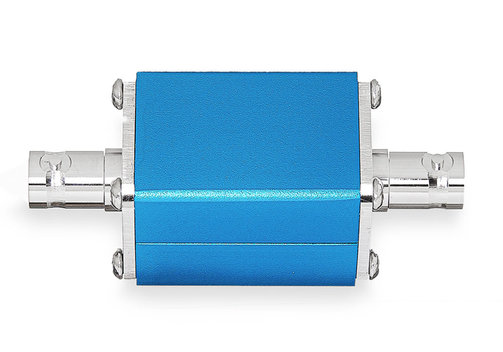

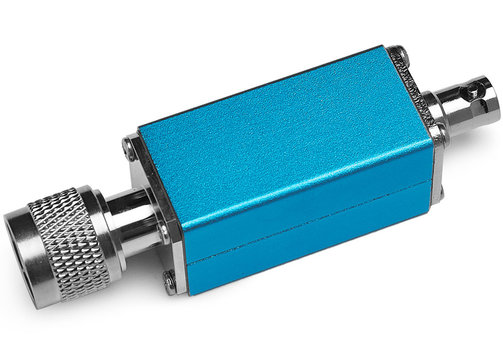

| TBRFH1-35-BNCF-BNCF-3-0 | RF housing; 35 mm | BNC-female to BNC-female | |
| TBRFH1-50-NM-NF-3-0 | RF housing; 50 mm | N-male to N-female | |

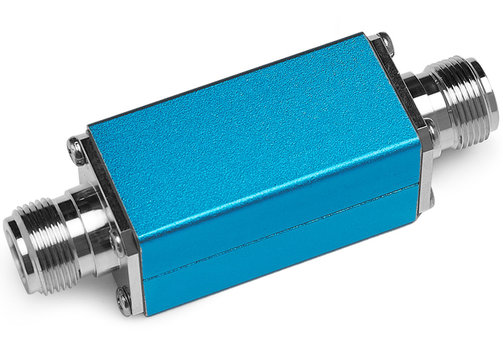

| TBRFH1-50-NF-NF-3-0 | RF housing; 50 mm | N-female to N-female | |

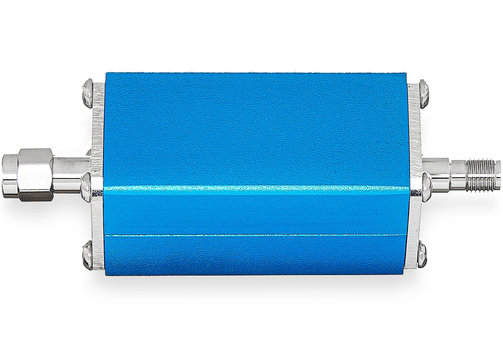

| TBRFH1-50-SMAM-SMAF-3-0 | RF housing; 50 mm | SMA-male to SMA-female | |

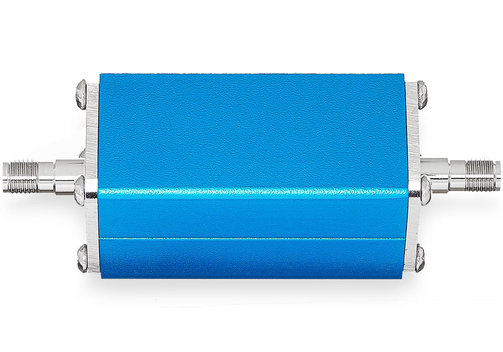

| TBRFH1-50-SMAF-SMAF-3-0 | RF housing; 50 mm | SMA-female to SMA-female | |

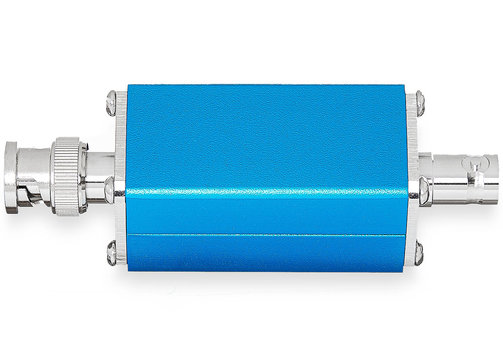

| TBRFH1-50-BNCM-BNCF-3-0 | RF housing; 50 mm | BNC-male to BNC-female | |
| TBRFH1-50-BNCF-BNCF-3-0 | RF housing; 50 mm | BNC-female to BNC-female | |

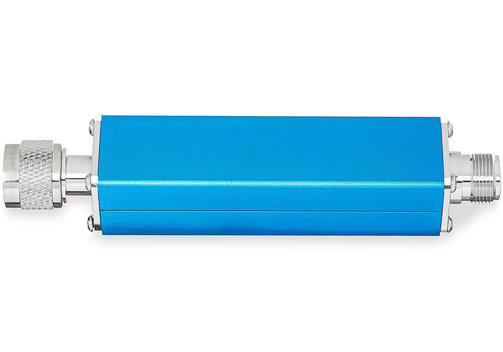

| TBRFH1-100-NM-NF-3-0 | RF housing; 100 mm | N-male to N-female | |

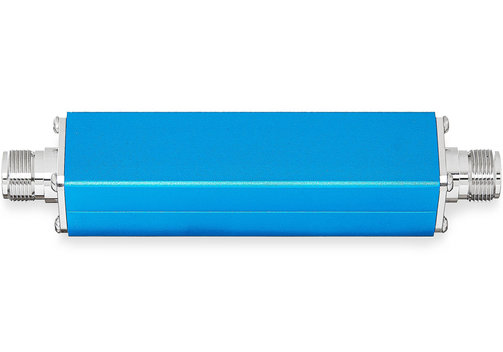

| TBRFH1-100-NF-NF-3-0 | RF housing; 100 mm | N-female to N-female | |

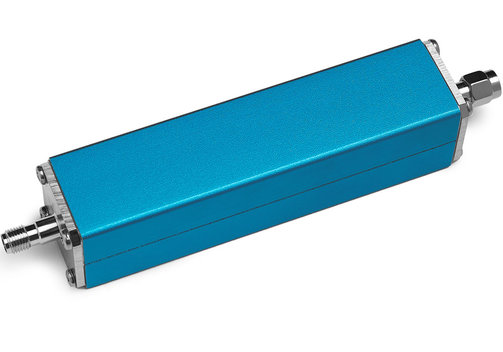

| TBRFH1-100-SMAM-SMAF-3-0 | RF housing; 100 mm | SMA-male to SMA-female | |

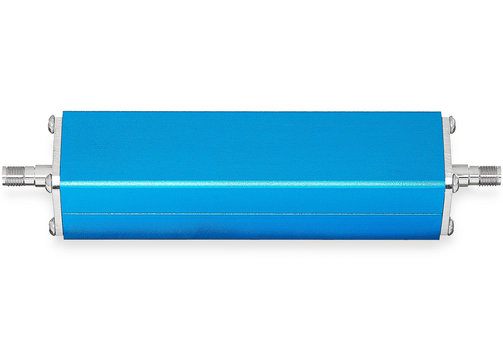

| TBRFH1-100-SMAF-SMAF-3-0 | RF housing; 100 mm | SMA-female to SMA-female | |

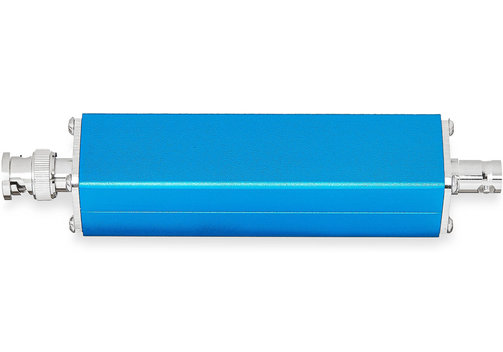

| TBRFH1-100-BNCM-BNCF-3-0 | RF housing; 100 mm | BNC-male to BNC-female | |

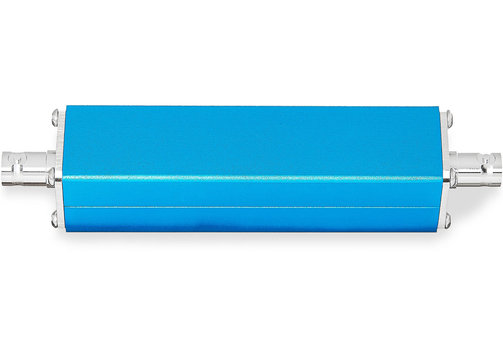

| TBRFH1-100-BNCF-BNCF-3-0 | RF housing; 100 mm | BNC-female to BNC-female | |

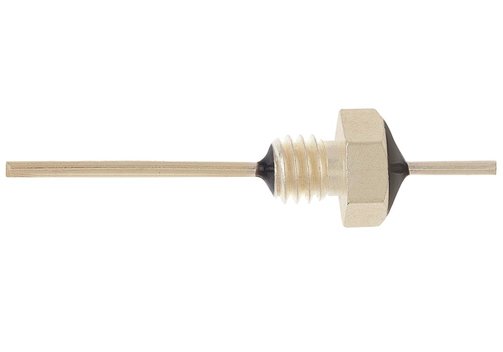

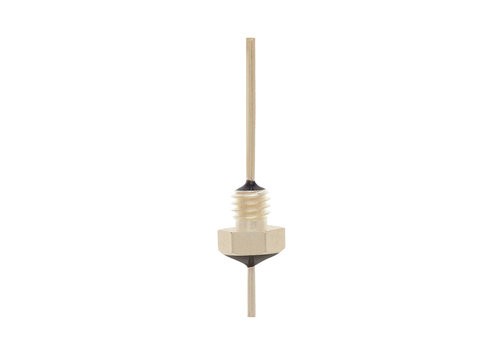

| TBRFH1-FTC | Feed through capacitor for TBRFH1 | - | |
| TBRFH2 | RF housing | ||
| TBRFH3-5527 | RF housing 55 mm x 27.5 mm x 21.5 mm | 3x type N female | |
| TBRFH3-5555 | RF housing 55 mm x 55 mm x 11.5 mm | 3x type N female | |
| TBRFH4 | RF housing 48 mm x 76 mm x 12 mm | SMA female | |
| TBRFH5 | RF housing 68 mm x 106 mm x 32 mm (outer); 54 mm x 98 mm x 22 mm (inner) | SMA female | |
| TBRFH6 | RF housing 50 mm x 91.4 mm x 18 mm (outer); 39.7 mm x 84.4 mm x 9.5 mm (inner) | SMA female | |
| TBRFH7 | RF housing diameter 17 mm max., length 62.7 mm, weight 60 g; PCB dimension 15.5 mm x 13.6 mm, max. 1.2 mm PCB thickness | BNC male, BNC female | |
