Brainboxes SW Series Unmanaged Ethernet Switches
Benefits of the Brainboxes SW Series Unmanaged Industrial Ethernet Switches up to 8 Ports
- Unmanaged Ethernet switches for industrial applications.
- Models with wide range redundant dual power input, models with PoE**.
- Models with extended temperature range.
Brainboxes SW Serie Unmanaged Industrial Ethernet-Switches

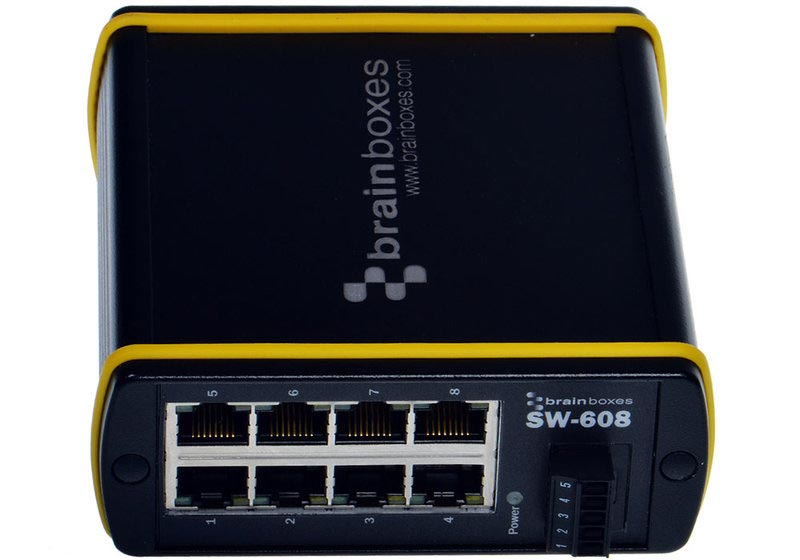

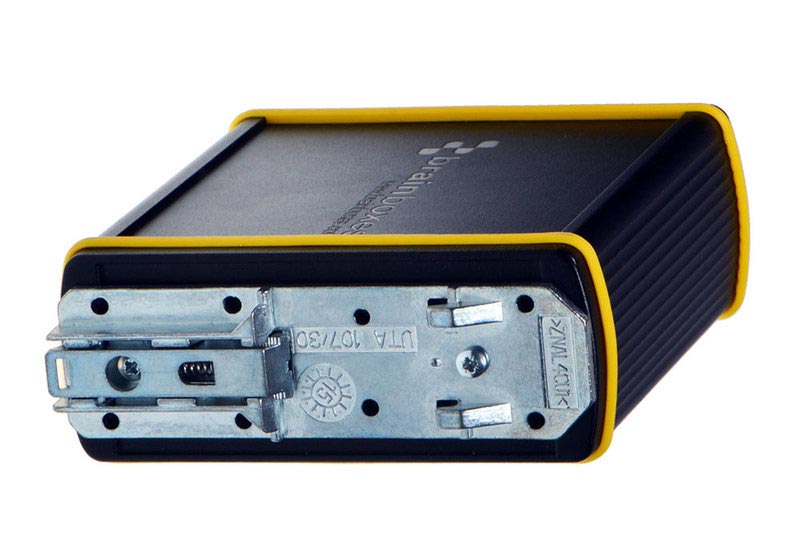

The Brainboxes series SW are unmanaged industrial Ethernet switches with 4, 5 or 8 ports of Fast Ethernet, Gigabit Ethernet, and with SFP. The switches are available in three housing formats:
- The SW-0xx are the standard, wall-mountable, IP30 models (optional DIN-rail mounting kit available). Their temperature range is -10...+60°C and their power supply range +5...+30 VDC.
- Series SW-5xx are DIN-rail mountable industrial models with extended temperature range -40...+80°C and 2 redundant power supply connections.
- These models SW-1xx are uncased for the integration into embedded/OEM applications.
- The versions SW-7xx are hardened industrial versions with extended temperature range -40...+80°C and 2 redundant power supply connections.
- Depending on the model the series include versions with Fst Ethernet, Gigabit Ethernet, additional SFP, and PoE**.
Model Overview
On Metal Wallmount Housing: Brainboxes SW-005, 008, 015, 084
| Model | Ports | Ethernet | SFP | PoE** | Design/Housing | Power | Temperature | |

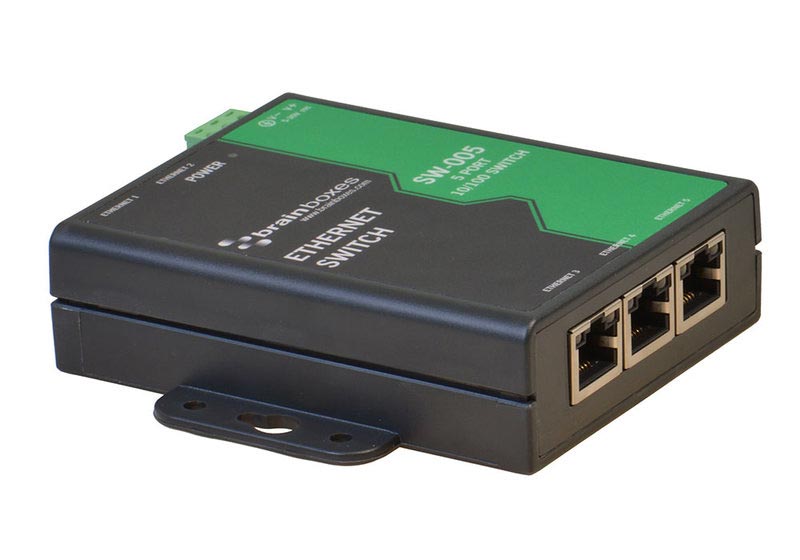

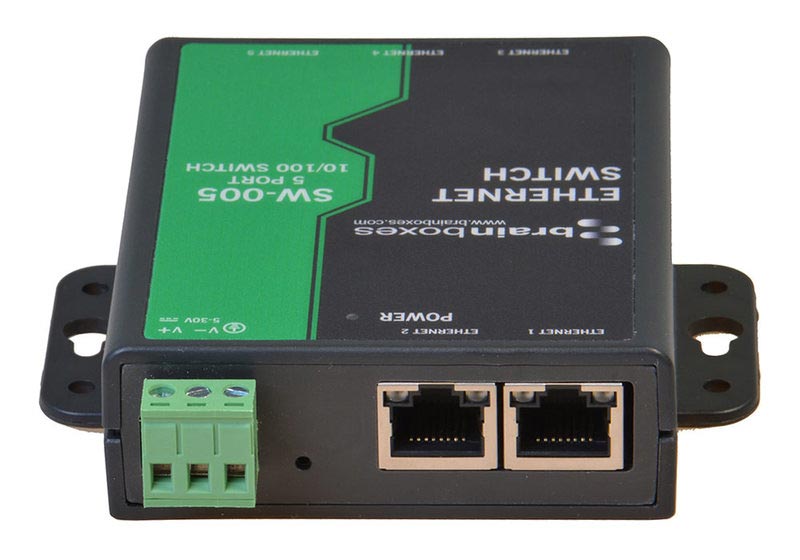

| SW-005 | 5, RJ45 | Fast Ethernet | 10/100 Mbps | - | - | Wall mount, optional DIN-rail mountable, IP30 | +5...+30 VDC | -10...+60°C |

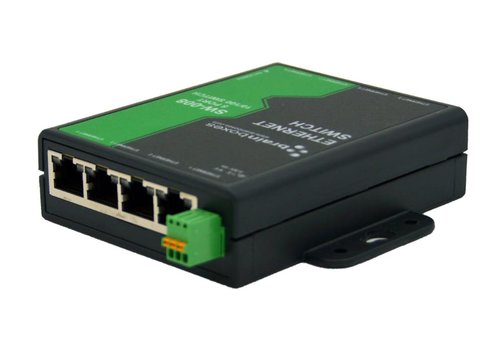

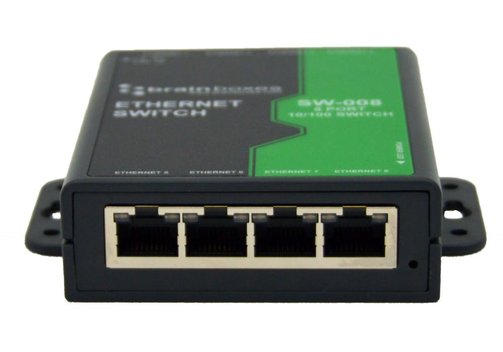

| SW-008 | 8, RJ45 | Fast Ethernet | 10/100 Mbps | - | - | Wall mount, optional DIN-rail muntable, IP30 | +5...+30 VDC | -10...+60°C |

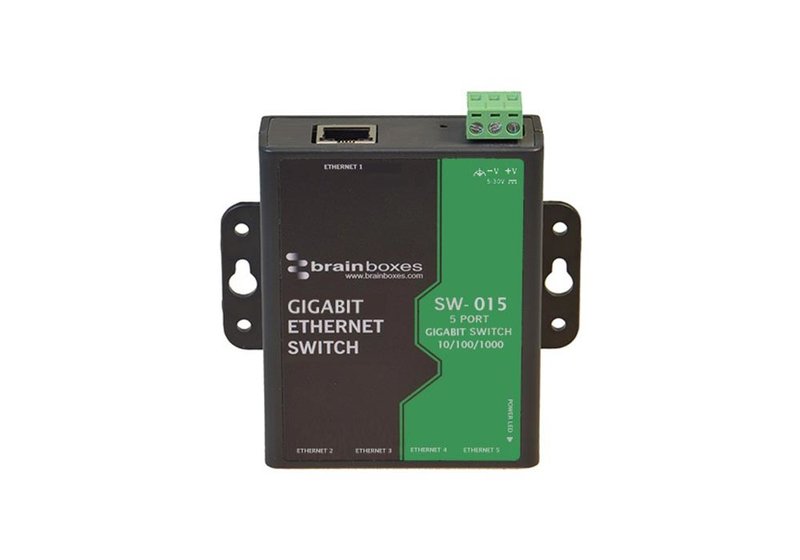

| SW-015 | 5, RJ45 | Gigabit Ethernet | 10/100/1000 Mbps | - | - | Wall mount, optional DIN-rail mountable, IP30 | +5...+30 VDC | -10...+60°C |

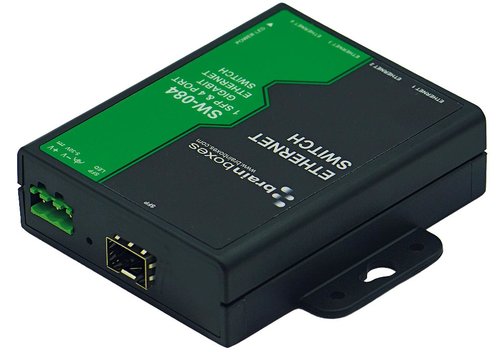

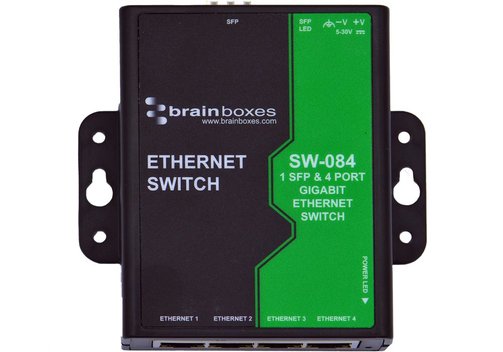

| SW-084 | 4, RJ45 | Gigabit Ethernet | 10/100/1000 Mbps | 1, 1000BASE-X | - | Wall mount, optional DIN-rail mountable, IP30 | +5...+30 VDC | -10...+60°C |
As OEM Card: Brainboxes SW-104, 105, 108, 114, 115, 118, 125, 135, 184, 195
| Model | Ports | Ethernet | SFP | PoE** | Design/Housing | Power | Temperature | |

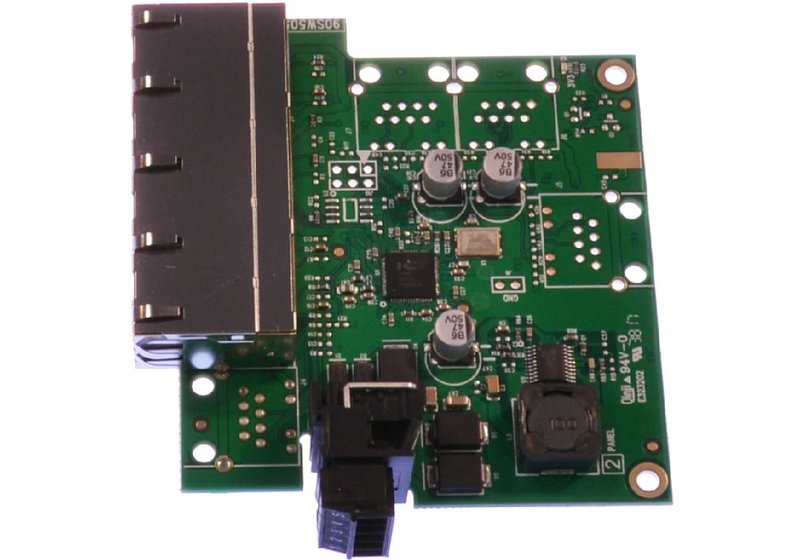

| SW-104 | 4, RJ45 | Fast Ethernet | 10/100 Mbps | - | - | - (embedded OEM board) | 2x redundant +5...+30 VDC | -40...+80°C |

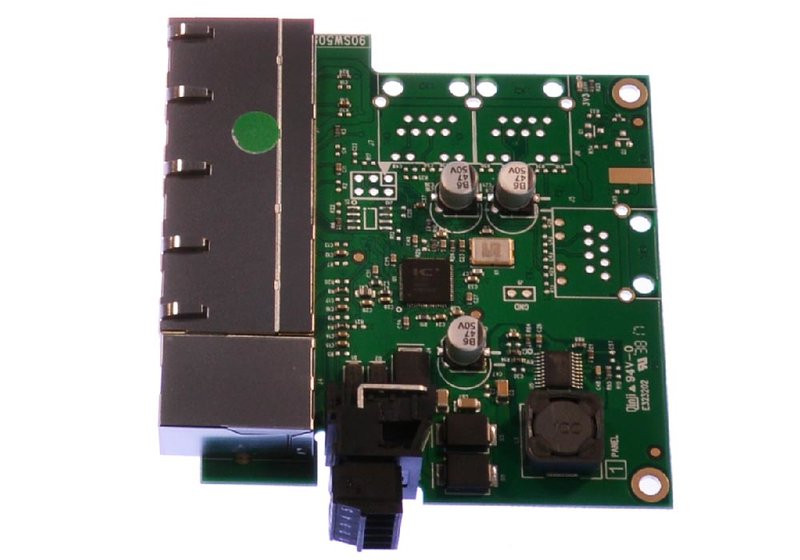

| SW-105 | 5, RJ45 | Fast Ethernet | 10/100 Mbps | - | - | - (embedded OEM board) | 2x redundant +5...+30 VDC | -40...+80°C |

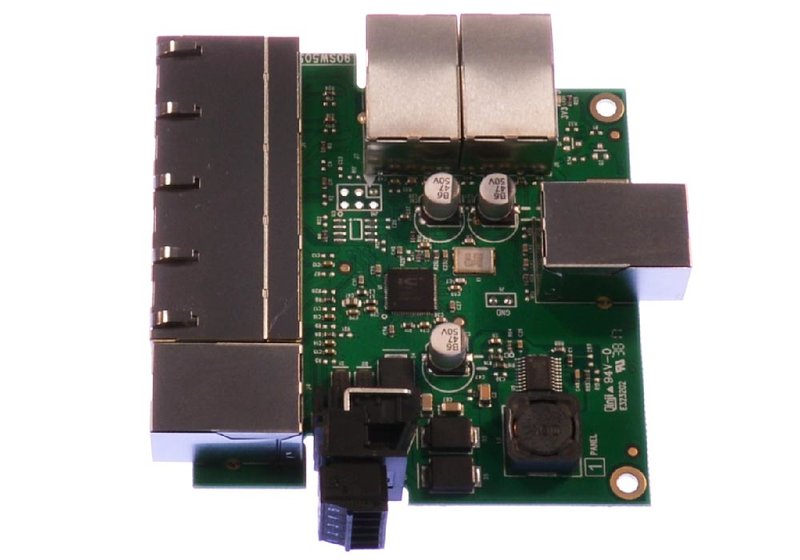

| SW-108 | 8, RJ45 | Fast Ethernet | 10/100 Mbps | - | - | - (embedded OEM board) | 2x redundant +5...+30 VDC | -40...+80°C |

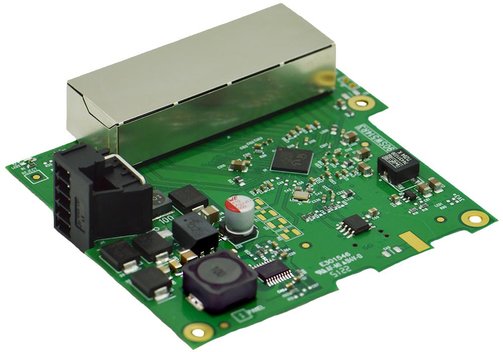

| SW-114 | 4, RJ45 | Gigabit Ethernet | 10/100/1000 Mbps | - | - | - (embedded OEM board) | 2x redundant +5...+30 VDC | -40...+80°C |
| SW-115 | 5, RJ45 | Gigabit Ethernet | 10/100/1000 Mbps | - | - | - (embedded OEM board) | 2x redundant +5...+30 VDC | -40...+80°C |
| SW-118 | 8, RJ45 | Gigabit Ethernet | 10/100/1000 Mbps | - | - | - (embedded OEM board) | 2x redundant +5...+30 VDC | -40...+80°C |
| SW-125 | 5, RJ45 | Fast Ethernet | 10/100 Mbps | - | ✓ (4 ports) | - (embedded OEM board) | 2x redundant +44...+57 VDC | -40...+70°C |
| SW-135 | 5, RJ45 | Gigabit Ethernet | 10/100/1000 Mbps | - | ✓ (4 ports) | - (embedded OEM board) | 2x redundant +44...+57 VDC | -40...+70°C |
| SW-184 | 4, RJ45 | Gigabit Ethernet | 10/100/1000 Mbps | 1, 1000BASE-X | - | - (embedded OEM boarde) | 2x redundant +5...+30 VDC | -40...+80°C |
| SW-195 | 4, RJ45 | Gigabit Ethernet | 10/100/1000 Mbps | 1, 1000BASE-X | ✓ (4 pors) | - (embedded OEM board) | 2x redundant +44...+57 VDC | -40...+70°C |
In DIN-Rail Module Housing: Brainboxes SW-504, 505, 508, 514, 515, 518, 525, 535, 581, 584, 595
| Model | Ports | Ethernet | SFP | PoE** | Design/Housing | Power | Temperature | |

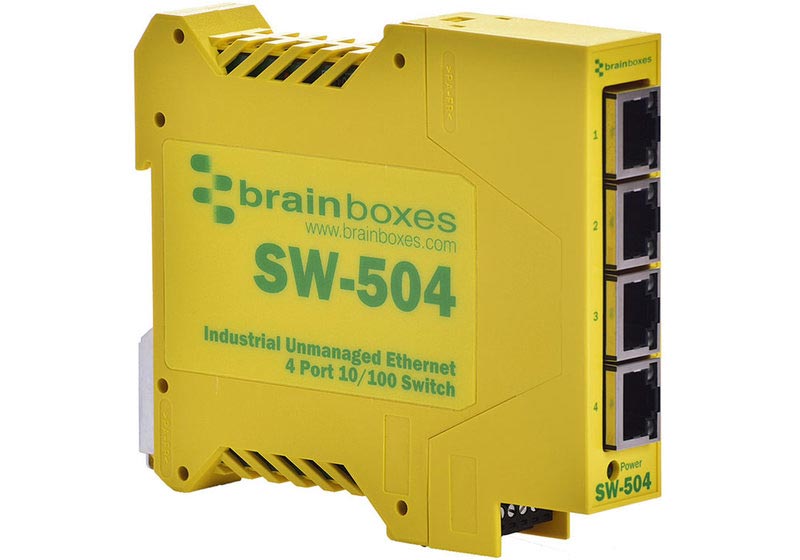

| SW-504 | 4, RJ45 | Fast Ethernet | 10/100 Mbps | - | - | DIN-rail mountable, IP30 | 2x redundant +5...+30 VDC | -40...+80°C |

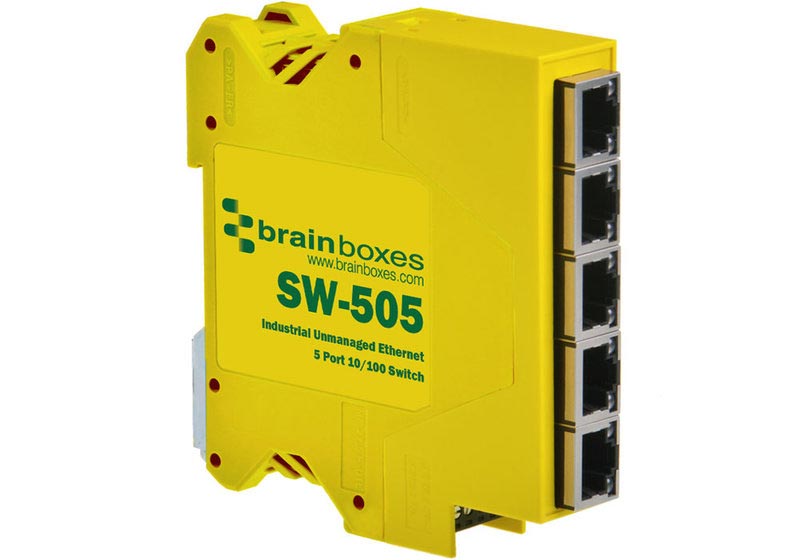

| SW-505 | 5, RJ45 | Fast Ethernet | 10/100 Mbps | - | - | DIN-rail mountable, IP30 | 2x redundant +5...+30 VDC | -40...+80°C |

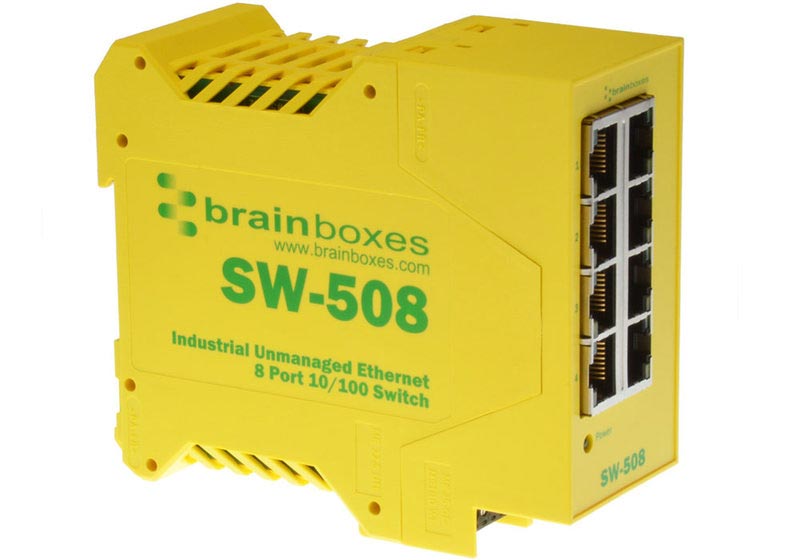

| SW-508 | 8, RJ45 | Fast Ethernet | 10/100 Mbps | - | - | DIN-rail mountable, IP30 | 2x redundant +5...+30 VDC | -40...+80°C |

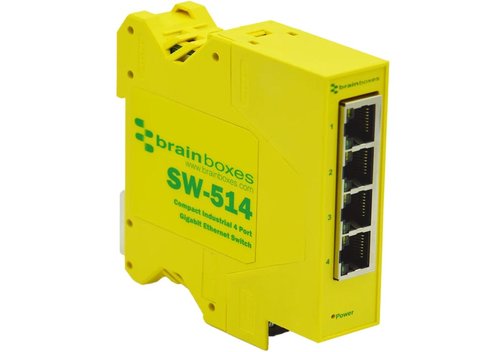

| SW-514 | 4, RJ45 | Gigabit Ethernet | 10/100/1000 Mbps | - | - | DIN-rail mountable, IP20 | 2x redundant +5...+30 VDC | -40...+80°C |
| SW-515 | 5, RJ45 | Gigabit Ethernet | 10/100/1000 Mbps | - | - | DIN-rail mountable, IP20 | 2x redundant +5...+30 VDC | -40...+80°C |
| SW-518 | 8, RJ45 | Gigabit Ethernet | 10/100/1000 Mbps | - | - | DIN-rail mountable, IP20 | 2x redundant +5...+30 VDC | -40...+80°C |
| SW-525 | 5, RJ45 | Fast Ethernet | 10/100 Mbps | - | ✓ (4 ports) | DIN-rail mountable, IP20 | 2x redundant +44...+57 VDC | -40...+70°C |
| SW-535 | 5, RJ45 | Gigabit Ethernet | 10/100/1000 Mbps | - | ✓ (4 ports) | DIN-rail mountable, IP20 | 2x redundant +44...+57 VDC | -40...+70°C |

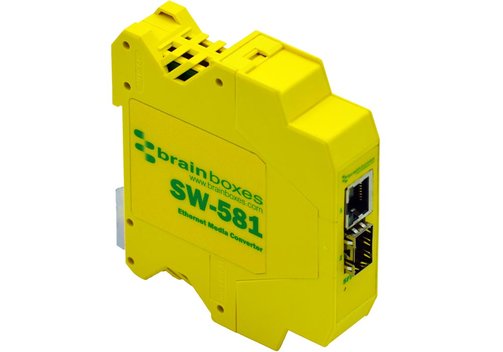

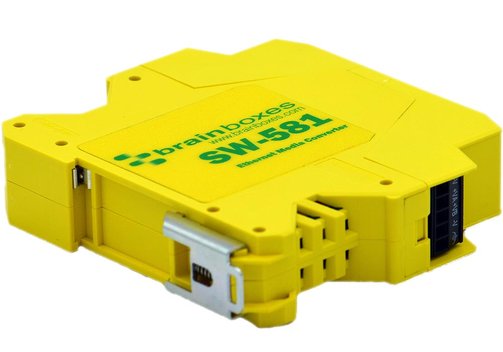

| SW-581 | 1, RJ45 | Gigabit Ethernet | 10/100/1000 Mbps | 1, 1000BASE-X | - | DIN-rail mountable, IP20 | 2x redundant +5...+30 VDC | -40...+80°C |

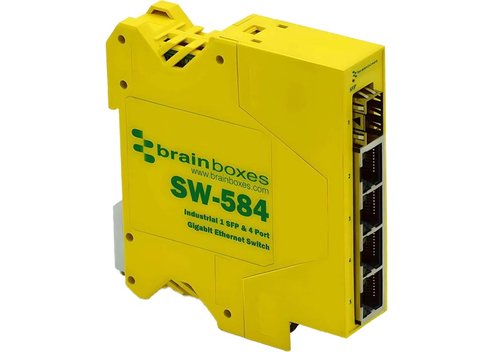

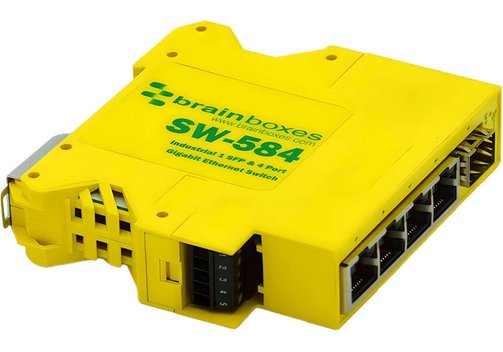

| SW-584 | 4, RJ45 | Gigabit Ethernet | 10/100/1000 Mbps | 1, 1000BASE-X | - | DIN-rail mountable, IP20 | 2x redundant +5...+30 VDC | -40...+80°C |
| SW-595 | 4, RJ45 | Gigabit Ethernet | 10/100/1000 Mbps | 1, 1000BASE-X | ✓ (4 ports) | DIN-rail mountable, IP20 | 2x redundant +44...+57 VDC | -40...+70°C |
As Extremely Rugged Industrial Version: Brainboxes SW-705, 708, 715, 718, 725, 735
| Model | Ports | Ethernet | SFP | PoE** | Design/Housing | Power | Temperature | |

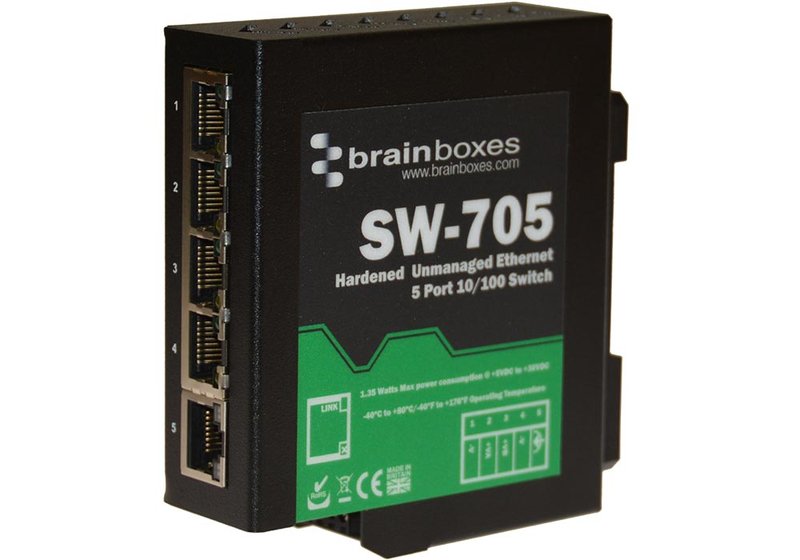

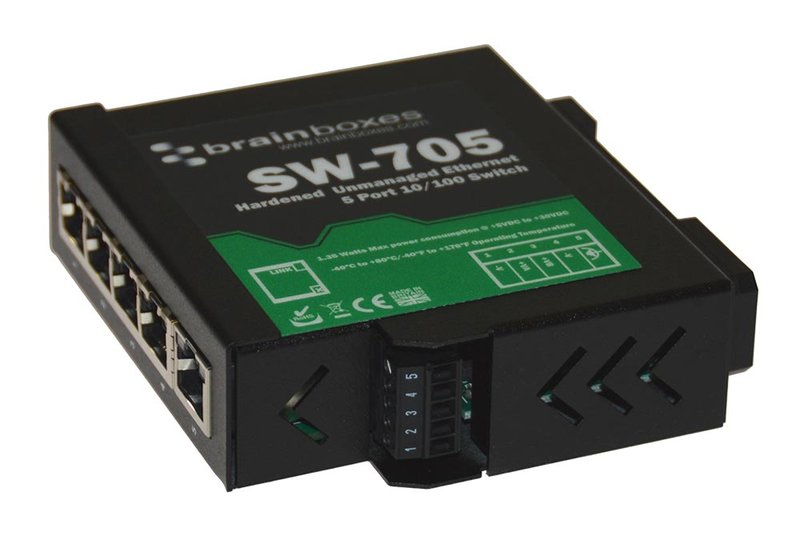

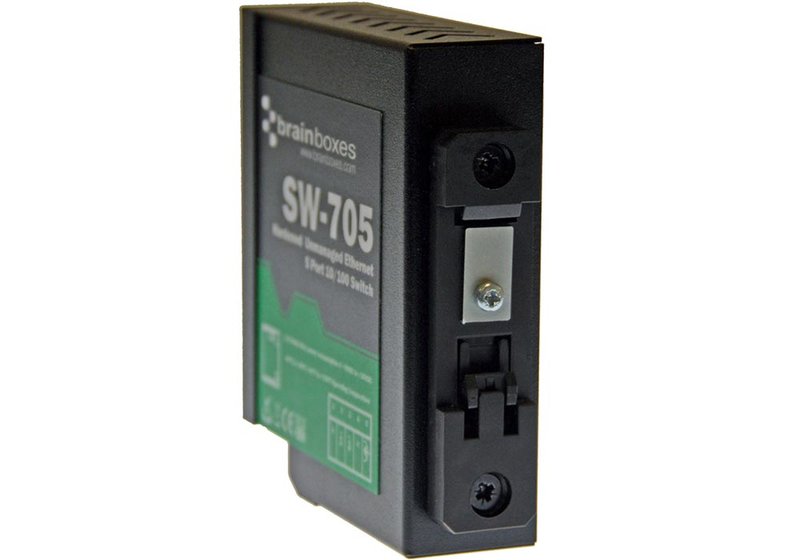

| SW-705 | 5, RJ45 | Fast Ethernet | 10/100 Mbps | - | - | DIN-rail mountable, IP20 | 2x redundant +5...+30 VDC | -40...+80°C |

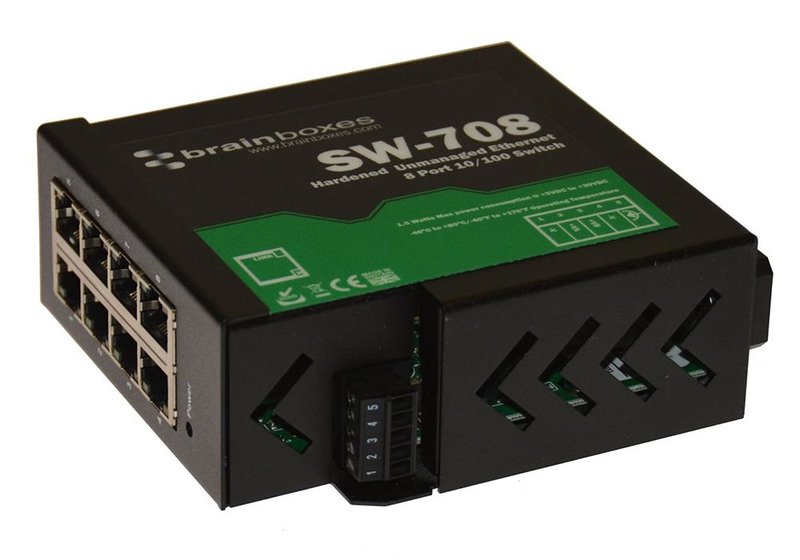

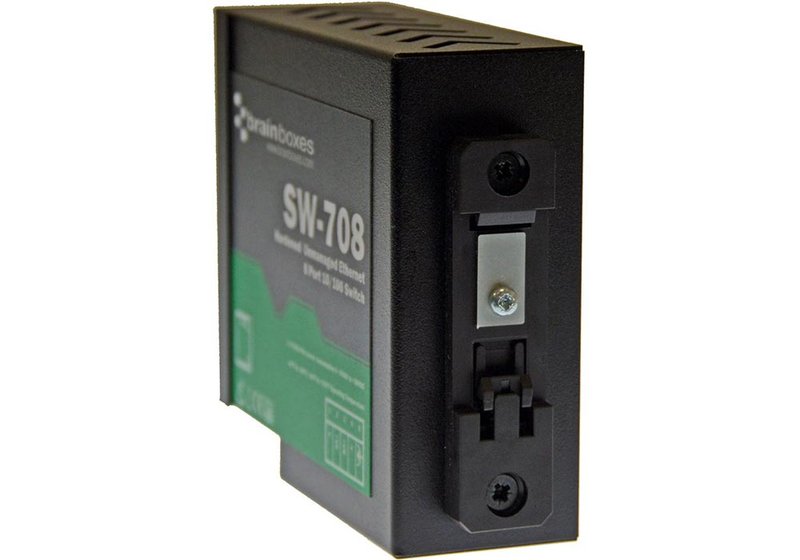

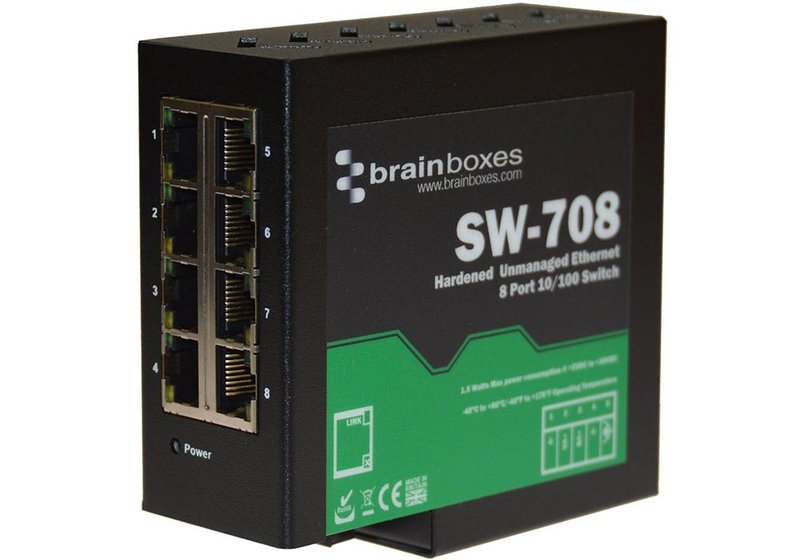

| SW-708 | 8, RJ45 | Fast Ethernet | 10/100 Mbps | - | - | DIN-rail mountable, IP20 | 2x redundant +5...+30 VDC | -40...+80°C |

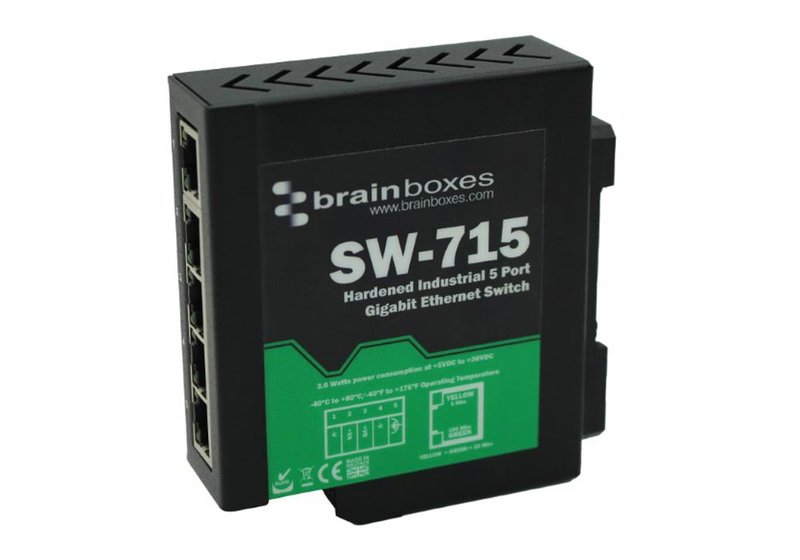

| SW-715 | 5, RJ45 | Gigabit Ethernet | 10/100/1000 Mbps | - | - | DIN-rail mountable, IP20 | 2x redundant +5...+30 VDC | -40...+80°C |
| SW-718 | 8, RJ45 | Gigabit Ethernet | 10/100/1000 Mbps | - | - | DIN-rail mountable, IP20 | 2x redundant +5...+30 VDC | -40...+80°C |

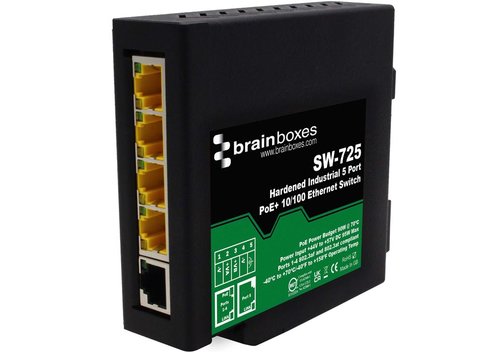

| SW-725 | 5, RJ45 | Fast Ethernet | 10/100 Mbps | - | ✓ (4 ports) | DIN-rail mountable, IP20 | 2x redundant +44...+57 VDC | -40...+70°C |
| SW-735 | 5, RJ45 | Gigabit Ethernet | 10/100/1000 Mbps | - | ✓ (4 ports) | DIN-rail mountable, IP20 | 2x redundant +44...+57 VDC | -40...+70°C |
**PoE = Power over Ethernet.
Included: Ethernet switch module, quick start guide.
Frequently Asked Questions:
Question: Router - Switch - Hub - what is the difference?
Answer: You can think of an (Ethernet or USB) hub as a simple distribution socket. The hub connects devices in a star configuration without additional functions.
A repeating hub has an additional repeater function, i.e. it provides signal conditioning/amplification for further transmission.
With an external power supply, USB hubs can ensure that connected USB devices with supply via USB ("bus-powered" devices) are sufficiently supplied with power.
An (Ethernet) switch also connects devices in a star configuration, but works as a controller. Unlike a hub, a switch does not route data frames equally to all ports. Rather, it uses the learned addresses of the connected devices to decide to whom the frames are forwarded.
A router couples network segments, for example, public and private networks (internet routers, etc.). Routers forward network packets between networks, adapt different network technologies to each other and provide firewall functions.
Question: What is a managed or unmanaged switch?
Answer: A switch connects devices in a star configuration. As a controller, it routes data frames specifically to connected devices based on the addresses learned. An unmanaged switch is "self-learning" and ready for immediate use without configuration. A managed switch is configurable, allowing more flexibility and control over the network.
