Cleverscope CS448 USB/LAN, 14 bit, Isolated MSO

New - coming soon
new
Cleverscope CS328A, USB
additional images:
Price

10.656,00*
* excluding VAT free shipping (Germany)
Quantity:
Total
Unit price
base price
Stock
Available soon
Description

Benefits

  • Fully isolated 14 bit PV oscilloscope for USB and Ethernet.
  • Multifunctional: Mixed signal with digital channels. Integrated signal generator. Datalogger with SD-card.
  • 100 dB CMRR (50 MHz) ideal for power electronics, electromobility, medical electronics design.

Isolated, High-resolution PC-Oscilloscope with High CMRR.

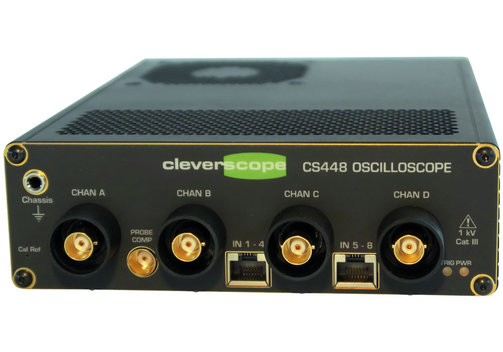

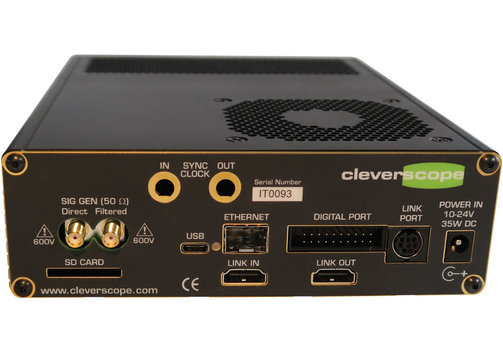

The Cleverscope CS448 is an isolated high CMRR four channel PC oscilloscope. It is designed to measure all the signals in an operating full or three phase power electronic switching bridge. Examples include gate drives to measure voltage and charge, the power switch to measure loss and parasitic stress, the output to measure power and spectrum for EMC compliance, and the control system for Gain/Phase and stability. The CS448 includes an isolated signal generator for stimulus, and eight digital inputs to measure control signals. Two Cleverscope CS448 can be slaved to make an 8-channel oscilloscope with coherent sampling.

  • 4 channels.
  • Resolution 14 bit. 200 MHz bandwidth, 500 MS/s.
  • Full galvanic isolation up to 1 kV (channel-to-channel).
  • High common mode rejection rate (CMRR) 100 dB at 50 MHz:
    CMRR >120 dB at 1 MHz, >115 dB at 10 MHz, >100 dB at 50 MHz.
  • Mixed signal: 8 digital inputs, also isolated up to 1 kV. 100 Mb/s.
  • Integrated signal generator 0...65 MHz.
  • Datalogger: Store stand-alone captures to SD card.
  • Digital port with 16 bidirectional lines.
  • Two Cleverscope CS448 can be slaved to make an 8-channel system with coherent sampling.
  • Sophisticated trigger functions, for example combination of triggers using AND/OR/XOR.
  • USB 3.0 (compatible with USB 2.0).
  • Ethernet over copper (10/100/1000 Mb/s) or fibre (1 Gb/s).

Included: 1x CS448 oscilloscope aquisition unit, 1x external power supply, 4x CS1001 (1x/10x 250 MHz probe kit), 1x CS1004/CS1005 (8 bit 100 MHz digital input pods including probes), 1x USB cable (Type A to Type C), 1x Ethernet SFP module (either an optical or a copper connected SFP module will be supplied based on the order, optical is standard), 1x CD that includes CS448 application software, CS448 user manual, sample files, videos and white papers.
