ME-5265 Isolated 16bit/2MS/s DAQ Board

Scaled Prices
taking 1 pc.
starting
€ 2.641,80
taking 3 pc.
starting
€ 2.377,62
starting 2.939,30
including VAT free shipping (Germany)
min Quantity
1 piece
Unit price
base price
Variants
technical Question?
recommend by email
close
Please fill in all fields.
Question Type
Your E-mail Adress
My Question:
Please validate that you are not a robot.
Description
Accessories
Files/Downloads

ME-5265/8 PCIe available from approx. Q4/2023.


Benefits of the cobalt Series ME-5265 8-Channel DAQ PC Board

  • Fast DAQ board with rates up to 2 MS/s.
  • Full-differential analog channels with full isolation.
  • Use to measure solar cells, (rechargeable and other) batteries, fuel cells.

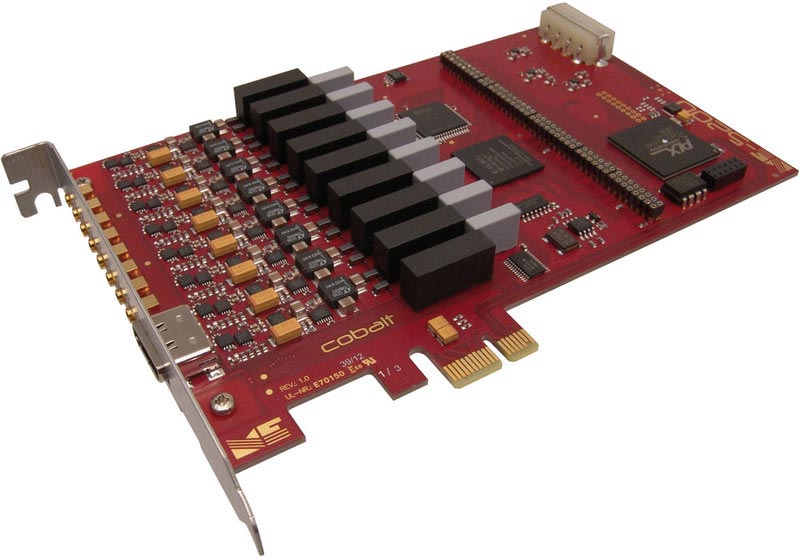

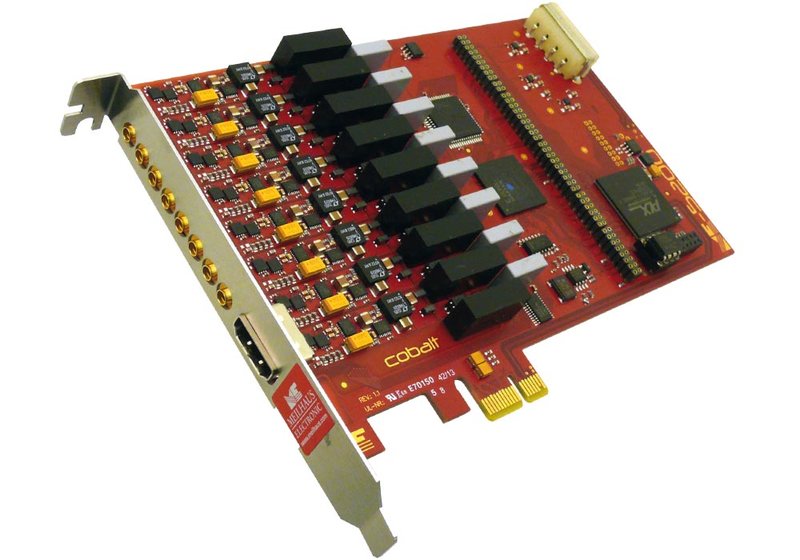

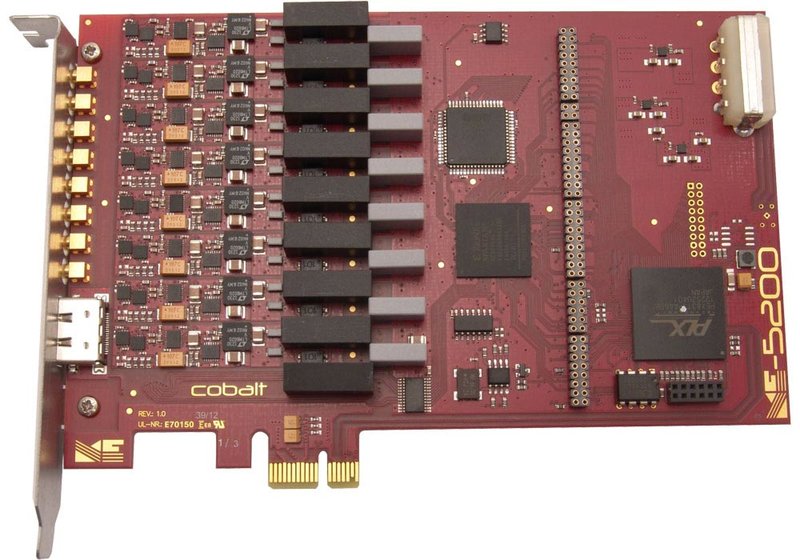

ME-5265 Isolated 16 bit/2 MS/s DAQ Board

The ME-5265 is a fast, highprecision analog DAQ board with 8 isolated, differential inputs. Every channel has an individual A/D converter. The resolution is 16 bit with rates up to 2 MS/s.

  • Supported by the driver system ME-iDS for Windows 7 to 10.
  • Reliable, precise measurement data acquisition.
  • Potential-free, isolated, full differential channels: Ideal solution for measurement of solar cells, batteries, rechargeable batteries, fuel cells, etc.

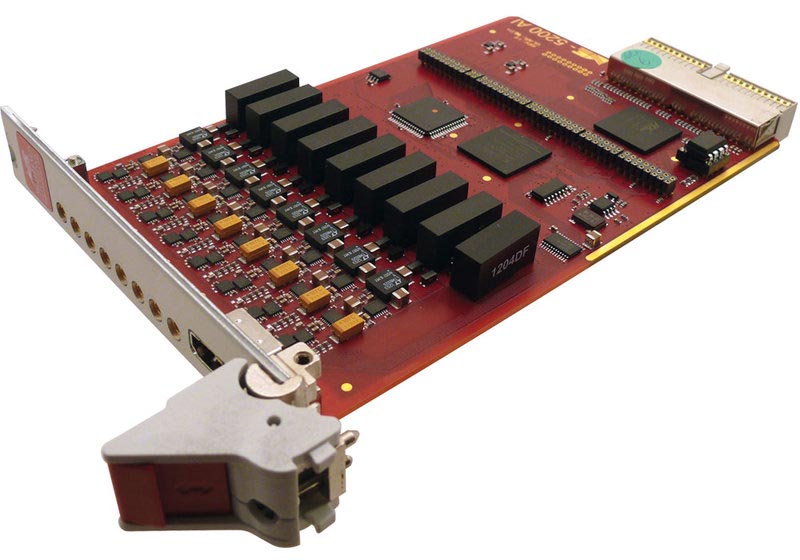

  • For PCI-Express and 3 U CompactPCI/PXI.
  • 8 analog measurement inputs:
    Differential, potential-free, isolated up to 500 V (for 1 s, no common GNDs).
    Range ±10.4 V. Two external digital triggers.
  • High-precision A/D conversion, 16 bit, 2 MS/s.
    Individual SAR converter per channel.
  • MMCX connectors (optional terminal board with BNC). Connection of probes, for example for high voltage measurements.
  • 8 digital-I/O channels with variable functions:
    Standard single-I/O or 4-channel frequency measurement, 4-channel frequency output.
    Bitchange detection with interrupt.

Options

  • Option -T "Probe": Input resistance Ri=1 MΩ for the channel(s) of your choice.
  • Option -E "Extended": Extended input range ±104 V, Ri=200 kΩ. Option for all the 8 channels of a board.

Model Overview

Model Channels Rate per channel Resolution Isolation Digital-I/O External trigger Bus platform
▸ME-5284 (18 bit, 1.6 MS/s)
▸ME-5261 (16 bit, 250 kS/s)
ME-5265:
ME-5265-8 PCIe 8 diff. 2.0 MS/s 16 bit yes (separate grounds/no common ground),
up to 500 V
1x 8 bit port, TTL level.
standard firmware: Single digital-I/O,
frequency measurement (4 of the channels, 5 MHz),
frequency output (4 of the channels, 5 MHz)
2, TTL,
isolated up to 42 V
PCI-Express
ME-5265-8 cPCI 8 diff. 2.0 MS/s 16 bit yes (separate grounds/no common ground),
up to 500 V
1x 8 bit port, TTL level.
standard firmware: Single digital-I/O,
frequency measurement (4 of the channels, 5 MHz),
frequency output (4 of the channels, 5 MHz)
2, TTL,
isolated up to 42 V
3 U CompactPCI/PXI

Included: Board.
Software: Driver system ▸ME-iDS for Windows, ▸ME-PowerLab3, user manual, user manual for the driver software (download).

ME DAQ PC boards

Meilhaus Electronic Original Product!

Customers also bought
