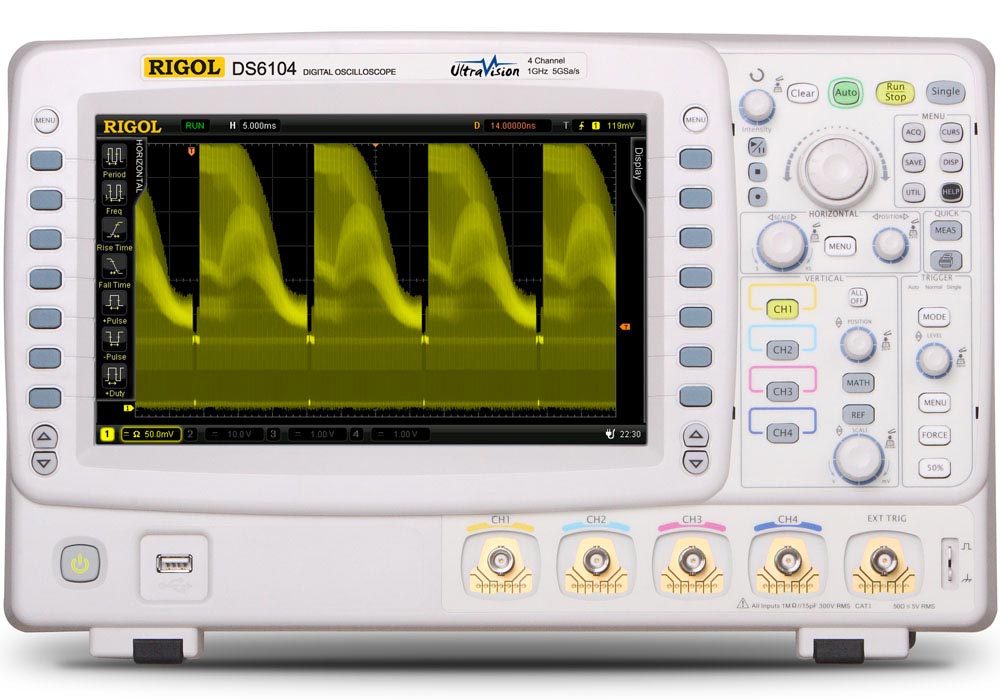

Rigol DS6104 UltraVision - 4-Channel Oscilloscopes, 1 GHz, 5 GS/s

Obsolete - not available
rigol ds6104
additional images:
Stock:
sold out
Obsolete - no more available
Description

Obsolete. Recommended replacement product: Rigol MSO8104

Benefits

  • 4-channel oscilloscopes up to 1 GHz. 4 probes included.
  • UltraVision technology. Deep memory 140 Mpts standard.
  • USB and Ethernet/LXI interfaces.

Deep Memory, High Waveform Capture Rate: 4-Channel 1 GHz DS6104.

These versatile 4-channel scopes have a bandwidth of up to 1 GHz and a sample rate of up to 5 GS/s. Compared to other DSOs in this range they have a deep memory of up to 140 Mpts and a max. waveform capture rate of 180,000 wfms/s, due to their innovative UltraVision technology.

  • Channels: 4.
  • Bandwidht Up to 1 GHz.
  • Sample rate 5 GS/s (dual channel: 2.5 GS).
  • 140 Mpts memory depth standard.
  • Up to 180,000 waveform per sec acquisition rate.
  • Up to 180,000 frames recording capability.
  • Innovative UltraVision technology for higher waveform capture rates, deeper memory, realtime waveform record and replay as well as multi-level intensity grading display.
  • A variety of trigger functions and automatic measurements with statistics.
  • Support serial bus trigger and decode, for example I2C, SPI, RS232, CAN.
  • Extended math functions.
  • USB and ethernet/LXI (LXI Class-C) connectivity.
  • Large display (800 x 480, LED backlight).

Included: DSO DS 6104, power cable, front panel protection cover, USB cable, 2 or 4 passive probes (DS6064: 4x RP5600A. DS6062: 2x RP5600A. DS6102: 2x RP5600A, 1x RP6150. DS6104: 4x RP5600A, 2x RP6150), quick start guide, software/user manual via free download.
Software: DS6000 IVI driver (Windows XP, LabWindows CVI 8.0). Ultra Sigma software.

More Features


UltraVision technology (1)...
...deep memory, standard 140 Mpts.

Trigger (standard) and decoding functions (option) for serial busses:
RS232/UART, I2C, CAN, SPI.

UltraVision technology (2)...
...up to 180 K waveforms/s waveform captures rate.

Automatic measurements with statistics...
...for up to 5 parameters simultaneously.

UltraVision technology (3)...
...waveform record, replay and signal analysis in realtime.

Extended math functions

UltraVision technology (4)...
...display with multilevel intensity grading.

Mask test standard
