TA112/TA222/TA223 TETRIS Active High Z Probe

starting 1.279,25
including VAT free shipping (Germany)
min Quantity
1 piece
Unit price
base price
Variants
technical Question?
recommend by email
close
Please fill in all fields.
Question Type
Your E-mail Adress
My Question:
Please validate that you are not a robot.
Description
Files/Downloads

Pico TETRIS Active High-Impedance Probes

TETRIS active probes, unique design. Allow for contact to adjacent square pins in 2.54 mm pitch simultaneously. This is possible due to the probe's T-shaped housing allowing many probes to be positioned next to each other, permitting multiple measurements to be taken at the same time.

Model Overview

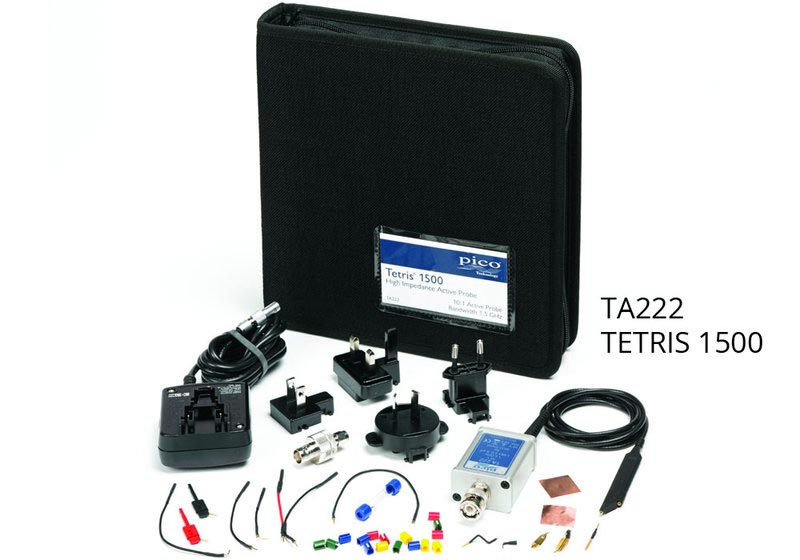

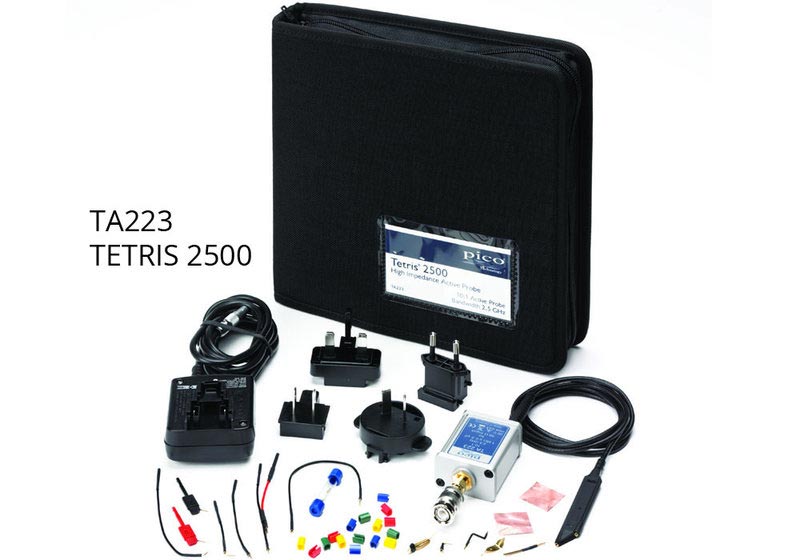

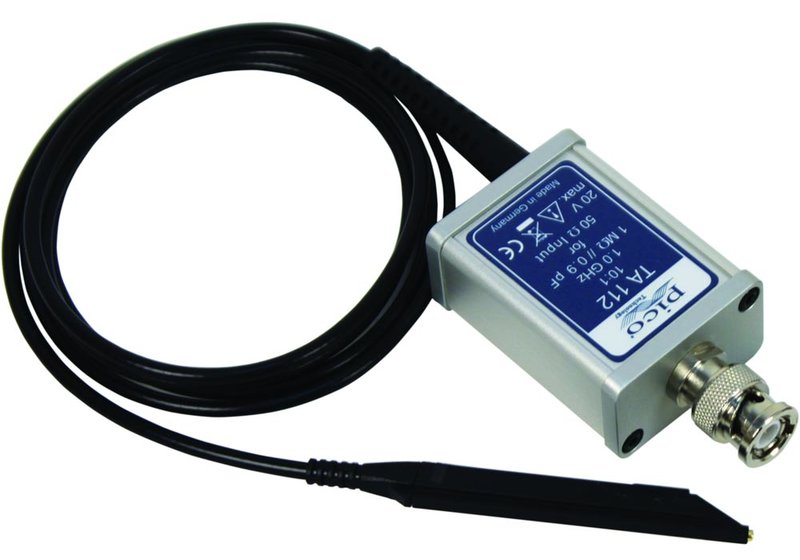

TA112 TETRIS 1000 Active High Z probeTA222 TETRIS 1500 Active High Z probeTA223 TETRIS 2500 Active High Z probe
Attenuation10:110:110:1
Input impedance1 MΩ || 0.9 pF1 MΩ || 0.9 pF1 MΩ || 0.9 pF
Input coupling of the measuring instrument50 Ω50 Ω50 Ω
Probe bandwidth (-3 dB)1 GHz 1.5 GHz 2.5 GHz
System bandwidth (-3 dB)600 MHz (with >500 MHz oscilloscope)1 GHz (with >500 MHz oscilloscope)2 GHz (with >500 MHz oscilloscope)
Input dynamic range±8 V±8 V±8 V
Max. input voltage20 V20 V20 V
Cable length1.3 m1.3 m1.3 m
Supply voltagePower supply includedPower supply includedPower supply included
Temperature rangeOperating: 0...+45°C,
storage: –40...+71°C
Operating: 0...+45°C,
storage: –40...+71°C
Operating: 0...+45°C,
storage: –40...+71°C
Maximum relative humidity (operating)80% relative humidity for temperatures up to +31°C,
decreasing linearly to 40% at +50°C
80% relative humidity for temperatures up to +31°C,
decreasing linearly to 40% at +50°C
80% relative humidity for temperatures up to +31°C,
decreasing linearly to 40% at +50°C
