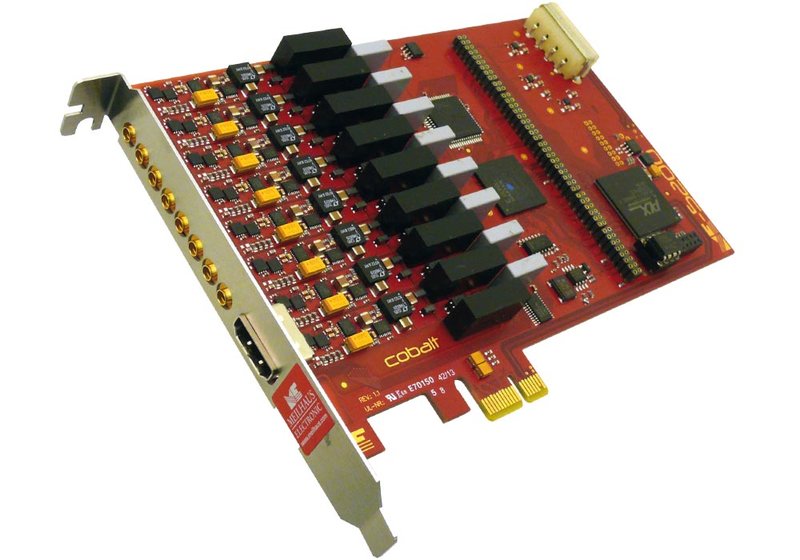

ME-5261 Isolated 16 bit/250 kS/s DAQ Board

DAQ board ME-5261
additional images:
progressive price
taking 1 pcs
from
€ 1.319,00
taking 3 pcs
from
€ 1.187,10
Price
starting 1.319,00*
starting € 1.569,61 brutto
* excluding VAT free shipping (Germany)
Quantity:
Total
Unit price
base price
Stock:
on stock
Description

Benefits

  • Safe with fully isolated analog inputs.
  • Full differential channels.
  • Ideal for measurement of solar cells, batteries, rechargeable batteries, fuel cell.

cobalt Series Standard DAQ Board ME-5261 with Full Isolation.

The ME-5261 is a fast, highprecision analog DAQ board with 8 isolated, differential inputs. Every channel has an individual A/D converter. The resolution is 16 bit with rates up to 250 kS/s.

  • Reliable, precise measurement data acquisition.
  • Potential-free, isolated, full differential channels: Ideal solution for measurement of solar cells, batteries, rechargeable batteries, fuel cells, etc.
  • For PCI-Express and 3 U CompactPCI/PXI.
  • 8 analog measurement inputs:
    Differential, potential-free, isolated up to 500 V (for 1 s, no common GNDs).
    Range ±10.4 V. Two external digital triggers.
  • High-precision A/D conversion, 16 bit, 250 kS/s.
    Individual SAR converter per channel.
  • MMCX connectors (optional terminal board with BNC). Connection of probes, for example for high voltage measurements.
  • 8 digital-I/O channels with variable functions:
    Standard single-I/O or 4-channel frequency measurement, 4-channel frequency output.
    Bitchange detection with interrupt.

Options

  • Option -T "Probe": Input resistance Ri=1 MΩ for the channel(s) of your choice.
  • Option -E "Extended": Extended input range ±104 V, Ri=200 kΩ. Option for all the 8 channels of a board.

Model Overview

Model Channels Rate per channel Resolution Isolation Digital-I/O External trigger Bus platform
» ME-5284 (18 bit, 1.6 MS/s)
» ME-5265 (16 bit, 2.0 MS/s)
ME-5261:
ME-5261-8 PCIe 8 diff. 250 kS/s 16 bit yes (separate grounds/no common ground),
up to 500 V
1x 8 bit port, TTL level.
standard firmware: Single digital-I/O,
frequency measurement (4 of the channels, 5 MHz),
frequency output (4 of the channels, 5 MHz)
2, TTL,
isolated up to 42 V

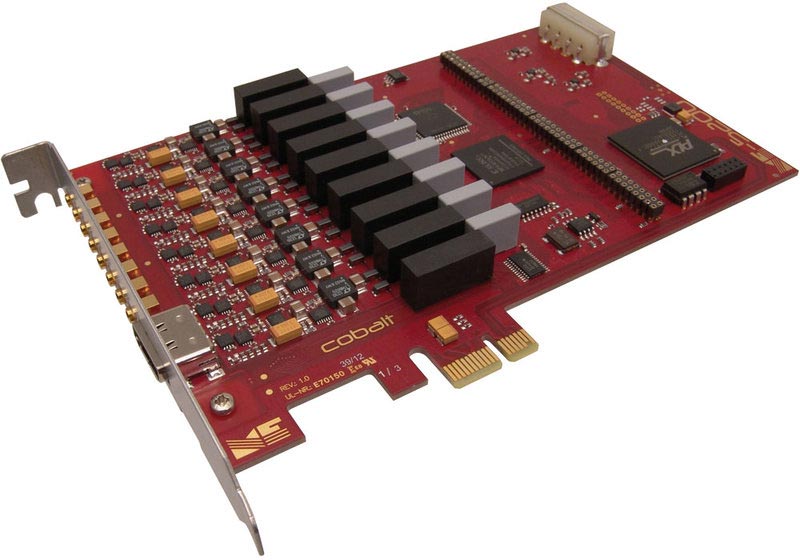

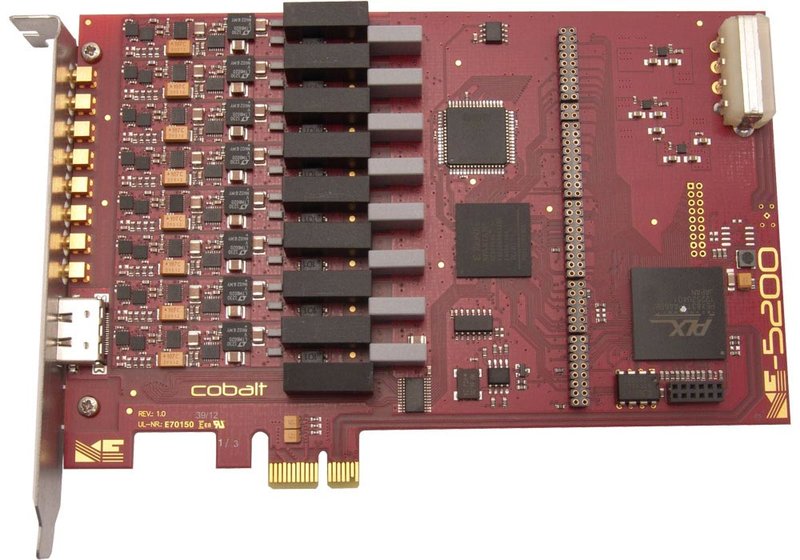

PCI-Express
ME-5261-8 cPCI 8 diff. 250 kS/s 16 bit yes (separate grounds/no common ground),
up to 500 V
1x 8 bit port, TTL level.
standard firmware: Single digital-I/O,
frequency measurement (4 of the channels, 5 MHz),
frequency output (4 of the channels, 5 MHz)
2, TTL,
isolated up to 42 V

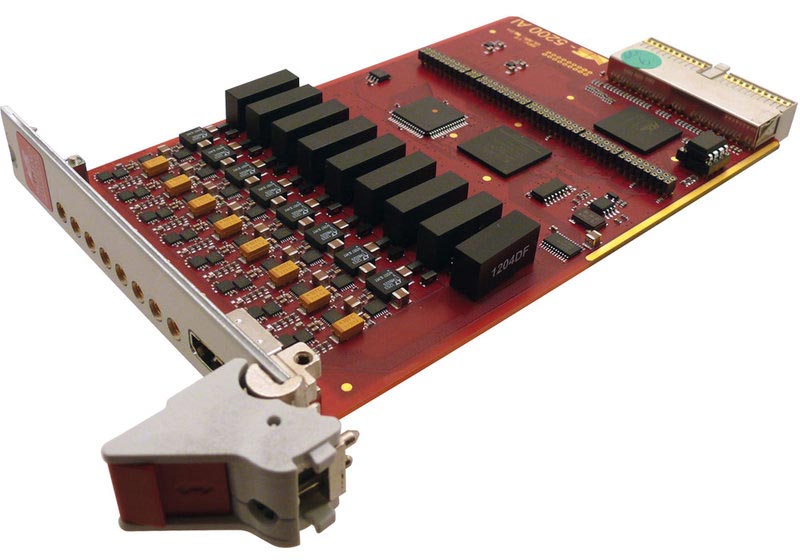

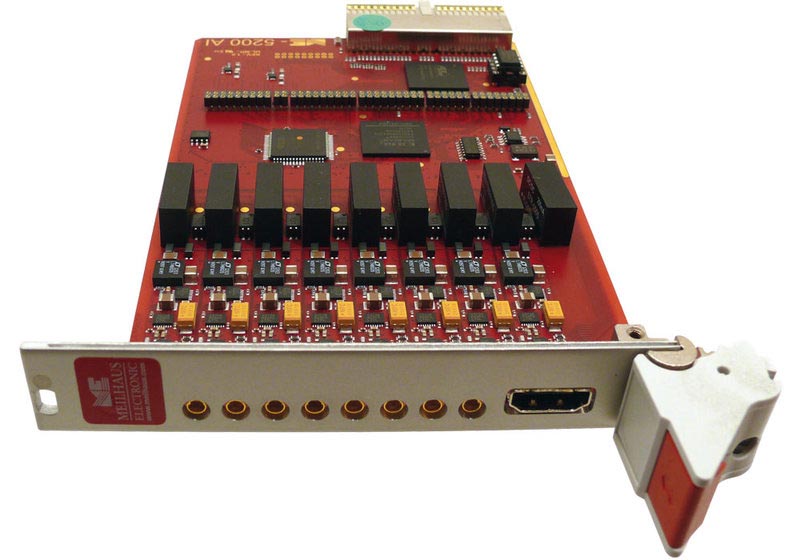

3 U CompactPCI/PXI

Included: Board, ME-Power-DVD with software and PDF manual.
Software: Driver system ME-iDS for Windows, ME-PowerLab3

ME DAQ PC boards

Meilhaus Electronic Original Product!
