Benefits

  • Low-cost digital storage oscilloscopes.
  • 4 channels, bandwidth up to 100 MHz, sample rates up to 1 GS/s.
  • USB and Ethernet/LAN.

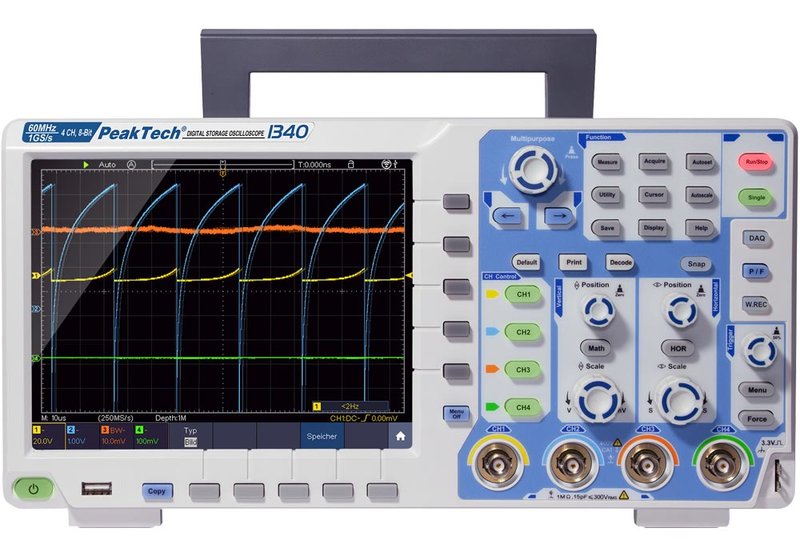

PeakTech P134x Series Oscilloscopes, 4-Channel, up to 100 MHz

The 4-channel digital storage oscilloscopes of the PeakTech P134x and P137x series have a high resolutions TFT colour display and versatile features. The bandwidth goes up to 100 MHz. Standard interfaces are USB and Ethernet.

  • High resolution TFT colour display with 800 x 600 pixesl; 20 cm/8".

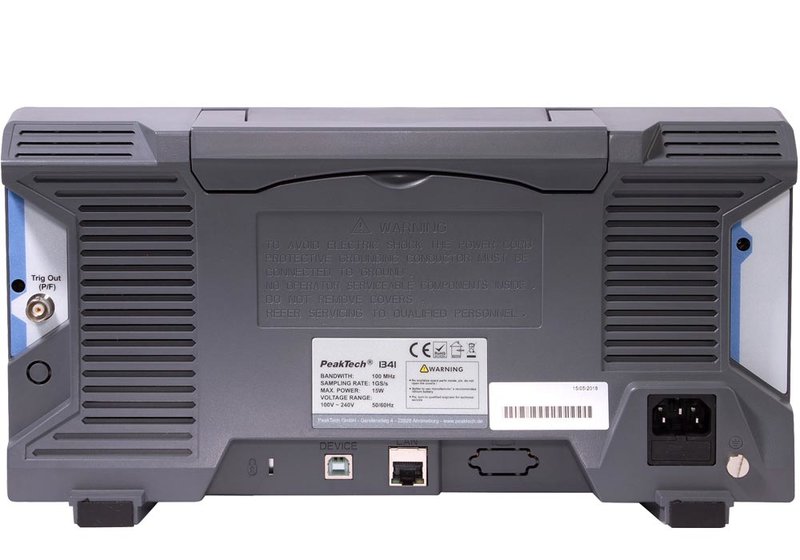

  • LAN and USB device port for real time data transmission.
  • Saving of measured values and graphics directly onto the USB-disk.
  • Handy and flat case design with carrying handle.
  • Autoset function for easy operation.
  • Record lenght of max. 40 mio. points.
  • Automatic measurement modes and FFT function.
  • Optional battery for off-grid operation.
  • Safety: EN 61010-1; CAT II.

Model Overview

ModelP1340P1341P1370P1375
Channels4
Bandwidth60 MHz100 MHz60 MHz100 MHz
Sample rate1 GS/s (1 channel), 500 MS/s (2 channels), 250 MS/s (4 channels)
Resolution8 bit
Memory depth40,000,000 Punkte
Update rate45,000 Wfms/s
Trigger typesEdge, video, pulse, slopeEdge, video, pulse, slope, CAN bus, RS232, I2C, SPI
Multimeter functions-DC and AC voltage, DC and AC current, resolution, capacity, diode
Waveform generator-2 channels, 25 MHz
Display8"/20 cm TFT8"/20 cm TF touch screen
InterfaceUSB Host & Device, Ethernet/LANUSB Host & Device, Ethernet/LAN, WiFi
Dimensions (mm)340 x 175 x 90; approx. 2.5 to 2.6 kg
BatteryOptional, model AKKU-6

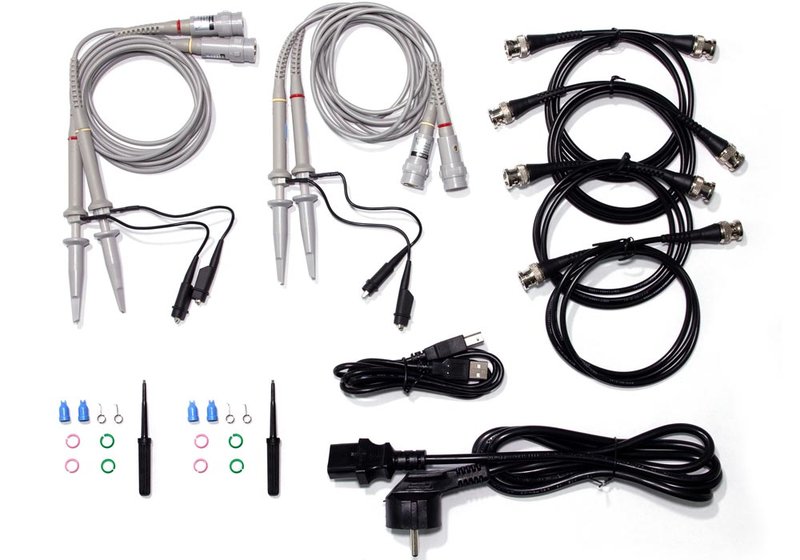

Included: P 1340 or 1341, USB cable, software CD for Windows, power cable, 4 probes, BNC cable, carrying bag and manual.
