Benefits of the DSO P1360, P1362, P1363 Oscilloscopes with USB, Ethernet, Wi-Fi

  • Low-cost digital storage oscilloscopes with touch screen.
  • 2 channels, bandwidth up to 300 MHz, sample rates up to 2.5 GS/s.
  • Models with WiFi, multimeter and waveform generator.

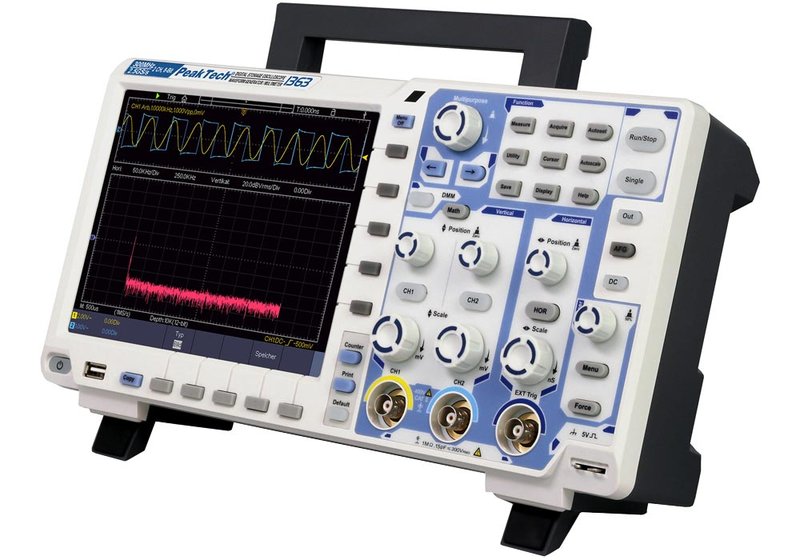

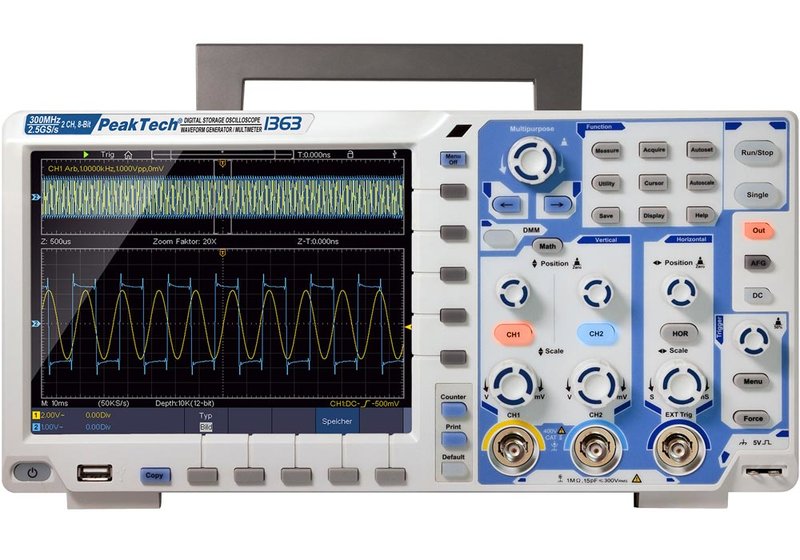

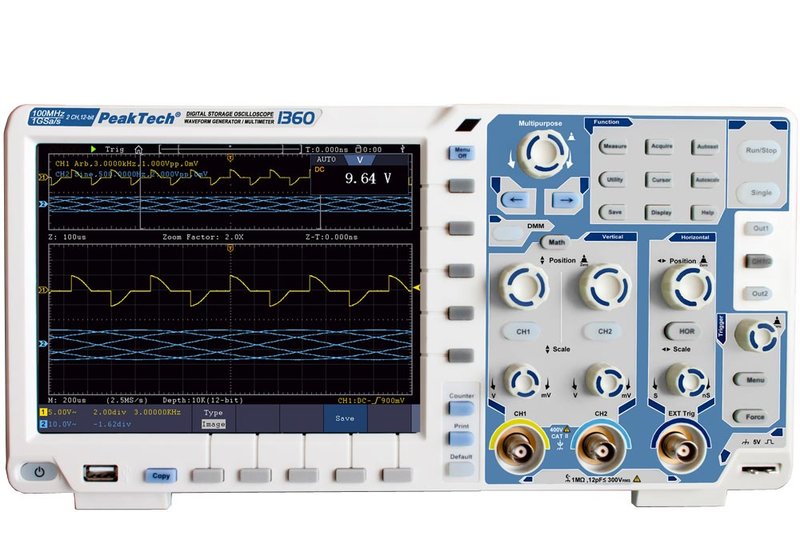

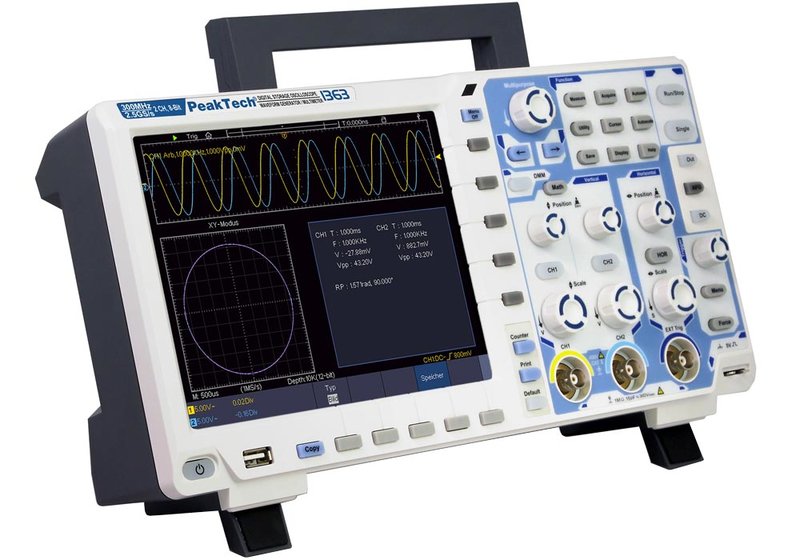

PeakTech P135x, P136x Series Touchscreen Oscilloscopes, 2 Channels, up to 300 MHz

The 2-channel PeakTech series P135x and P136x oscilloscopes have a high-resolution TFT colour display with a touch screen and versatile functions, such as (depending on the model) an integrated digital multimeter, CAN bus, RSb232, SPI, and I2C-Trigger as well as a 25 MHz function and arbitrary waveform generator. The scopes' interfaces include USB and Ethernet/LAN, for some models also WiFi.

  • High-resolution TFT color display with 800 x 600 pixels.
  • 20 cm (8") touch screen.
  • Models with 12 or 8 bit vertical resolution.
  • Ethernet/LAN and USB device port for real time data transmission. Models with WiFi.
  • Saving of measured values and graphics directly onto the USB-disk.
  • Optional battery for off-grid operation.
  • Models with integrated 1-channel 25 MHz function and arbitrary waveform generator.

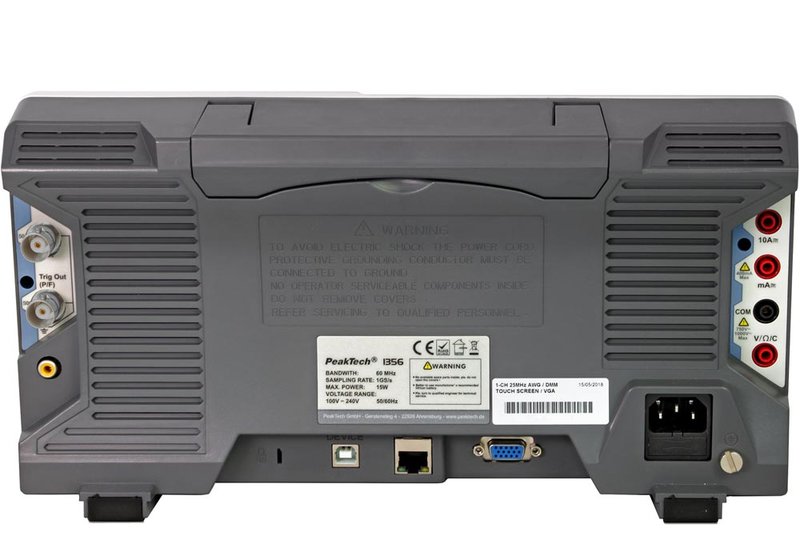

  • Models with integrated digital multimeter with 4000 counts and rear inputs.
  • Models with extended trigger for CAN bus, RS232, I2C, and SPI.
  • Handy and flat case design with carrying handle.
  • Autoset function for easy operation.
  • Record lenght of max. 40 mio. points.
  • Automatic measurement modes and FFT function.
  • Safety: EN 61010-1; CAT II.

Model Overview

Model▸P1355▸P1356P1360P1362P1363
Channels2
Bandwidth60 MHz60 MHz100 MHz200 MHz300 MHz
Sample rate1 GS/s (1 channel), 500 MS/s (2 channels)2 GS/s (1 channel), 1 GS/s (2 channels)2,5 GS/s (1 channel), 1,25 GS/s (2 channels)
Resolution12 bit8 bit
Memory depth40,000,000 points
Update rate75,000 Wfms/s
Trigger typesEdge, video, pulse, slopeEdge, video, pulse, slope, CAN bus, RS232, IC, SPI
Multimeter functions-DC and AC voltage, DC and AC current, resistance, capacitance, diode
Signal generator-1 channel, 25 MHz
Display8"/20 cm TFT touch screen
InterfacesUSB Host & Device, Ethernet/LANUSB Host & Device, Ethernet/LAN, WiFi
Dimensions (mm)340 x 175 x 90; approx. 2.6 kg
BatteryOptional, model AKKU-6

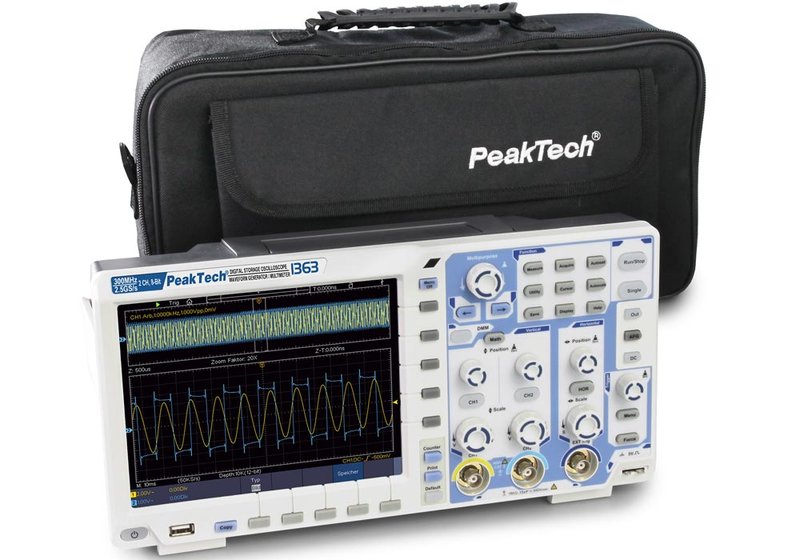

Included: P 1360, 1362, or 1363, USB cable, software CD for Windows, power cable, 2 probes, carrying bag and manual.

Meilhaus Electronic is authorized Peaktech distributor
