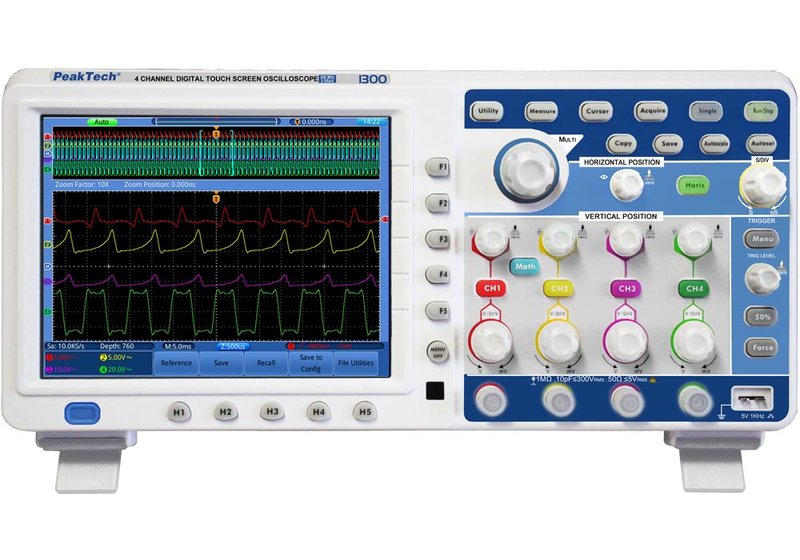

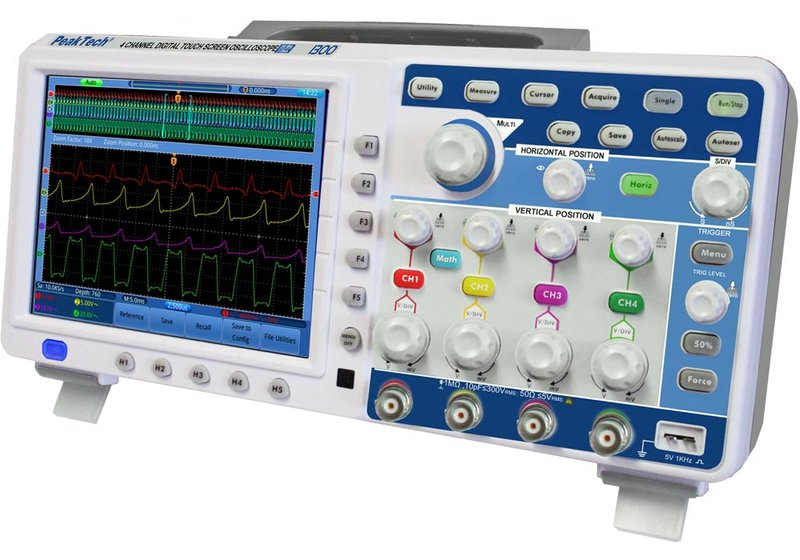

PeakTech P1300 - 4-Channel Touchscreen Oscilloscope, 200 MHz

PeakTech P1300 - 4-Channel Touchscreen Oscilloscope, 200 MHz
additional images:
Price
1.150,00*
€ 1.368,50 brutto
* excluding VAT free shipping (Germany)
Quantity:
Total
Unit price
base price
Stock:
Delivery time
Delivery Time ~3-5 workdays
Description

Benefits

  • 4-channel 200 MHz oscilloscope with finger tip control.
  • 1 GSa/s in 4-channel mode, 2 GSa/s in 2-channel mode.
  • USB and Ethernet interface.

PeakTech P1300 4-Channel Touchscreen Oscilloscope, 200 MHz

This innovative 4-channel digital storage oscilloscope is featuring the latest technology and performance. The control of the many included functions can be carried out either with the reliable and proven function keys and additional with the comfortable "touch screen" technology. Thus, for example the on- screen menus, channel selection and file management with displayed keypad can be used by a fingertip. The high-resolution TFT color display shows all 4 measurement channels simultaneously and is also suitable for the new multi-window function to display the combined time course curve of all waveforms with zoom function.

In addition to the extensive measurement capabilities, these devices have a LAN interface for integration into company networks and an USB interface for data transfer to the PC. Furthermore, data can be saved directly to a USB storage device, which can be selected easily in the new file manager. Via the VGA port the user can connect external monitors to display all the measurement data enlarged or show it to a larger audience. Through the user-friendly operation, the variety of functions and technical highlights these device can be used for countless applications in education, service- , scientific- and industrial applications.

  • 4 measuring channels with simultaneous display on the display.
  • Innovative Touch Screen finger tip control.
  • 200 MHz bandwidth.
  • 1 GSa/s in 4-channel mode.
  • 2 GSa/s in 2-channel mode.
  • High-resolution TFT color display with 800 x 600 pixels and 65536 colors.
  • Autoset and Autoscale function for easy operation.
  • Save the measured values and graphics directly on a USB stick.
  • 20 auto. measurement modes, FFT function, PASS/FAIL function.
  • LAN connection for remote access via Network.
  • USB port for real- time data transfer or reading of internal memory.
  • VGA output for connecting an external monitor.

Model Overview

Oscilloscope
Bandwidth 200 MHz
Display 20 cm (8") Touchscreen TFT with 65536 colours
Resolution 800 x 600 Pixel
Channels 4 channels simultaneously
Measurement acquisation normal/peak detect/average
Samplingrate per channel 2 GSa/s per channel
Samplingrate 4 channel 1 GSa/s per channel
Input:
Input coupling AC, DC, GND
Input impedance 1 MΩ ±2% in parallel with 10 pF ±5 pF
Max. Input voltage 400 VDC or ACPP
Vertical systems:
Measurement range >5 Hz…100 MHz
Sensitivity 2 mV...10 V/div
Rise Time <1.7 ns
DC Accuracy ±3%
Vertical resolution 8 bit (4 channels simultaneously)
Horizontal systems:
Time base 2 ns/Div...100 s/Div
Measurement range 0.5...2 GS/s
Trigger:
Trigger type Edge, Video, Pulse, Slope
Trigger mode Auto/Norm/Single
Trigger coupling DC, AC, LF, HF
Measurements:
20 autom. measurements Peak-Peak,Cycle RMS, Vmax, Vmin, Vtop, Vbase, Vamp, Overshoot, Preshoot, Rise time, Fall time, + Width, - Width, +Duty, -Duty, Delay A->B (rising), Delay A->B (falling), Frequency, Period, Min, Max, FFT
Record:
Record lenght 7.6 M points/channel
Internal record 4 waveforms; 15 settings
Common specifications:

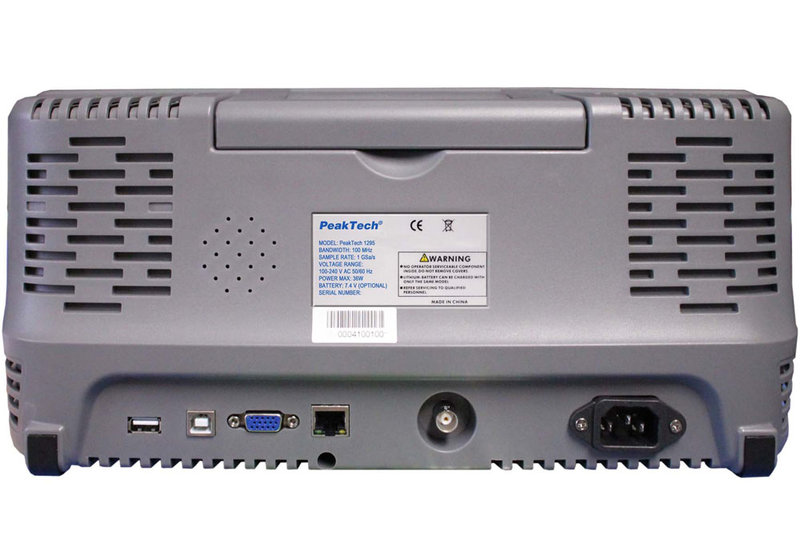

Interfaces USB Host, USB 2.0 Device, VGA, LAN
Operation voltage 100...240 VAC; 50/60 Hz; Power
Dimensions (WxHxD, mm) 380 x 180 x 115
Weight 1.9 kg

Included: P 1300, carrying case, 4 probes (1:1 , 10:1), USB cable, 4 BNC cables, user manual, software CD for Windows XP/Vista/7/8.

Meilhaus Electronic is authorized Peaktech distributor
