EOL. List of Rigol oscilloscop replacements: ▸Rigol oscilloscopes DS/MSO2000 und DS1000Z

Benefits

  • Low-cost 2-channel oscilloscope up to 70 MHz bandwidth, 2 GS/s max. sample rate. Probes inkluded.
  • Deep memory 14 Mpts standard, 56 Mpts optional. 50,000 Wfms/s.
  • Model -S with integrated 25 MHz signal source.

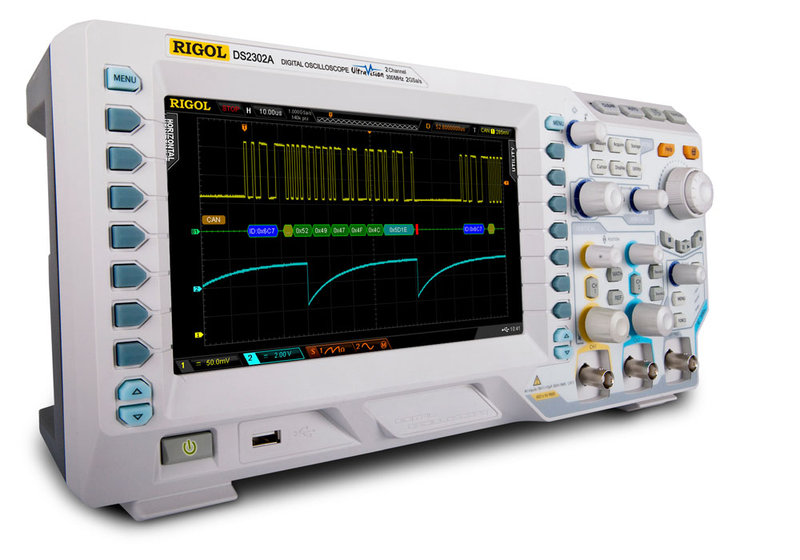

The Rigol "Economy Oscilloscopes", 2 Channels, 70 MHz Bandwidth

DS2072A are the mainstream digital scopes to meet the customer's applications with its innovative technology, industry leading specifications, powerful trigger functions and broad analysis capabilities. The devices are fast and versatile scopes covering frequencies up to 70 MHz with two channels and a wide vertical range (500 µV/Div...10 V/Div) to deliver an extremely low noise floor to help you capture smaller signals. Add a 2 GS/s max. sample rate and 14 Mpts of standard memory depth to its user-friendly interface and 8 inch/20 cm WVGA display and you've got a scope that outperforms the competition in a wide range of bench-top and field applications. The models "-S" have a built-in 2 channel source.

  • 2 analog channels:
    • Bandwidth up to 70 MHz.
    • Max. sample rate 2 GS/s.
    • UltraVision technology:
      Deep memory,
      high waveform capture rate,
      hardware based realtime waveform record and replay up to 65,000 frames,
      multi-level intensity grading display.
    • 14 Mpts memory depth standard, optional up to 56 Mpts.
    • Waveform capture rate up to 50,000 waveforms per sec.
    • A variety of trigger and serial bus decording functions (RS232, I2C, SPI, CAN).
  • Models "-S" with built-in 2 channel waveform generator. Sample rate 200 MS/s, vertical resolution 14 bits, max. frequency 25 MHz (sine). Standard waveforms sine, square, pulse, ramp, noise, DC; arbitrary waveforms sinc, exp. rise/fall, ECG, Gauss, Lorentz, Haversine (arb.: Frequency range 0.1 Hz...10 MHz, length 2 to 16 kpts, internal storage locations: 10).
  • Clear WVGA display.

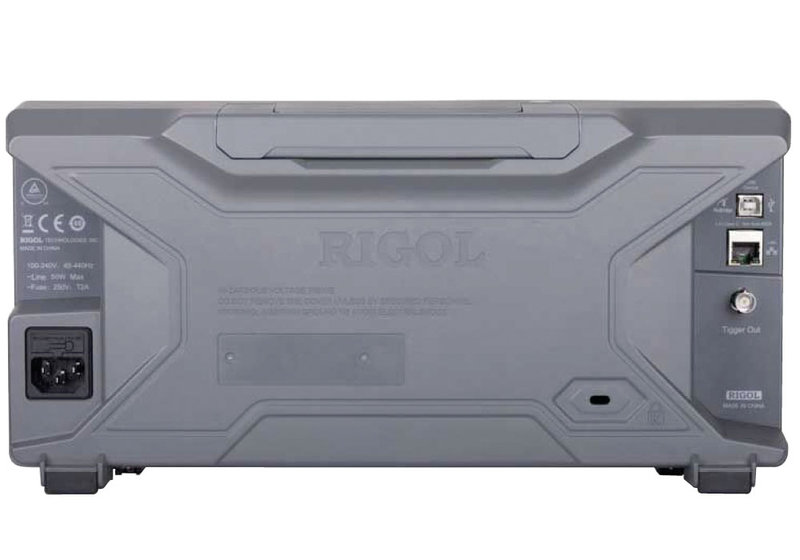

  • Interfaces: USB, ethernet/LXI-C. Printer: PictBridge compatible.
  • Compact and portable.

Included: DSO DS 2072A or DS 2072A-S, power cable, USB cable, 2 passive probes RP3300A 350 MHz, quick start guide, software/user manual via free download.
Software: DS2000A IVI driver, UltraSigma software and more.
