Rigol Product Comparison Charts

Oscilloscopes

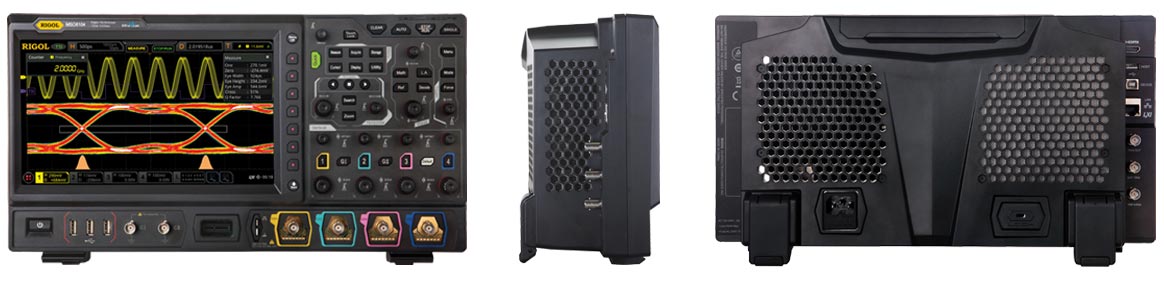

Rigol Series MSO8000

Rigol series MSO8000 oscilloscopes

Model Channels Bandwidth Max. analog sample rate Max. memory depth Max. waveform capture rate Arb. waveform generator Touchscreen Interface Probes incl.
MSO8064 4 + 16* 600 MHz 10 GS/s (single-channel), 5 GS/s (half-channel), 2.5 GS/s (all channels) Analog channels: 500 Mpts (single-channel), 250 Mpts (half-channel), 125 Mpts (all channels); digital channel: 62.5 Mpts (all channels) ≥600,000 wfms/s; hardware real-time waveform record and replay ≥450,000 wfms (single-channel) Optional 2 channels, 25 MHz, 200 MS/s, 14 bit, modulation, sweep, burst USB, Ethernet/LAN/LXI, HDMI 4x RP3500A (500 MHz)
MSO8104 4 + 16* 1 GHz 4x RP3500A (500 MHz),
2x RP6150A (1.5 GHz)
MSO8204 4 + 16* 2 GHz 4x RP3500A (500 MHz),
2x RP6150A (1.5 GHz)

* 4 analog channels and 16 digital/logic channels. For use of the digital channels (logic analyzer/mixed signal function) optional logic probes required.

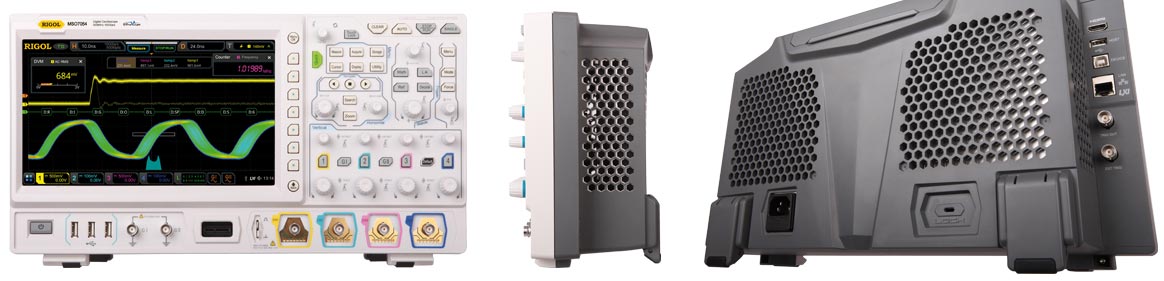

Rigol Series DS/MSO7000

Rigol series DS/MSO7000 oscilloscopes

Model Channels Bandwidth Max. analog sample rate Max. analog memory depth Max. waveform capture rate Max. digital sample rate Max. digital memory depth Arb. waveform generator Touchscreen Interfaces Probes incl.
DS7014 4 100 MHz 10 GS/s (single channel), 5 GS/s (dual channel), 2.5 GS/s (four channel). 8 bit 100 Mpts (optional 250 or 500 Mpts) 600,000 wfms/s;
Max. 450,000 frames of waveform recording
- - - USB, Ethernet/LAN/LXI, HDMI 4x RP3500A
DS7024 4 200 MHz
DS7034 4 350 MHz
DS7054 4 500 MHz
MSO7014 4 + 16* 100 MHz 10 GS/s (single channel), 5 GS/s (dual channel), 2.5 GS/s (four channel). 8 bit 100 Mpts (optional 250 or 500 Mpts) 600,000 wfms/s;
Max. 450,000 frames of waveform recording
1.25 GS/s 62.5 Mpts Optional, 2 channels, 25 MHz, 200 MS/s, 14 bit, modulations, sweep, burst USB, Ethernet/LAN/LXI, HDMI 4x RP3500A, 1x RPL2316
MSO7024 4 + 16* 200 MHz
MSO7034 4 + 16* 350 MHz
MSO7054 4 + 16* 500 MHz

* 4 analog channels and 16 digital/logic channels.


Rigol Series DS6000 - obsolete

Rigol series DSO6000 oscilloscopes

Model Channels Bandwidth Max. sample rate Max. memory depth Max. waveform capture rate
DS6104 4 1 GHz 5 GS/s (dual channel: 2.5 GS) 140 Mpts 180.000 wfms/s
DS6102 2 1 GHz 5 GS/s (dual channel: 2.5 GS) 140 Mpts 180.000 wfms/s
DS6064 4 600 MHz 5 GS/s (dual channel: 2.5 GS) 140 Mpts 180.000 wfms/s
DS6062 2 600 MHz 5 GS/s (dual channel: 2.5 GS) 140 Mpts 180.000 wfms/s

Rigol Series MSO5000

Rigol series MSO5000 oscilloscopes

Model Channels Bandwidth Max. analog sample rate Max. memory depth Max. waveform capture rate Arb. waveform generator Touchscreen Interfaces Probes incl.
MSO5152-E 2 + 16* 150 MHz 4 GS/s (one channel), 2 GS/s (all channels) Analog channels
50 Mpts/optional 100 Mpts one channel, 25 Mpts/optional 50 Mpts all channels;
digital channels 25 Mpts (all channels)*
≥300,000 Wfms/s; hardware realtime waveform recording and playing ≥450,000 Wfms (one channel) Optional 2 channels, 25 MHz, 200 MS/s, 14 bit, modulation, sweep, burst USB 2.0 Host & Device, Ethernet/LAN/LXI 2 passive probes PVP2350 (350 MHz) incl.
MSO5072 2 + 16* 70 MHz 8 GS/s (single channel), 2 GS/s (all channels) Analog channels
100 Mpts, optional 200 Mpts (single channel)/100 Mpts (half-channel)/50 Mpts (all channels);
digital channels 25 Mpts (all channels)*
≥500,000 Wfms/s; hardware realtime waveform recording and playing ≥450,000 Wfms (single channel) Optional 2 channels, 25 MHz, 200 MS/s, 14 bit, modulations, sweep, burst USB 2.0 Host & Device, Ethernet/LAN/LXI 2 or 4 passive probes PVP2350 (350 MHz) incl.
MSO5074 4 + 16* 70 MHz 8 GS/s (single channel), 4 GS/s (half-channel), 2 GS/s (all channels)
MSO5102 2 + 16* 100 MHz 8 GS/s (single channel), 2 GS/s (all channels)
MSO5104 4 + 16* 100 MHz 8 GS/s (single channel), 4 GS/s (half-channel), 2 GS/s (all channels)
MSO5204 4 + 16* 200 MHz 8 GS/s (single channel), 4 GS/s (half-channel), 2 GS/s (all channels)
MSO5354 4 + 16* 350 MHz 8 GS/s (single channel), 4 GS/s (half-channel), 2 GS/s (all channels)

* 2 or 4 analog channels and 16 digital/logic channels. For use of the digital channels (logic analyzer/mixed signal function) optional logic probes required.

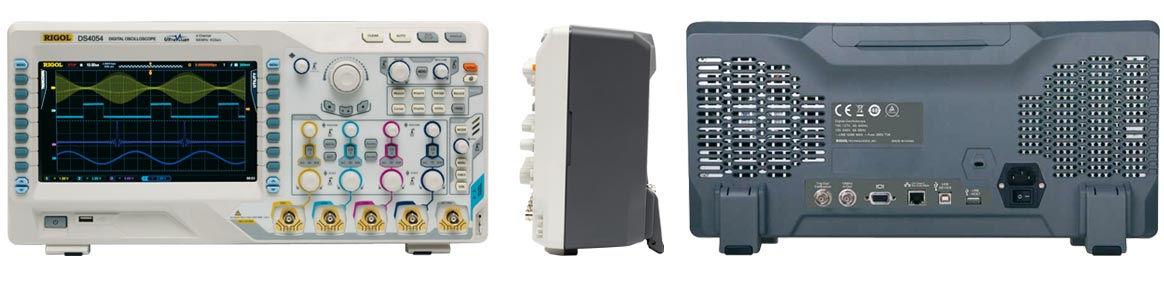

Rigol Series DS4000/MSO4000

Rigol series DS/MSO4000 oscilloscopes

Model Channels Bandwidth Max. analog sample rate Max. analog memory depth Max. waveform capture rate Max. digital sample rate Max. digital memory depth
DS4014E 4 100 MHz 2 GS/s for each channel 14 Mpts for each channel 60,000 Wfms/s - -
DS4024E 4 200 MHz
DS4054 4 500 MHz 4 GS/s (single channel),
2 GS/s (dual channel)
140 Mpts (single channel),
70 Mpts (dual channel)
110,000 Wfms/s - -
DS4052 2
DS4034 4 350 MHz
DS4032 2
DS4024 4 200 MHz
DS4022 2
DS4014 4 100 MHz
DS4012 2
MSO4054 4 + 16* 500 MHz 110,000 Wfms/s (digital chanel closed),
85,000 Wfms/s (digital channel opened)
1 GS/s per channel 28 Mpts per channel
MSO4052 2 + 16*
MSO4034 4 + 16* 350 MHz
MSO4032 2 + 16*
MSO4024 4 + 16* 200 MHz
MSO4022 2 + 16*
MSO4014 4 + 16* 100 MHz
MSO4012 2 + 16*

* 2 or 4 analog channels and 16 digital/logic channels.

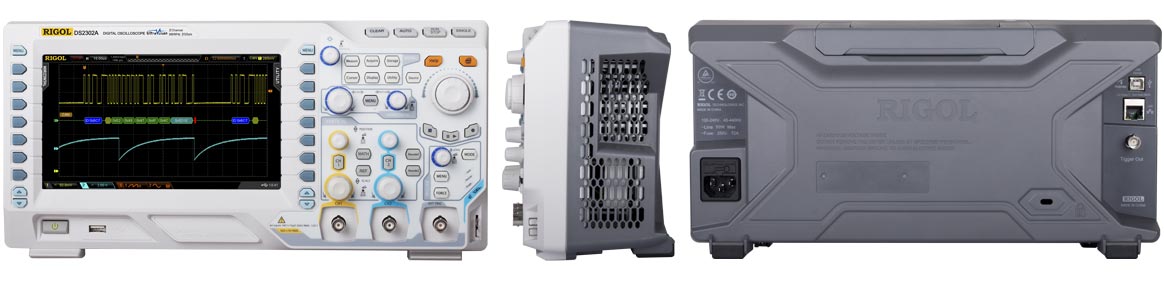

Rigol Series DS2000/MSO2000

Rigol series DS/MSO2000A oscilloscopes

Model Channels Bandwidth Max. analog sample rate Max. memory depth Max. waveform capture rate Max. digital sample rate Integrated 2-channel 25 MHz signal source Probes incl.
DS2102A 2 100 MHz 2 GS/s (one channel), 1 GS/s two channels) Analog: 14/7 Mpts (1/2 channels) standard, 56/28 Mpts (1/2 channels) optional 50,000 Wfms/s - - RP3300A 350 MHz probe (2x)
DS2202A 200 MHz -
DS2302A 300 MHz -
MSO2102A 2 + 16* 100 MHz Analog: 14/7 Mpts (1/2 channels) standard, 56/28 Mpts (1/2 channels) optional.
Digital: 3,5/7 Mpts (16/8 channels) standard, 14/28 Mpts (16/8 channels) optional
1 GS/s (8 channels), 500 MS/s (16 channels) - RP3300A 350 MHz probe (2x), 1 set RPL2316 logic probes
MSO2102A-S 100 MHz yes
MSO2202A 200 MHz -
MSO2202A-S 200 MHz yes
MSO2302A 300 MHz -
MSO2302A-S 300 MHz yes

*2 or 4 analog channels and 16 digital/logic channels.

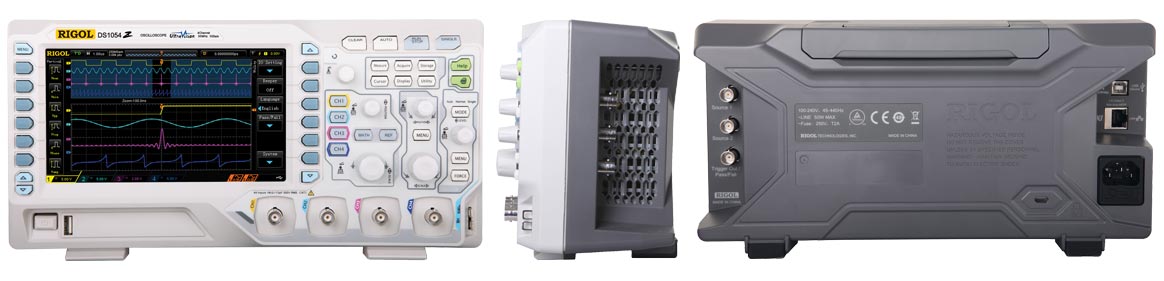

Rigol Series DS1000Z/MSO1000Z

Rigol series DS/MSO1000Z oscilloscopes

Model Channels Bandwidth Max. analog sample rate Max. memory depth Max. waveform capture rate Max. digital sample rate Integrated 2-channel 25 MHz signal source Probes incl.
DS1202Z-E 2 200 MHz 1 GS/s (one channel),
500 MS/s (2 channels)
Analog: 24 Mpts (one channel), 12 Mpts (two channels) 30,000 Wfms/s, 60,000 frames realtime waveform record and replay - - PVP2350 probes (2x)
DS1054Z 4 50 MHz 1 GS/s (one channel),
500 MS/s (2 channels),
250 MS/s (full-channel)
Analog: 12 Mpts (standard), 24 Mpts (optional) 30,000 Wfms/s - - RP2200 150 MHz probe (4x)
DS1074Z+ 4** 70 MHz -
DS1074Z-S+ 4** 70 MHz yes
DS1104Z+ 4** 100 MHz -
DS1104Z-S+ 4** 100 MHz yes

**MSO ready: Can be upgraded with additional kit (see accessories) to mixed signal version - 4 analog channels and 16 digital/logic channels.


Rigol Classic Series DS1000B, D and E

Model Bandwidth Max. sample rate Max. memory depth Max. waveform capture rate Channels
DS1204B 200 MHz 2 GS/s 16 Kpts 400 wfms/s 4
DS1104B 100 MHz 2 GS/s 16 Kpts 400 wfms/s 4
DS1074B 70 MHz 2 GS/s 16 Kpts 400 wfms/s 4
DS1102D - obsolete 100 MHz 1 GS/s (analog),
200 MS/s (logic)*
1 Mpts - 2 +
16*
DS1052D - obsolete 50 MHz 1 GS/s (analog),
200 MS/s (logic)*
1 Mpts - 2 +
16*
DS1102E 100 MHz 1 GS/s 1 Mpts - 2
DS1052E 50 MHz 1 GS/s 1 Mpts - 2

* 16 digital/logic channels.


Spectrum Analyzers

Rigol RSA5000, RSA3000, DSA800, and DSA700 Series

Model GPSA RTSA Touch screen Interfaces
Frequency range RBW resolution bandwidth (-3 dB) SSB phase noise typ. DANL (displayed average noise level, typ.) Pre-amplifier Realtime analysis bandwidth POI
RSA5065(-TG) 9 kHz...6.5 GHz 1 Hz...10 MHz 1 kHz: <-95 dBc/Hz
10 kHz: <-108 dBc/Hz
100 kHz: <-108 dBc/Hz
1 MHz: <-117 dBc/Hz
PA off between <-120 dBm (9 kHz...100 kHz) and <-141 dBm (5.5...6.5 GHz)
PA on between <-160 dBm (100 kHz...20 MHz) and <-159 dBm (5.5...6.5 GHz)
Option 25 MHz, optional 40 MHz 7.45 µs yes USB, Ethernet/LAN, HDMI
RSA5032(-TG) 9 kHz...3.2 GHz PA off between <-120 dBm (9 kHz...100 kHz) and <-141 dBm (2.7...3.2 GHz)
PA on between <-160 dBm (100 kHz...20 MHz) and <-161 dBc (2.7...3.2 GHz
RSA3045(-TG) 9 kHz...4.5 GHz 10 Hz...3 MHz, optional 1 Hz...10 MHz 1 kHz: <-90 dBc/Hz
10 kHz: <-102 dBc/Hz
100 kHz: <-102 dBc/Hz
1 MHz: <-112 dBc/Hz
PA off between <-120 dBm (9 kHz...100 kHz) and <-140 dBm (3.0...4.5 GHz)
PA on between <-160 dBm (100 kHz...20 MHz) and <-159 dBc (3.0...4.5 GHz)
Option 10 MHz, optional 25 or 40 MHz 9.3 µs, optional 7.82 or 7.45 µs yes USB, Ethernet/LAN, HDMI
RSA3030(-TG) 9 kHz...3,0 GHz PA off between <-120 dBm (9 kHz...100 kHz) and <-141 dBm (2.7...3.0 GHz)
PA on between <-160 dBm (100 kHz...20 MHz) and <-161 (2.7...3.0 GHz)
DSA875(-TG*) 9 kHz...7.5 GHz 10 Hz...1 MHz 10 kHz: <-98 dBc/Hz
100 kHz: <-100 dBc/Hz
PA off between <-110 dBm (9 kHz...100 kHz and <-125 dBm (6...7,5 GHz)
PA on between <-145 dBm (100 kHz...5 MHz) and <142 dBm (6...7.5 GHz)
Standard - - - USB, Ethernet
DSA832E(-TG) 9 kHz...3.2 GHz 10 Hz...1 MHz 10 kHz: <-98 dBc/Hz
100 kHz: <-100 dBc/Hz
PA off between <-110 dBm (9 kHz...100 kHz) and <-130 dBm (5 MHz...3.2 GHz)
PA on between <-142 dBm (100 kHz...5 MHz) and < -148 dBm (5 MHz...3.2 GHz)
Standard - - - USB, Ethernet
DSA832(-TG*) 9 kHz...3.2 GHz 10 Hz...1 MHz 10 kHz: <-90 dBc/Hz PA off between <-110 dBm (9 kHz...100 kHz) and <-134 dBm (5 MHz...3.2 GHz)
PA on between <-145 dBm (100 kHz...5 MHz) and <-151 dBm (5 MHz...3.2 GHz)
Standard - - - USB, Ethernet
DSA815(-TG*) 9 kHz...1.5 GHz 100 Hz...1 MHz 10 kHz: <-80 dBc/Hz
100 kHz: <-100 dBc/Hz
PA off between <-110 dBm (100 kHz...1 MHz) and <-115 dBm (1 MHz...1.5 GHz)
PA on between <-130 dBm (100 kHz...1 MHz) and <-135 dBm (1 MHz...1.5 GHz)
Standard - - - USB, Ethernet
DSA710 100 kHz...1 GHz 100 Hz...1 MHz 10 kHz: <-80 dBc/Hz
100 kHz: <-100 dBc/Hz
PA aus <-110 dBm (100 kHz...1 GHz)
PA an <-130 dBm (100 kHz...1 GHz)
Standard - - - USB, Ethernet
DSA705 100 kHz...500 MHz 100 Hz...1 MHz 10 kHz: <-80 dBc/Hz
100 kHz: <-100 dBc/Hz
PA aus <-110 dBm (100 kHz...500 MHz)
PA an <-130 dBm (100 kHz...500 MHz
Standard - - - USB, Ethernet

* GPSA = General Purpose Spectrum Analyzer with the traditional heterodyne/sweeping technology. RTSA = Real-Time Spectrum Analyzer with FFT for seamless analysis.


Power-Supplies

Rigol PD700 and DP800 Series

Model Channels Power Output specs OVP/OCP Connectivity
DP711 1 150 W 0...30 V/0...5 A 0.01...33 V/0.01...5.5 A RS232
DP712 1 150 W 0...50 V/0...3 A 0.01...55 V/0.01...3.3 A RS232
DP811A 1 200 W 20 V/10 A low-range,
40 V/5 A high-range,
remote sense

Low-range: 0.1...22 V/0.1...11 A
High-range 0.1...44 V/0.1...5.5 A

USB Host & Device, LAN, RS232, digital-I/O/trigger In/Out.
Colour TFT
DP811 USB Host & Device, optional: LAN, RS232, digital-I/O/trigger In/Out.
Monochrome TFT
DP821A 2 140 W CH1: 8 V/10 A,
CH2: 60 V/1 A,
remote sense
CH1: 0.1...8,8 V/0.1...10.5 A
CH2: 0.1...66 V/0.1...1.1 A
USB Host & Device, LAN, RS232, digital-I/O/trigger In/Out.
Colour TFT
DP821 USB Host & Device, optional: LAN, RS232, digital-I/O/trigger In/Out.
Monochrome TFT
DP831A 3* 160 W CH1: 0...8 V/0...5 A
CH2: 0...+30 V/0...2 A
CH3: 0...-30 V/0...2 A
CH1: 0.1 V...8.8 V/0.1 A...5.5A
CH2: 0.1 V...33 V/0.1 A...2.2 A
CH3: 0.1 V...-33 V/0.1 A...2.2 A
USB Host & Device, LAN, RS232, digital-I/O/trigger In/Out.
Colour TFT
DP831 USB Host & Device, optional: LAN, RS232, digital-I/O/trigger In/Out.
Monochrome TFT
DP832A 3* 195 W CH1: 0...30 V/0...3 A
CH2: 0...30 V/0...3 A
CH3: 0...5 V/0...3 A
CH1: 1 mV...33 V/1 mA...3.3 A
CH2: 1 mV...33 V/1 mA...3.3 A
CH3: 1 mV...6 V/1 mA...3.3 A
USB Host & Device, LAN, RS232, digital-I/O/trigger In/Out.
Colour TFT
DP832 USB Host & Device, optional: LAN, RS232, digital-I/O/trigger In/Out.
Monochrome TFT

* Channel isolation: Channel 1 to channel 2, 3.


Rigol Signal Generators DG Series

Model Channels Max. output frequency Max. sample rate Vert. resolution Max. arb. memory depth Interfaces
DG811* 1 10 MHz 125 MS/s 16 bit 1 µHz...5 MHz; 2 Mpts/optional 8 Mpts USB
DG812* 2 10 MHz 125 MS/s 16 bit 1 µHz...5 MHz; 2 Mpts/optional 8 Mpts USB
DG821* 1 25 MHz 125 MS/s 16 bit 1 µHz...10 MHz; 2 Mpts/optional 8 Mpts USB
DG822* 2 25 MHz 125 MS/s 16 bit 1 µHz...10 MHz; 2 Mpts/optional 8 Mpts USB
DG831* 1 35 MHz 125 MS/s 16 bit 1 µHz...10 MHz; 2 Mpts/optional 8 Mpts USB
DG832* 2 35 MHz 125 MS/s 16 bit 1 µHz...10 MHz; 2 Mpts/optional 8 Mpts USB
DG952* 2 50 MHz 250 MS/s 16 bit 1 µHz...15 MHz; 16 Mpts USB
DG972* 2 70 MHz 250 MS/s 16 bit 1 µHz...20 MHz; 16 Mpts USB
DG992* 2 100 MHz 250 MS/s 16 bit 1 µHz...20 MHz; 16 Mpts USB
DG1022 2 20 MHz 100 MS/s 14 bit 4 kpts USB
DG1022A 2 25 MHz 100 MS/s 14 bit 4 kpts USB
DG1022Z 2 25 MHz 200 MS/s 14 bit 2 Mpts (optional 16 Mpts) USB, LXI
DG1032Z 2 30 MHz 200 MS/s 14 bit 8 Mpts (optional 16 Mpts) USB, LXI
DG1062Z 2 60 MHz 200 MS/s 14 bit 8 Mpts (optional 16 Mpts) USB, LXI
DG2052 2 50 MHz 250 MS/s 16 bit 16 Mpts USB, LXI
DG2072 2 70 MHz 250 MS/s 16 bit 16 Mpts USB, LXI
DG2102 2 100 MHz 250 MS/s 16 bit 16 Mpts USB, LXI
DG4202 2 200 MHz 500 MS/s 14 bit 16 kpts USB, LXI
DG4162 2 160 MHz 500 MS/s 14 bit 16 kpts USB, LXI
DG4102 2 100 MHz 500 MS/s 14 bit 16 kpts USB, LXI
DG4062 2 60 MHz 500 MS/s 14 bit 16 kpts USB, LXI
DG5352 2 350 MHz 1 GS/s 14 bit 128 Mpts USB, LXI, GPIB
DG5351 1 350 MHz 1 GS/s 14 bit 128 Mpts USB, LXI, GPIB
DG5252 2 250 MHz 1 GS/s 14 bit 128 Mpts USB, LXI, GPIB
DG5251 1 250 MHz 1 GS/s 14 bit 128 Mpts USB, LXI, GPIB
DG5102 2 100 MHz 1 GS/s 14 bit 128 Mpts USB, LXI, GPIB
DG5101 1 100 MHz 1 GS/s 14 bit 128 Mpts USB, LXI, GPIB
DG5072 2 70 MHz 1 GS/s 14 bit 128 Mpts USB, LXI, GPIB
DG5071 1 70 MHz 1 GS/s 14 bit 128 Mpts USB, LXI, GPIB

* With SiFi II technology (Signal Fidelity II): Generates arbitrary signals point-by-point for high accuracy/signal integrity, low distortion and low jitter for all waveforms.


Rigol RF Signal Sources DSG Series

Model Channels RF frequency range Modulations LF/modulation generator
DSG3030 1 HF, 1 LF 9 kHz...3 GHz AM, FM, ØM, pulse modulation, optional I/Q modulation Sine 0.1 Hz...1 MHz, square 0.1 Hz...20 kHz, triangle, ramp 0.1 Hz...100 kHz
DSG3060 1 HF, 1 LF 9 kz...6 GHz AM, FM, ØM, pulse modulation, optional I/Q modulation Sine 0.1 Hz...1 MHz, square 0.1 Hz...20 kHz, triangle, ramp 0.1 Hz...100 kHz
DSG815 1 HF, 1 LF 9 kHz...1.5 GHz AM, FM, ØM, optional pulse modulation Sine DC...200 kHz, square DC...20 kHz
DSG830 1 HF, 1 LF 9 kHz...3 GHz AM, FM, ØM, optional pulse modulation Sine DC...200 kHz, square DC...20 kHz



Couldn't find the desired product in the shop? Just ask us - more products available!
