EOL. List of Rigol oscilloscop replacements: ▸Rigol oscilloscopes DS/MSO2000 und DS1000Z

Benefits

  • Low-cost 2-channel oscilloscope up to 100 MHz bandwidth, 1 GS/s max. sample rate (for both channels).
  • Deep memory 28 Mpts (for both channels). 50,000 Wfms/s waveform capture rate.
  • Two probes included.

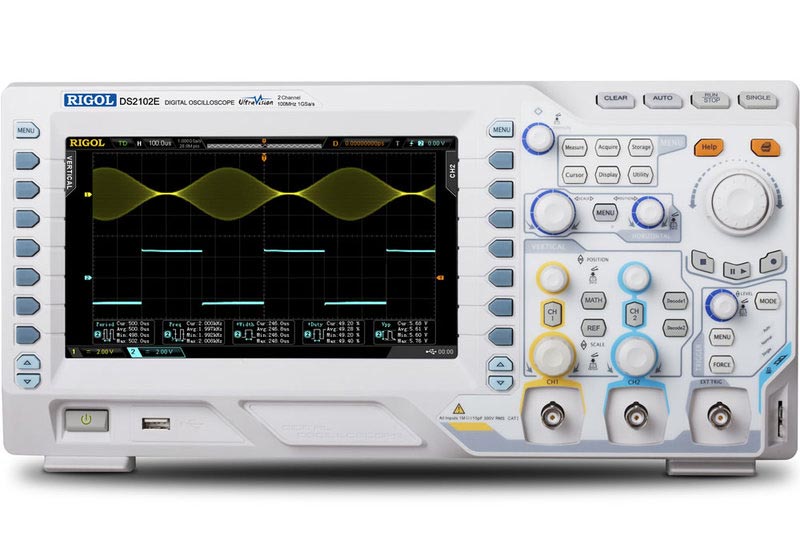

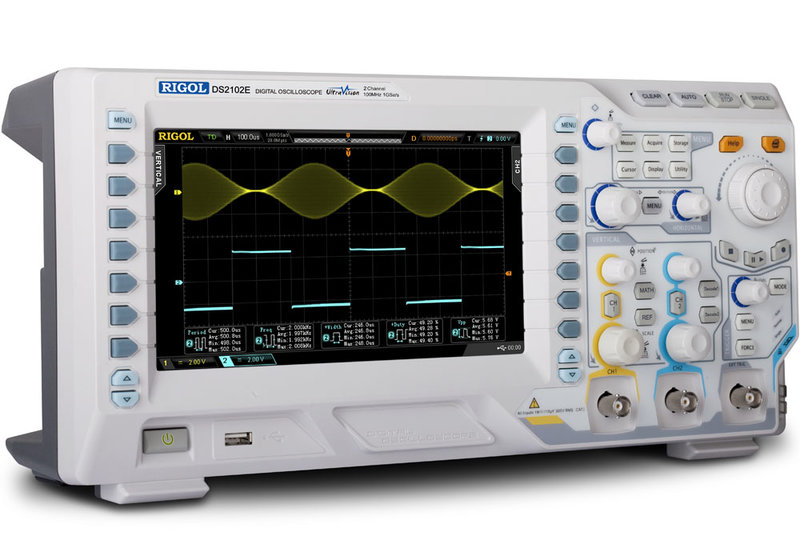

The Price-Optimized Rigol "Economy Mixed Signal Oscilloscopes", 2 Channels, 100 MHz Bandwidth

DS2102E are the price-reduced mainstream digital scopes to meet the customer's applications with its innovative technology, industry leading specifications, powerful trigger functions and broad analysis capabilities. The devices are fast and versatile scopes covering frequencies up to 100 MHz with two channels and a wide vertical range (500 µV/Div...10 V/Div) to deliver an extremely low noise floor to help you capture smaller signals. Add a 1 GS/s max. sample rate and 28 Mpts of standard memory depth to its user-friendly interface and 8 inch/20 cm WVGA display and you've got a scope that outperforms the competition in a wide range of bench-top and field applications.

  • 2 analog channels:
    • Bandwidth up to 100 MHz.
    • Max. sample rate 1 GS/s (for both channels).
    • UltraVision technology:
      Deep memory,
      high waveform capture rate,
      hardware based realtime waveform record and replay up to 65,000 frames,
      multi-level intensity grading display.
    • 28 Mpts memory depth (for both channels).
    • Waveform capture rate up to 50,000 waveforms per sec.
    • A variety of trigger and serial bus decording functions (RS232, I2C, SPI, CAN).
  • Clear WVGA display.

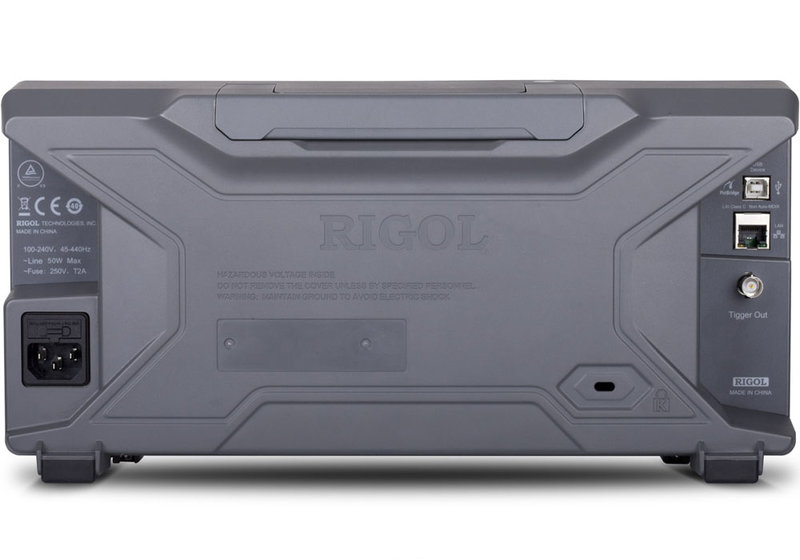

  • Interfaces: USB, ethernet/LXI-C. Printer: PictBridge compatible.
  • Compact and portable.

Included: DSO DS 2102E, power cable, USB cable, 2 passive probes PVP2350 350 MHz, quick start guide.
