ME-5100 Digital-I/O Board with Flexible Functions
EOL: The PC board ME-5100 will be discontinued. Last models are available from stock. ▸You can find replacement models here.
Benefits of the ME-5100 Fast Multifunctional Digital-Input/Output
- Fast digital-I/O with streaming and interrupt control.
- Input/output rates up to 30 MHz per 16 bit port.
- Ideal for industrial, digital DAQ and control.
ME-5100 Digital-I/O Board with Flexible Functions
The ME-5100 is a fast digital-I/O board with data streaming. Input/output rates up to 30 MHz per 16 bit port can be achieved. The ME-5100 offers several versions of digital channels (TTL, opto-isolated) on one board and is the ideal solution for industrial, digital data acquisition and control, switching, status monitoring etc.
- Supported by the driver system ME-iDS for Windows 7 to 11.
- PC plug-in board for digital data acquisition and control.

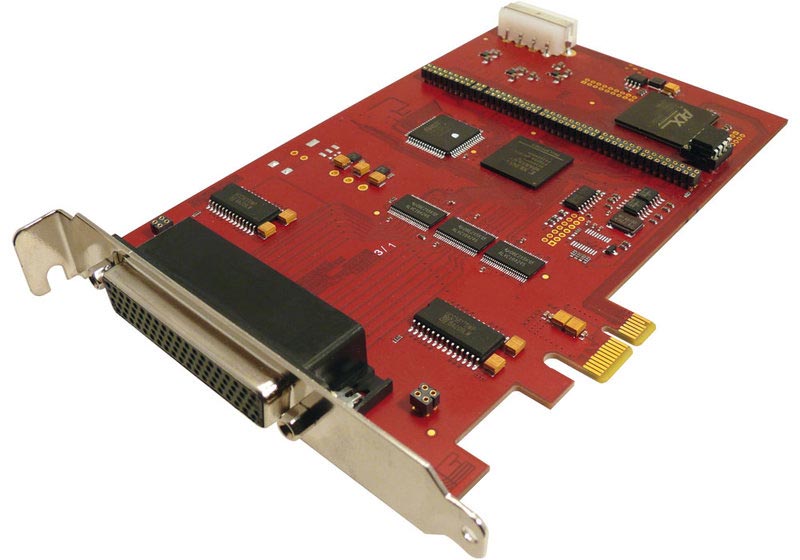

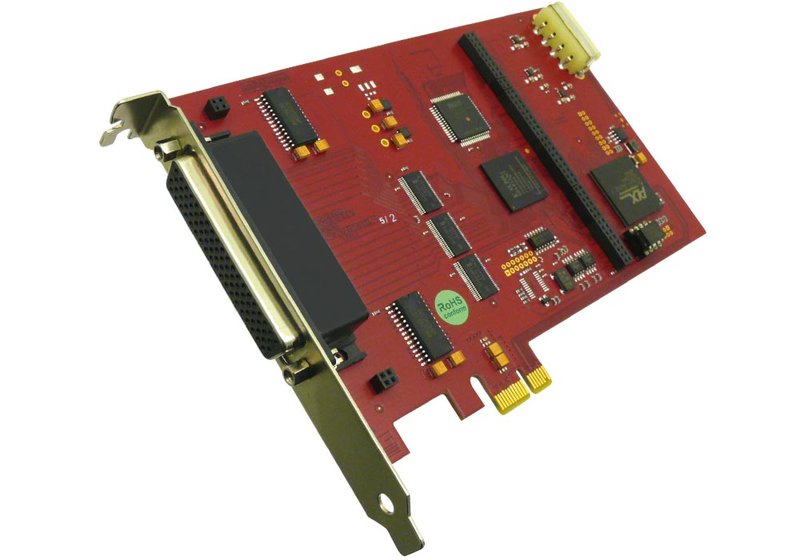

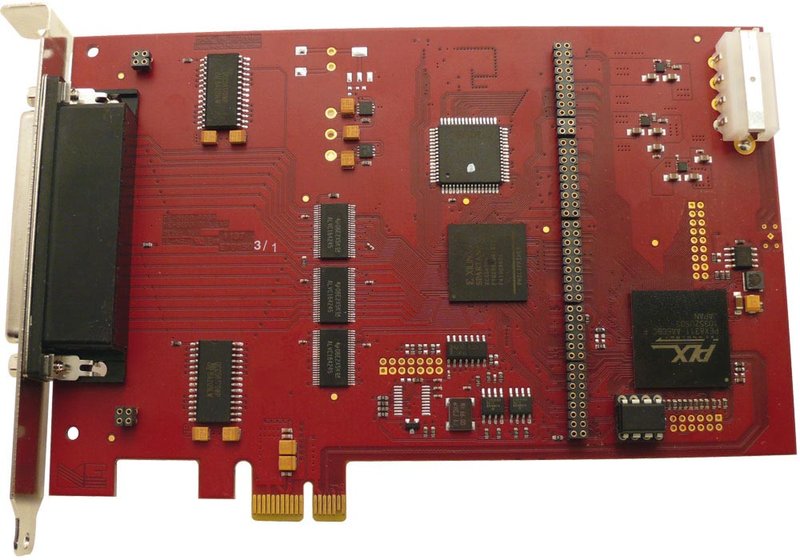

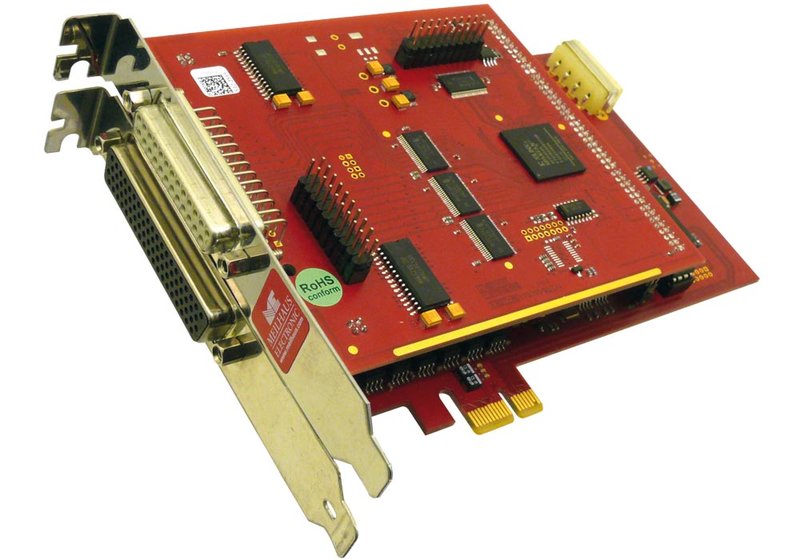

- Base board ME-5100:
- Two 16 bit ports (32 TTL digital-I/O channels) with interrupt control and data streaming.
- I/O rates up to 30 MHz per 16 bit port depending on operating mode.
- Thanks to the DMA busmaster architecture, the ME-5100 can transmit 32 bit wide data directly into the PC's memory at a bandwidth of up to 25 MHz or load them from the memory.
- Channels can have variable functions, for example single digital-I/O, streaming digital-I/O, frequency measurement (4 of the channels, 5 MHz each), frequency output (4 of the channels, 5 MHz each).
- All inputs can generate an interrupt (bit-change).
- Versions A and B are base boards ME-5100 plus an add-on card ME-5001 or ME-5004.

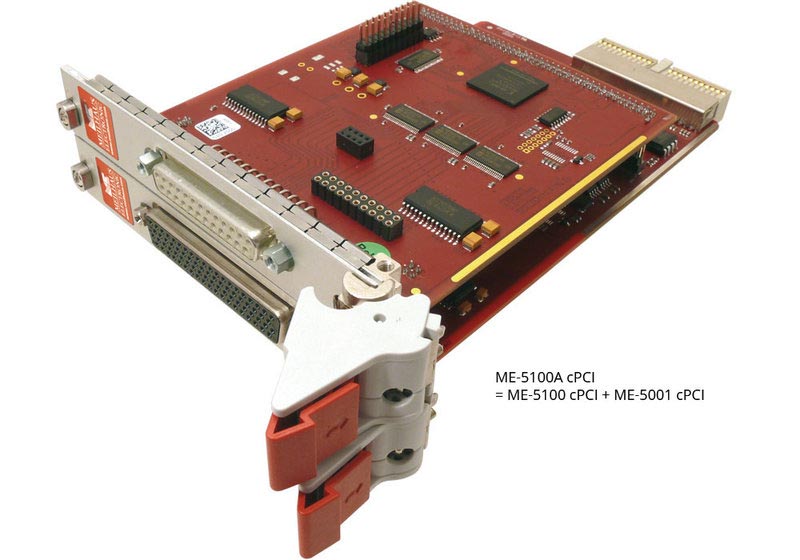

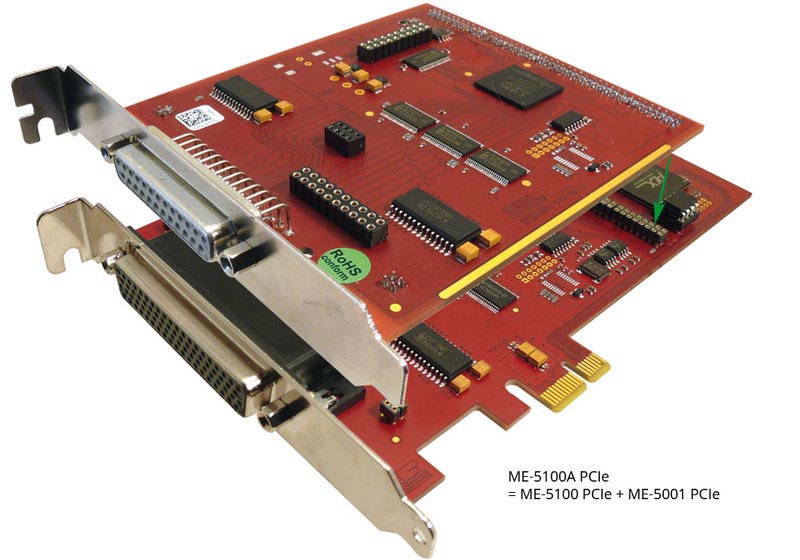

- Version ME-5100A: Additional 48 TTL digital-I/O channels with add-on card ME-5001.

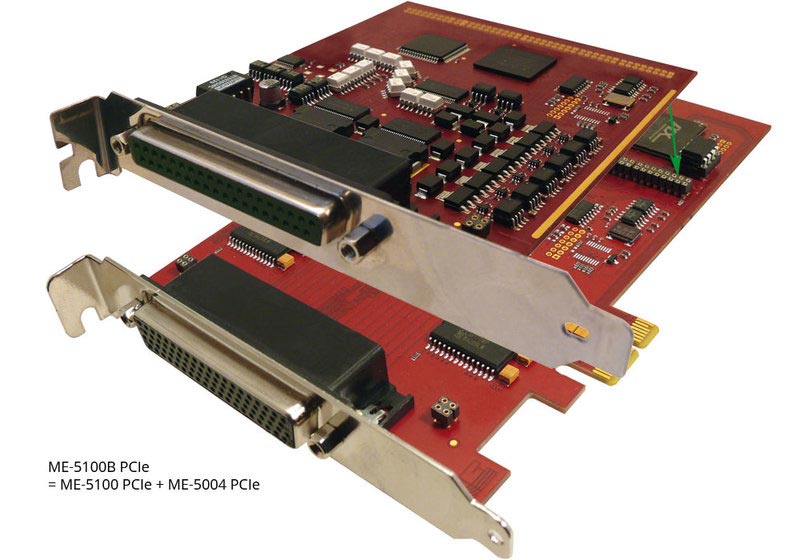

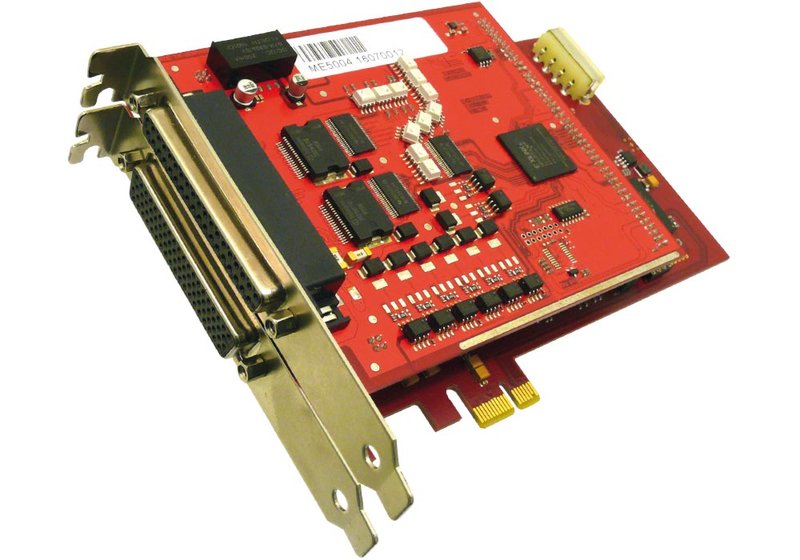

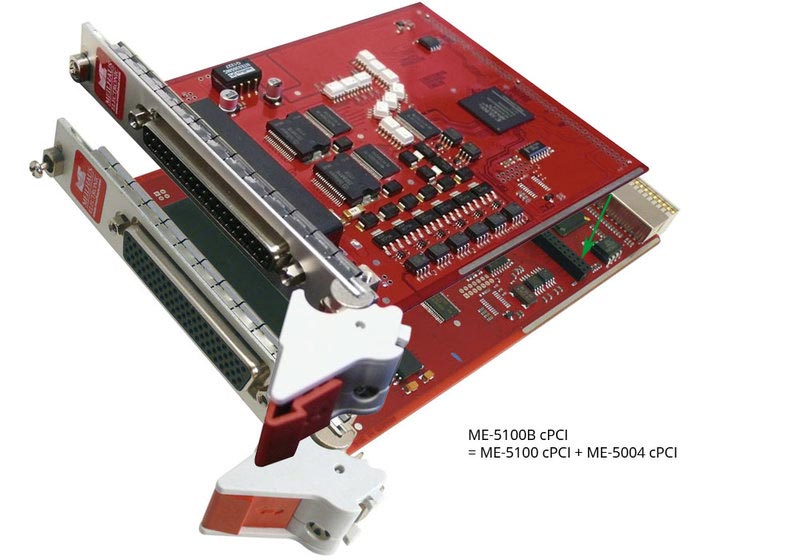

- Version ME-5100B: Additional 16 opto-isolated inputs and 16 opto-isolated outputs as well with add-on card ME-5004.
Model Overview
| ME-5100 (Soon to be EOL/discontinued. Last models available from stock) |
ME-5100A (ME-5100 + ME-5001) EOL/discontinued |
ME-5100B (ME-5100 + ME-5004) EOL/discontinued |
|
| TTL Digital-I/O on Base Board (all versions) | |||
| Number | 32 I/O channels (2x 16 bit ports) | ||
| Level | TTL, selectable 3.3 V/5 V, active termination | ||
| Operating modes | Single digital-I/O (per port configurable as inputs/outputs). Streaming digital-I/O (16 inputs/16 outputs; cPCI 25 MHz, PCIe 30 MHz). Bit-change. Frequency counter (4 of the channels, 5 MHz), impulse generator (4 of the channels, 5 MHz). Trigger: Rising/falling edge, start/stop software, bit-change, Trig_A, Trig_B | ||
| Streaming | yes | ||
| Connector | 78-pin D-sub female | ||
| Digital-I/O on Add-on Card (ME-5100A and ME-5100B only) | |||
| Number | - | 48 I/O (6 ports, 8 bit each) | 16 inuts, 16 outputs |
| Level | - | TTL; 4 of the 6 ports selectable 3.3/5 V, active termination | Opto-isolated up to 1 kV; input range: 3...60 V variable, output range: 15...30 V variable |
| Source/sink | - | - | Per port selectable via software, sink 50 mA/channel, source 180...370 mA/channel, source short circuit proof |
| Operating modes | - | Single digital-I/O (per port configurable as inputs/outputs). Bitchange (interrupt). frequency counter (8 of the channels, 5 MHz each), impulse generator (8 of the channels, 5 MHz each) | Single digital-I/O. Compare (bit pattern compare, interrupt). Bit change (interrupt). Frequency counter (8 of the channels, 300 kHz each), impulse generator (8 of the channels, 3 kHz each) |
| Streaming | - | - | - |
| Connector | - | 25-pin D-sub female, 2x 20-pin field on-board (recommended: 2x ME AK-D25F/S) | 37-pin D-sub female |

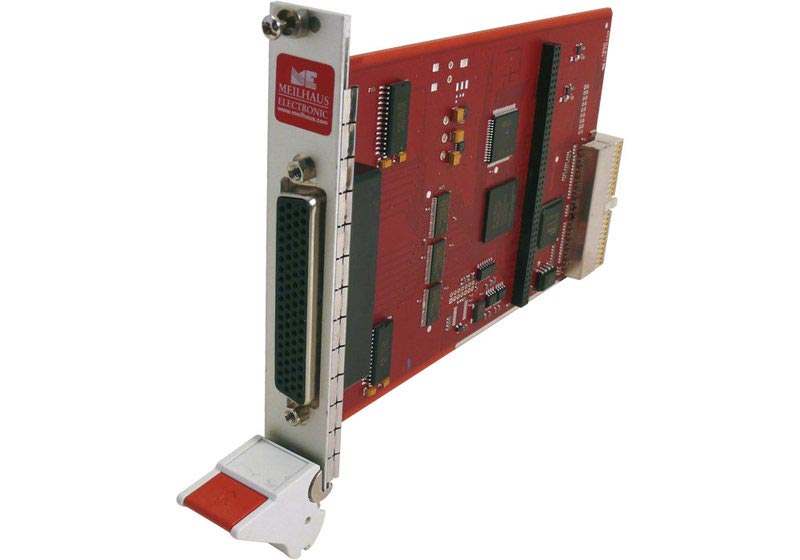

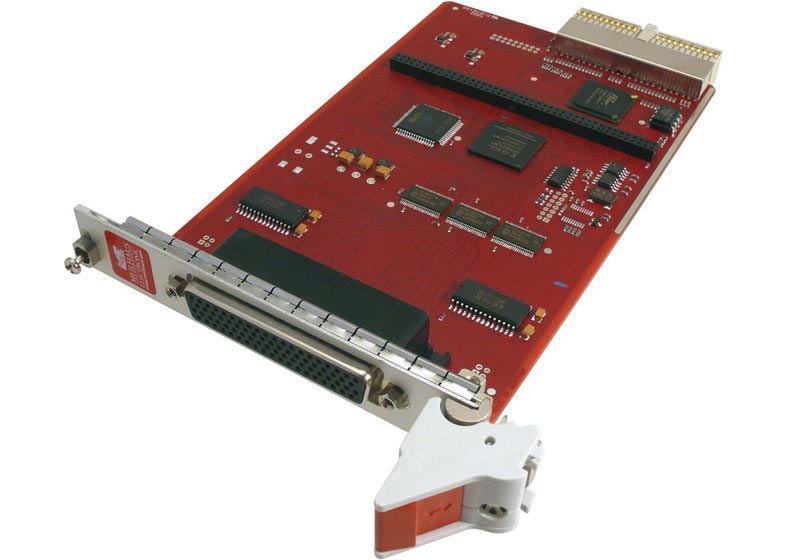

| Bus platform | PCI-Express or 3 U CompactPCI/PXI | ||
| Required PC slots | 1 | 2 to 4 (slots 2, 3, 4 mounting-slots only, don't use any PC ressources/bus connectors) | 2 (slot 2 mounting-slots only, doesn't use any PC ressources/bus connectors) |
| Size (mm) | Base board: PCI-Express (111 mm x 168 mm), 3 U CompactPCI/PXI (160 mm x 100 mm) | ||
Included: Digital DAQ board, version ME-5100A with additional add-on card ME-5001 or ME-5100B with additional add-on card ME-5004. 78-pin mating plug, ME-5100A additional 25-pin mating plug, ME-5100B additional 37-pin mating plug.
Software: Driver system ▸ME-iDS for Windows, ▸ME-PowerLab3, user manual, user manual for the driver software (download).
Meilhaus Electronic Original Product!
Information on product safety:
Manufacturer:
Meilhaus Electronic GmbH, Am Sonnenlicht 2, 82239 Alling/DEU
www.meilhaus.com
