ME-630 Relay and Digital-I/O DAQ Board/Control Board

Relay/digital board ME-630
additional images:
Price
starting 320,00*
starting € 380,80 brutto
* excluding VAT free shipping (Germany)
Quantity:
Total
Unit price
base price
Stock:
on stock
Description

Benefits

  • TTL, opto-isolated digital-I/O and relays on one board.
  • Relays for current up to 2 A/30 V.
  • English and German user manuals.

Digital PC Board with a Combination of Relay and Opto-Isolated Channels.

The ME-630 is the multi-channel alround model among the digital boards. Switch high loads and control digital statuses with a single board! Up to 48 relays, digital and opto channels on one board.

  • PC board for isolated, digital data acquisition and control as well as switching with relays.
  • 16 or 8 relays type C (change-over).
    For signals up to 2 A/30 V, short time/single relay up to 3.5 A.
  • 8 TTL digital inputs, opto-isolated on versions "-O".

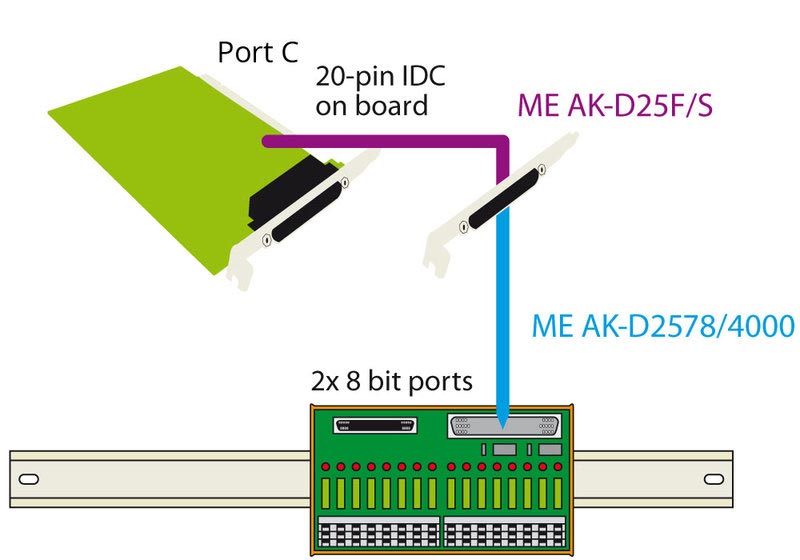

  • 16 TTL digital I/O channels, expandable with relays or opto-isolation.
  • 8 opto-isolated inputs (24 V level).
  • The 16 opto-isolated inputs of the models "-O" are the ideal solution for status checks of the relay channels.
  • 2 additional interrupt inputs. (TTL or opto-isolated on versions "-O").
  • PC DAQ board for PCI, PCI-Express or 3 U CompactPCI/PXI.

Model Overview

Model Relays Digital-I/O Opto-I/O IRQ In Bus platform

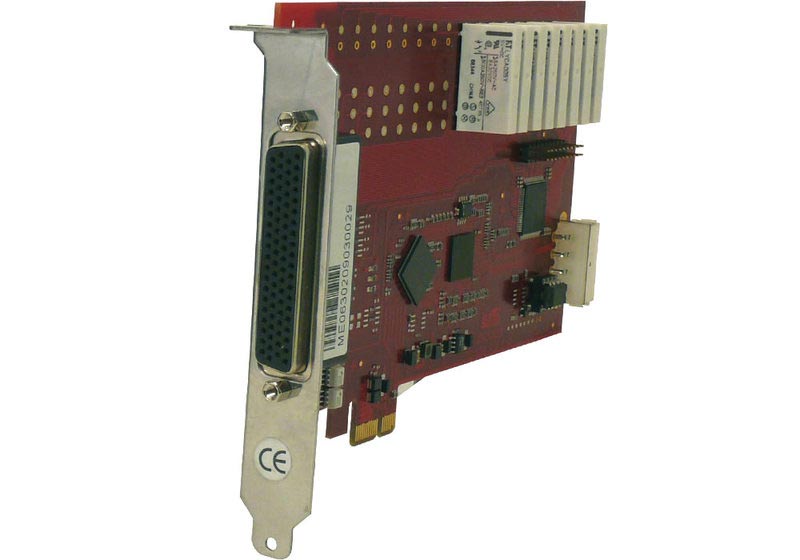

ME-630/8 PCIe 8 16 TTL-I/O, 8 TTL inputs 8 inputs (24 V) 2 (TTL) PCI-Express

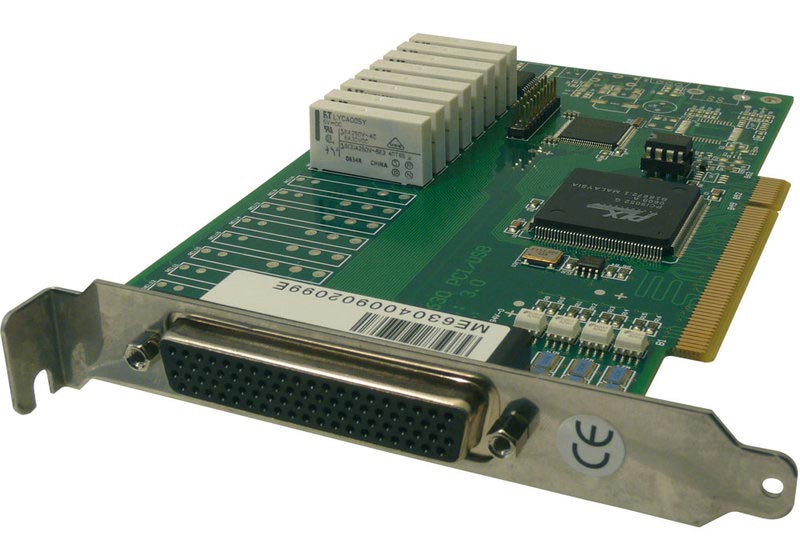

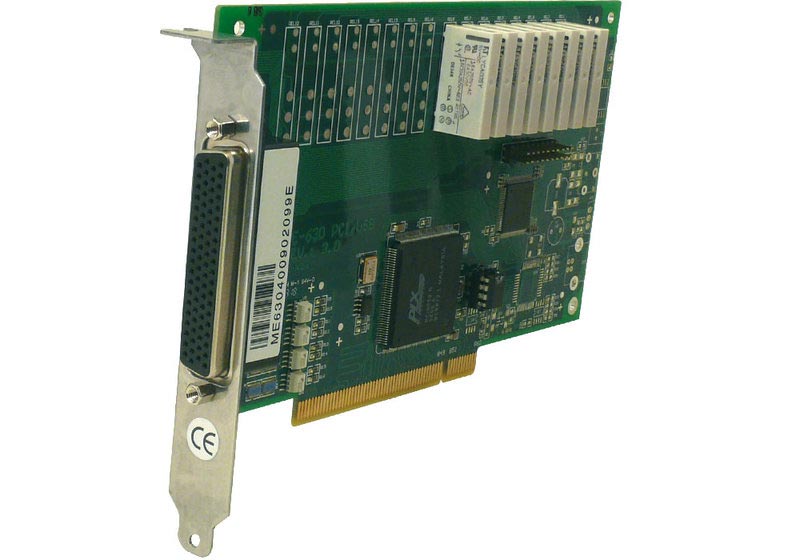

ME-630/ PCI 8 16 TTL-I/O, 8 TTL inputs 8 inputs (24 V) 2 (TTL) StandardPCI

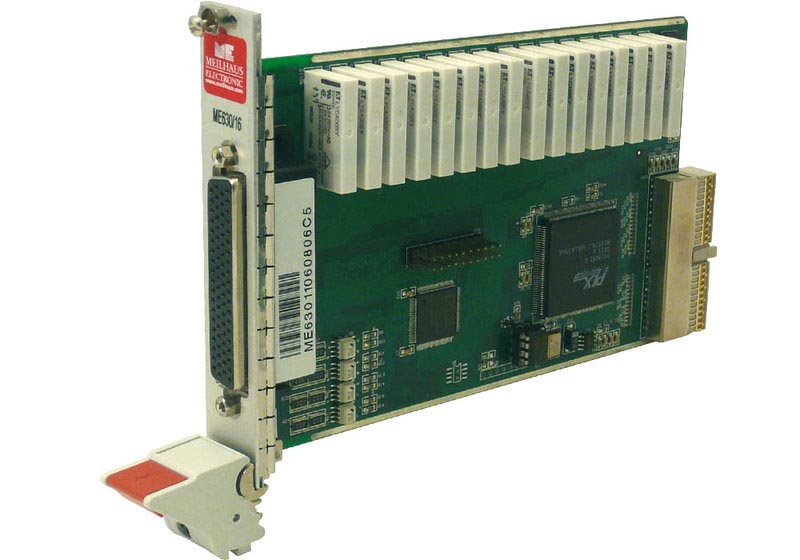

ME-630/8 cPCI 8 16 TTL-I/O, 8 TTL inputs 8 inputs (24 V) 2 (TTL) 3 U CompactPCI

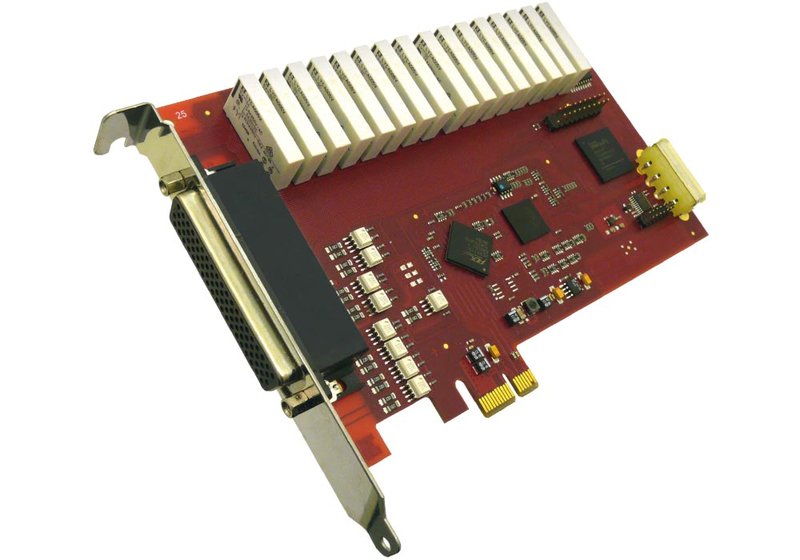

ME-630/16 PCIe 16 16 TTL-I/O, 8 TTL inputs 8 inputs (24 V) 2 (TTL) PCI-Express
ME-630/16-O PCIe 16 16 TTL-I/O 16 inputs (24 V) 2 (TTL) PCI-Express

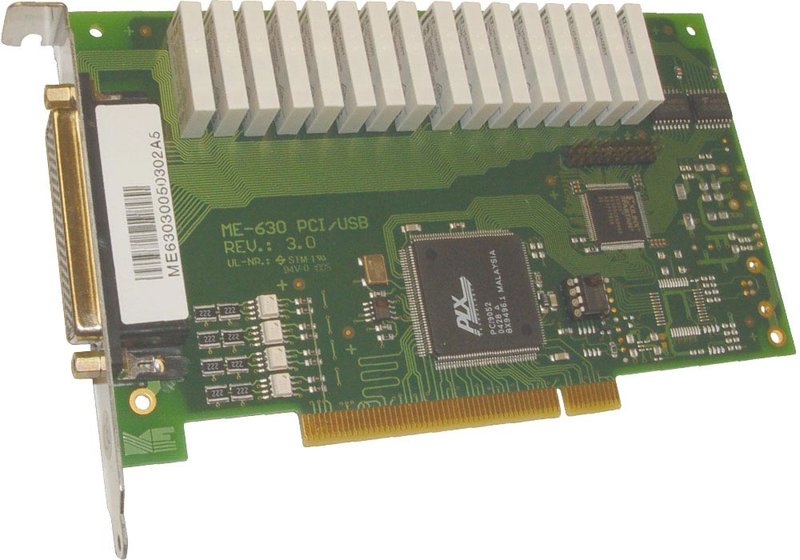

ME-630/16 PCI 16 16 TTL-I/O, 8 TTL inputs 8 inputs (24 V) 2 (TTL) StandardPCI

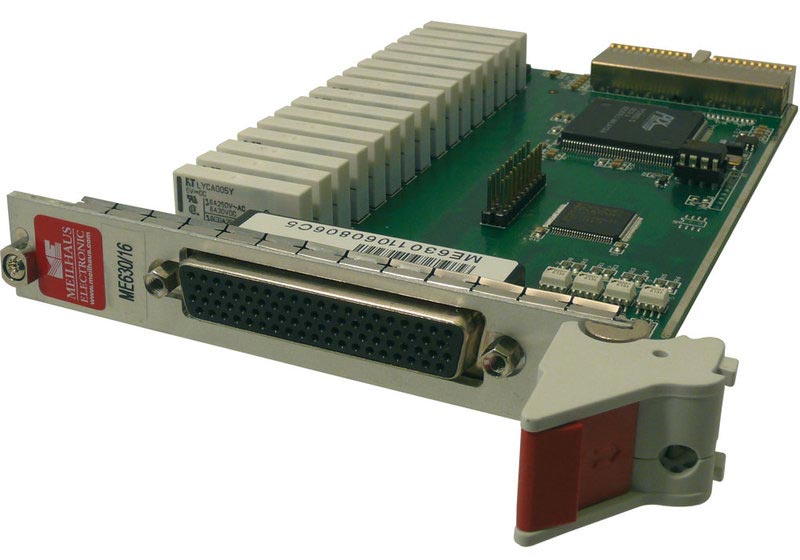

ME-630/16 cPCI 16 16 TTL-I/O, 8 TTL inputs 8 inputs (24 V) 2 (TTL) 3 U CompactPCI

The models available in the shop are standard products. Other models are produced only, if ordered in higher numbers.

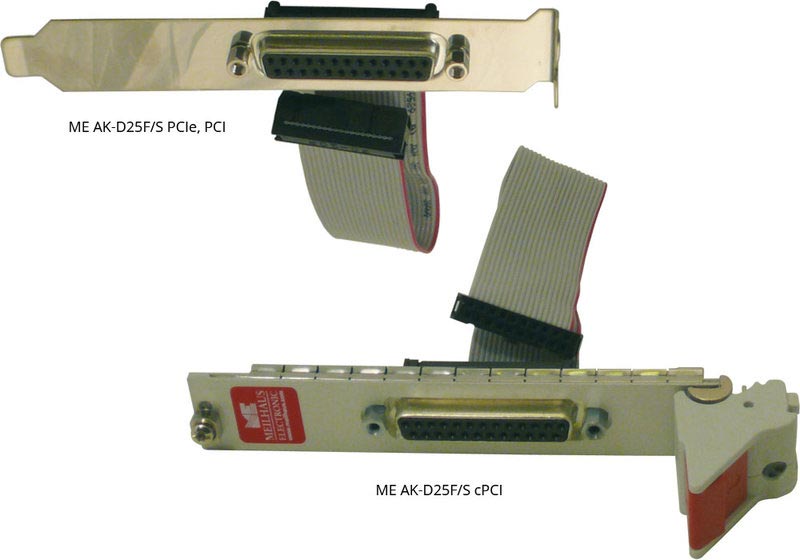

Included: Board, ME-Power-DVD with software and PDF manual, 78- and 25-pin mating plug, ME AK-D25F/S.
Software: Driver system ME-iDS for Windows, ME-PowerLab3

Meilhaus Electronic DAQ data acquisition boards

Meilhaus Electronic Original Product!
