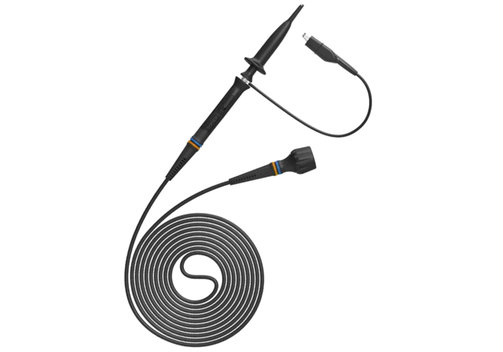

Rigol PVP2150, PVP2350 Passive Probew 1:1/10:1, 150 MHz/350 MHz
Model Overview
| Model | Attenuation | Bandwidth | Rise time | Input impedance, compensation | Max. input voltage | Cable length | Remarks, applications |
| PVP2150 | 1:1/10:1 | 1x: DC...35 MHz; 10x: DC...150 MHz | 1x: 10 ns; 10x: 2.3 ns | 1x: 1 MΩ 10x: 10 MΩ; 10...25 pF | 1x: CAT II 150 V; 10x: CAT II 300 V | 1.2 m | For use with all Rigol scopes and others; passive high resistance probe for small signal test (1x), general purpose test |
| PVP2350 | 1:1/10:1 | 1x: DC...35 MHz; 10x: DC...350 MHz | 1x: 10 ns; 10x: 1 ns | 1x: 1 MΩ 10x: 10 MΩ; 10...25 pF | 1x: CAT II 300 V; 10x: CAT II 300 V | 1.2 m | For use with all Rigol scopes and others; small signal test (1x), general purpose test |
Information on product safety:
Manufacturer:
RIGOL Technologies CO., LTD., No.8 Ke Ling Road, Suzhou New District 21516/CHN
www.rigol.com
(EU branch Germany)
