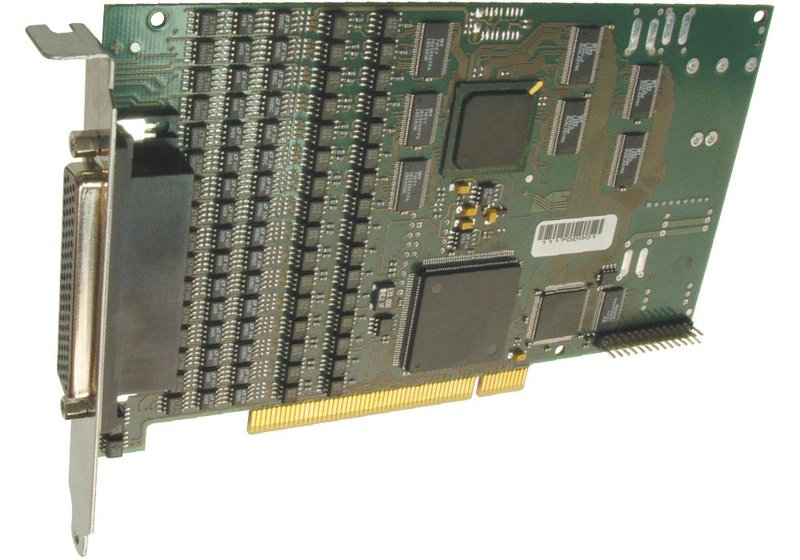

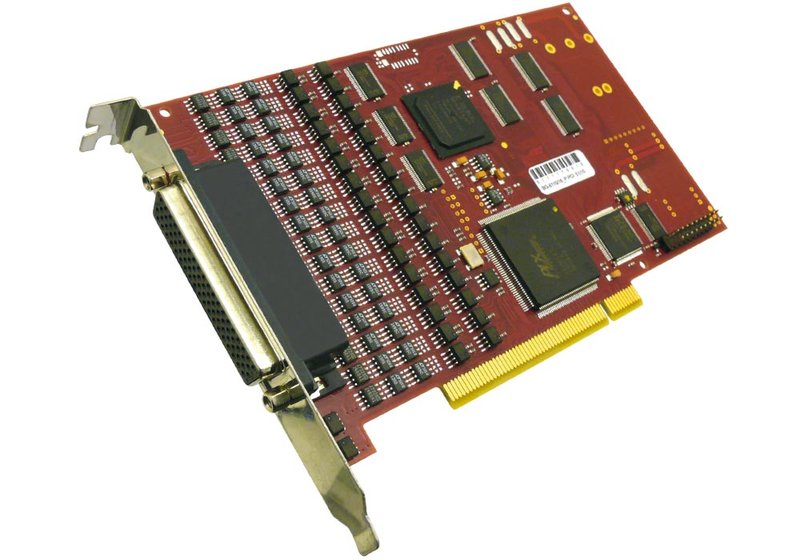

ME-6000 Isolated Analog Output Board

Isolated D/A board ME-6000i/8 PCI
additional images:
Price
starting 1.550,00*
starting € 1.844,50 brutto
* excluding VAT free shipping (Germany)
Quantity:
Total
Unit price
base price
Stock:
on stock
Description

Benefits

  • Reliable analog output with full, galvanic isolation.
  • Precise with 16 bit D/A converter.
  • English and German user manuals.

High precision 16 bit analog output with full opto-isolation.

Do you consider high reliability, high noise immunty and high precision as very important for your application? Then this unique analog output board is a good solution for you. With its complete opto-isolation of all channels it is suitable for industry and lab. The board has individual high precision 16 bit D/A converters per channel.

  • Isolated analog output/control PC-board
  • Depending on model: 4, 8, or 16 voltage outputs.
  • Range ±10 V (max. ±15 mA per channel).
  • All channels opto-isolated, available as:
    • Full opto-isolation with no common ground ("p"). All individual channels opto-isolated from the PC and from each other.
    • Opto-isolated outputs with common ground ("i").
  • Individual 16 bit/500 kHz high precision D/A converter per channel. Transparent output.
  • Automatic adjustment, no potentiometers.

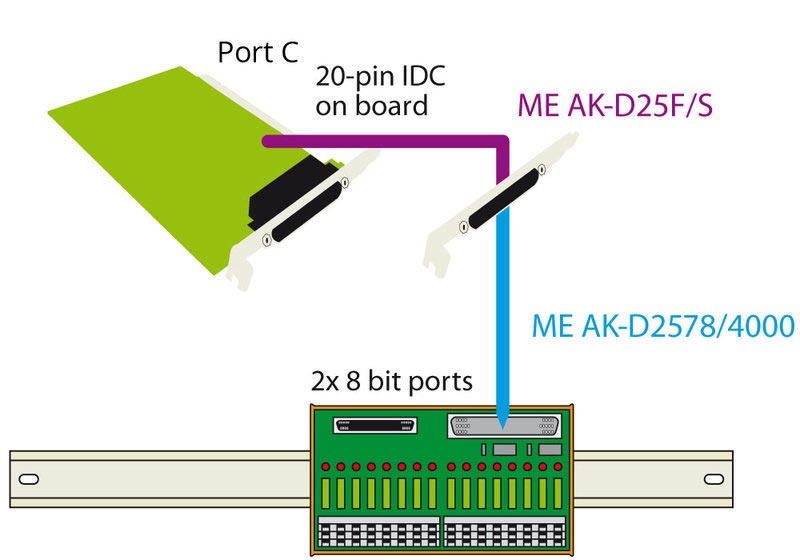

  • 16 TTL digital I/O channels, organized as 2x 8 bit ports. Each port programmable as input or output.
  • PC plug-in board for PCI (optional 3 U CompactPCI/PXI).

Model Overview

Model Analog voltage outputs Isolation D/A FIFO Digital-I/O Bus platform
ME-6000:
ME-6000i/8 PCI 8, 16 bit/max. 500 kHz, range ±10 V Standard (common GND) - 16, TTL StandardPCI
ME-6000p/8 PCI 8, 16 bit/max. 500 kHz, range ±10 V Complete floating - 16, TTL StandardPCI
» ME-6100
» All models - overview

The models available in the shop are standard products. Other models are produced only, if ordered in higher numbers.
Note: The D/A rate of 500 kHz is the max. value of the D/A converter chip. The true rate depends on the system (see datasheet), except for the ME-6100/ME-6300 channels with FIFOs in the corresponding operating mode.

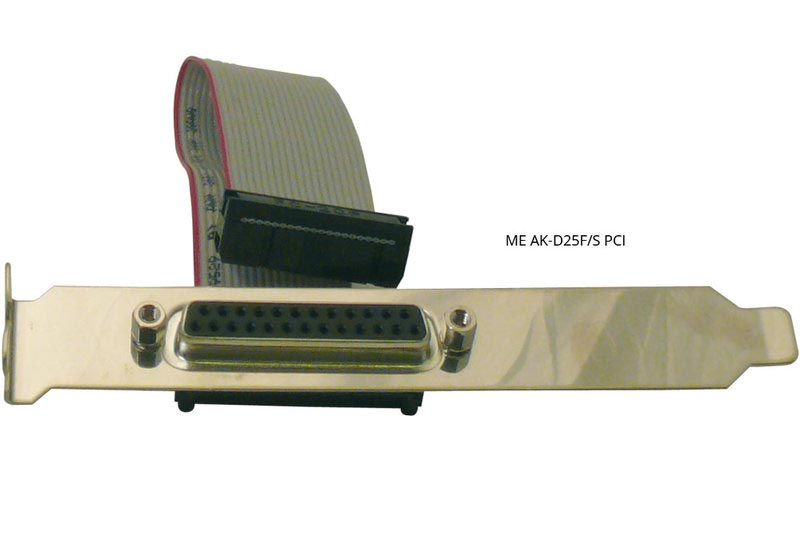

Included: Board, ME-Power-DVD with software and PDF manual, ME AK-D25F/S, 78- and 25-pin mating plug.
Software: Driver system ME-iDS for Windows, ME-PowerLab3

Meilhaus Electronic Original Product!
