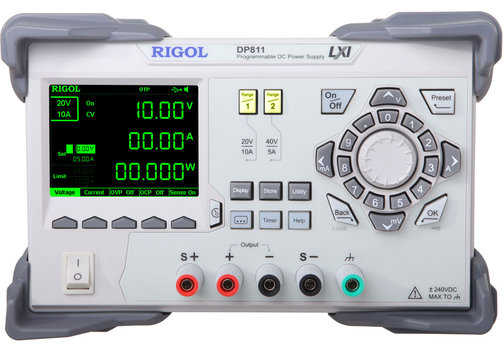

Rigol DP811(A) Programmable DC Power Supply, 1 Channel, 200 W

Rigol DP811(A) Programmable DC Power Supply, 1 Channel, 200 W
additional images:
progressive price
taking 1 pcs
from
€ 549,00
taking 3 pcs
from
€ 521,55
Price
starting 549,00*
starting € 653,31 brutto
* excluding VAT free shipping (Germany)
Quantity:
Total
Unit price
base price
Stock:
Delivery time
Description

Benefits

  • 1-channel DC power supply, total power up to 200 W.
  • Ranges 20 V/10 A, 40 V/5 A; remote sense.
  • Model with monochrome or colour TFT. USB, LAN, RS232.

1-Channel 200 W Power Supplies

The Rigol DP811(A) power supplies combine the ability to source, analyze, and coordinate over time in a powerful package. The linear power supplies have 1 output and up to 200 W in total. With one channel isolated users can reconfigure instruments into any number of systems or applications. Built in V, A, and W measurements make power monitoring easy, but additional wave tracking, timing, and analysis features means there are even more ways to use the supplies. New digital triggering between instruments also makes it possible to reliably combine and connect supplies together. Intuitive to use for everything from education labs to the R&D bench, the DP800 family of power supplies provide incredible value for any application.

  • 1 channel, 200 W.
  • Low ripple noise <350 µVeff/2 mVpp.
  • Excellent linear regulation rate and load regulation rate.
  • Fast transient response time: <50 µs.
  • OVP/OCP/OTP* protection functions.
  • Standard timing functions.
  • Built in V, A, W measurements and waveform display.
  • Support for output delay, analysis, monitor, and preset functions.
  • Independent control for each channel.
  • 3.5" (8.9 cm) colour TFT display. "Non-A" versions monochrome with 4 selectable colours (orange, green, blue, white).
  • Connectivity: USB host & device.

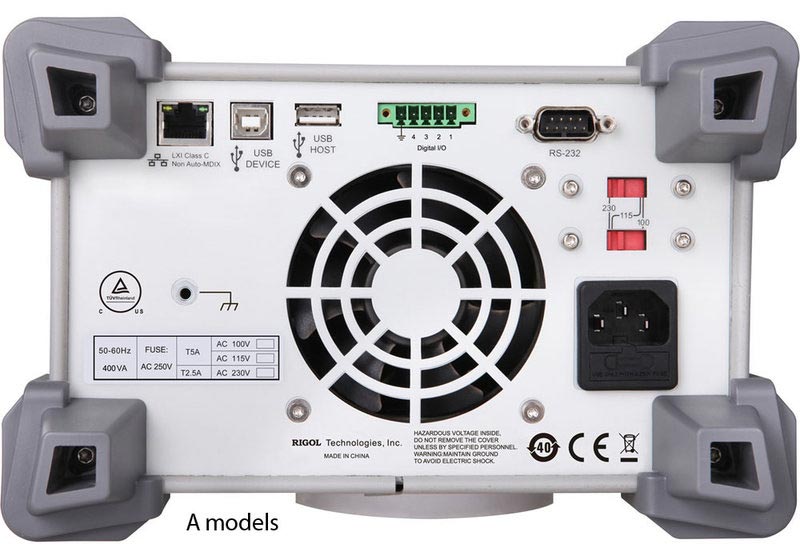

    Models "A" standard, and optional for "non-A" models: LAN, RS232, digital-I/O/trigger in/out.
    Optional USB-to-GPIB.

Model Overview

Model Channels Power Output specs OVP/OCP* Connectivity
DP811A 1 200 W 20 V/10 A low-range,
40 V/5 A high-range,
remote sense

Low-range: 0.1...22 V/0.1...11 A
High-range 0.1...44 V/0.1...5.5 A

USB Host & Device, LAN, RS232, digital-I/O/trigger In/Out.
Colour TFT

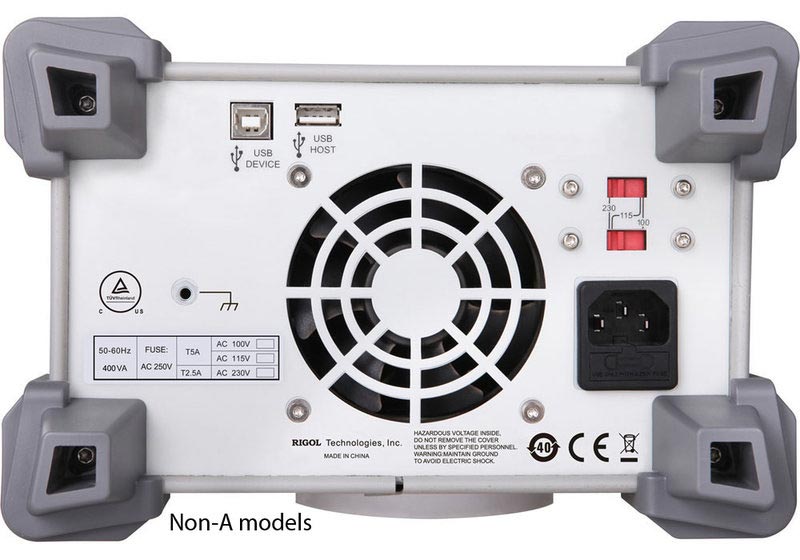

DP811 USB Host & Device, optional: LAN, RS232, digital-I/O/trigger In/Out.
Monochrome TFT

* Overvoltage, overcurrent, overtemperature protection.

Included: Power supply DP 811, power cable, USB cable, software/user manual via free download.
